Somfy Cord Lift WireFree TLW25 RTS (External Battery) (1003294)
Somfy Cord Lift WireFree TLW25 RTS (External Battery) (1003294)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

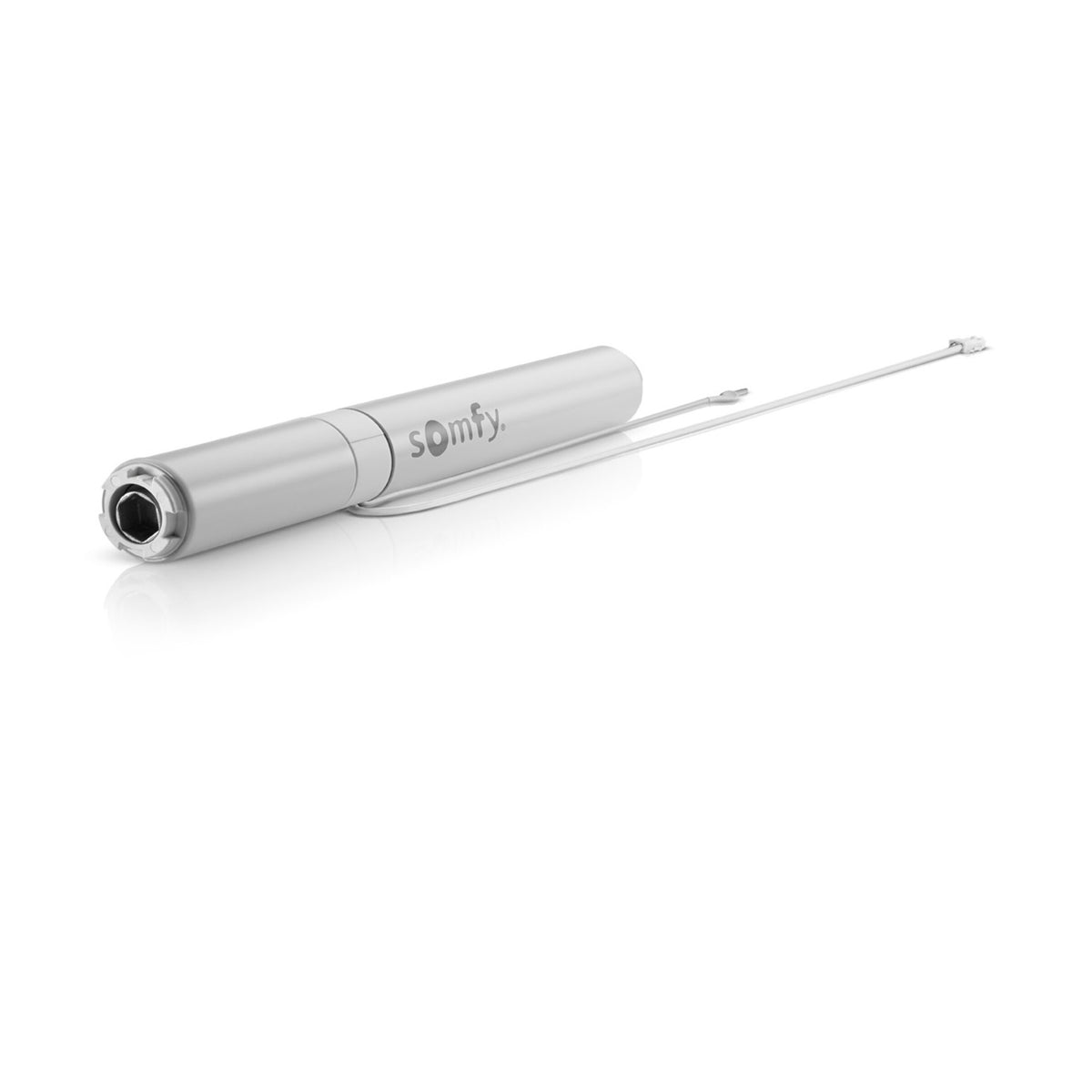

Cord Lift WireFree TLW25 RTS (External Battery) -- dual-shaft cord lift designed for silence
The TLW25 is Somfy's new-generation cord lift motor for cellular, pleated, Roman, and woven shade applications. Its compact dual-shaft design increases lifting capacity over previous cord lift motors while running noticeably quieter, and its discreet profile fits today's popular headrails.

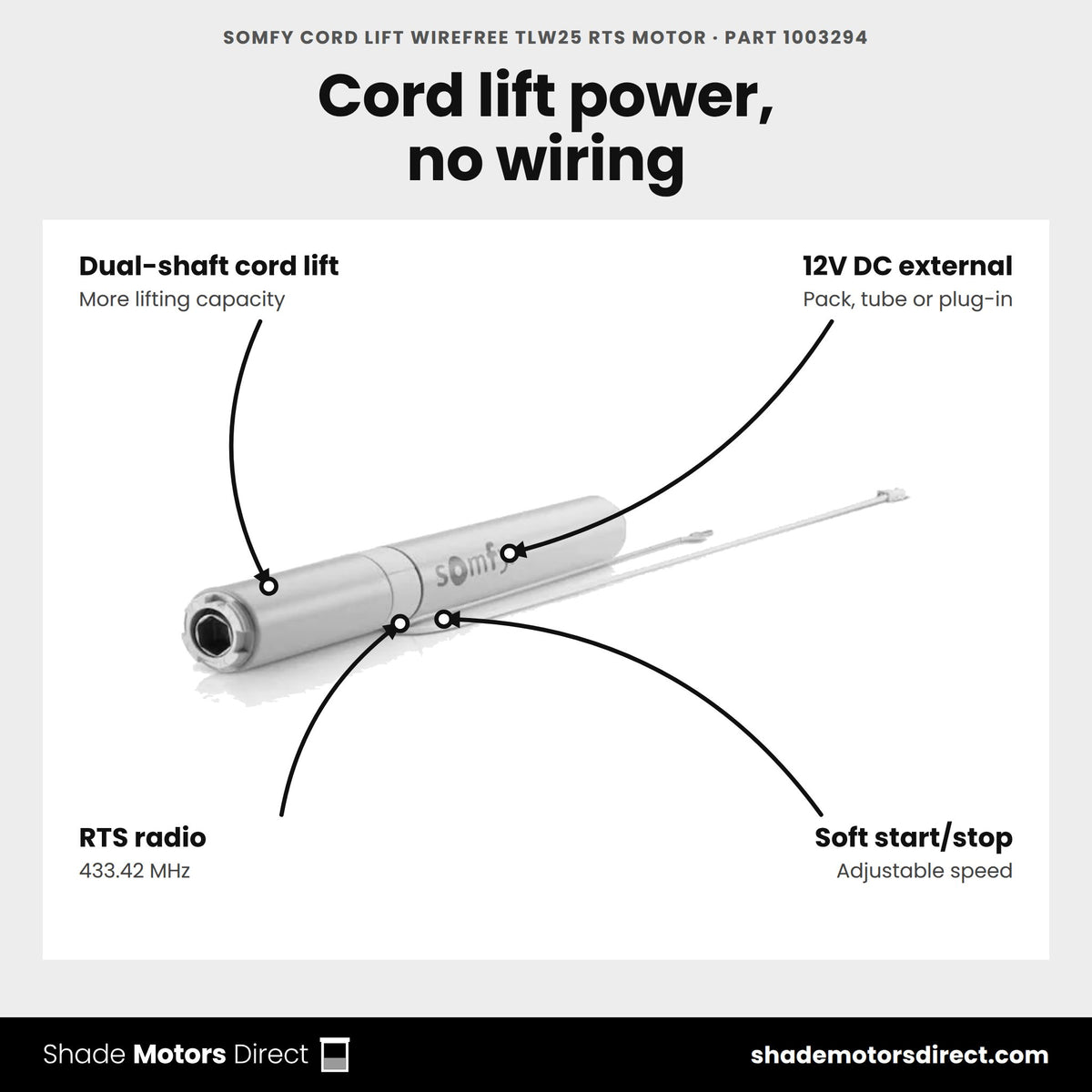

Benefits
- Powerful dual-shaft cord lift technology with increased lifting capacity
- Improved quiet performance for living spaces and bedrooms
- Battery operated with built-in power cable and integrated programming button
- Adjustable speed with soft start/stop activation
- Discreet design compatible with today's popular headrails
- Compatible with the Li-ion rechargeable battery pack, eliminating battery replacement
Specifications

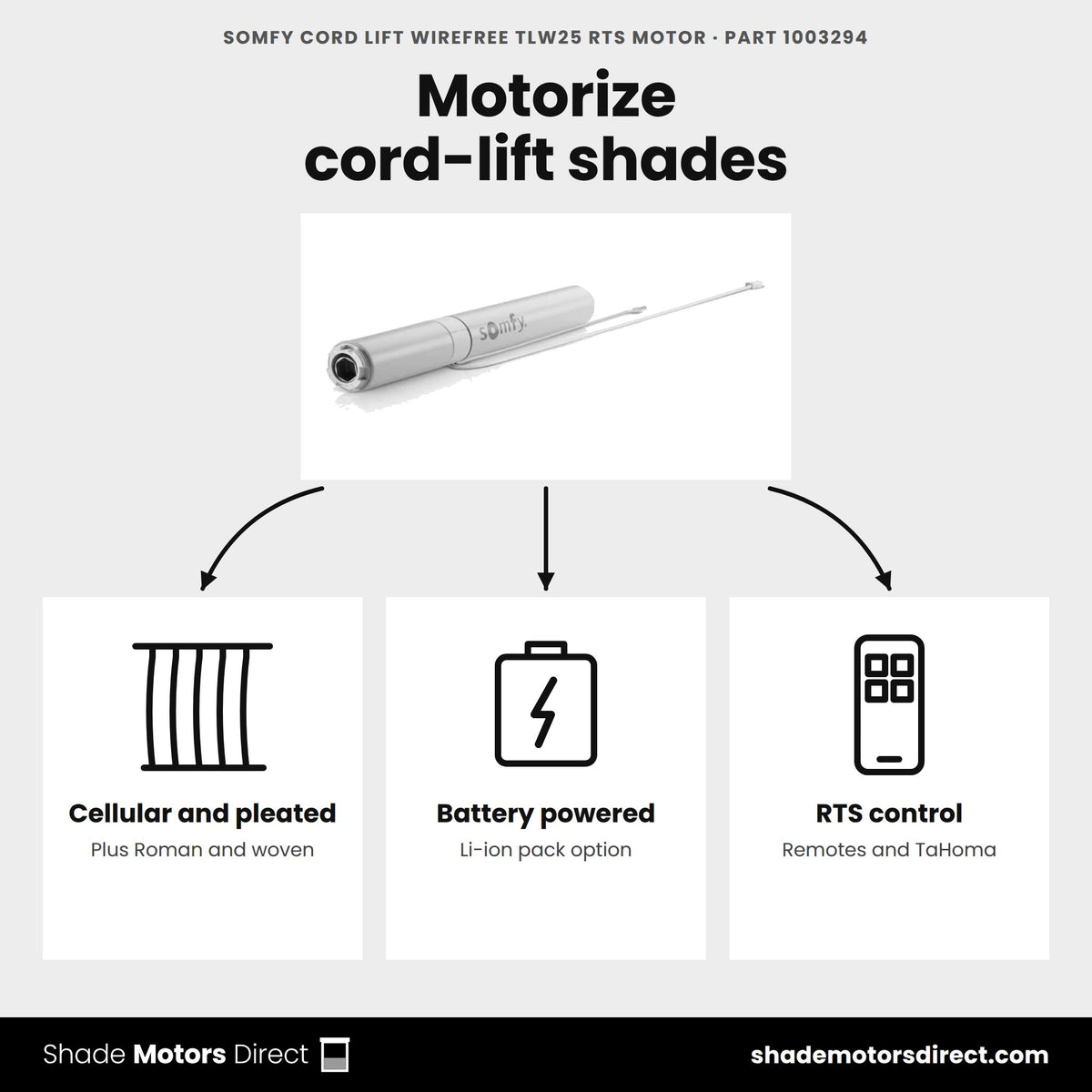

| Application | Cellular, pleated, Roman, and woven shades |
| Design | Compact dual-shaft cord lift |
| Power | 12V DC external battery (Li-ion pack, battery tube, or plug-in supply) |
| Control | RTS radio, 433.42 MHz |
Compatible with: Somfy RTS controls, Li-ion battery pack 9021217, reloadable battery tube 9018685, plug-in supply 1870940, TaHoma
Official Somfy documentation
- Cord Lift WireFree TLW25 RTS – Somfy Pro Product Page
- WireFree Databook (PDF)
- RTS Pocket Programming Guide (PDF)
- WireFree Power Supply Compatibility Matrix (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Cord Lift WireFree TLW25 RTS used for?
Part 1003294 is a Somfy dual-shaft cord lift motor for cellular, pleated, Roman and woven shades. It sits in the headrail, runs from an external 12V DC battery and has a built-in power cable and programming button, so the install needs no electrician.
What are its key specs?
Somfy rates the 1003294 at 0.8 Nm of torque and 30 rpm, with a noise level of 50 dB. The motor measures 7.76 in long and 0.94 in wide, and its electronic limits cover up to 100 turns.
How is it powered?
It accepts 9 V to 16.5 V DC from an external battery. The Somfy Rechargeable Lithium-ion Battery Pack (9021217) removes the need for battery swaps, and the Reloadable 12V DC Battery Wand (9018685) takes standard batteries.
Which remotes and switches work with it?
Any Somfy RTS transmitter, including the Situo 1 and Situo 5 Channel RTS Pure remotes (1870571, 1870575), the Telis 16 Channel RTS Pure remote (1811081) and DecoFlex RTS wall switches (1810813, 1810897). It stores up to 12 transmitters, with 656.2 ft of open-field range.
Can I control it from an app or a voice assistant?
Yes. Somfy says the TLW25 operates with simple voice commands through TaHoma, and a TaHoma Switch hub (1871037) adds app control and schedules. RTS is one-way radio, so the app sends commands but cannot report the shade's position.
Is it quiet enough for a bedroom?
Somfy rates the TLW25 at 50 dB and designed it for quieter running than earlier cord lift motors. Soft start and soft stop keep the shade moving without jolts, which suits bedrooms and living spaces.
Couldn't load pickup availability
Replace a cord lift motor or motorize a cellular shade for the first time.
Both jobs start at the headrail. The steps for each are below.
12- 1Hex drive Turns the tilt rod or lift drums.
- 2Motor body Sits inside the headrail.
Replacing a motor
-
1
Take the shade down
Lift the headrail out of its brackets and lay it flat.
-
2
Remove the old motor
Unhook the lift cords and lift the old motor out of the headrail.
-
3
Fit the new motor
Set the Cord Lift WireFree TLW25 RTS in the headrail and connect the lift cords.
-
4
Pair and set limits
Charge or connect the battery. Then pair your RTS remote and set the limits.
Tell us your shade brand and headrail size. We'll confirm the motor and adapter before you order. Ask us
Motorizing a shade
-
1
Check the headrail
Tell us the shade brand and headrail size. Some need an adapter.
-
2
Fit the motor
Set the Cord Lift WireFree TLW25 RTS in the headrail and connect the lift cords.
-
3
Add power
Mount the battery pack or power supply on or behind the headrail.
-
4
Pair and set limits
Charge or connect the battery. Then pair your RTS remote and set the limits.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

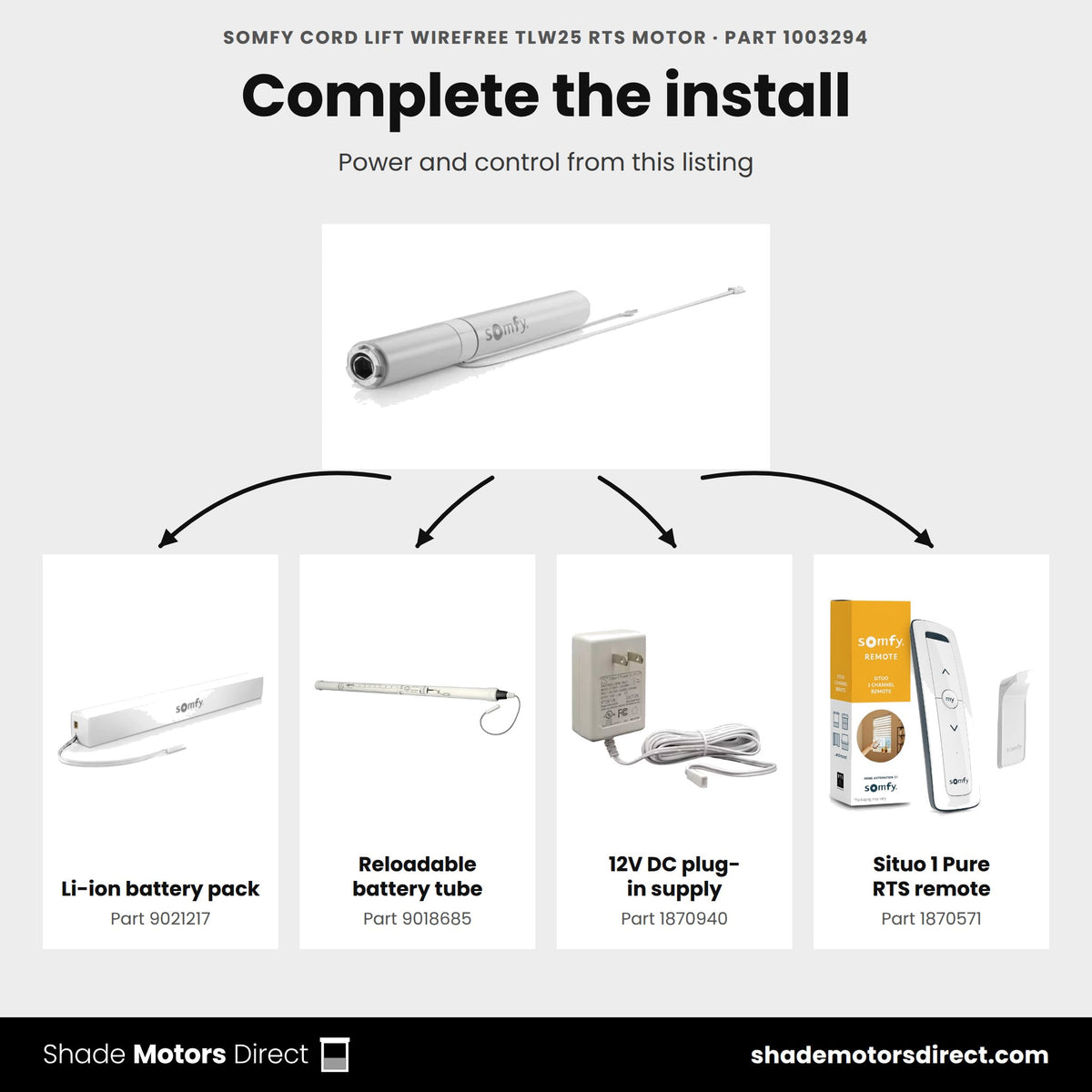

What the Cord Lift WireFree TLW25 RTS needs to run
Somfy lists every part below as compatible with part 1003294. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Power
Cables, chargers and power made for this motor.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Cord Lift WireFree TLW25 RTS for 5 years. We handle the claim.
Somfy warranty on the Cord Lift WireFree TLW25 RTS, part 1003294.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.

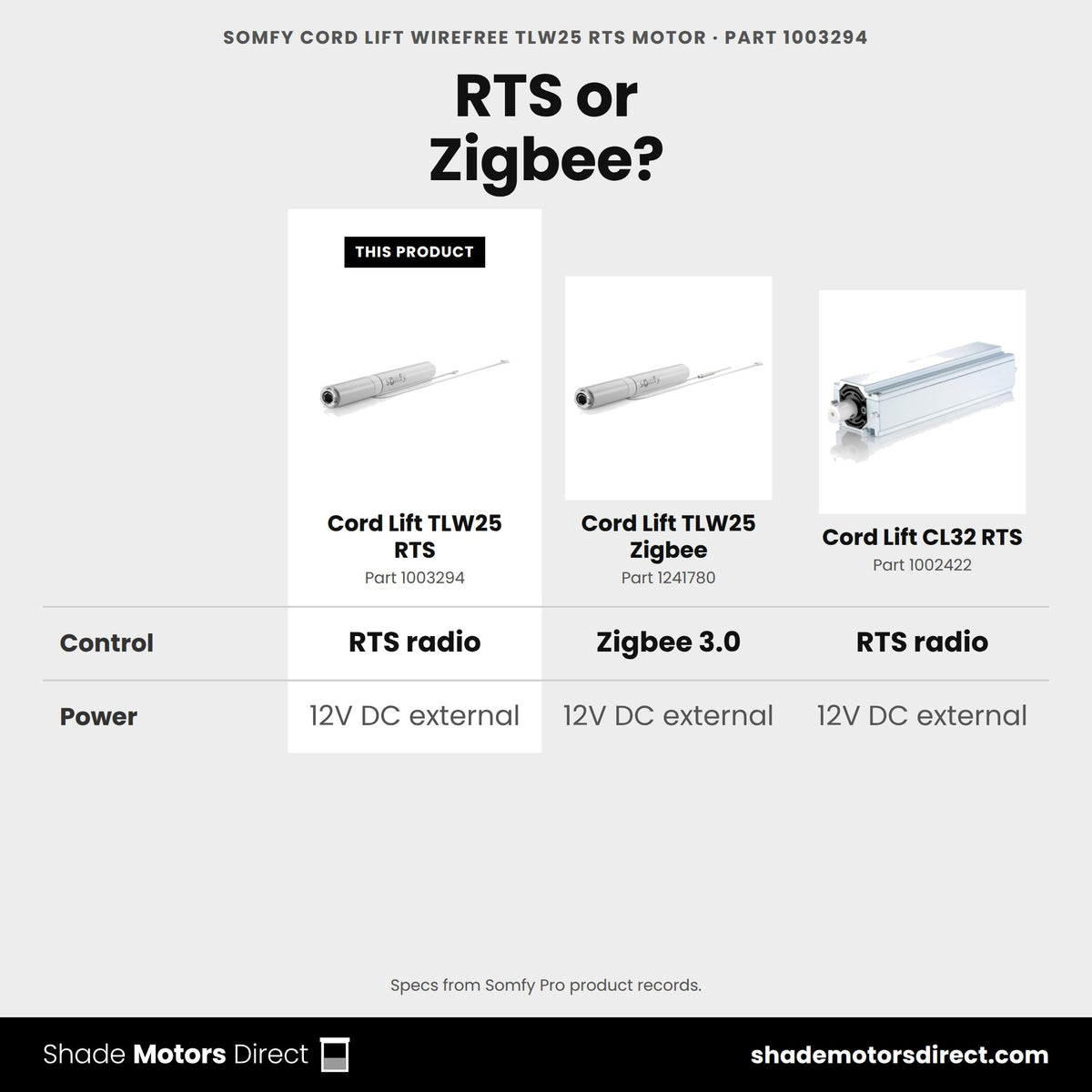

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Cord Lift WireFree TLW25 RTS (External Battery) (1003294)
|
Somfy Cord Lift WireFree CL32 RTS (External Battery) (1002422)
|
Somfy Cord Lift TLW25 WireFree Zigbee Motor, External Battery (1241780)
|
|---|---|---|---|
| Price | |||
| Torque (Nm) | — | 0.34 | 0.8 |
| Speed (rpm) | — | 72 | 30 |
| Max load (lb) | — | 15 | — |
| Control | RTS radio | RTS radio | Zigbee 3.0 |
| Power | 12V DC battery | 12V DC battery | External 12V DC (battery, solar or plug-in) |
| Motor family | Cord Lift TLW25 | Cord Lift CL32 | Cord Lift 25 |
| What's different | The product on this page | Close alternative | Same size, Zigbee 3.0 control |
| Buy | Currently viewing | View details | View details |
