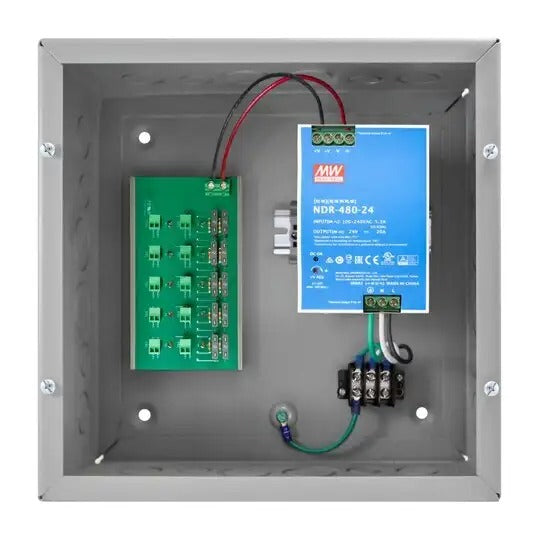

Somfy 24V Power Distribution Enclosure 10 Motors (1870192)
Somfy 24V Power Distribution Enclosure 10 Motors (1870192)
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Power distribution enclosure for up to 10 24V DC shade motors
This UL-listed power distribution enclosure supplies and fuses power for up to 10 Somfy 24V DC motors from a single input, reducing wiring cost and complexity on multi-motor RTS, DCT, or RS485 installations.
Benefits
- Single power input feeds multiple fused motor outputs
- LED indicator per output shows power status at a glance
- Each motor output is individually fused for protection
- Plug-in connectors for quick, tool-light installation
- Assembled unit in a UL-listed enclosure
Specifications
| Capacity | Up to 10 24V DC motors |
| Power supply | 120V AC / 60Hz input |
| Protection index | IP 20 |
| Insulation class | Class II |
| Color/Finish | Grey |
| Operating temperature | 41°F to 122°F |
| Approval | UL |
| Warranty | 5 years |
Compatible with: Sonesse 30 RTS/DCT/RS485/Zigbee 24V DC motors, Sonesse ULTRA 504 A8 DC RTS
Official Somfy documentation
- Low Voltage Databook (PDF)
- Power Distribution Enclosure Kits RTS Guide (PDF)
- Wiring Detail: ST30 DCT to Enclosure Kit (PDF)
- Wiring Detail: ST30 RTS to Enclosure Kit (PDF)
- Wiring Detail: ST30 V2 RS485 to Enclosure Kit (PDF)
- Wiring Detail: Irismo to Enclosure Kit (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this power distribution enclosure do?
It powers up to 10 Somfy 24V DC motors from one 120V AC, 60Hz input. Somfy built it for radio or dry contact 24V DC motors, so one device supplies the motor group and lowers installation cost.
Which motors can it power?
Somfy lists the Sonesse 30 RTS, DCT, RS485 and Zigbee 24V DC motors and the Sonesse ULTRA 504A8 DC RTS. In this store those include parts 1241142, 1241146, 1241144, 1241970 and 1134023.
How are the motors protected?
Each motor output is fused to protect the motors. The kit arrives as an assembled unit in a UL listed enclosure, and plug-in connectors come included to speed up the install.
Where should I mount it?
Somfy rates the enclosure IP 20 with Class II insulation and an operating range of 41°F to 122°F. IP 20 is an indoor rating, so plan for a dry space such as a mechanical room or equipment closet.
What if my project has a different motor count?
Somfy offers this enclosure in several sizes. The store also carries the 5-motor (1870196), 15-motor (1870197) and 20-motor (1870198) versions. This 10-motor kit carries a 5-year Somfy warranty.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 24V Power Distribution Enclosure 10 Motors (1870192)
|
Somfy 24V Power Distribution Enclosure 20 Motors (1870198)
|

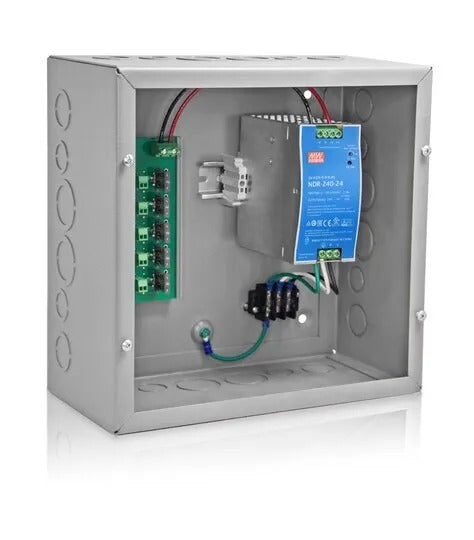

Somfy 24V Power Distribution Enclosure 5 Motors (1870196)
|
Somfy Data Hub V2 (1870951)
|
|---|---|---|---|---|
| Price | ||||
| Control | — | — | — | RS485 (SDN) |
| Power | 120V AC input | 120V AC input | 120V AC input | 24V DC bus |
| What's different | The product on this page | Close alternative | Close alternative | Same size, RS485 (SDN) control |
| Buy | Currently viewing | View details | View details | View details |
