Somfy Oximo RTS 525A2 Rolling Shutter Motor Fit Guide

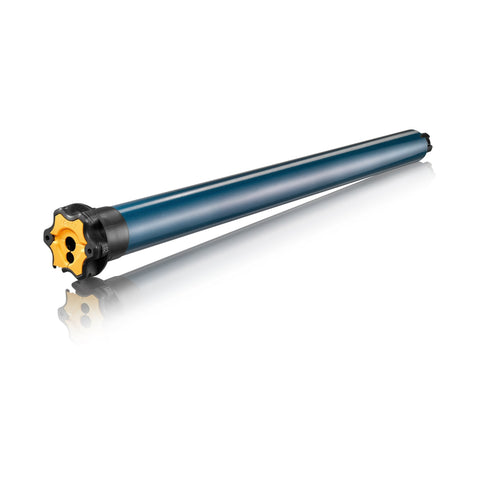

Somfy builds a separate motor line for rolling shutters, and this is it. The Somfy Oximo RTS 525A2 (1033402) carries 25 Nm at 20 rpm on the LT50 platform, with an RTS receiver inside the tube and a star head that seats in standard LT50 hardware.

Somfy lists one application for it: rolling shutters. That focus is worth reading as written when a quote covers several product types on the same elevation.

Legacy reference 1033035 points at the same motor

Somfy carried this motor under 1033035 before renumbering it to 1033402. Both numbers describe the same Oximo RTS 525A2.

The older number still circulates. A shutter installed six or eight years ago carries it on the label, distributors list it on legacy pages, and a service quote written from that paperwork will show it. Order against either reference and the motor arriving is the same one.

Note the number when you service a unit. A shutter box opened in ten years is easier for the next technician when the current reference is written inside the head.

Verified specifications

Figures come from Somfy's published product record for 1033402. Somfy also publishes a 40.4 kg CO2 lifecycle footprint.

Three wires and a shutter box

The receiver sits inside the motor, so the run to the box carries line, neutral, and ground. Nothing else.

On a shutter that matters more than it does on an interior shade. A shutter box sits above the opening on the outside of the building, often behind a finished reveal, and every extra conductor is another penetration to seal. Power arrives once and the radio handles the rest.

Standby draw is 0.37 W, which is the cost of a receiver listening around the clock. Across a house with eight shutters that is 3 W continuous, and across a facade with sixty it becomes a line worth writing into an energy model.

Two hundred turns of limit capacity

Limits are electronic, set from an RTS transmitter, with 200 turns between the open and closed stops.

An installer sets them standing at ground level. That is the difference that pays for itself on exterior work, since a shutter box eight feet up is a ladder trip every time a mechanical limit drifts. Somfy's electronic limits hold through a power cut, so an outage does not send anyone back up.

Two hundred turns covers a tall residential shutter comfortably. Check it against the shutter fabricator's roll-up calculation on anything unusually tall before the order goes in.

Crown and drive for an octagonal tube

Rolling shutter tubes are octagonal, measured across the flats rather than corner to corner. The crown centers the motor and the drive hands rotation to the tube wall, and both parts belong to the profile.

A 70 mm profile takes the Somfy Octagonal LT50 70mm Crown and Drive Set (9012234), and a 60 mm profile takes the Somfy Octagonal LT50 60MM Crown/Drive Set (9012233). A deep-section 78 mm tube takes the Somfy LT50 DS78MM Crown and Drive Set (9012239).

Confirm the inside dimension clears 1.85 in before hardware ships. A photograph of the tube end with a rule laid across it settles the order faster than a part number copied off an old invoice.

Brackets for the star head

The head is the LT50 star, so the bracket has to be cut for that shape. The Somfy LT50 Star Head Motor Bracket (9410651) is the plate built for it.

On a retrofit into an existing shutter box, the Somfy LT50 Universal Bracket with Spring Clip (9420631) lets the motor clip into place without cutting new holes in the box.

Put the bracket on the same order as the motor. Shutter boxes run tight, and a bracket that arrives a week later holds up an install that was otherwise ready to go.

Control at the opening

The motor memorises 12 transmitters, so a handheld and a wall control can share one shutter. A Somfy Situo 1 Channel RTS Pure Remote (1870571) programs the limits and then becomes the owner's handheld.

Clients who want something fixed by the door take the Somfy Maintained Rocker Switch Kit with Standard Plate in White (1800342), which fits a standard plate and pairs to the same motor.

Adding a TaHoma hub later brings the app, sun and time schedules, and voice to the same shutter. Nothing in the box changes and the handheld keeps working.

Ordering

Confirm the tube profile and its inside diameter against the 1.85 in minimum, then order the Oximo RTS 525A2 (1033402) with a crown and drive matched to the profile, a star head bracket, and one RTS transmitter for commissioning. Somfy covers the motor for 5 years.

Questions we get on this motor

What is the difference between Oximo and Altus RTS?

Both are LT50 motors at 25 Nm and 20 rpm with a star head, a built-in RTS receiver, and a 1.85 in minimum tube. Somfy lists the Altus RTS 525A2 across awnings, screens, shutters, and interior blinds, and lists Oximo for rolling shutters. Oximo publishes 200 turns of limit capacity against the Altus figure of 250.

What does legacy reference 1033035 mean?

Somfy carried this motor under 1033035 before renumbering it to 1033402. Older labels, service paperwork, and distributor pages still carry the earlier number, and both point at the same Oximo RTS 525A2 motor.

Does the Oximo RTS need a control wire?

No. The RTS receiver sits inside the motor, so the run to the shutter box is 120V power on a 3-wire cable. Limits get set from a handheld, and the motor memorises 12 transmitters, which lets a remote and a wall switch share one shutter.

Can an Oximo shutter run on a schedule?

Yes. A Somfy TaHoma hub brings sun and time schedules and voice control to RTS motors already installed, and a Telis 1 Chronis RTS timer runs a daily schedule without a hub. The shutter hardware stays as it was installed.
