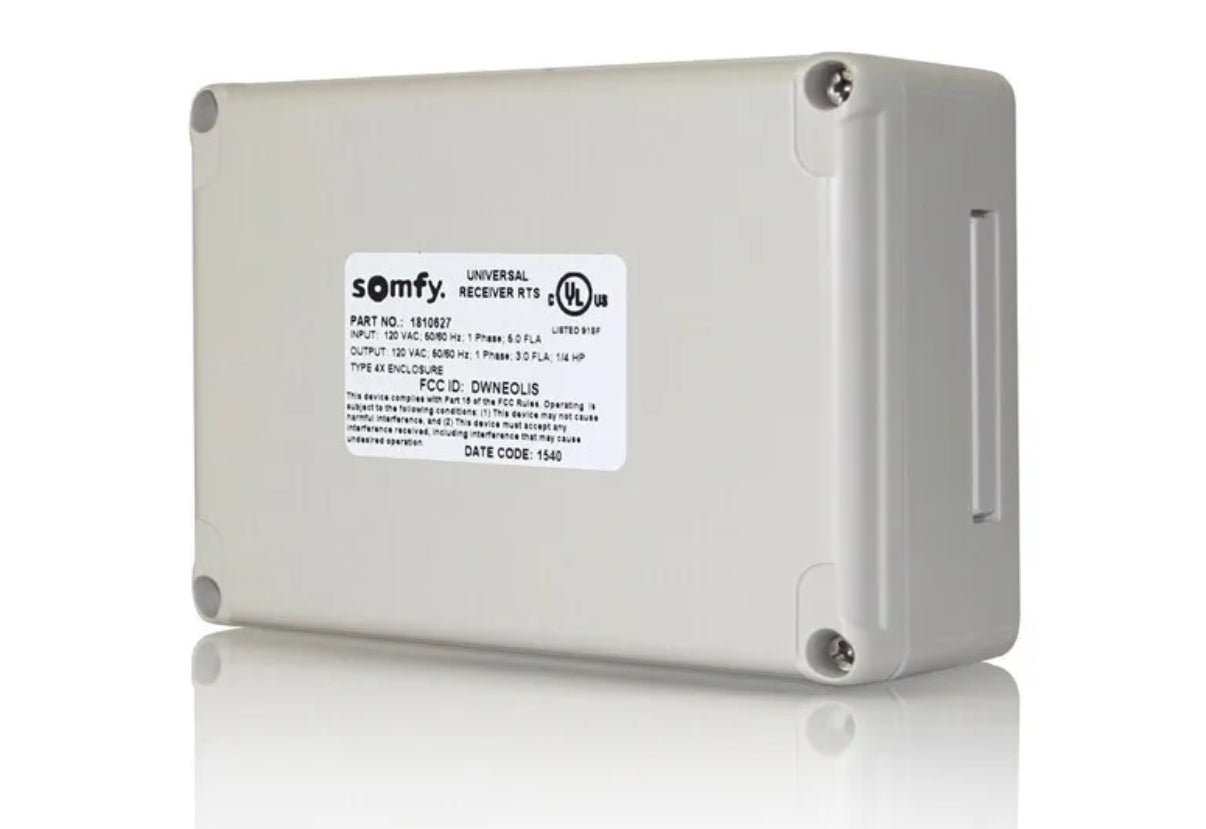

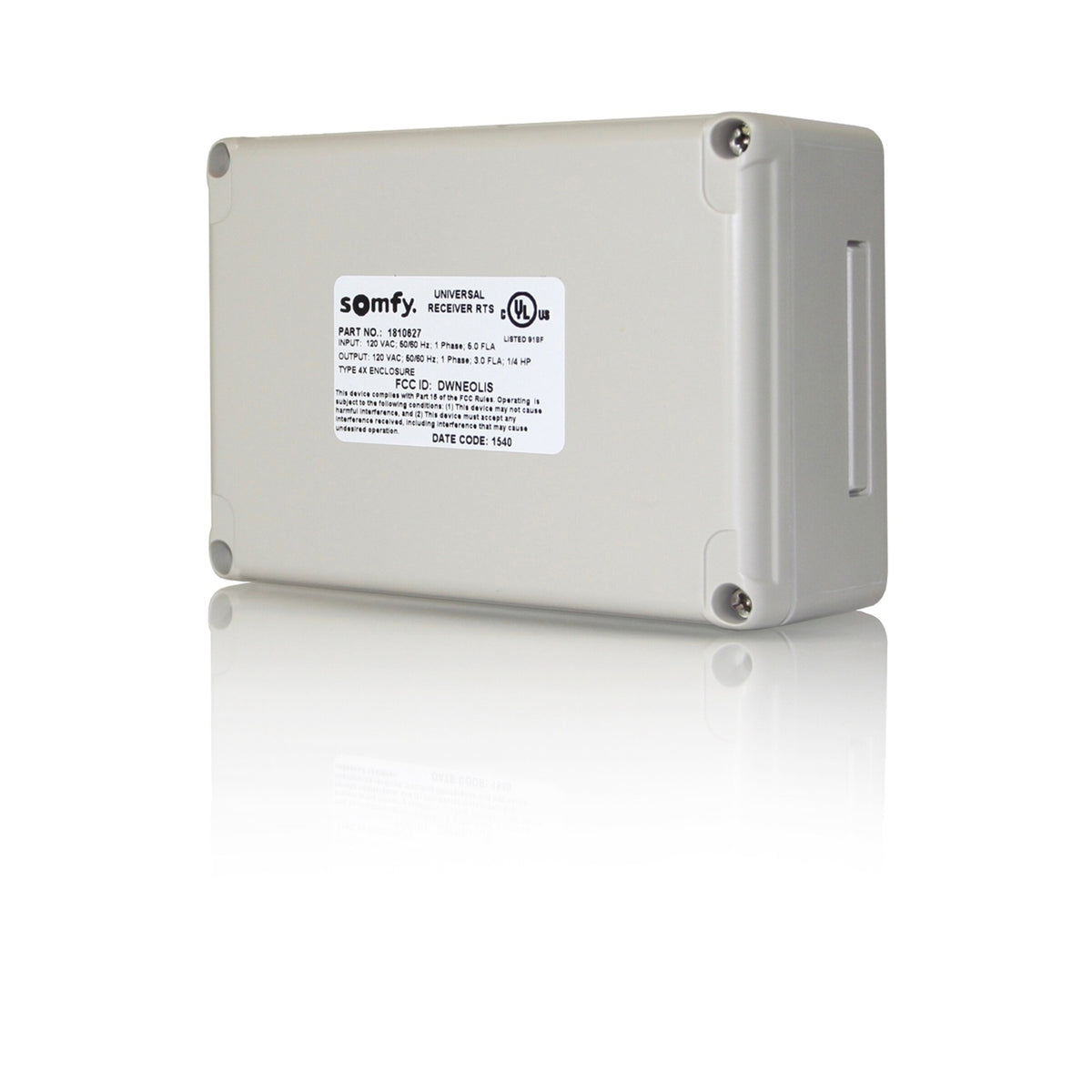

Somfy Universal RTS Receiver (For 110V AC Motors) (1810627)
Somfy Universal RTS Receiver (For 110V AC Motors) (1810627)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Universal RTS Receiver -- adds RTS wireless control to standard 110V AC motors

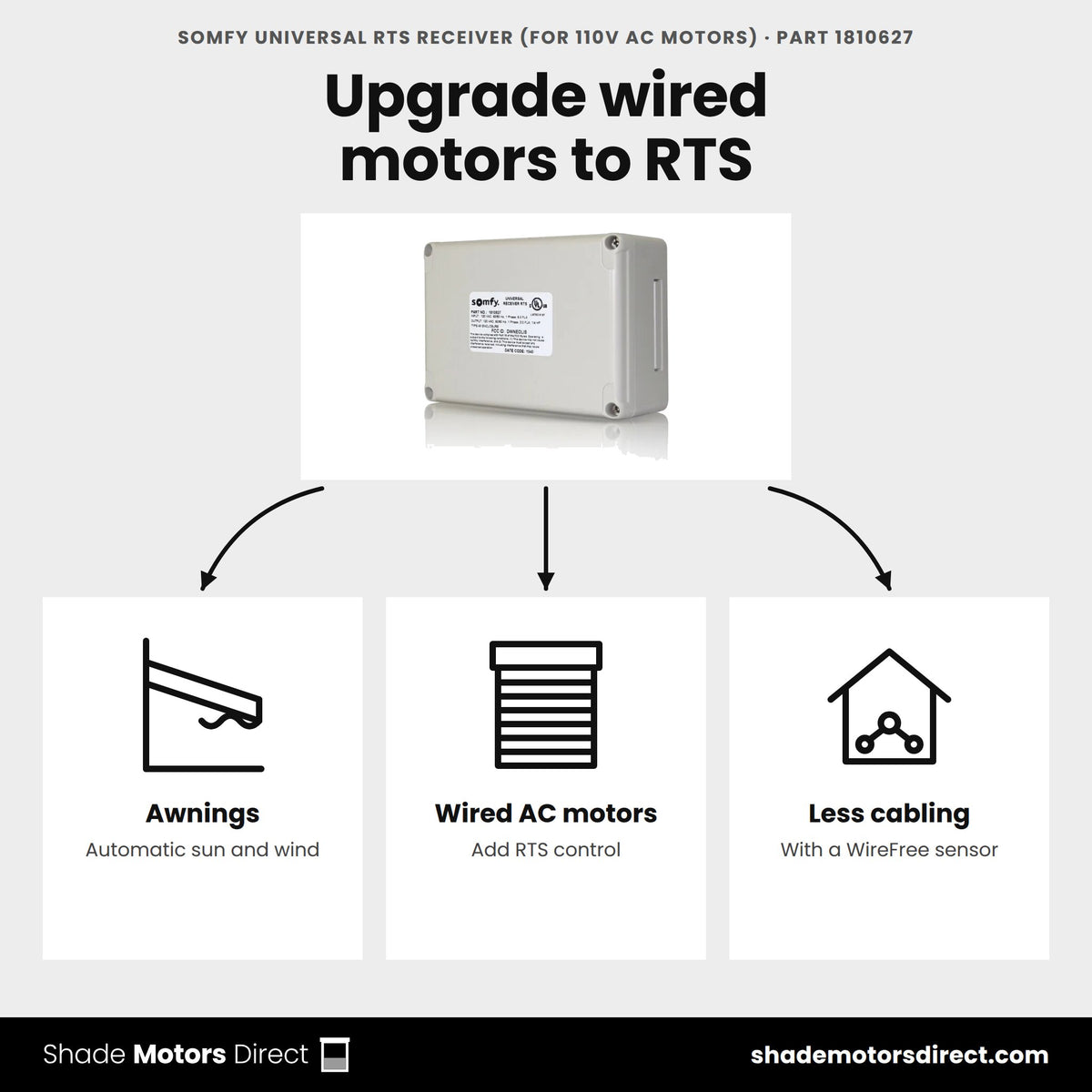

This receiver converts a standard 110V AC hardwired motor into an RTS wireless system, so an existing shade, awning, or drapery motor can be controlled by remote, wall switch, or sensor without replacing the motor itself.
Benefits
- One receiver handles wind, sun, and RTS control for wired or RTS motors
- Works standalone or paired with RTS sun/wind sensors (Eolis, Soliris, Sunis) for automatic operation
- Compact, discreet enclosure for facade-mounted installs
- Less cabling required when paired with a wirefree sensor

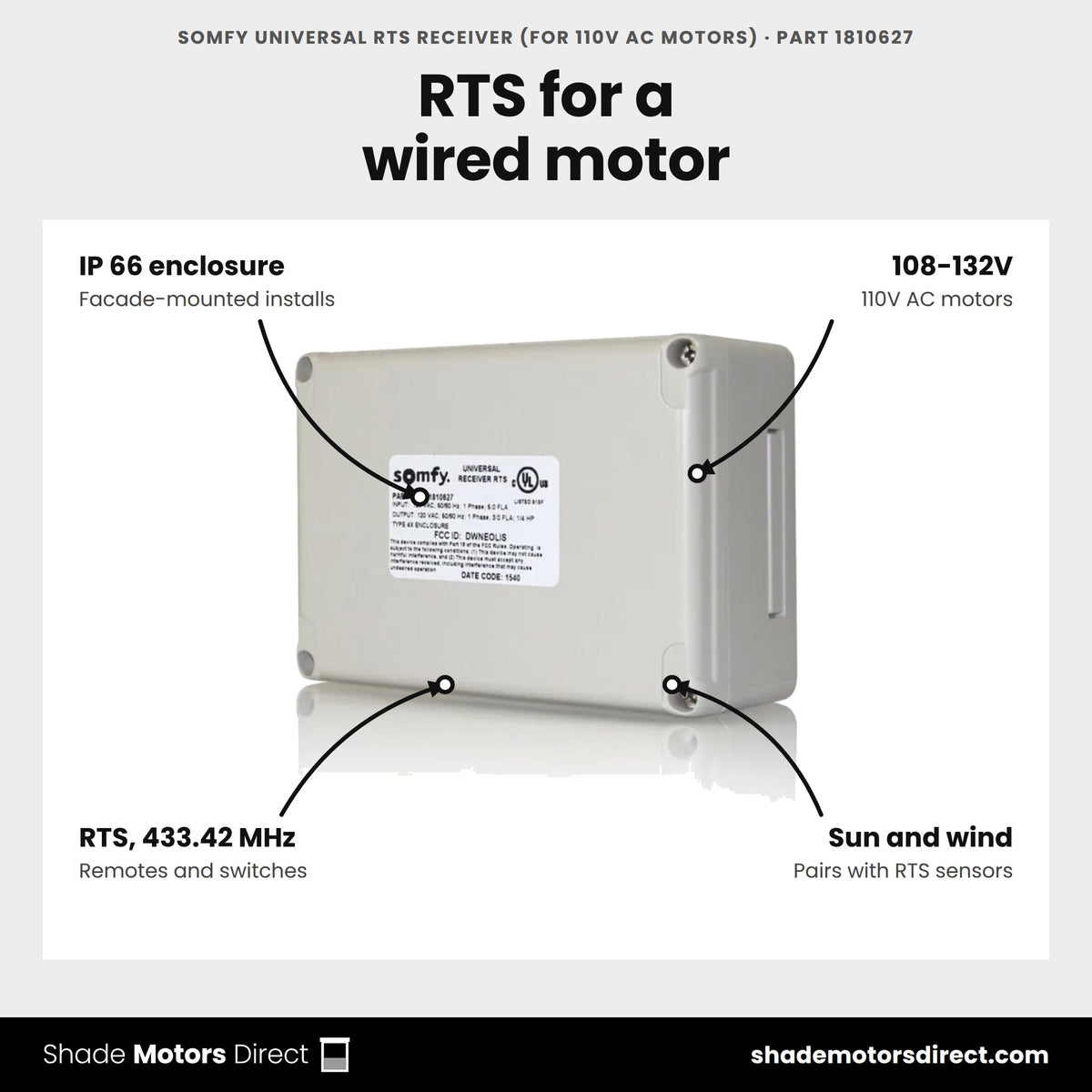

Specifications
| Protection Index | IP 66 |
| Insulation class | Class II |
| Radio Frequency | 433.420 MHz |
| Voltage | 108-132V |
| Color | Alpine White |
| Warranty | 5 years |
Compatible with: Standard 110V AC hardwired shade/awning motors, Eolis/Soliris/Sunis RTS sensors
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Universal RTS Receiver do?
Part 1810627 adds Somfy RTS radio control to a standard 110V AC wired motor. Once you wire it in, the motor answers to RTS remotes, wall switches and sensors, and the existing motor stays in place.

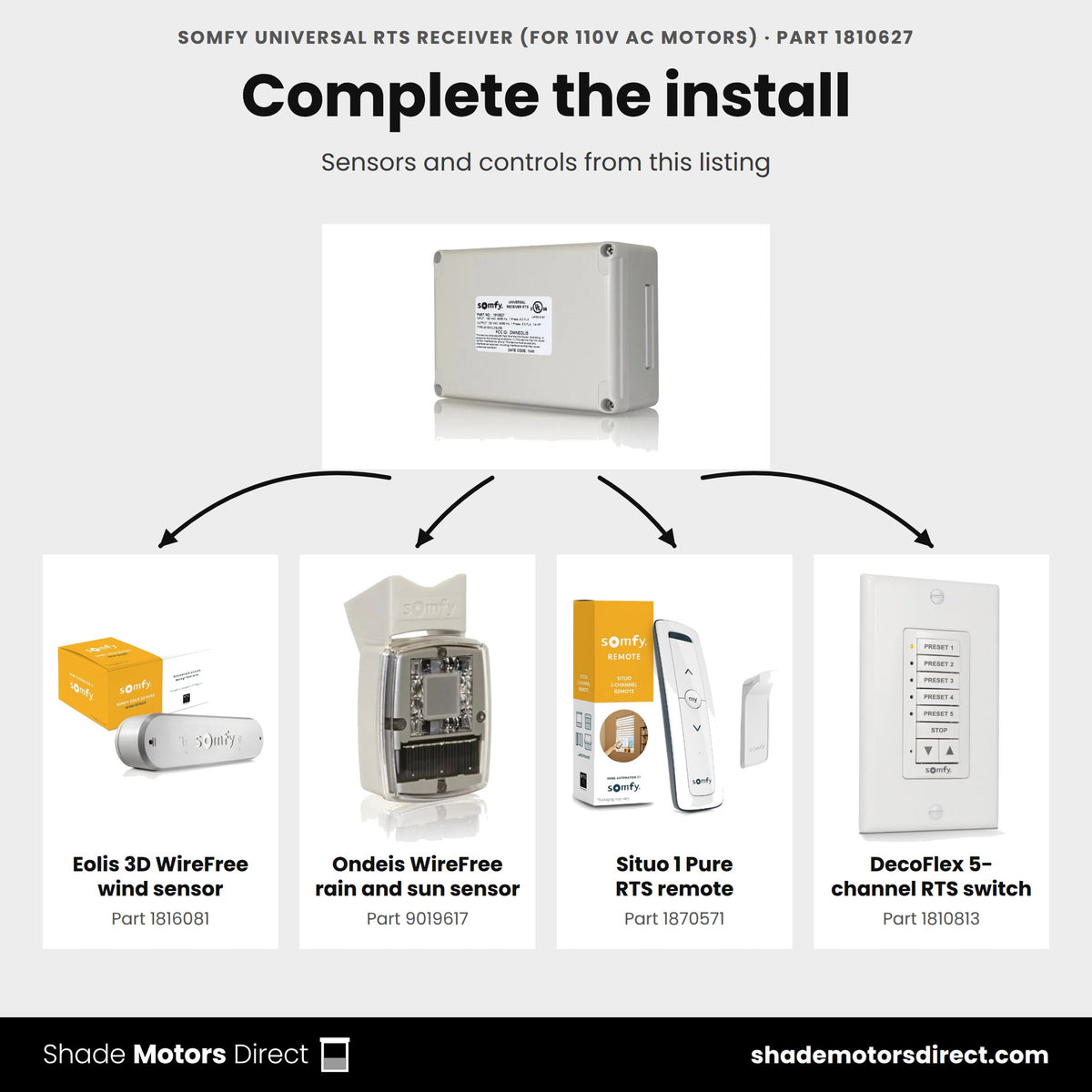

Which remotes and wall switches pair with it?
Somfy RTS transmitters on 433.420 MHz pair with it. Examples in this store include the Situo 5 Channel RTS Pure Remote (1870575), the Telis 16 Channel RTS Pure remote (1811081) and the DecoFlex 5 Channel RTS wall switch (1810813).
Can it run an awning on sun and wind?
Yes. Somfy lists the Eolis, Soliris and Sunis RTS sensors as compatible. Pair a sensor such as the Sunis WireFree RTS Sun Sensor (9020412) or the Eolis 3D WireFree RTS Wind Sensor (1816081) for automatic awning protection.
Can it be mounted outdoors?
Yes. Somfy rates the enclosure IP 66 with Class II insulation and a working range of -4 °F to 140 °F. That makes it a fit for facade mounting next to an awning or exterior screen.
What power does it need?
It runs on 120V/60Hz, with a Somfy input range of 108 V to 132 V. Somfy rates the output contact at 115V AC 0.5A max, so compare that rating with the motor's rated current before you wire it.
Can I control it from my phone?
Yes, through a Somfy TaHoma hub such as the TaHoma Switch (1871037). RTS is one-way radio, so the app sends commands but does not report the shade's position.
Couldn't load pickup availability

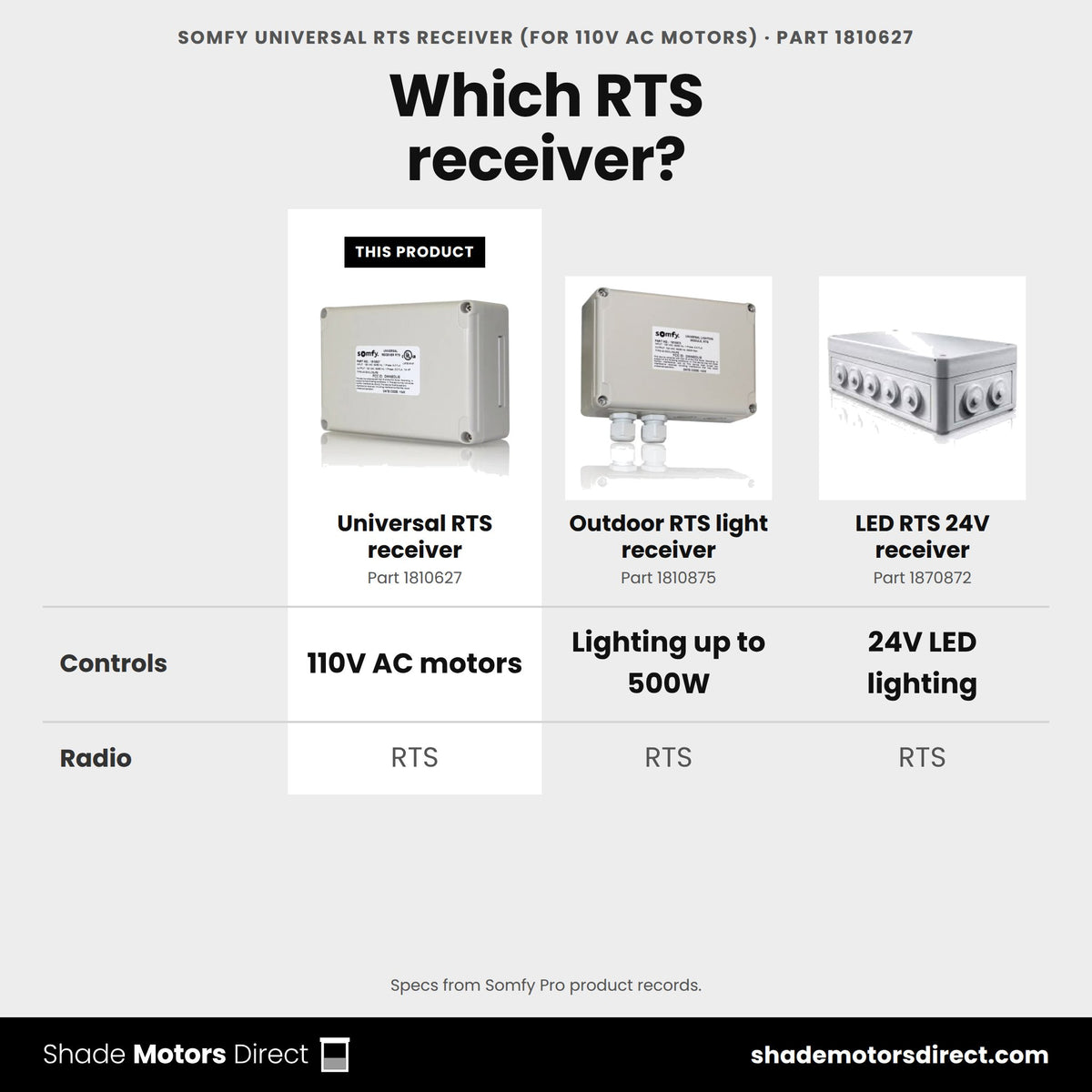

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Universal RTS Receiver (For 110V AC Motors) (1810627)
|
Somfy LED 12V DC HZ Receiver (2008405)
|

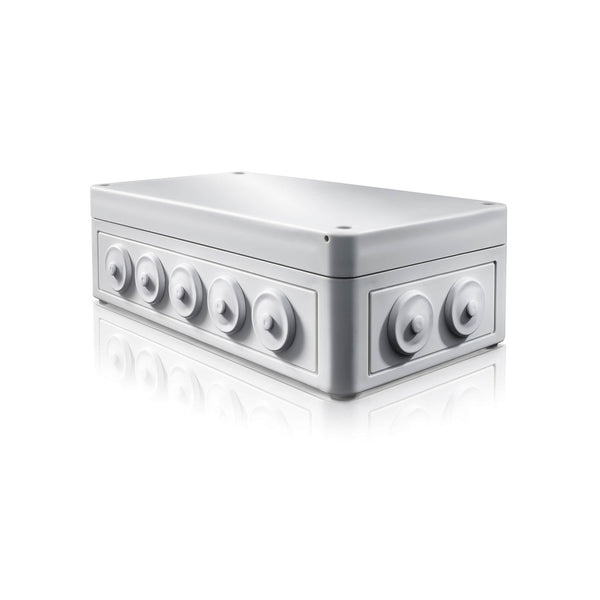

Somfy LED RTS 24V DC Receiver (1870872)
|

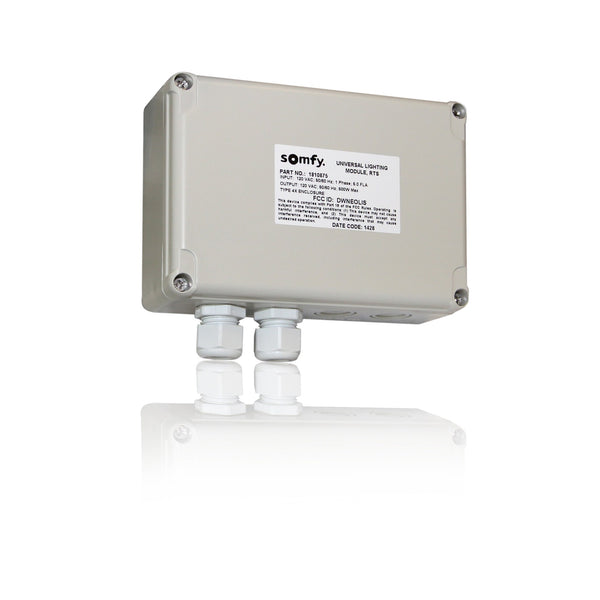

Somfy Outdoor RTS Light Receiver (500W) (1810875)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS radio | Hz radio | RTS radio | RTS radio |
| Power | 110V AC | 12V DC | 24V DC | — |
| What's different | The product on this page | Same size, Hz radio control | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
Guides for this product

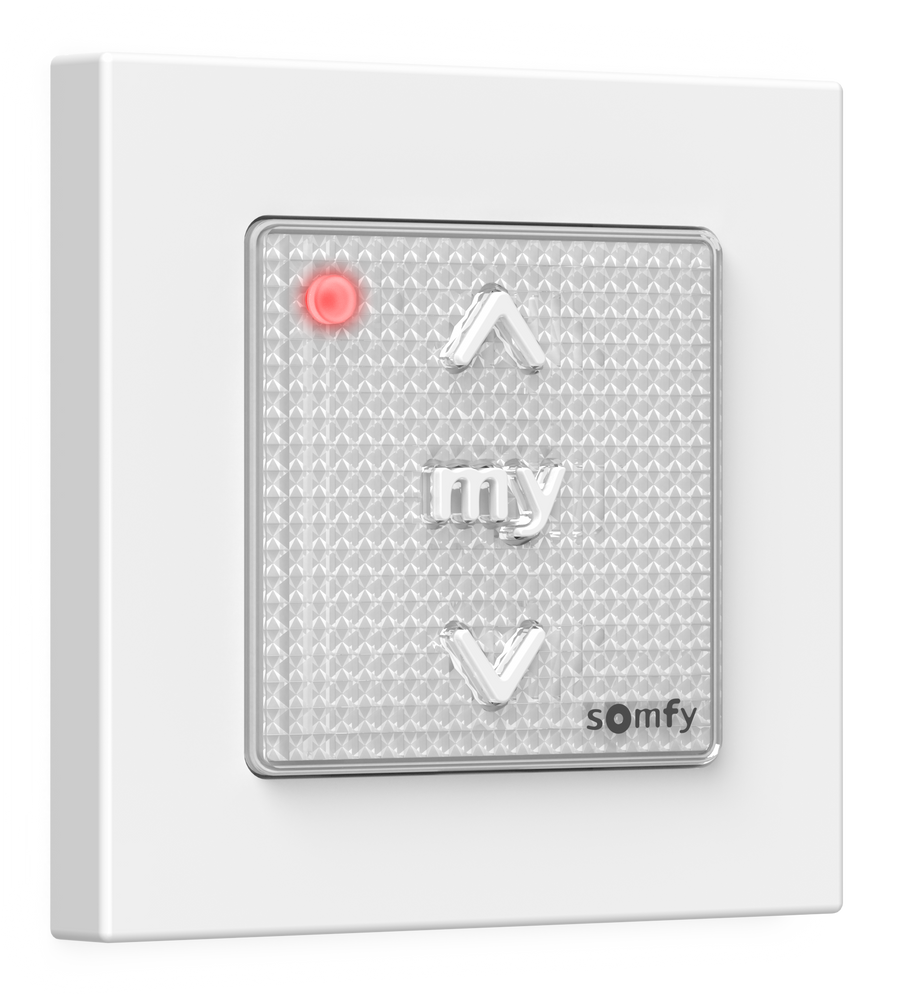

Somfy Smoove Wall Switch Guide for the Smoove 1 RTS Pure II
