LED RTS 24V DC Receiver -- 4-zone RTS-controlled LED lighting driver

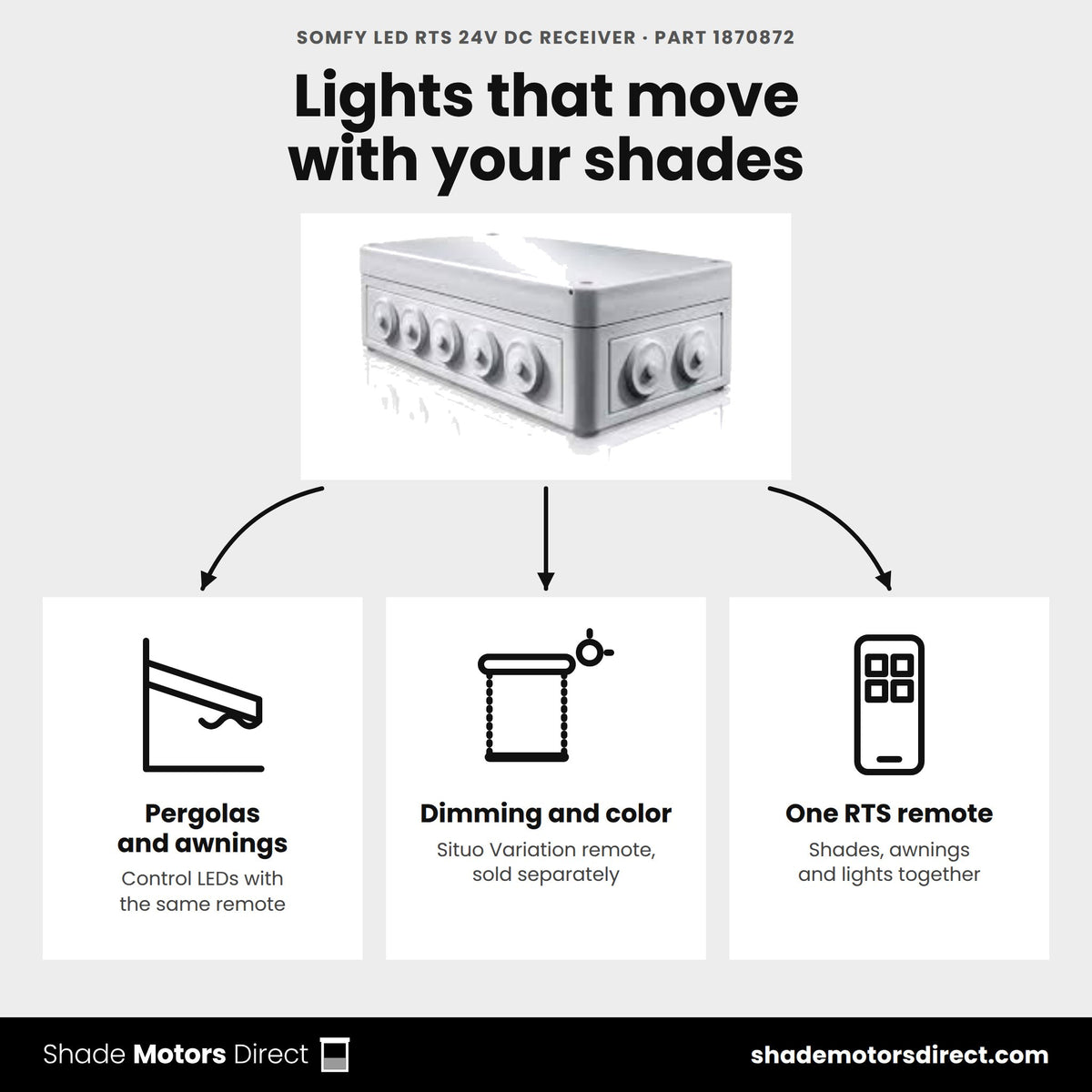

This receiver drives up to 4 independent 100W zones of 24V DC LED lighting (or one RGB+1 zone) from the same RTS transmitters used for your pergolas, awnings, screens, shades, and shutters -- covering large-zone lighting needs from a single control ecosystem.
Benefits

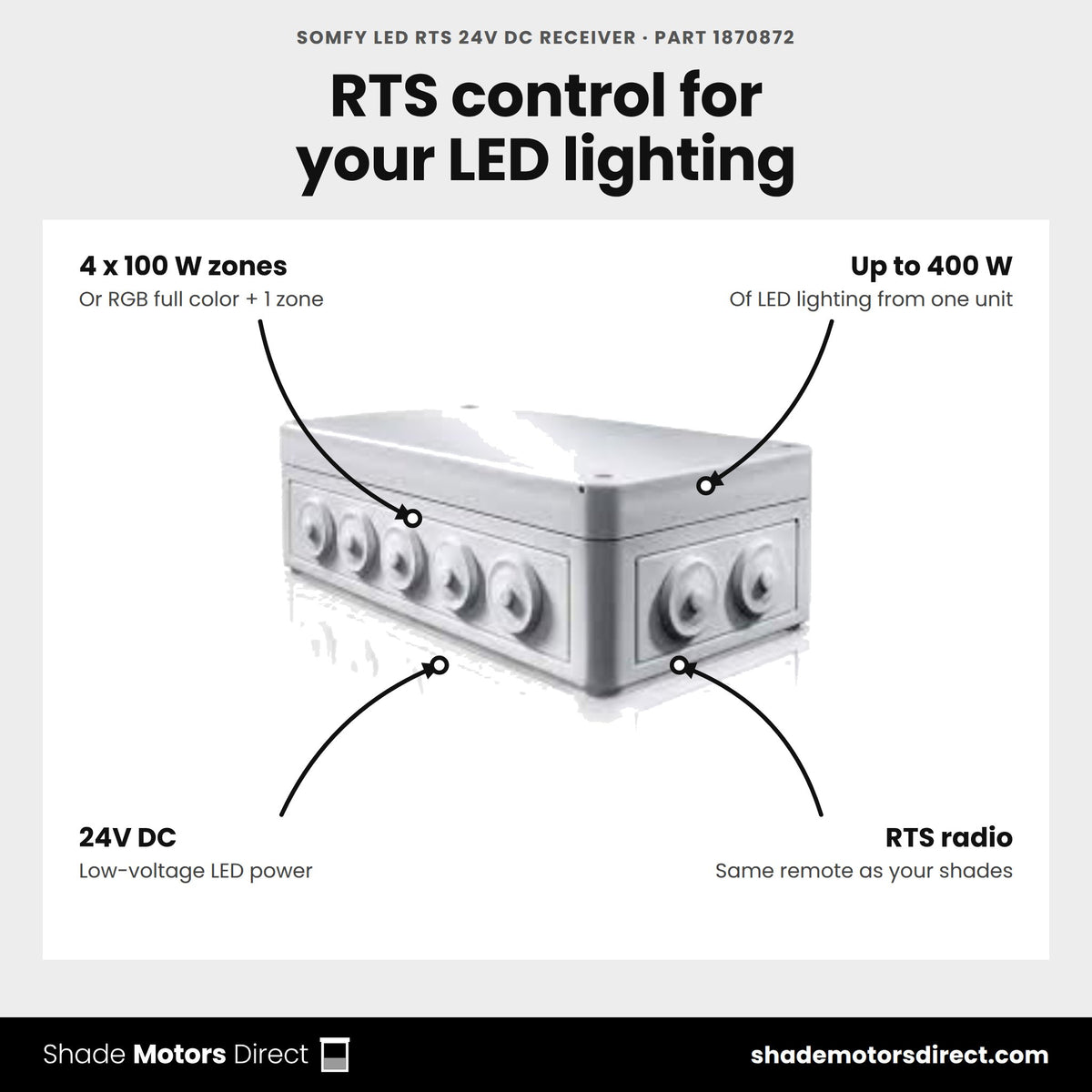

- 4 independently dimmable 100W outputs, or RGB full-color + 1 single-color zone
- Up to 400W of LED lighting controlled from one unit
- Controlled by the same RTS transmitter as your shades, awnings, and pergolas
- Incremental light-level and color control via the Situo Variation remote
Specifications
| Power | 24V DC |
| Zones | 4x 100W (or RGB+1) |
| Control | RTS |
| Warranty | 5 years |
Compatible with: 24V DC LED lighting zones, Somfy RTS remotes (Situo Variation for dimming)
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the LED RTS 24V DC Receiver do?
It controls 24V DC LED lighting from Somfy RTS transmitters, the same ones that run pergolas, awnings, screens and shades. Part 1870872 gives one remote command over both lights and window coverings.
How many lighting zones does it support?
It provides 4 separate dimmable outputs at 100W each, for up to 400W of LED lighting per receiver. Or run it as one RGB full-color zone plus one single-color zone.
Which remotes control the lights?

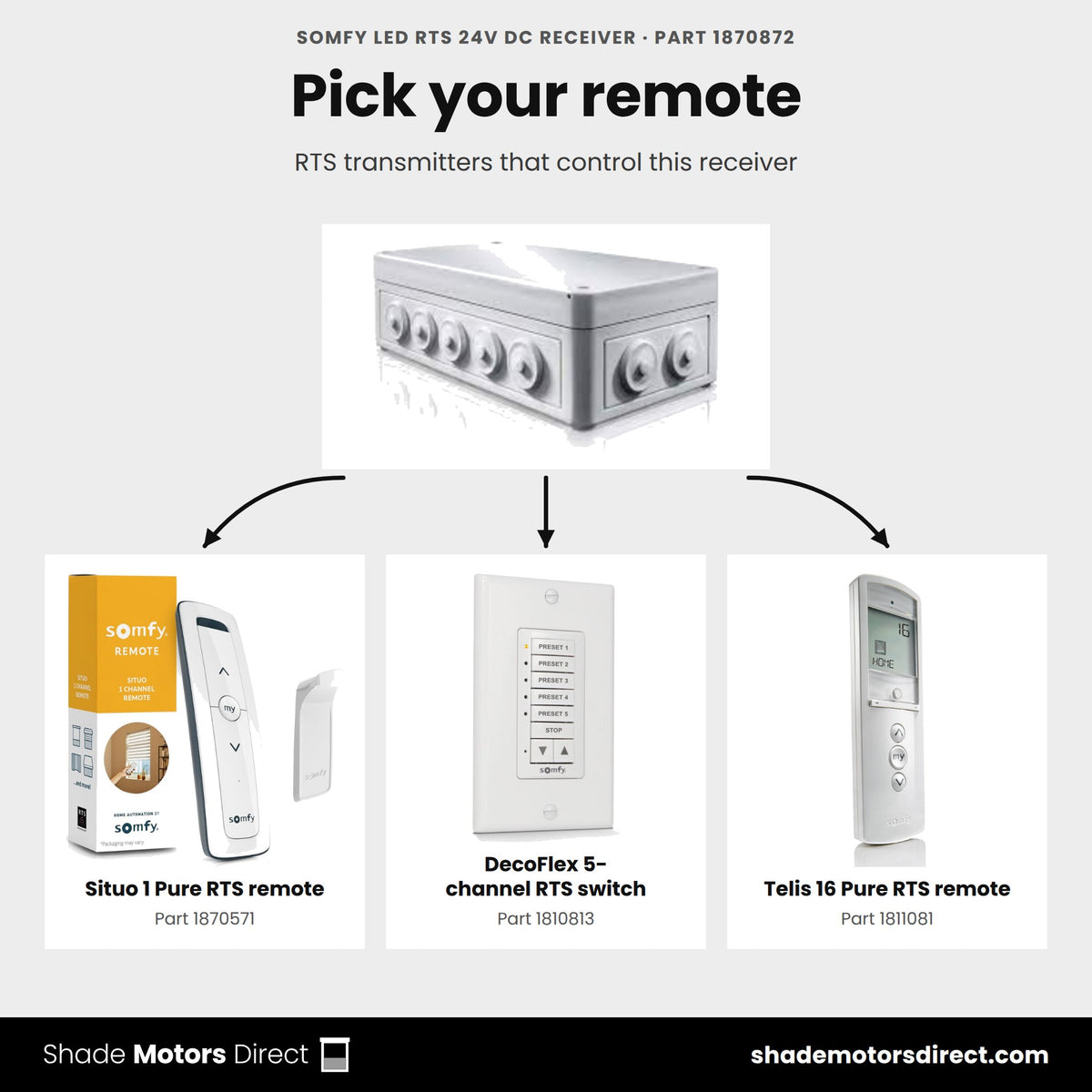

Any standard Somfy RTS transmitter controls light level and color. The Situo Variation remote adds incremental control, and the Situo 5 Variation RTS Pure II Remote (1811612) fits that role. A favorite my setting stores a preferred level.
What lighting effects does RGB mode offer?
In RGB mode, the receiver supports mood lighting with dimming, flashing and color-shifting on one full-color zone. The fourth output stays available for a single-color zone of up to 100W.
Is it rated for outdoor use?
Yes. Somfy rates it at IP 65, and it has a built-in antenna plus an optional remote antenna for reliable radio reception on 433.420 MHz. Somfy lists it as compatible with Pergola Tilt 24V motors.
What power does it need?
It runs on a 24V DC supply, and Somfy lists 45W of consumption in operation with 0W on standby. Size the supply for the LED load you connect, up to 100W per output.
Couldn't load pickup availability

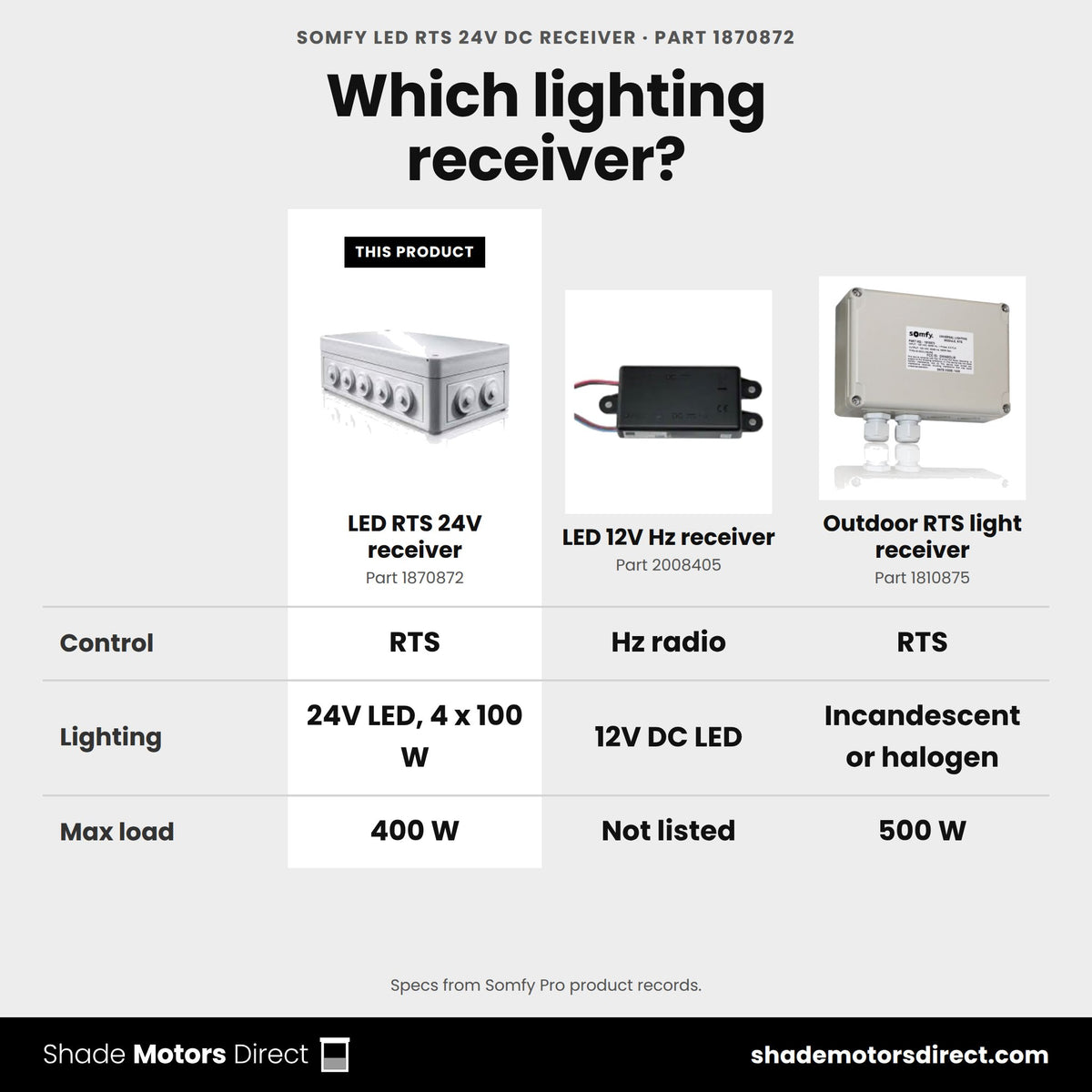

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LED RTS 24V DC Receiver (1870872)
|
Somfy LED 12V DC HZ Receiver (2008405)
|
Somfy Outdoor RTS Light Receiver (500W) (1810875)
|
Somfy Pergola 12V/24V 2-motor RTS Receiver & Antenna Kit (1870488)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS radio | Hz radio | RTS radio | RTS radio |
| Power | 24V DC | 12V DC | — | 12-24V DC |
| What's different | The product on this page | Same size, Hz radio control | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
