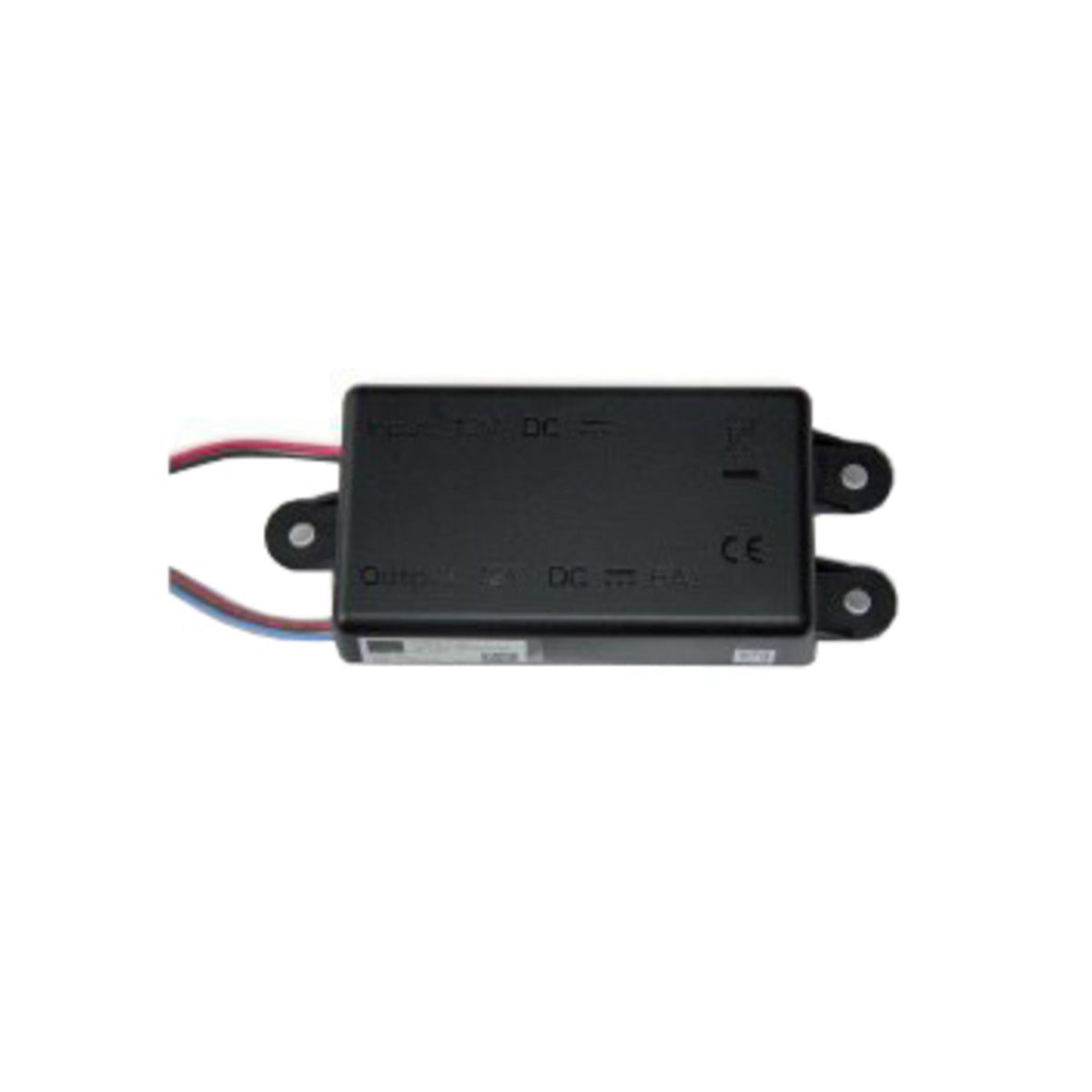

Somfy LED 12V DC HZ Receiver (2008405)
Somfy LED 12V DC HZ Receiver (2008405)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

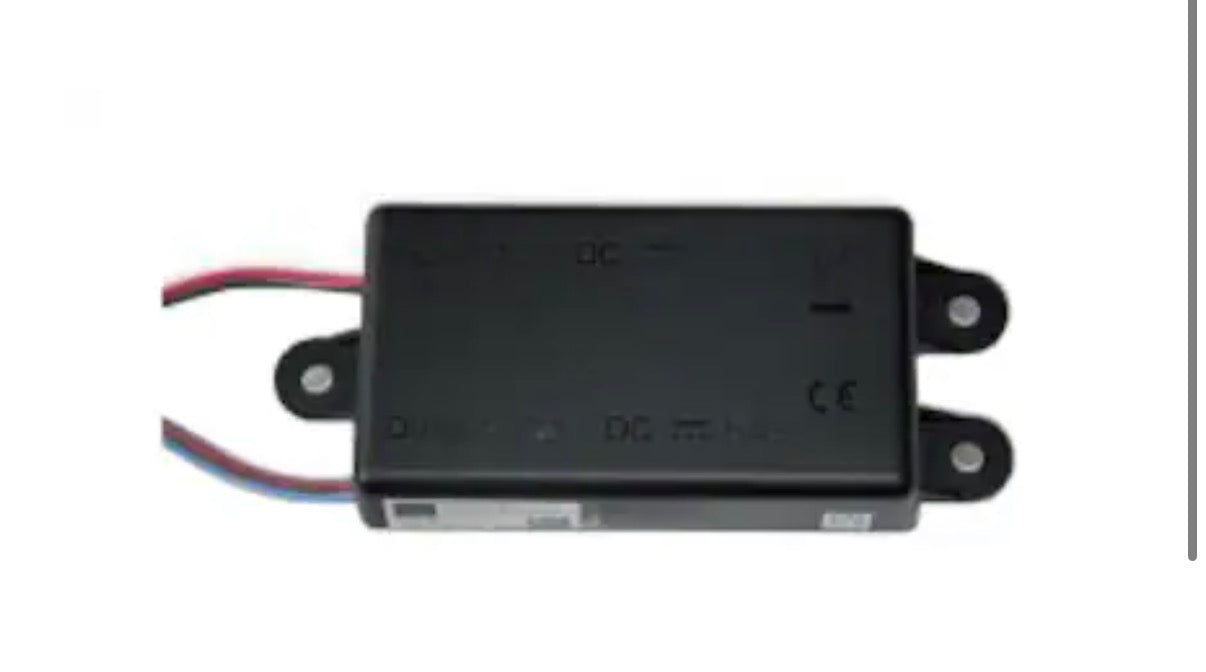

LED 12V DC Hz Receiver -- Hz radio control for 12V DC LED lighting

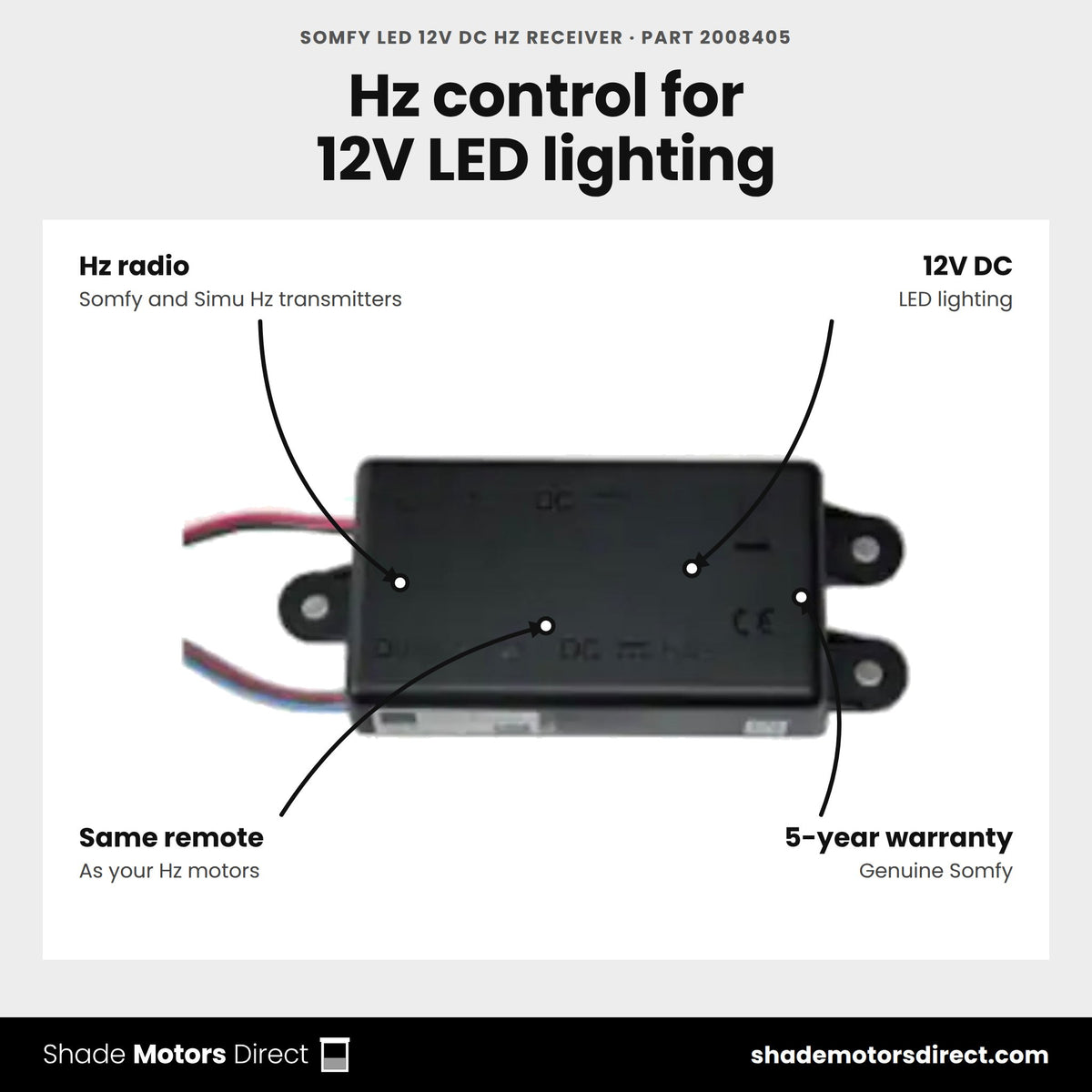

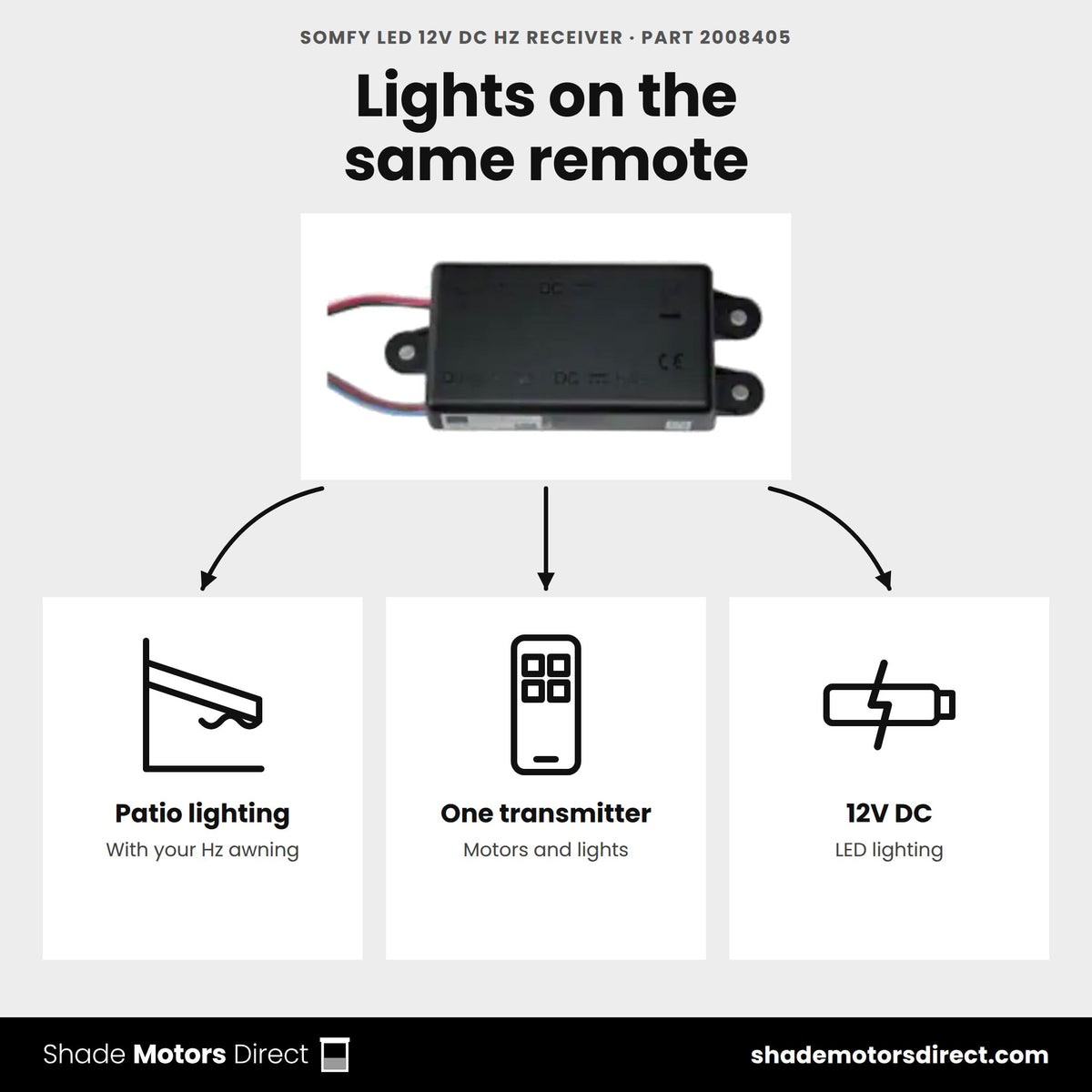

This receiver adds Hz wireless control to 12V DC LED lighting circuits, so lighting switches from the same Hz transmitters used with Somfy and Simu Hz motors, such as the Hz 4-channel key chain transmitter (2008329).
Benefits
- Adds Hz remote control to 12V DC LED lighting
- Works from the same Hz transmitters as Somfy and Simu Hz motors
Specifications
| Power | 12V DC |
| Control | Hz radio |
| Warranty | 5 years |
Compatible with: 12V DC LED lighting circuits, Somfy and Simu Hz transmitters
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the LED 12V DC Hz Receiver do?
It adds radio control to 12V DC LED lighting on an awning, so the lights respond to a handheld transmitter. Somfy builds it on Hz radio technology at 433.420 MHz.
What power does it need?

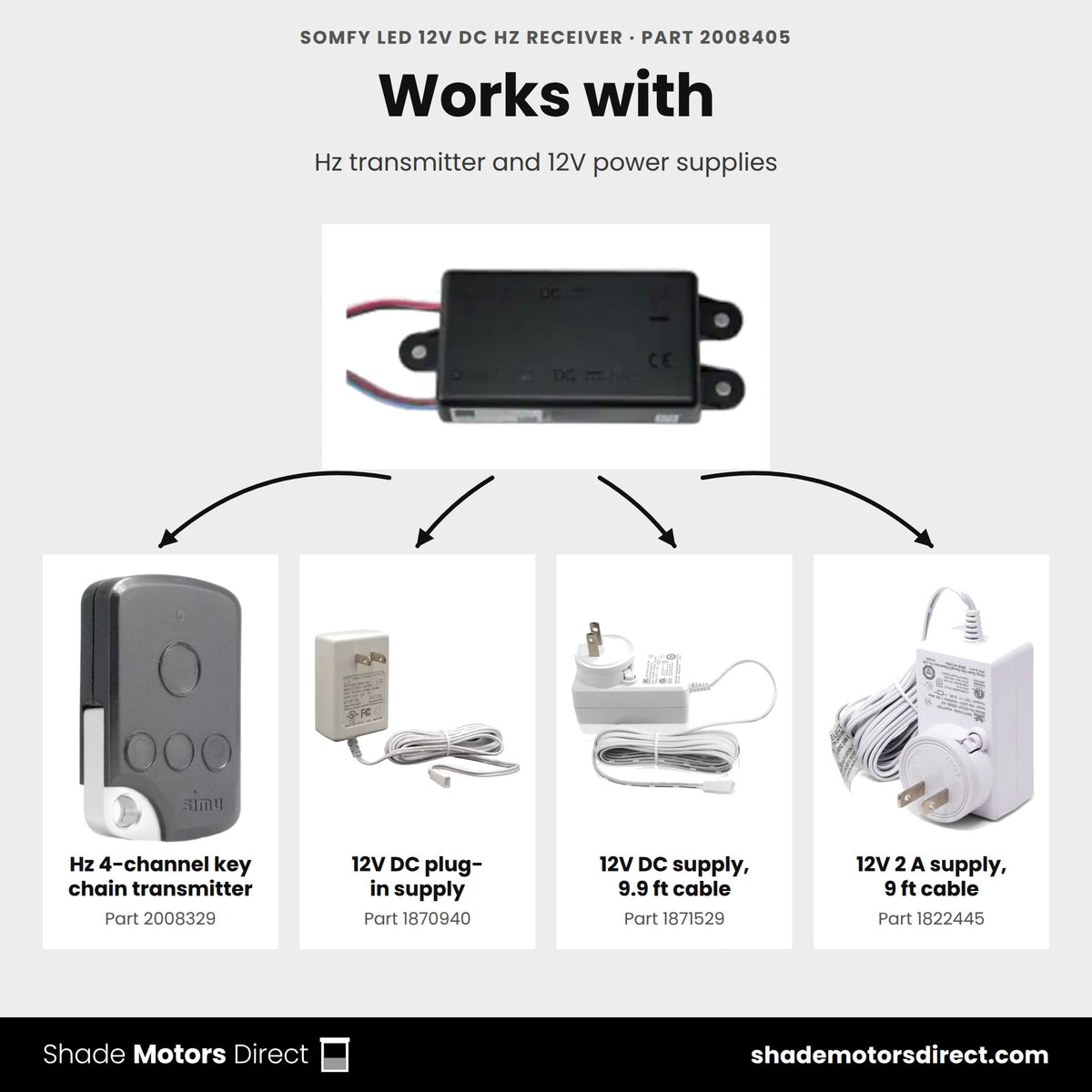

Somfy rates the receiver for a 12V DC input, which matches a 12V DC LED circuit. Power options listed with it in this store include the Somfy 12V DC Plug-in Power Supply (1870940).
Can it be installed outdoors?
Yes. Somfy rates the receiver IP55 and lists it for awning applications. That rating lets it sit with the lighting on an exterior awning installation.
Which transmitters control it?
It uses Hz radio, so pair it with an Hz transmitter such as the Hz Transmitter 4 Channel Key Chain (2008329) or the Simu Hz Mobile Transmitter 5 channel (2008806). Both send on 433.420 MHz.
Can I control it from an app?
Yes. Somfy lists the TaHoma Switch as a compatible control system for this receiver. The TaHoma Switch RTS and Zigbee Smart Hub (1871037) in this store brings the awning lights into the TaHoma app.
What warranty does it carry?
Somfy backs the LED 12V DC Hz Receiver, part 2008405, with a 5-year warranty. It is a genuine Somfy component for Hz awning lighting, installed by a professional.
Couldn't load pickup availability

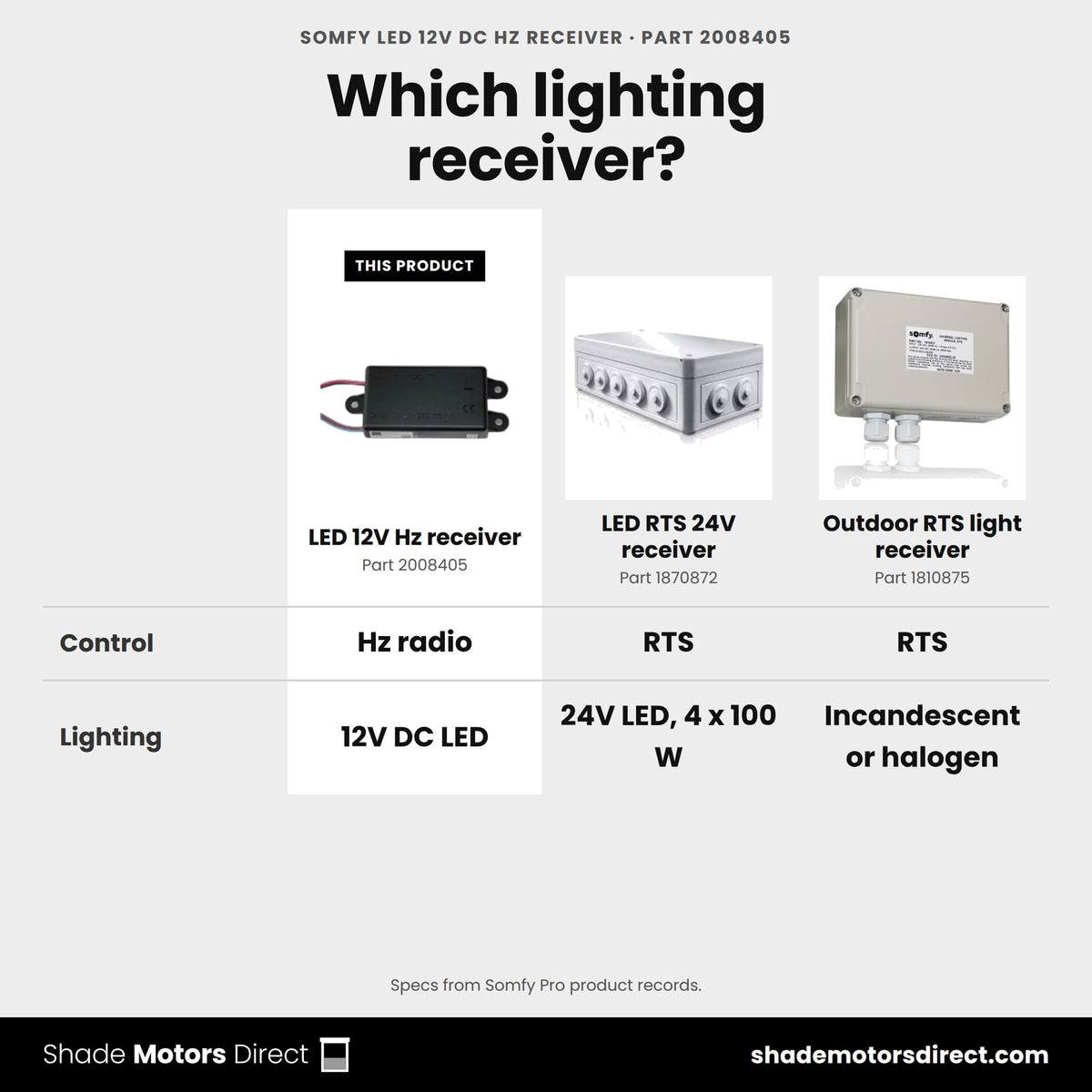

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LED 12V DC HZ Receiver (2008405)
|
Somfy LED RTS 24V DC Receiver (1870872)
|
Somfy Outdoor RTS Light Receiver (500W) (1810875)
|

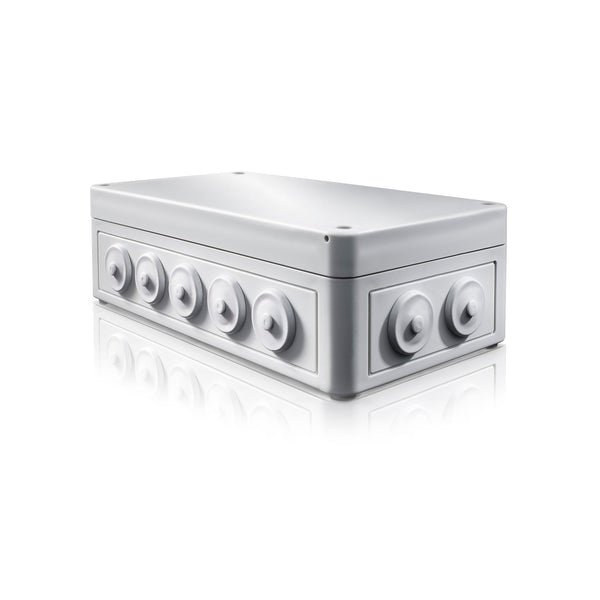

Somfy Pergola 12V/24V 2-motor RTS Receiver & Antenna Kit (1870488)
|
|---|---|---|---|---|
| Price | ||||
| Control | Hz radio | RTS radio | RTS radio | RTS radio |
| Power | 12V DC | 24V DC | — | 12-24V DC |
| What's different | The product on this page | Same size, RTS radio control | Same size, RTS radio control | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
