Somfy Sonesse 50 510S2 Standard 120V 4-Wire Motor (star head) (1001813)
Somfy Sonesse 50 510S2 Standard 120V 4-Wire Motor (star head) (1001813)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

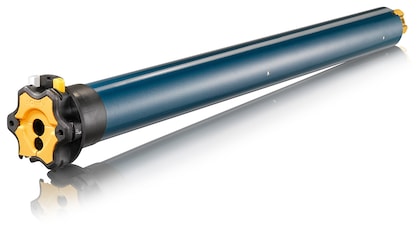

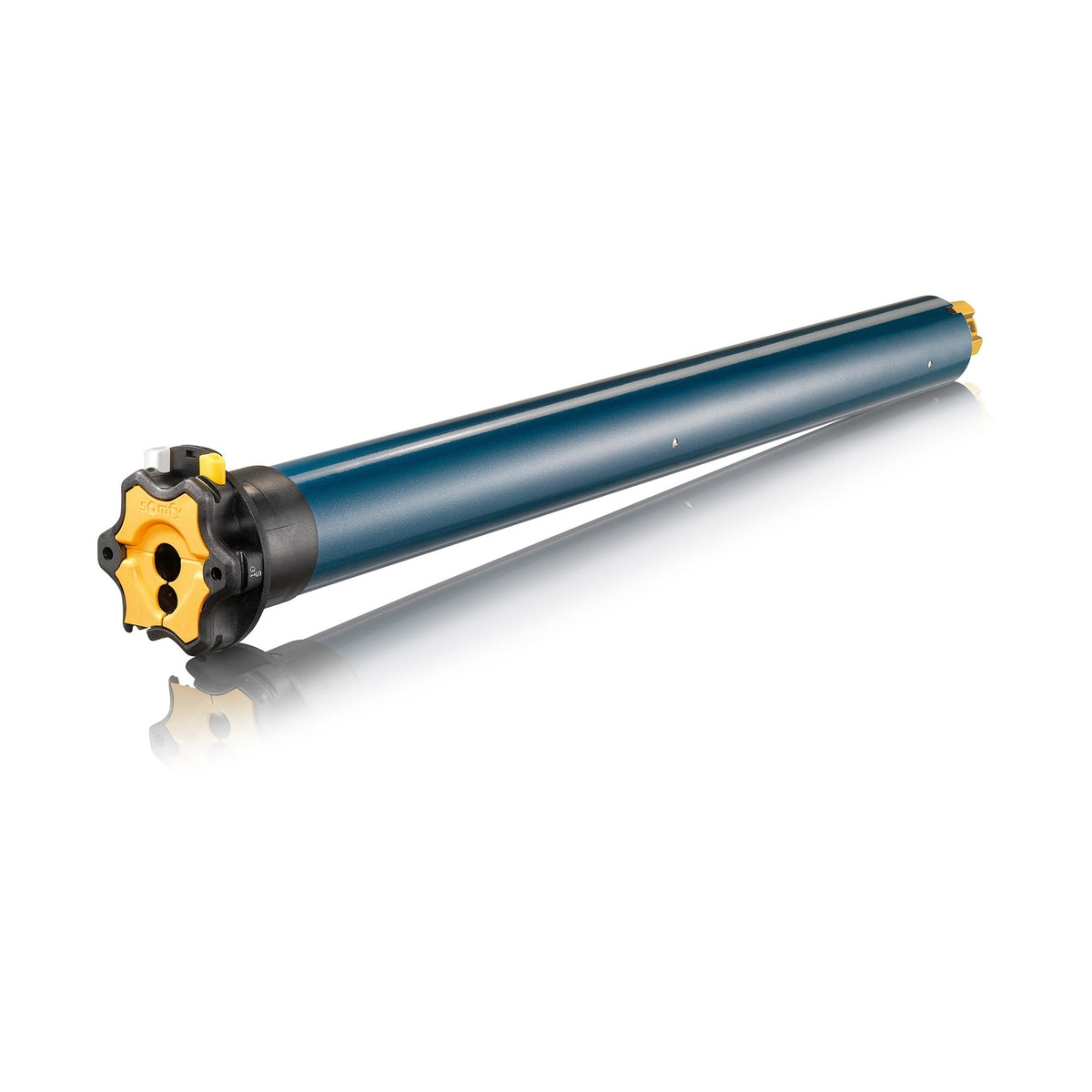

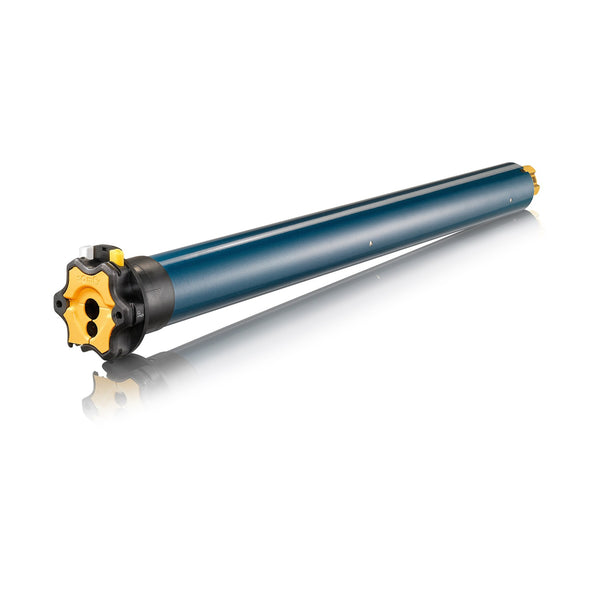

Somfy Sonesse 50 510S2 Standard 4-Wire Motor -- interior tubular motor
The Sonesse 50 510S2 Standard 4-Wire is a quiet 120V interior tubular motor delivering 10Nm (88" lb) at 32 rpm, controlled from a wired switch or third-party relay rather than radio.

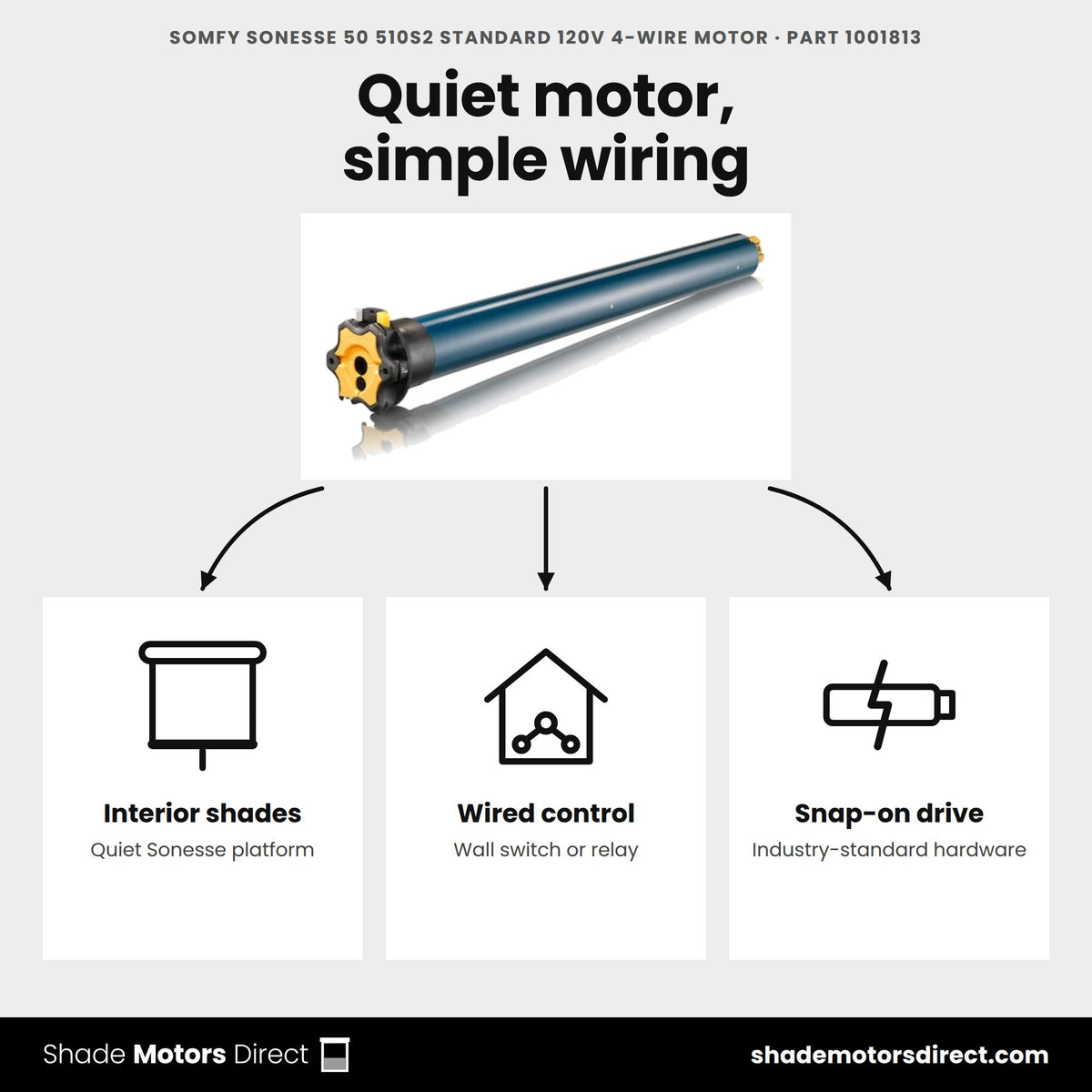

Benefits
- Quiet Sonesse platform tuned for occupied interior spaces
- Standard 4-wire control -- wired switch or relay
- Compatible with leading industry hardware, snap-on drive connection
- 5-year Somfy warranty

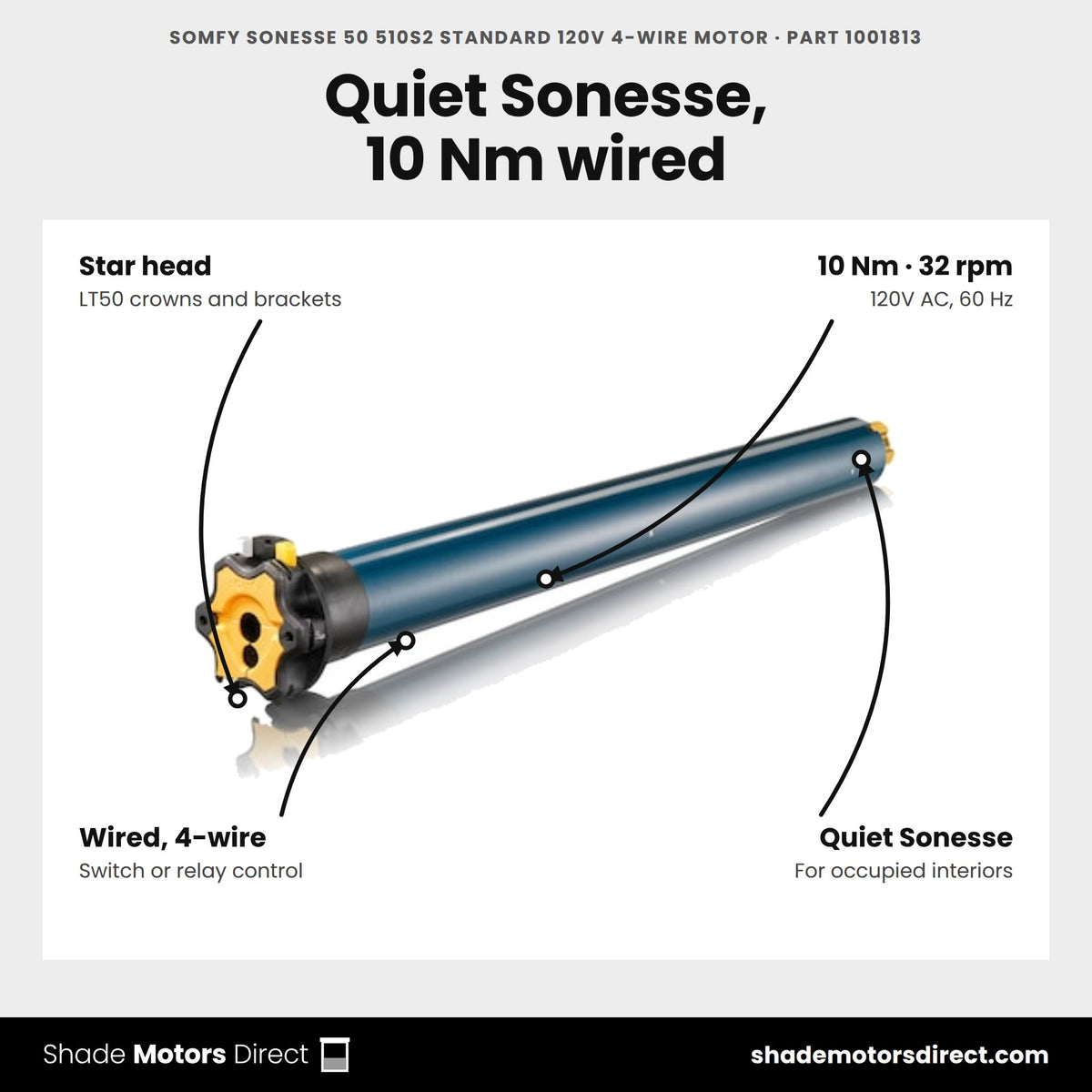

Specifications
| Torque / Speed | 10 Nm (88 in-lb) / 32 rpm |
| Control | Standard 4-wire (wired switch or relay) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 motor brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 50 510S2 Standard motor?
The Sonesse 510S2 Standard (1001813) is a wired 120V Somfy tubular motor with a star head. It delivers 10 Nm of torque at 32 rpm for roller, Roman, pleated, cellular, Venetian and zebra blinds and projection screens.
What power and wiring does it need?
It runs on 120V AC at 60 Hz through a 4-conductor SJTW cable. Somfy rates it at 200 W while running and 0 W in standby. This store sells 4-conductor SJTW cable by the foot (9012110).
Which controls work with it?
Standard 4-wire control runs it from a wired switch or a third-party relay, and Somfy lists it for use with automation systems. For radio control, the Sonesse 510S2 RTS (1001807) has an RTS receiver built in.
How loud is the 510S2?
Somfy rates it at 47.2 dB with an IP 44 rating, and the motor carries UR approval. Somfy built it for performance, reliability and ease of operation, backed by a 5-year warranty.
Can one motor run coupled shades?
Yes. Somfy lists the 510S2 for large multi-banded or coupled window covering applications, where one motor drives several shades on a shared line. That cuts the number of motors on a wide window wall.

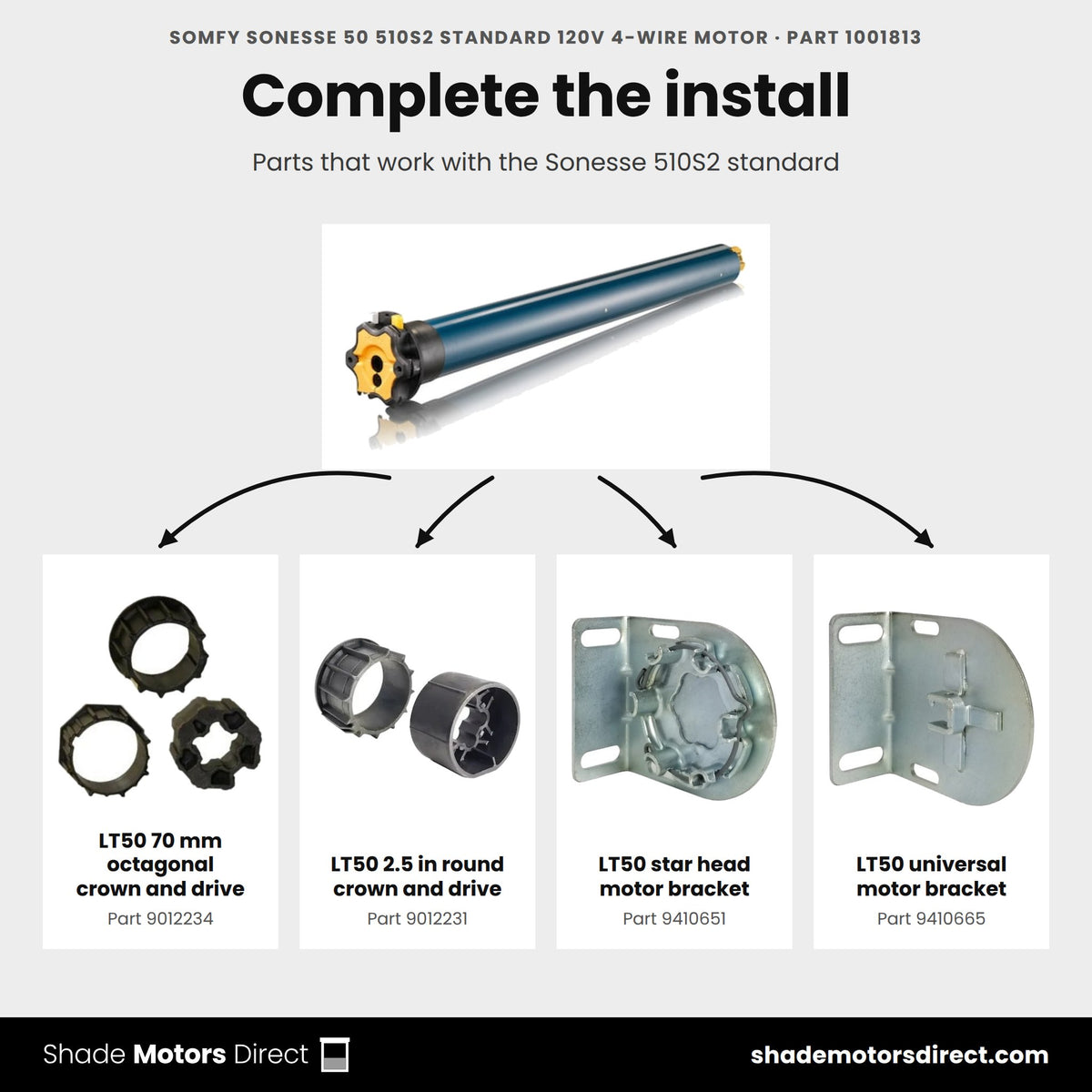

Which crowns, drives and brackets fit it?
Compatible parts in this store include the LT50 2.5 in round crown and drive set (9012231), the Octagonal LT50 70mm crown and drive set (9012234), the LT50 Star Head Motor Bracket (9410651) and the LT50 Universal Motor Bracket (9410665).
Couldn't load pickup availability

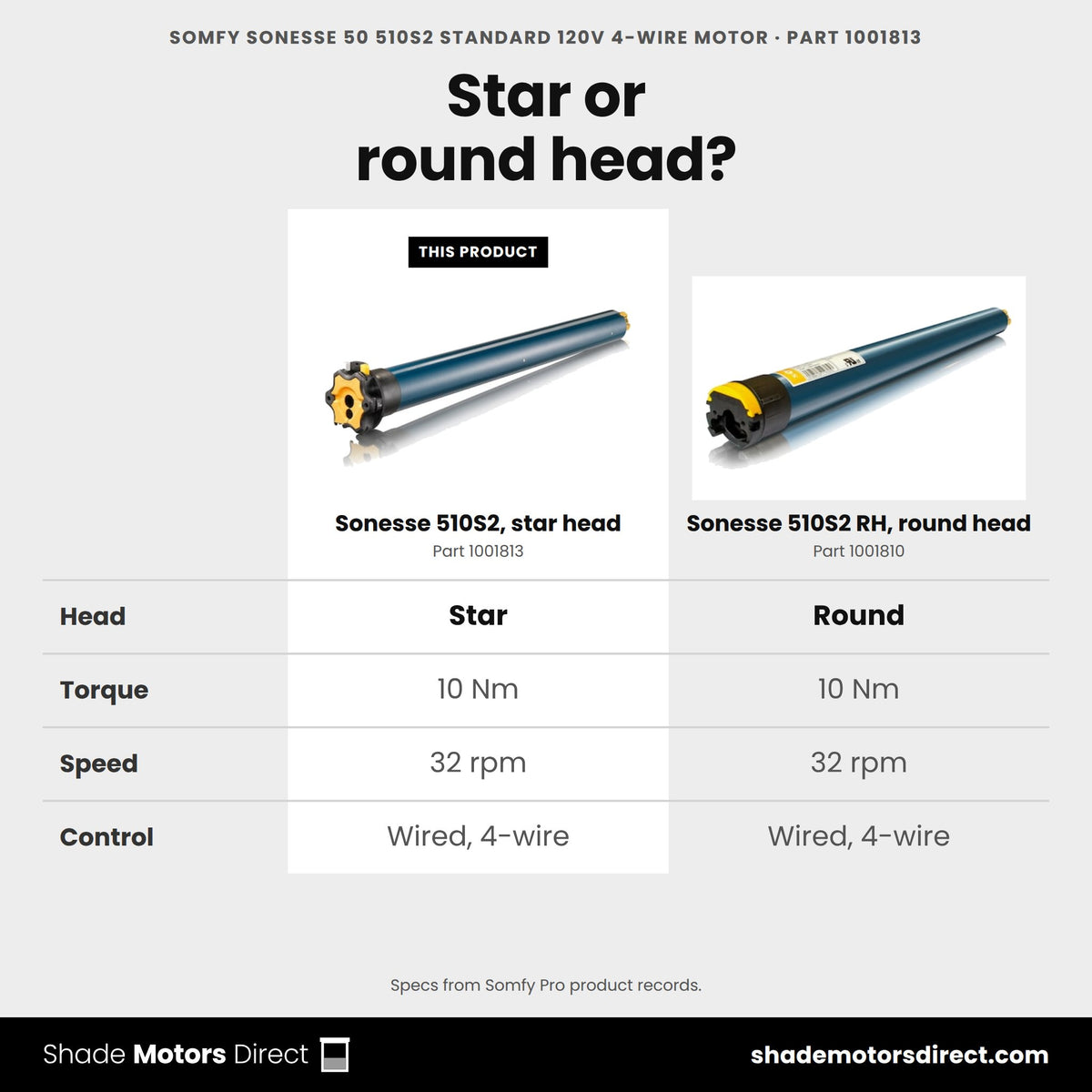

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 50 510S2 Standard 120V 4-Wire Motor (star head) (1001813)
|
Somfy Sonesse 50 510S2 RS485 SDN 120V Motor (1002287)
|
Somfy Sonesse 506S2 RH 120V 4-Wire Motor (1001812)
|
Somfy Sonesse 50 510S2 RH Standard 120V 4-Wire Motor (round head) (1001810)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 10.0 | 10.0 | 6.0 | 10.0 |
| Speed (rpm) | 32 | 32 | 32 | 32 |
| Control | Wired 4-wire | RS485 (SDN) | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Sonesse 50 | Sonesse 50 | Sonesse 50 | Sonesse 50 |
| What's different | The product on this page | Same size, RS485 (SDN) control | 6.0 Nm instead of 10.0 | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
