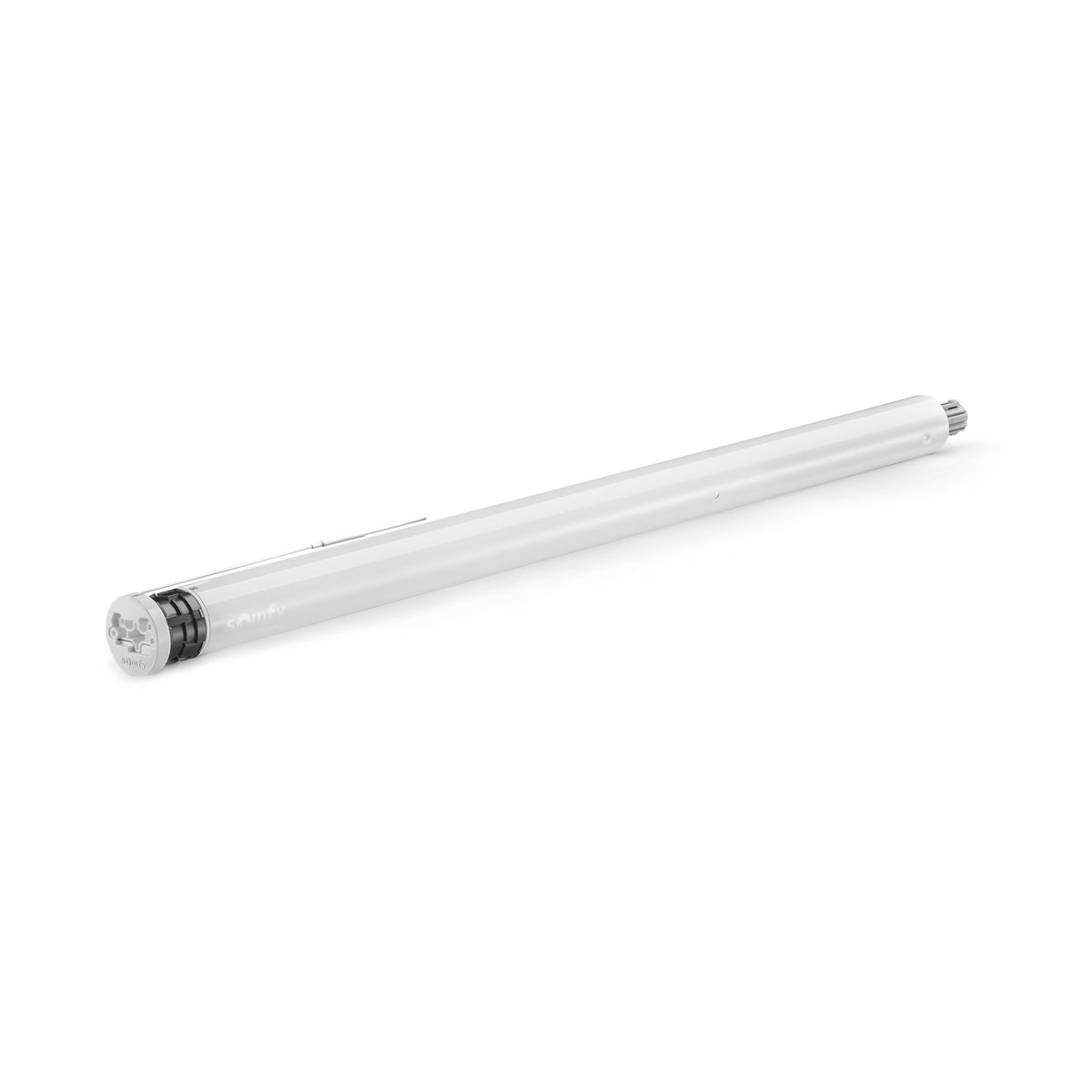

Sonesse® 40 WireFree Zigbee (Li-ion) (USB-C) -- Somfy's Zigbee-connected battery motor for cordless interior shades
The Sonesse 40 WireFree Zigbee (Li-ion) is a compact, ultra-quiet battery motor for interior blinds and shades, built around Somfy's Zigbee 3.0 protocol for direct integration with TaHoma® pro. A built-in, rechargeable lithium-ion battery and USB-C charging port remove the need for wiring, while the slim round head and interchangeable color covers keep the motor discreet inside the shade.
Benefits
- Zigbee 3.0 control -- pairs directly with TaHoma pro, no separate radio receiver needed
- USB-C charging with a removable cable for a fast, convenient recharge
- Rechargeable Li-ion battery rated for about 1 recharge per year on a reference blind
- Fits small-diameter tubes suitable for an internal diameter of 38mm or more
- Interchangeable motor head covers (white, black, grey) to match fabric and hardware
- Whisper-quiet 40 dB operation with real-time position and battery feedback via the TaHoma app
- cETLus listed; backed by Somfy's 5-year warranty

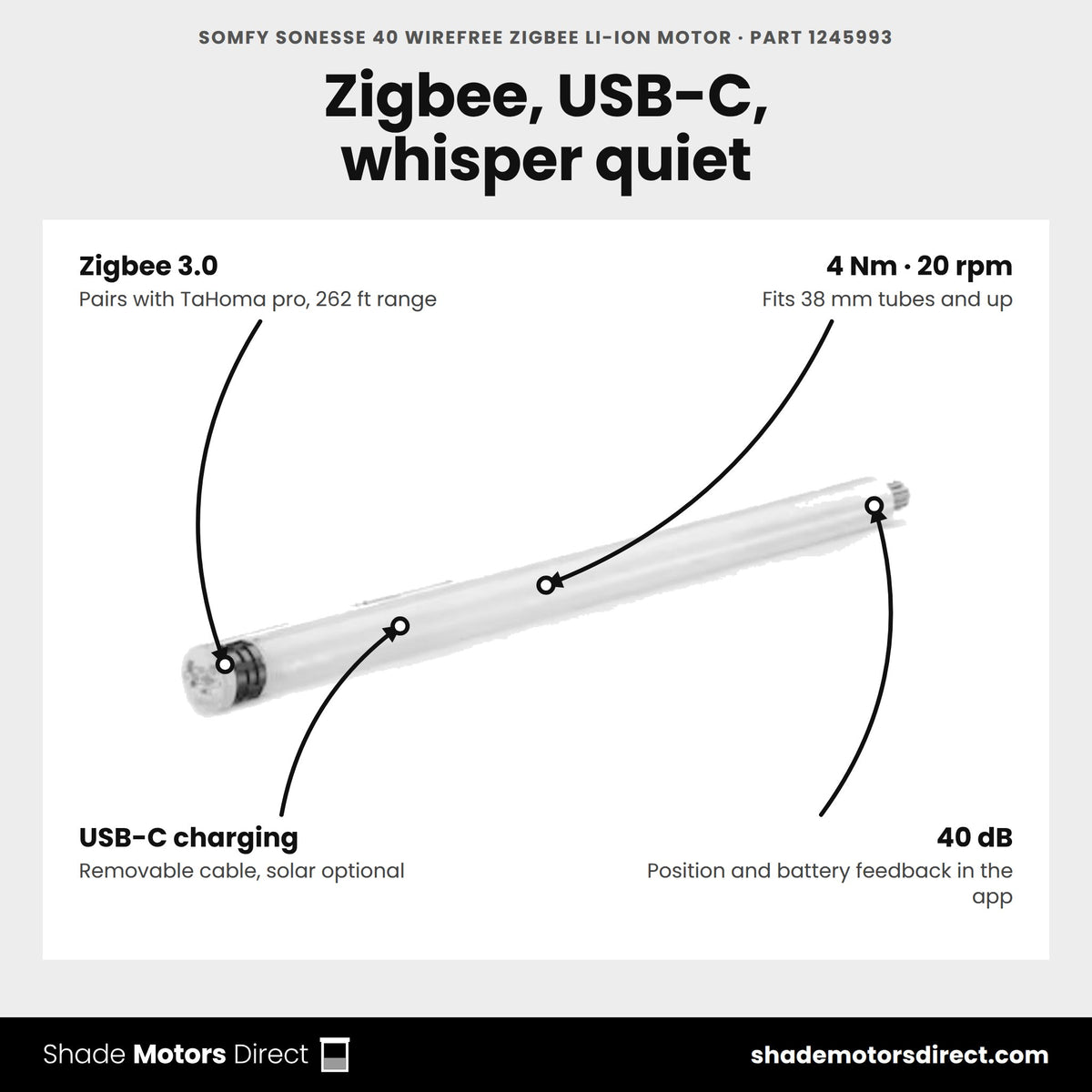

Specifications
| Torque / Speed | 4 Nm / 20 rpm |
| Battery | 12V DC rechargeable lithium-ion, USB-C charging (removable cable), optional solar charging |
| Radio Frequency | 2.450 GHz (Zigbee 3.0) |
| Range in open field | 262 ft |
| Head type | Round, interchangeable covers |
| Minimum tube diameter | 38mm (1.5") internal |
| Noise level | 40 dB |
| Warranty | 5 years |
Compatible with: Sonesse 40 tubes, crowns, and drives; RollEase and Acmeda adaptor plates; TaHoma pro app and TaHoma switch (for Alexa, Google Home, and Apple Home voice control); USB-C Li-ion magnetic adaptor and solar panel accessories
Official Somfy documentation
- Sonesse 40 Zigbee (Li-ion) (USB-C) – Spec Sheet (PDF)
- WireFree Databook (PDF)
- Sonesse 40 WireFree Zigbee (Li-ion) (USB-C) – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 40 WireFree Zigbee motor?
The Sonesse 40 WireFree Zigbee (1245993) is a battery-powered Somfy tubular motor for interior blinds and shades. It communicates over Zigbee 3.0, and a built-in rechargeable lithium-ion battery powers it, so the window needs no wiring. Somfy rates it at 4 Nm of torque.
How do I charge it, and how often?
Charge it through the USB-C port. Somfy says the battery needs a recharge about once a year on a reference blind. Magnetic and solar charging are options, and the Somfy USB-C Magnetic Adaptor (9028564) fits this motor.
Can I control it from my phone or a voice assistant?
Yes. Pair it with the Somfy TaHoma Switch hub (1871037) for app control and voice control through Amazon Alexa, Google Home and Apple Home. Zigbee is two-way, so the TaHoma app shows shade position and battery level.

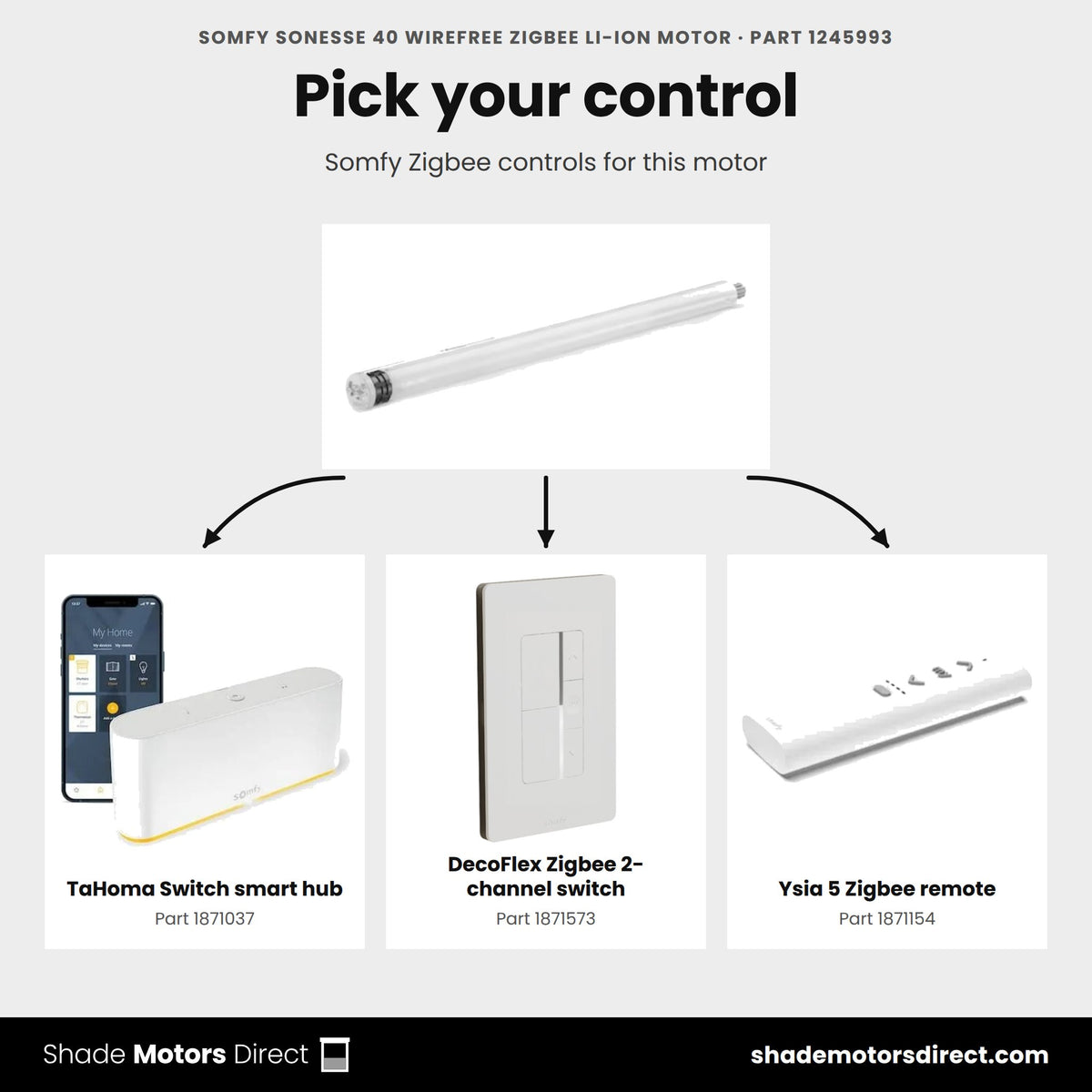

Which remotes and wall switches work with it?
Somfy Zigbee controls pair with it, including the Ysia 1 (1871153) and Ysia 5 (1871154) Zigbee remotes and DecoFlex WireFree Zigbee wall switches such as 1871573. Somfy rates the motor's radio range at 262.48 ft in open field.
What tube size does it fit?
The motor suits tubes with an internal diameter of 38mm (1.5 in) or more. Compatible parts in this store include the 40mm octagonal tube (1781154), the LS40 crown and drive set (9012224) and the Sonesse 30-40 motor plate for RollEase 360 brackets (9026001).
How quiet is the Sonesse 40 WireFree Zigbee?
Somfy rates it at 40 dB. The round head ships in white, with black and grey covers available to match the shade hardware. The motor carries Somfy's 5-year warranty.
Couldn't load pickup availability
Replace a worn 40mm motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1245993.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Takes the drive wheel that turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Use the LS40 set that matches your 40mm tube, then slide the new motor in.
-
4

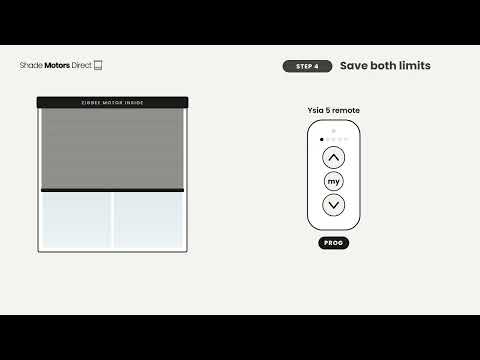

Join and set limits
Charge or connect the battery. Then add the motor to your Zigbee hub and set the limits.
Not sure your tube is 40mm? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Join and set limits
Charge or connect the battery. Then add the motor to your Zigbee hub and set the limits.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
What the Sonesse 40 WireFree Zigbee needs to run
Somfy lists every part below as compatible with part 1245993. Pick one from each row.
1Control
Built-in Zigbee 3.0 radio. Pairs with Ysia remotes, DecoFlex Zigbee switches and TaHoma.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
Somfy backs the Sonesse 40 WireFree Zigbee for 5 years. We handle the claim.
Somfy warranty on the Sonesse 40 WireFree Zigbee, part 1245993.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.

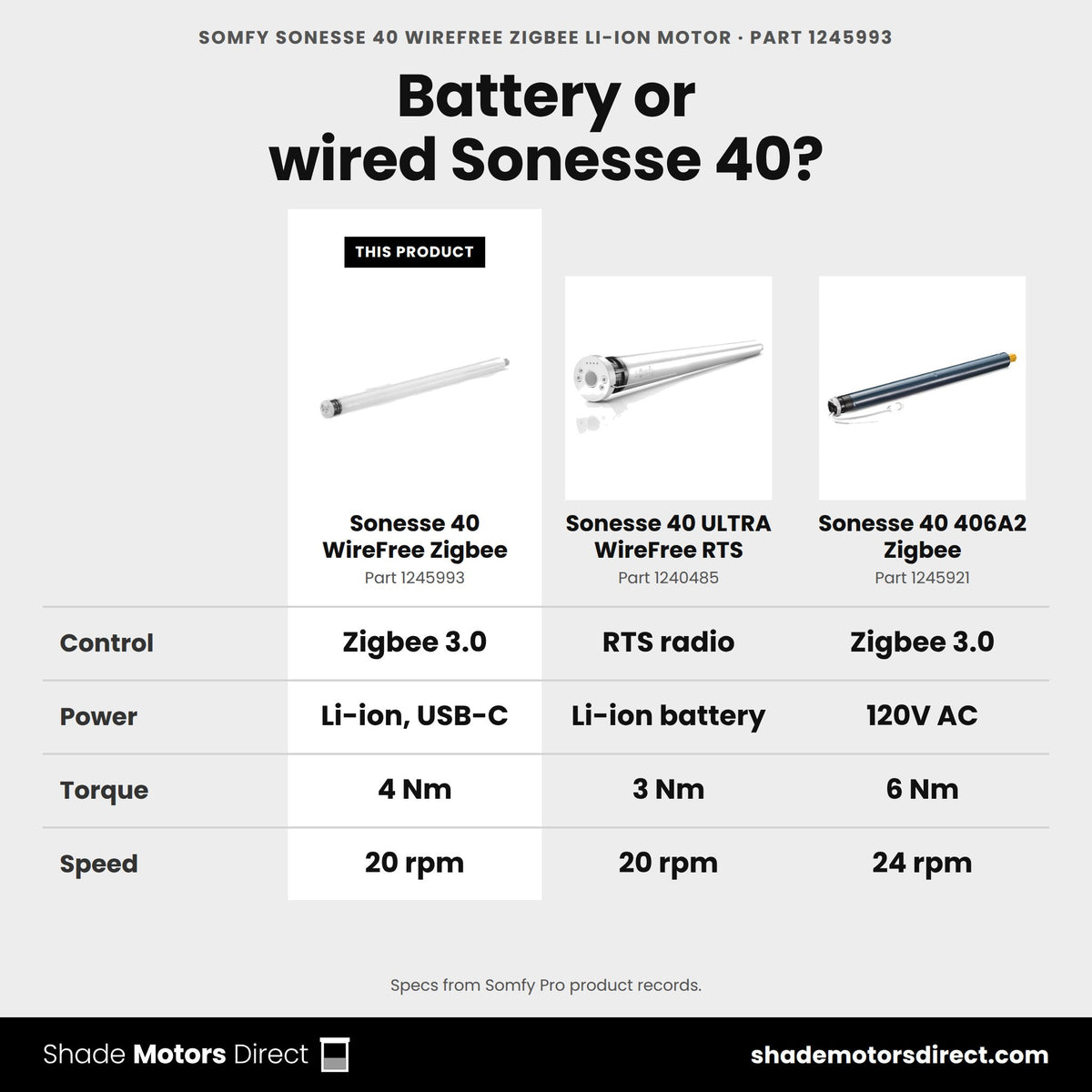

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 40 WireFree Zigbee (Li-ion) (USB-C) (1245993)
|
Somfy Sonesse 40 404S2 RS485 SDN Motor (4Nm, 36rpm) (1240562)
|
Somfy Sonesse 40 406A2 Zigbee 3.0 Motor (6Nm, 24rpm) (1245921)
|
Somfy LS40 404S2 Sonesse RTS 120V Motor without fast connector (1001636)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 4.0 | 4.0 | 6.0 | 4.0 |
| Speed (rpm) | 20 | 36 | 24 | 36 |
| Control | Zigbee 3.0 | RS485 (SDN) | Zigbee 3.0 | RTS radio |
| Power | Li-ion battery, USB-C | 120V AC | 120V AC | 120V AC |
| Motor family | Sonesse 40 | Sonesse 40 | Sonesse 40 | Sonesse 40 |
| What's different | The product on this page | Same size, RS485 (SDN) control | 6.0 Nm instead of 4.0 | Same size, RTS radio control |
