Somfy LS40 Crown and Drive Set (9012224)

SKU: 9012224

$5.55

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

LS40 Crown & Drive Set -- complete crown & drive set for 40mm-class tube

This genuine Somfy crown and drive set is the complete motor-to-tube connection for 40mm-class tube: the crown centers and supports the motor while the drive wheel locks into the tube profile for slip-free torque transfer.

Benefits

Complete matched set for 40mm-class tube
Crown keeps the motor concentric; drive transfers torque without slip
Quiet, true rotation across the shade's full travel
Simple slide-on assembly for fabricators and retrofits

Specifications

Tube	40mm-class
Contents	Crown + drive wheel

Compatible with: Somfy 40mm-class (400 Series / LS40) motors including LS40 and Sonesse 40 wired ranges

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the LS40 Crown and Drive Set?

It is the matched pair of parts that joins a Somfy LS40 motor to the roller tube. The crown centers and supports the motor, and the drive wheel locks into the tube profile to transfer torque without slipping.

What comes in the set?

You get one crown and one drive wheel. Together they complete the motor-to-tube connection for a single 40mm-class tube, so one set covers one motor.

Which motors does this set fit?

It fits Somfy 400 Series motors, including the LS40 and Sonesse 40 wired ranges. Examples on this store include the LS40 404S2 Sonesse RTS (1001636) and the LS40 409R2 Sonesse RTS (1240382).

Which tube does it suit?

The set suits 40mm-class tube. For a 2 in tube, Somfy offers the LS40 2 in Crown and Drive Set (9016352). Match the set to your tube profile before you order.

Is there a rubberized version?

Yes. Somfy makes the LS40 Rubberized Crown and Drive Set (9016654) and the LS40 Octagonal Rubberized Crown and Drive Set (9016655) for installers who want a rubberized fit in the tube.

Can I pair a 400 Series motor with 500 Series hardware?

Somfy offers the 400 Series to 500 Series Crown and Drive Adaptor Kit (9012226) for mixing those two hardware families. Check that kit's specs against your motor and tube before you order.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace a worn crown or drive, or order the right set for a new roller.

Match the set to your motor head and your tube size.

Replacing one

1
Take the shade down
Cut power and lift the roller out of its brackets.
2
Pull the motor
Slide the motor out of the tube.
3
Swap the part
Pull off the worn crown or drive and fit the LS40 Crown and Drive Set.
4
Slide it back
Insert the motor drive end first and rehang the shade.

Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us

Starting new

1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
3
Fit the drive
Push the drive onto the output shaft until it locks.
4
Slide the motor in
Insert the motor into the tube, drive end first.

Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

Motors the LS40 Crown and Drive Set works with

Somfy lists these motors as compatible with part 9012224.

412R2 RH without Fast Connector Part 1024192 $267.09

$267.09

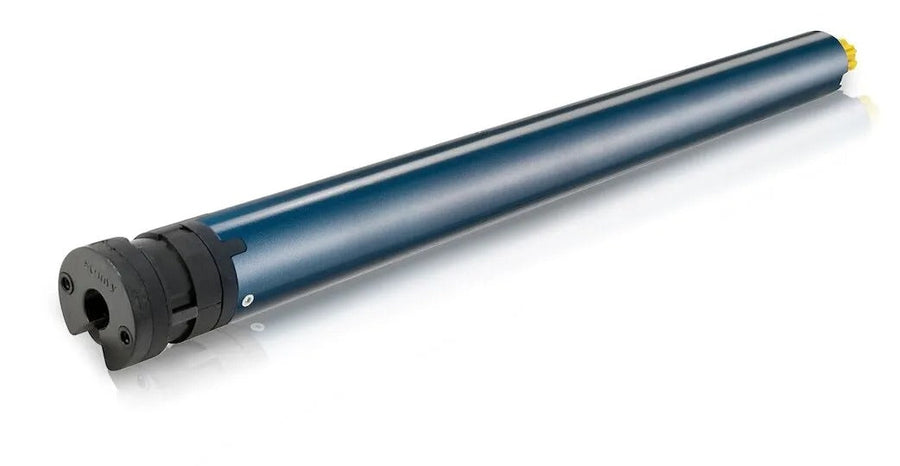

LS40 404S2 Sonesse RTS 120V Motor without fast connector Part 1001636 $362.75

$362.75

LS40 409R2 Sonesse RTS 120V Motor Part 1240382 $390.79

$390.79

Sonesse 40 404S2 RS485 SDN Motor Part 1240562 $471.62

$471.62

Sonesse 40 404S2 WT 120V 4-Wire Motor Part 1240377 $244.52

$244.52

Sonesse 40 404S2 WT 120V 4-Wire Motor Part 1001553 $244.52

$244.52

More Somfy motors work with it too. Ask us if yours isn't listed.

Somfy backs the LS40 Crown and Drive Set for 5 years. We handle the claim.

5years

Somfy warranty on the LS40 Crown and Drive Set, part 9012224.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.
Somfy documents: 400 Series Databook (PDF)
