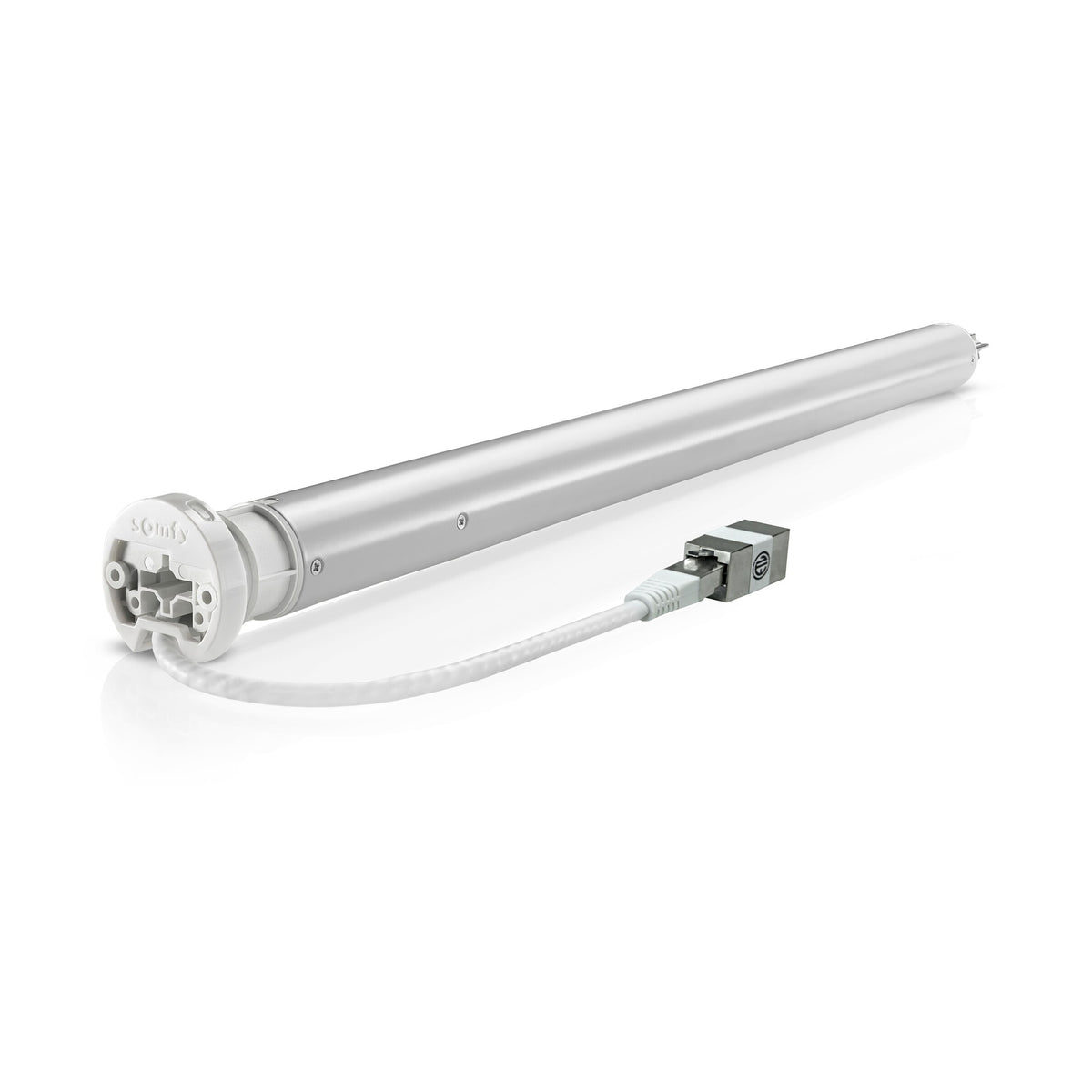

Somfy Sonesse 30 POE Motor (1.5Nm, 25rpm) (1241147)
Somfy Sonesse 30 POE Motor (1.5Nm, 25rpm) (1241147)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Somfy Sonesse 30 PoE Motor -- single-cable power and data over Ethernet
The Sonesse 30 PoE motor is powered and controlled over a single Ethernet cable using Power over Ethernet, delivering 1.5Nm at 25rpm for interior shading in commercial installs already wired for network infrastructure.

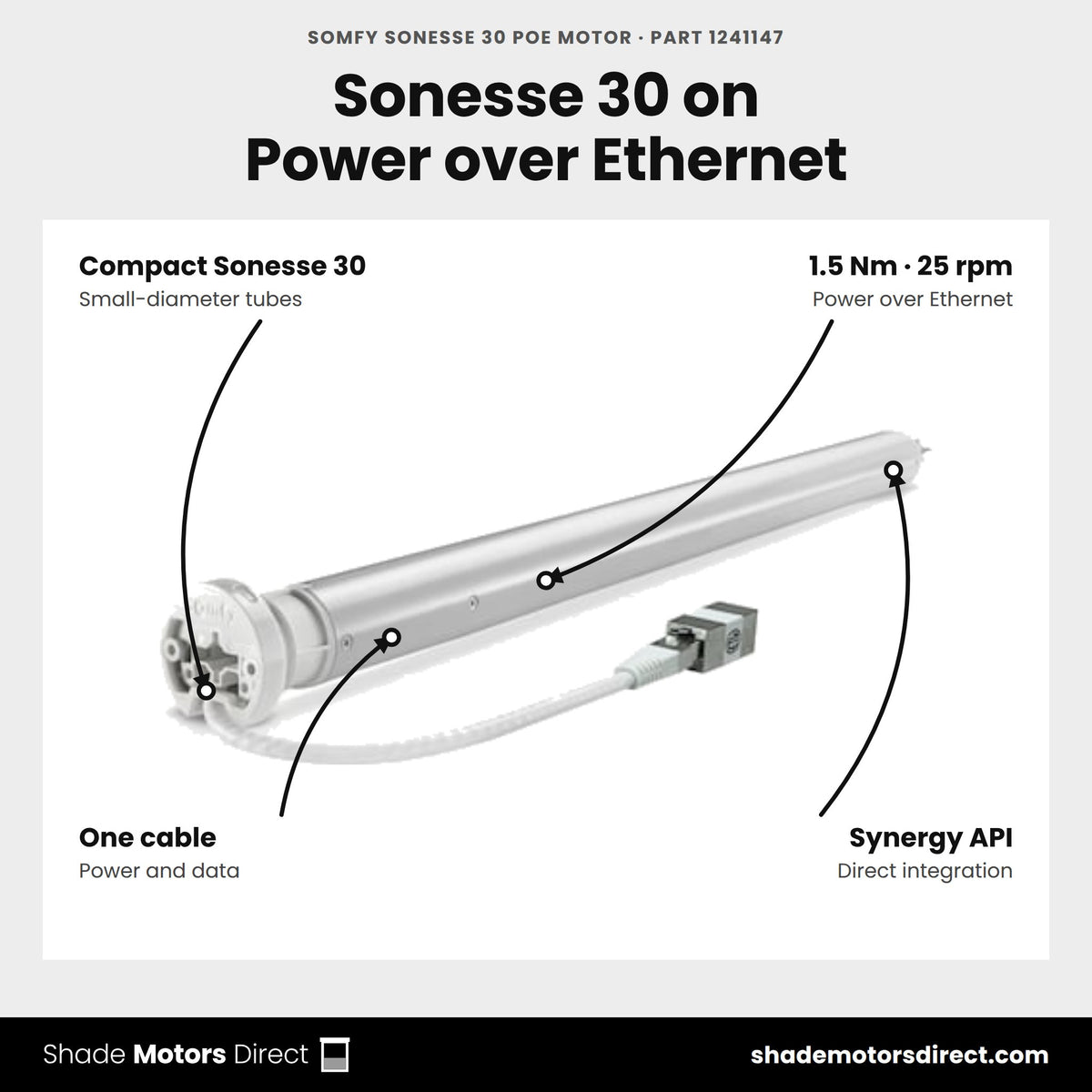

Benefits
- Single CAT5e/CAT6 Ethernet cable delivers both power and data
- Direct third-party integration via the Somfy Synergy API
- Compact Sonesse 30 platform for small-diameter tubes
- Ideal for large commercial installs already wired for structured Ethernet
- 5-year Somfy warranty
Specifications
| Torque / Speed | 1.5 Nm / 25 rpm |
| Control | PoE |
| Power supply | Power over Ethernet |
| Warranty | 5 years |

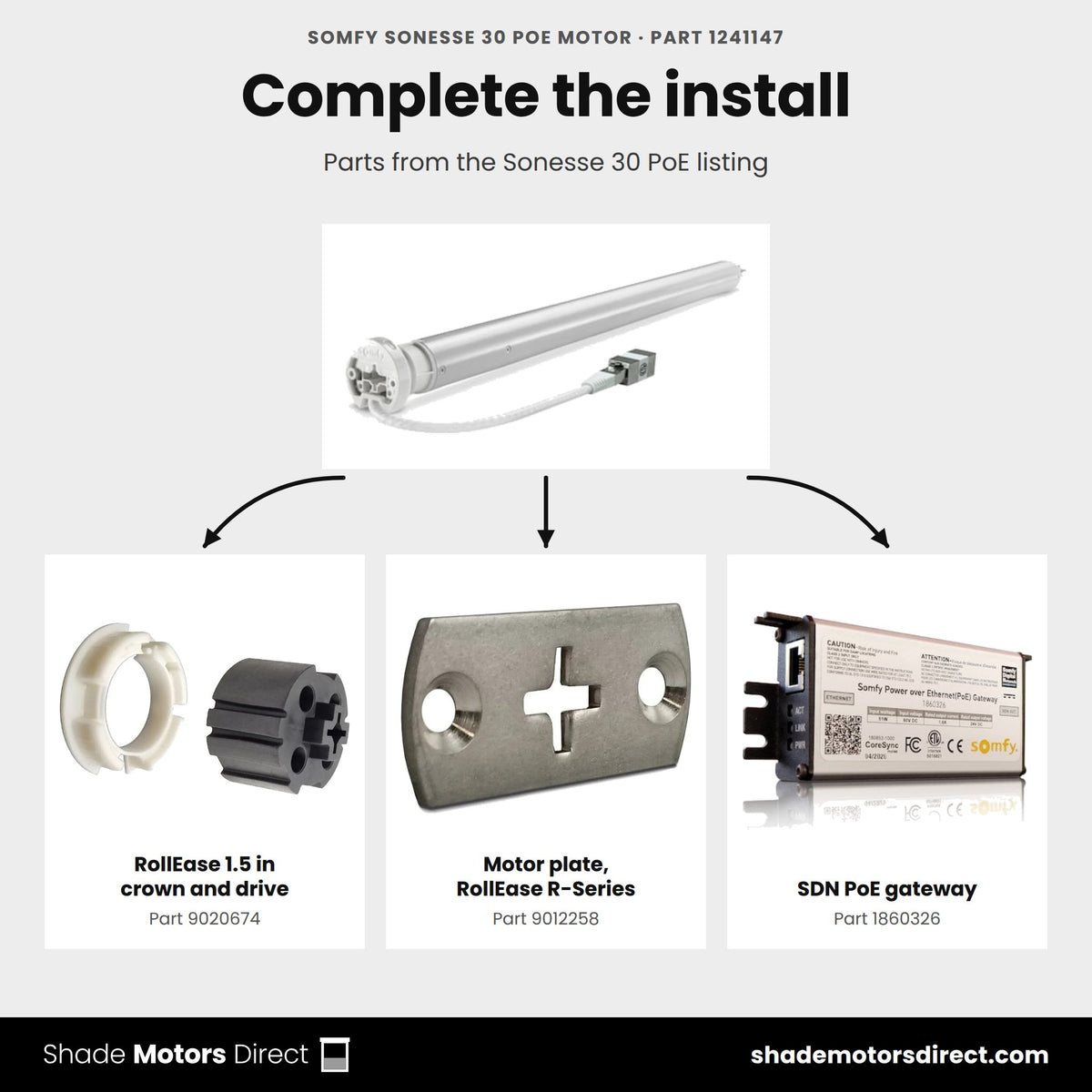

Compatible with: Sonesse 30 crown/drive hardware, SDN PoE Gateway
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
How does the Sonesse 30 PoE motor get power and control?
One Cat-5e or higher Ethernet cable carries both power and data, so the window needs no separate line-voltage run. Somfy lists part 1241147 for an IEEE 802.3 at Type 2 (30W) port, with RJ45 ends.
What torque and speed does it deliver?
Somfy rates it at 1.5 Nm of torque and 25 rpm. It draws 18 W in operation and 1.4 W in standby, on an input range of 42.5 V to 57 V.
What is the smallest roller tube it fits?
Somfy lists a minimum tube inside diameter of 1.13 in, so the compact Sonesse 30 body suits small interior shades. Somfy offers motor plates for RollEase, Acmeda and Hunter Douglas hardware.
How does it connect to a control system?
The Somfy Synergy API inside the motor lets third-party control systems connect with no added hardware. Somfy secures the link with certificate and PIN code security and TLS AES-128 encryption.
What comes with the motor?
Somfy supplies a PoE shielded RJ45 female-to-female coupler with the motor for a clean network connection at the shade. The head ships in white, with black and grey options to match the shade hardware.
How quiet is it, and is there a stronger PoE option?
Somfy rates it at 47 dB with an IP 30 rating and a 5-year Somfy warranty. For larger shades on PoE, the Sonesse 40 PoE at Type 2 (1241426) delivers 2.5 Nm.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 30 POE Motor (1.5Nm, 25rpm) (1241147)
|
Somfy Sonesse 30 DCT 24V DC (1241146)
|
Somfy Sonesse 30 RS485 24V DC (1241144)
|
Somfy Sonesse 30 RTS 24V DC Motor (1241142)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 1.5 | 2.0 | 2.0 | 2.0 |
| Speed (rpm) | 25 | 25 | 25 | 25 |
| Control | PoE | Dry contact (DCT) | RS485 (SDN) | RTS radio |
| Power | Power over Ethernet | 24V DC | 24V DC | 24V DC |
| Motor family | Sonesse 30 | Sonesse 30 | Sonesse 30 | Sonesse 30 |
| What's different | The product on this page | 2.0 Nm instead of 1.5, Dry contact (DCT) | 2.0 Nm instead of 1.5, RS485 (SDN) | 2.0 Nm instead of 1.5, RTS radio |
