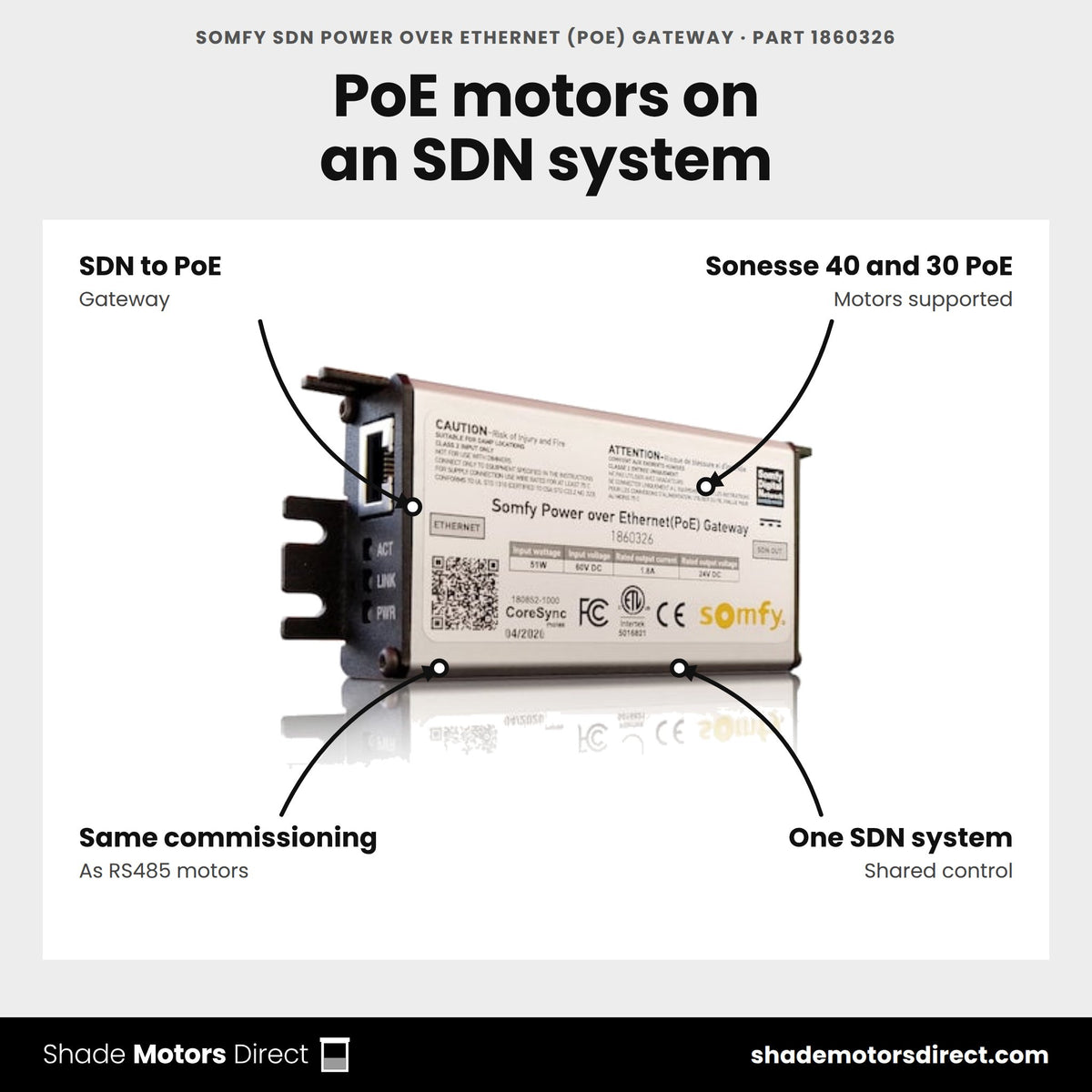

Somfy SDN Power over Ethernet (PoE) Gateway, part 1860326, features: bridges Power over Ethernet motors onto a Somfy Digital Network, Sonesse 40 and Sonesse 30 PoE, shared commissioning with RS485 motors

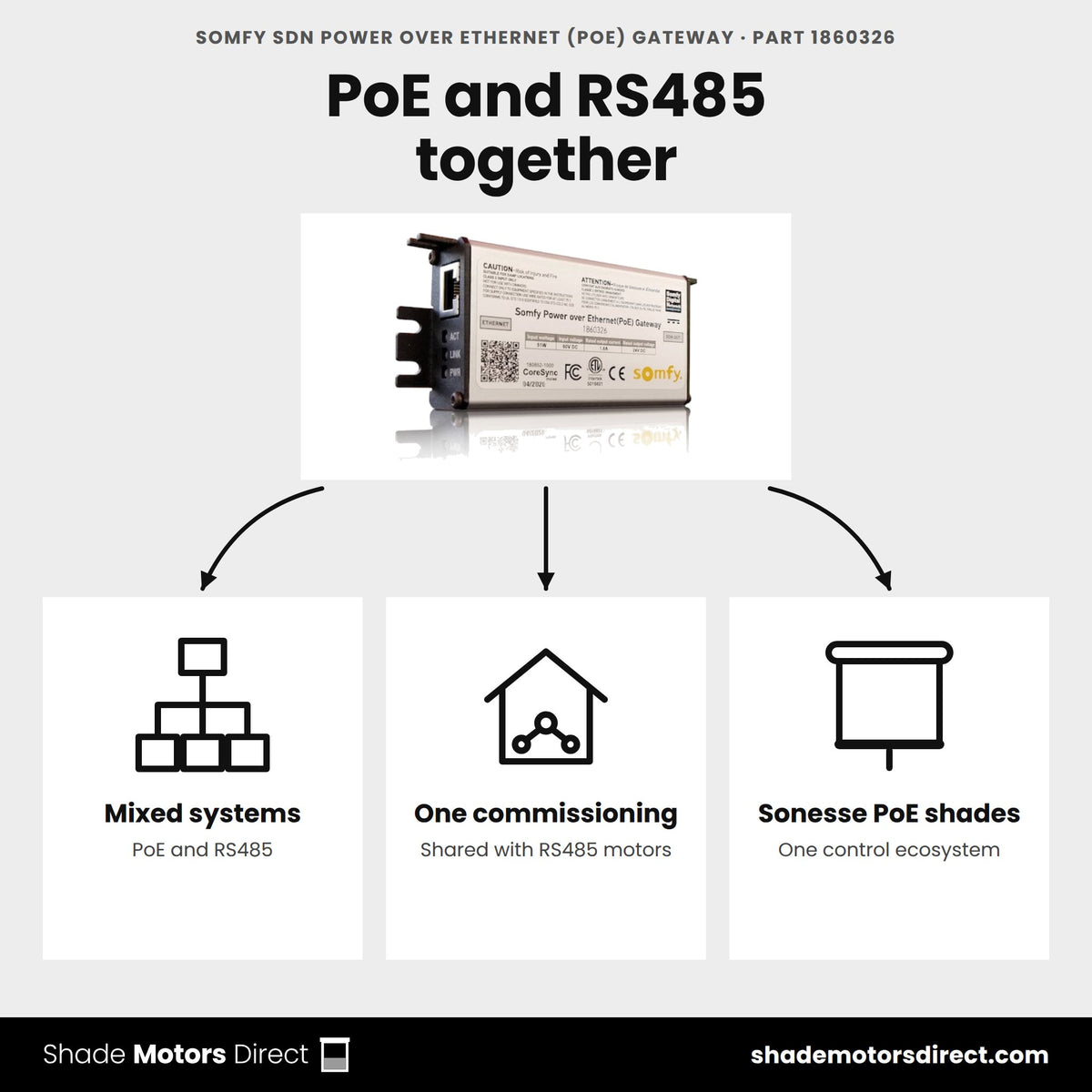

Somfy SDN PoE Gateway 1860326 uses: mixed PoE and RS485 shading systems

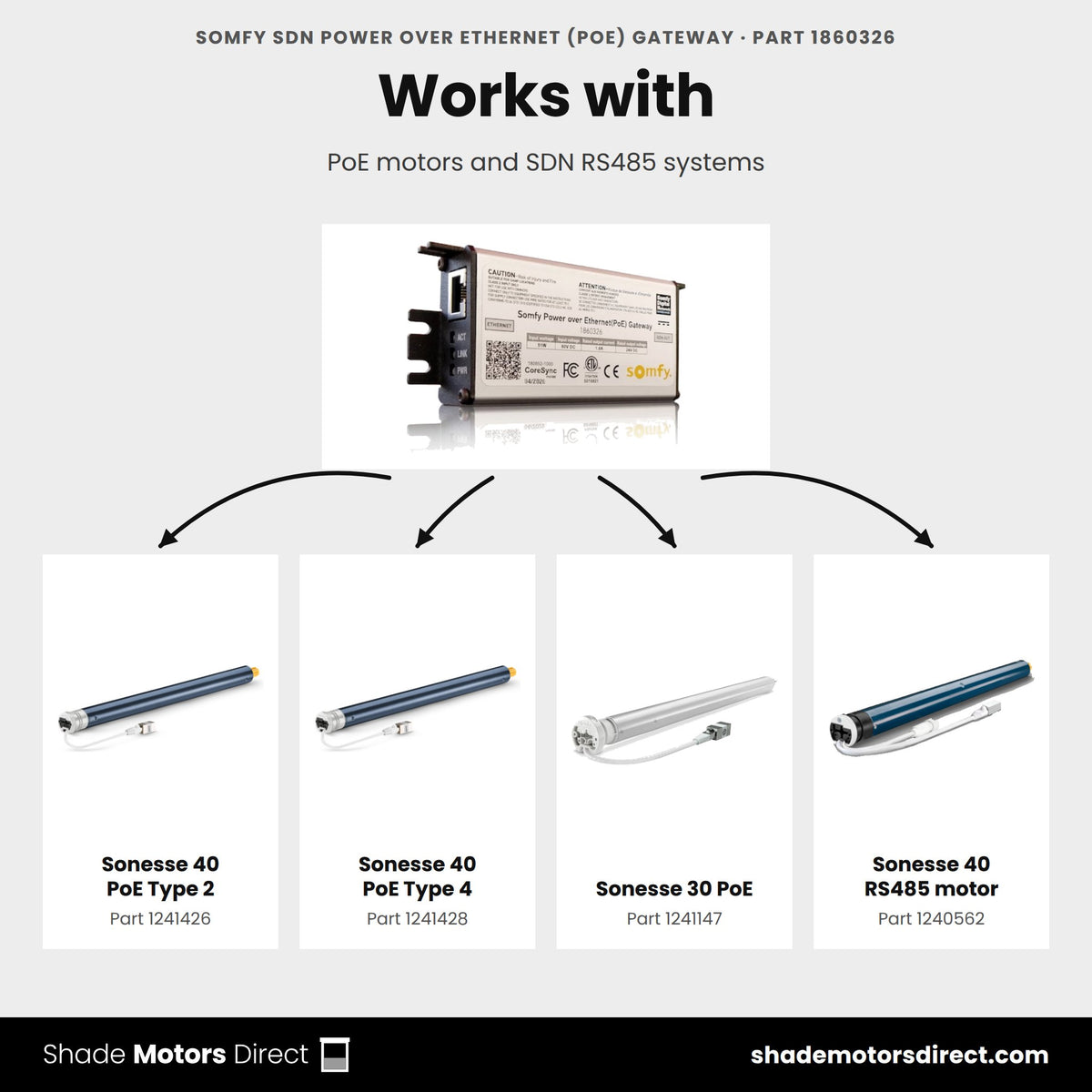

Parts that work with the Somfy SDN PoE Gateway 1860326: Sonesse 40 PoE Type 2 1241426, Sonesse 40 PoE Type 4 1241428, Sonesse 30 PoE 1241147, Sonesse 40 RS485 motor 1240562

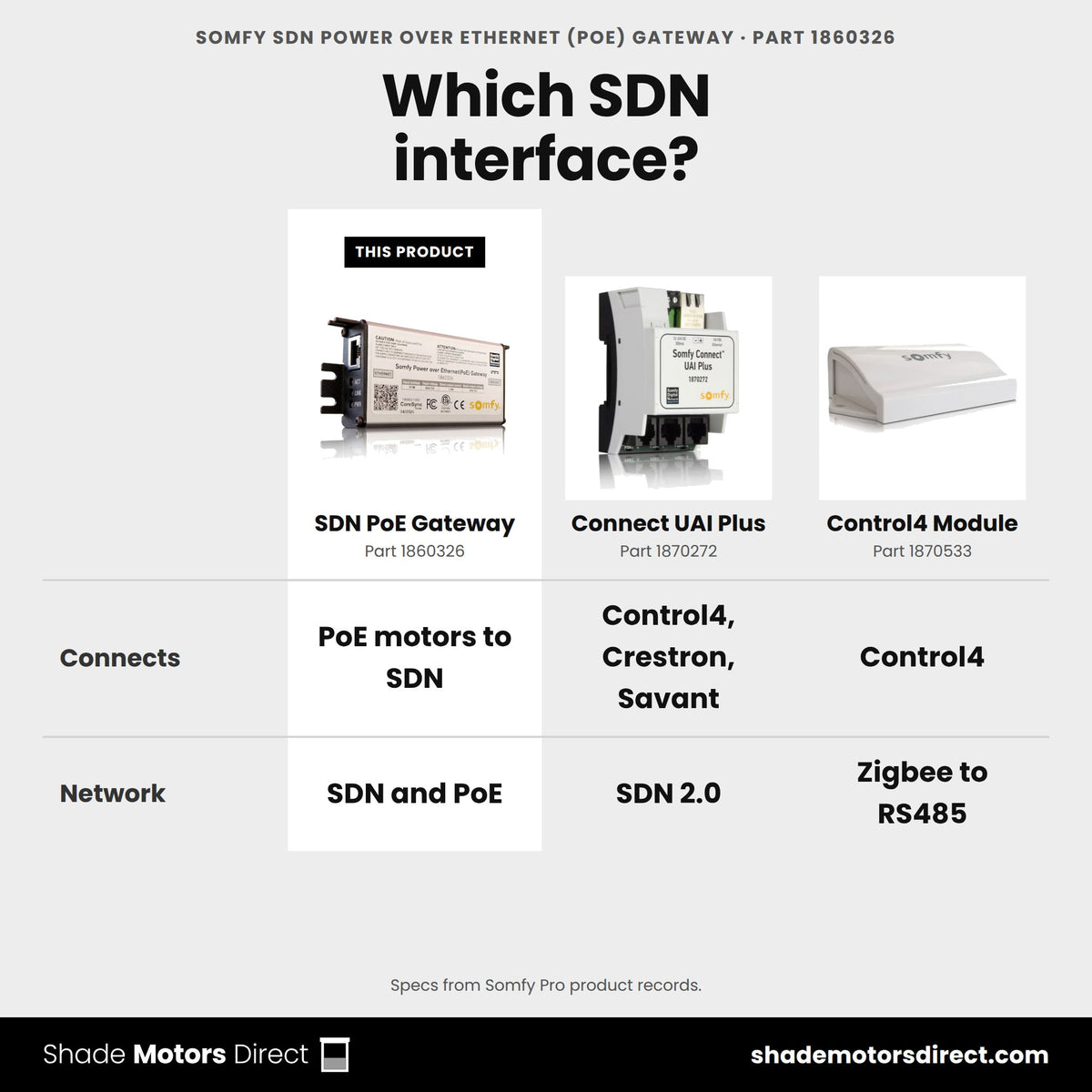

Somfy SDN PoE Gateway 1860326 compared: Connect UAI Plus 1870272, Control4 Module 1870533

Buy the Somfy SDN Power over Ethernet (PoE) Gateway, part 1860326, genuine new, from ShadeMotorsDirect

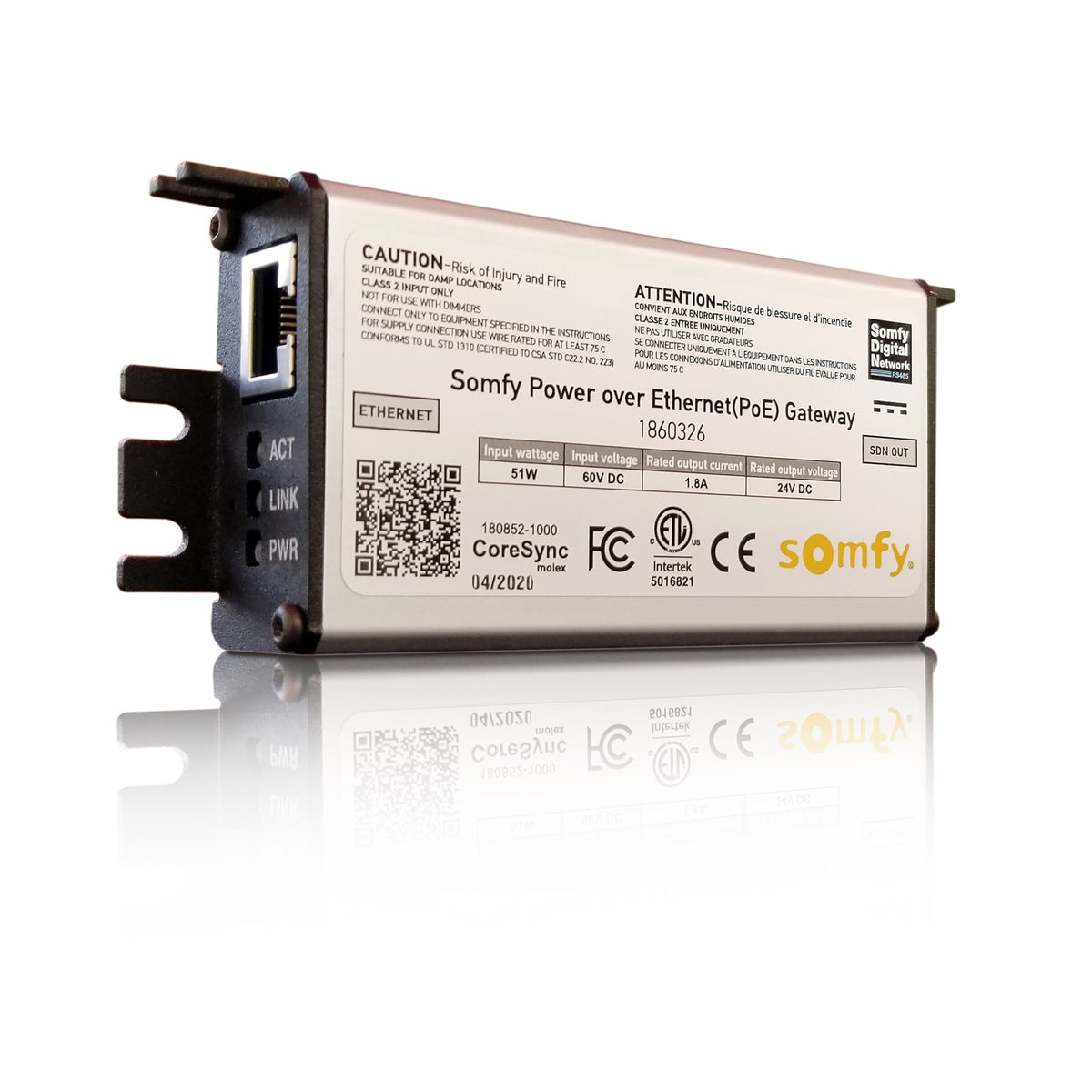

Somfy SDN Power over Ethernet (PoE) Gateway (1860326)

SKU: 1860326

$279.00

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

Somfy SDN Power over Ethernet (PoE) Gateway

The SDN PoE Gateway bridges Power over Ethernet motors and devices onto a Somfy Digital Network system, letting PoE-powered Sonesse motors share the same SDN commissioning and control ecosystem as RS485 motors.

Specifications

Part type	SDN-to-PoE gateway
System	Somfy Digital Network (SDN) / PoE
Genuine part	Yes -- Somfy 1860326

Compatible with: Sonesse 40 and Sonesse 30 PoE motors; SDN RS485 systems

Official Somfy documentation

SDN Power over Ethernet (PoE) Gateway -- Somfy Pro Product Page

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What does the SDN PoE Gateway (1860326) do?

It powers and controls Somfy 24V RS485 shade and drapery motors from one Power over Ethernet connection. A standard Cat 5e or Cat 6 UTP cable carries both power and data to the gateway, which then feeds the motors.

Which motors work with this gateway?

Somfy lists its low-voltage RS485 motors, including the Sonesse 30 RS485 DC and Sonesse 50 Ultra DC RS485. In this store that means the Sonesse 30 RS485 24V DC (1241144) and the Sonesse Ultra 50 504A8 RS485 24V DC Motor (1134022).

How many motors can one gateway run?

One gateway runs up to 4 low-voltage RS485 motors. Somfy limits aligned operation to 2 motors with the Sonesse 30 RS485 DC, and motors in a group move in cascade. Each motor holds up to 16 intermediate positions.

What PoE power does the gateway need?

The gateway takes 48V PoE and complies with IEEE 802.3bt and Cisco UPoE. Somfy rates it to deliver up to 51W to the motors, with 3W operating consumption and 0.5W on standby.

How far can the motors sit from the gateway?

Keep the total wiring from the gateway to all motors at 240 ft or less with SDN Low-Voltage Motor Cable. The store carries that cable in non-plenum (9020126) and plenum-rated (9020127) versions. A 4-pin Weidmueller adaptor cable comes with the gateway.

What warranty and listings does it carry?

Somfy backs the gateway with a 5-year warranty. It is listed to UL 2108 and UL 1310, and the network cable can follow either the ANSI/TIA/EIA 568 A or 568 B wiring standard.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace a failed SDN part or plan a new Somfy Digital Network.

Replacing one

1
Match the part
Confirm the part number and firmware with the old device.
2
Swap it on the bus
Disconnect the old device and connect the SDN Power over Ethernet in its place.
3
Restore settings
Set the same address and settings with Somfy's SDN setup tools.

Working on a project? Send us your parts list. We'll check every part number. Ask us

Starting new

1
Plan the network
Confirm the layout and addresses with your integrator.
2
Connect it
Wire it to the RS485 bus with Somfy data cables.
3
Configure
Address and set it up with Somfy's SDN setup tools.

Working on a project? Send us your parts list. We'll check every part number. Ask us

Motors the SDN Power over Ethernet controls

These Somfy motors work with part 1860326.

Sonesse 30 POE Motor Part 1241147 $440.30

$440.30

Somfy backs the SDN Power over Ethernet for 5 years. We handle the claim.

5years

Somfy warranty on the SDN Power over Ethernet, part 1860326.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy SDN Power over Ethernet (PoE) Gateway (1860326)	Somfy Connect Universal Automation Interface (UAI) Plus (1870272)	Somfy Control4 Module (1870533)	Somfy IGC 4-in-1 Motor Control (1811416)
Price	$279.00	$1,204.95	$171.25	$446.30
Control	SDN to PoE	IP / SDN 2.0	Zigbee to RS485	Wired (dry contact)
Power	—	12-24V DC	—	—
What's different	The product on this page	Same size, IP / SDN 2.0 control	Same size, Zigbee to RS485 control	Same size, Wired (dry contact) control
Buy	Currently viewing	View details	View details	View details
