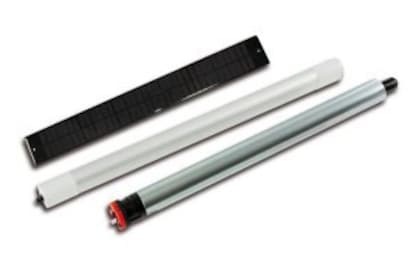

T3.5 ESP Hz 6Nm AutoSun Solar Kit -- motor, battery, and solar panel in one box
The Simu T3.5 ESP Hz 6Nm 18rpm 12V DC Kit packages the AutoSun radio motor with its battery and solar panel in one box. The motor delivers 6 Nm at 18 rpm and carries a built-in Simu Hz receiver. It fits retrofit shade and solar screen jobs where running power is costly or impossible.
Benefits
- Motor, battery, and solar panel in one Somfy part number
- 6 Nm at 18 rpm for interior shades and exterior solar screens
- Built-in Simu Hz radio on 433.42 MHz with a 492 ft (150 m) open-field range
- Electronic limits with 54 turns of travel
- No mains wiring: the panel charges the battery that runs the motor
- 5-year Somfy warranty
Specifications
| Torque / Speed | 6 Nm / 18 rpm |
| Overall length | 18.66 in (474.0 mm) |
| Model designation | T3.5DC ESP HZ 06/18 +KITSOL SP |
| Kit contents | T3.5 ESP Hz motor, battery, and solar panel |
| Power supply | 12V DC (9-15V range) |
| Rated current | 2.2 A |
| Power consumption | 26 W running, 0 W standby |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft (150 m) open field |
| Limit switch | Electronic, 54 turns |
| Head type | Round |
| External diameter | 1.42 in |
| Minimum tube inside diameter | 1.57 in |
| Motor cable | 3.28 ft, black, Molex connector |
| Protection | IP 44, Class II insulation |
| Operating temperature | -4°F to 140°F |
| Warranty | 5 years (Somfy) |
Compatible with: Simu T3.5 40 mm class tubes (minimum inner diameter 1.57 in) with matching Somfy T3.5 crowns and drives, the R8 adaptor plate (9012258), the spare 2.2 Ah NiMH AutoSun battery (9020635), and the Battery Charger V2 (9029465). Simu states that Somfy RTS controls are compatible with the Simu Hz motor range, including AutoSun.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What comes in the Simu AutoSun kit 2009607?
Somfy lists part 2009607 as the T3.5 ESP Hz 6Nm 18rpm 12V DC motor with a battery and a solar panel included. Crowns, drives, and brackets are separate, so order a T3.5 crown and drive set that matches your 40 mm tube.
How strong is the motor in this kit?
The kit motor delivers 6 Nm of torque at 18 rpm and draws 2.2 A at 12V DC, according to Somfy. Somfy lists it for interior shades and exterior solar screens. For other loads, Somfy also offers 3 Nm and 10 Nm AutoSun motors.
Which remotes work with it?
The motor has a built-in Simu Hz receiver on 433.42 MHz with a 492 ft open-field range. Simu states that Somfy RTS controls are compatible with the Simu Hz motor range, including AutoSun, so you can pair either Simu Hz or Somfy RTS transmitters to part 2009607.
How long will it run without sun?
Simu's AutoSun 2 datasheet rates the system at 15 days of autonomy without sun at two cycles per day. The NiMH battery has a rated lifetime of about 8 years. Mount the panel where it gets direct light to keep the 2009607 kit charged.
Can I recharge the battery from an outlet?
Yes. Somfy lists the Battery Charger V2 (9029465) as an accessory for this kit. Simu's FAQ says to unplug the battery from the motor, connect it to the charger for at least 3 hours, and expect about 13 volts on a charged battery.
Couldn't load pickup availability
Replace a Simu T3.5 motor or build a small new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2009607.
123- 1Solar panel Charges the battery from daylight.
- 2Battery pack Powers the motor with no outlet.
- 3Motor Fits inside the roller tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Fit the T3.5 crown and drive for your tube, then slide the new motor in.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T3.5 ESP Hz 6Nm 18rpm 12V DC AutoSun Solar Motor Kit needs to run
Somfy lists every part below as compatible with part 2009607. Pick one from each row.
1Control
Built-in Hz radio. Pairs with Simu Hz transmitters.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu T3.5 ESP Hz 6Nm 18rpm 12V DC AutoSun Solar Motor Kit for 5 years. We handle the claim.
Somfy warranty on the Simu T3.5 ESP Hz 6Nm 18rpm 12V DC AutoSun Solar Motor Kit, part 2009607.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
