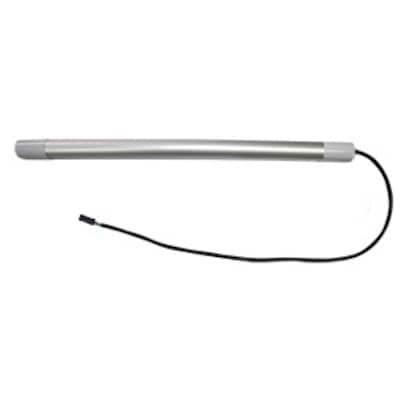

Somfy Simu 2.2 Ah NiMH AutoSun Battery in Aluminum Case, 0.6 m Cable (9020635)
Somfy Simu 2.2 Ah NiMH AutoSun Battery in Aluminum Case, 0.6 m Cable (9020635)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
2.2 Ah NiMH AutoSun Battery -- 12V DC power storage for Simu solar shade motors
This 2.2 Ah NiMH battery stores the solar energy that runs Simu AutoSun motors. It comes in an aluminum case with a 0.6 m lead. Somfy lists it for all six T3.5 ESP Hz 12V DC AutoSun motors and kits, as a spare or a replacement.
Benefits
- 12V DC, 2.2 Ah NiMH cell sized for the AutoSun system
- Aluminum case housing, the version Somfy calls the battery stick
- 0.6 m lead, the longer of the two cased AutoSun 2 battery leads Somfy lists
- Fits the 3 Nm, 6 Nm, and 10 Nm T3.5 ESP Hz motors and kits
- Covered by a 5-year Somfy warranty
Specifications
| Chemistry | NiMH |
| Capacity | 2.2 Ah |
| Voltage | 12V DC |
| Housing | Aluminum case |
| Cable | 0.6 m (about 2 ft) |
| Fits | T3.5 ESP Hz 12V DC AutoSun motors and kits |
| Warranty | 5 years (Somfy) |
Compatible with: Simu T3.5 ESP Hz 12V DC motors 2009596, 2009597, and 2009598, the AutoSun kits 2009606, 2009607, and 2009608, the AutoSun solar panel, and the Battery Charger V2 (9029465) or the AutoSun 2 charger (9020638).
Official Somfy documentation
- Simu AutoSun – Brochure (PDF)
- Simu AutoSun – Battery Install Guide (PDF)
- Simu AutoSun – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
Which motors use the 9020635 battery?
Somfy lists part 9020635 for the T3.5 ESP Hz 12V DC motors 2009596, 2009597, and 2009598 and for the matching AutoSun kits 2009606, 2009607, and 2009608. It covers the 3 Nm, 6 Nm, and 10 Nm versions, so one spare fits the whole AutoSun 2 line.
What are the battery specs?
Somfy lists the 9020635 as a 12V DC, 2.2 Ah NiMH battery in an aluminum case with a 0.6 m cable and a 5-year warranty. Simu's AutoSun 2 datasheet gives the cells an operating range of -4°F to 158°F and an expected life of about 8 years.
Can I charge it from an outlet?
Simu's FAQ says to unplug the battery from the motor, connect it to the charger (9020638), and charge for at least 3 hours. A charged battery should read about 13 volts. Somfy also lists the Battery Charger V2 US kit (9029465) for AutoSun motors.
How do I tell an AutoSun 1 battery from AutoSun 2?
Simu says an AutoSun 1 battery has a small circuit board with a reset button, while an AutoSun 2 battery has no circuit board. The 9020635 belongs to the AutoSun 2 range that Somfy lists for the current T3.5 ESP Hz motors.
Couldn't load pickup availability
Replace a worn battery or charger, or set up a new battery motor.
12- 1Aluminum case Houses the NiMH battery cells.
- 2Cable connector Plugs into the motor.
Replacing one
-
1
Remove the old one
Unplug the worn battery or charger.
-
2
Connect it
Plug the Simu 2.2 Ah NiMH AutoSun Battery in Aluminum Case, 0.6 m Cable into the motor's charging port or battery lead.
-
3
Charge
Charge fully, then test the shade.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Match the motor
Check your motor is on the list below.
-
2
Connect it
Plug it into the motor's charging port or battery lead.
-
3
Charge
Charge fully before first use.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Simu 2.2 Ah NiMH AutoSun Battery in Aluminum Case, 0.6 m Cable works with
Somfy lists these motors as compatible with part 9020635.
