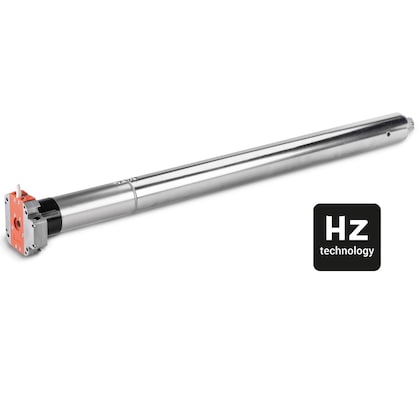

Simu DMI6Hz 60Nm 14rpm 120V with NEMA Plug -- Simu Hz radio, manual crank override and a plug-in cord
The Simu DMI6Hz 60Nm 14rpm 120V with NEMA Plug (2007145) combines a built-in Simu Hz radio with a CMO manual override head. It delivers 60 Nm at 14 rpm on 120V/60Hz power and ships with a 19.69 ft SJTW cord ending in a NEMA plug. Pick it for awnings and rolling shutters that need wireless control plus a crank backup during outages.
Benefits
- 60 Nm at 14 rpm for large awnings and rolling shutters
- Built-in Simu Hz radio on 433.42 MHz with a 492 ft open-field range
- CMO head with manual override for crank operation during outages
- 19.69 ft SJTW cord with a NEMA plug for plug-in installs
- Mechanical limits with a 28-turn capacity
- IP 44 rated and backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 60 Nm / 14 rpm |
| Voltage | 120V / 60Hz AC |
| Control | Simu Hz radio, 433.42 MHz |
| Radio range | 492 ft (open field) |
| Manual override | Yes (CMO head) |
| Limit switches | Mechanical, 28-turn capacity |
| Cable | 19.69 ft SJTW, 3-wire, white, NEMA plug |
| Standby consumption | 0.34 W |
| Protection | IP 44, Class I |
| Operating temperature | -4°F to 140°F |
| Applications | Awnings, rolling shutters |
| Warranty | 5 years |
Compatible with: Simu T6 class tubes with T5/T6 crowns and drives (60mm round aluminum drive 9012950, 70mm octagonal aluminum drive 9011878, 85mm Simbac tube crown 9690085), DMI brackets (9420647, 9706034, 2005701), the 7mm hex CMO extension shaft (9420659) and Simu Hz transmitters on 433.42 MHz.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What makes the Simu 2007145 different from a standard DMI6?
The 2007145 adds a built-in Simu Hz radio receiver on 433.42 MHz to the DMI6 manual override motor. It also ships with a 19.69 ft SJTW cord and a NEMA plug, so it plugs into a standard outlet instead of hard-wiring to a wall switch.
Can I crank the 2007145 by hand?
Yes. The 2007145 has a CMO head that accepts a 7mm hex crank shaft. Somfy lists the 7mm hex extension shaft (9420659) and DMI brackets such as 9420647 and 9706034 as accessories, so you can operate the awning or shutter during a power outage.
What torque and speed does the 2007145 deliver?
The Simu DMI6Hz 2007145 delivers 60 Nm at 14 rpm on 120V/60Hz power. Standby draw is 0.34 W. It runs within -4°F to 140°F and carries an IP 44 rating, which suits exterior awning and rolling shutter installs.
How are the limits set on the 2007145?
The 2007145 uses mechanical limit switches with a 28-turn capacity. The motor stops at the same up and down points on every cycle, while the built-in Simu Hz radio takes commands from paired Simu Hz transmitters. Somfy backs it with a 5-year warranty.
