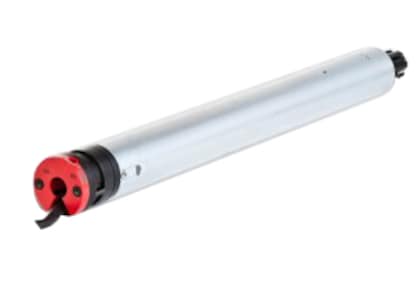

Somfy Simu T3.5 ESP Hz 3Nm 23rpm 12V DC AutoSun Radio Motor (2009596)
Somfy Simu T3.5 ESP Hz 3Nm 23rpm 12V DC AutoSun Radio Motor (2009596)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
T3.5 ESP Hz 3Nm 23rpm 12V DC -- solar-ready Hz radio motor for AutoSun shades
The Simu T3.5 ESP Hz 3Nm 23rpm 12V DC is the radio motor at the heart of the AutoSun solar system. It delivers 3 Nm at 23 rpm from a 12V DC battery, with a built-in Simu Hz receiver on 433.42 MHz and electronic limits. Pair it with an AutoSun battery and solar panel to motorize shades where no wiring can reach.
Benefits
- 3 Nm at 23 rpm from a 12V DC supply
- Built-in Simu Hz radio receiver on 433.42 MHz, no control wiring to run
- Electronic limit switch
- Molex-connector lead that plugs into the AutoSun battery and solar panel system
- IP 44 rating and a 5-year Somfy warranty
Specifications
| Torque / Speed | 3 Nm / 23 rpm |
| Model designation | T3.5DC ESP HZ 03/23 C1M/1 |
| Power supply | 12V DC |
| Power consumption | 0 W standby |
| Control | Simu Hz radio, 433.42 MHz |
| Limit switch | Electronic |
| Head type | Round |
| Minimum tube inside diameter | 1.57 in |
| Cable | 3.28 ft, black, Molex connector |
| Protection | IP 44, Class II insulation |
| Warranty | 5 years (Somfy) |
Compatible with: Simu T3.5 40 mm class tubes (minimum inner diameter 1.57 in) with matching Somfy T3.5 crowns and drives, the R8 adaptor plate (9012258), the 2.2 Ah NiMH AutoSun battery (9020635), the AutoSun solar panel, and the Battery Charger V2 (9029465). Simu states that Somfy RTS controls are compatible with the Simu Hz motor range, including AutoSun.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Simu T3.5 ESP Hz 3Nm 23rpm 12V DC (2009596) power?
Part 2009596 is a 3 Nm, 23 rpm tubular motor that Somfy lists for exterior solar screens and interior shades. It runs on 12V DC from an AutoSun battery, which a small solar panel keeps charged, so the shade needs no mains wiring.
Which radio does it use?
The motor has a built-in Simu Hz receiver on 433.42 MHz. Simu states that Somfy RTS controls are compatible with the Simu Hz motor range, including AutoSun. That lets you pair Simu Hz or Somfy RTS transmitters to part 2009596 without running control wires.
What do I need to complete an AutoSun install?
Somfy lists the 2.2 Ah NiMH AutoSun battery (9020635), the AutoSun solar panel and brackets, and the Battery Charger V2 (9029465) as accessories for part 2009596. You also need a T3.5 crown and drive matched to your 40 mm tube and a T3.5 bracket.
How long does an AutoSun battery last without sun?
Simu's AutoSun 2 datasheet rates the system at 15 days of autonomy without sun at two cycles per day, and gives the NiMH battery a lifetime of about 8 years. Actual results depend on shade weight, panel placement, and how often you run the T3.5 ESP Hz 3Nm 23rpm 12V DC.
How is the motor connected?
Somfy lists a 3.28 ft black lead with a Molex connector on part 2009596. The lead plugs into the AutoSun battery, and the solar panel connects to the battery. Simu sells adaptor cables (9020481 and 9020639) for mixing AutoSun 1 and AutoSun 2 parts.
Couldn't load pickup availability
Replace a Simu T3.5 motor or build a small new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2009596.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Drive end Turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Fit the T3.5 crown and drive for your tube, then slide the new motor in.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Simu Hz transmitter, then set the up and down limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T3.5 ESP Hz 3Nm 23rpm 12V DC AutoSun Radio Motor needs to run
Somfy lists every part below as compatible with part 2009596. Pick one from each row.
1Control
Built-in Hz radio. Pairs with Simu Hz transmitters.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu T3.5 ESP Hz 3Nm 23rpm 12V DC AutoSun Radio Motor for 5 years. We handle the claim.
Somfy warranty on the Simu T3.5 ESP Hz 3Nm 23rpm 12V DC AutoSun Radio Motor, part 2009596.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
