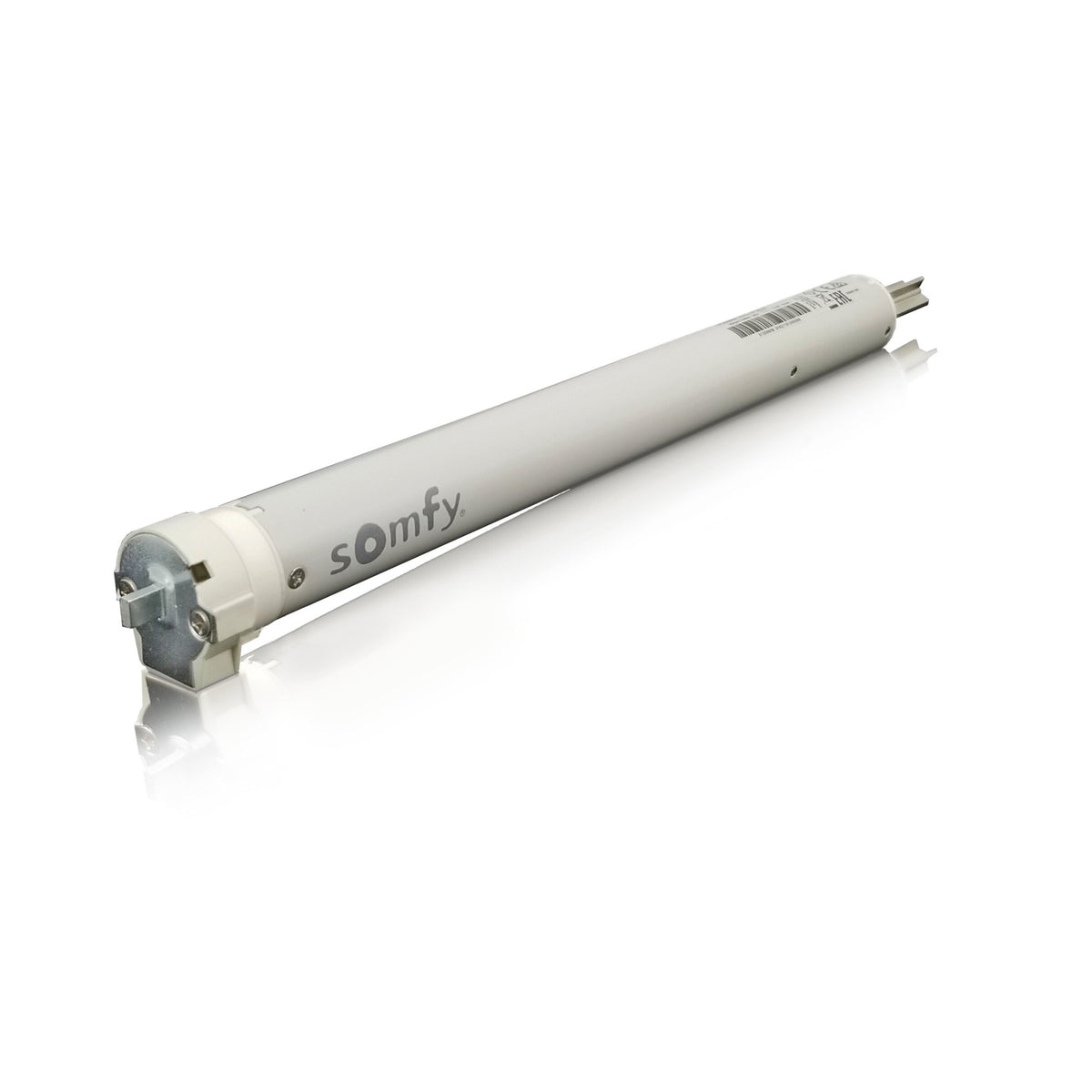

Somfy R28 WT 24V DC Roll-Up Wired Motor, Flush Mount -- low-voltage wired motor

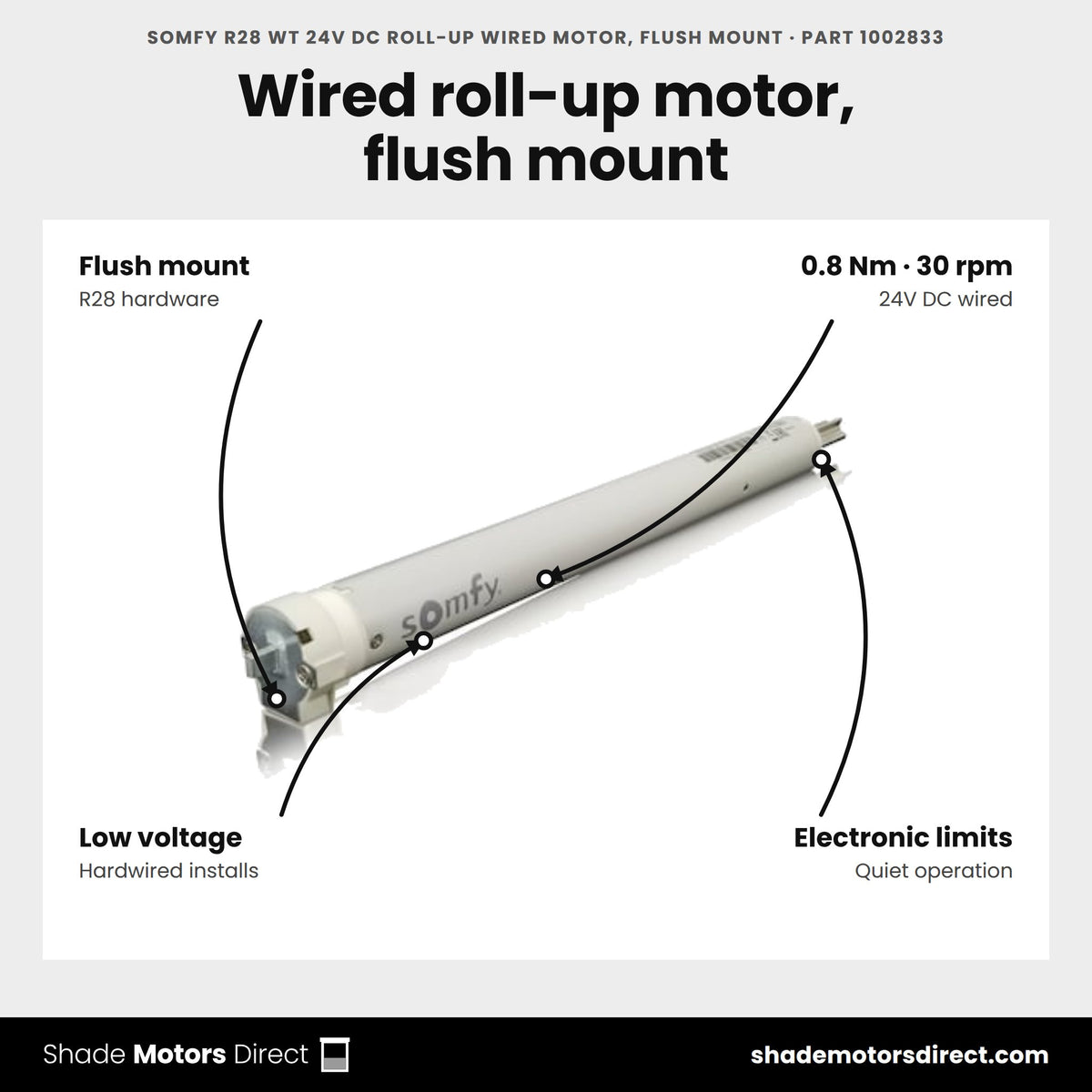

The R28 WT is a wired 24V DC motor delivering 0.8Nm at 30rpm for lightweight interior roll-up shades, in a flush-mount head style. It shares the R28 platform with the pin-mount and starhole-mount versions.
Benefits
- Wired 24V DC control -- reliable for hardwired low-voltage installs
- Flush-mount head style fits standard R28 hardware ecosystems
- Compact, quiet operation for lightweight roll-up shades
- 5-year Somfy warranty
Specifications
| Torque / Speed | 0.8 Nm / 30 rpm |
| Control | Wired 24V DC |
| Head style | Flush mount |
| Warranty | 5 years |

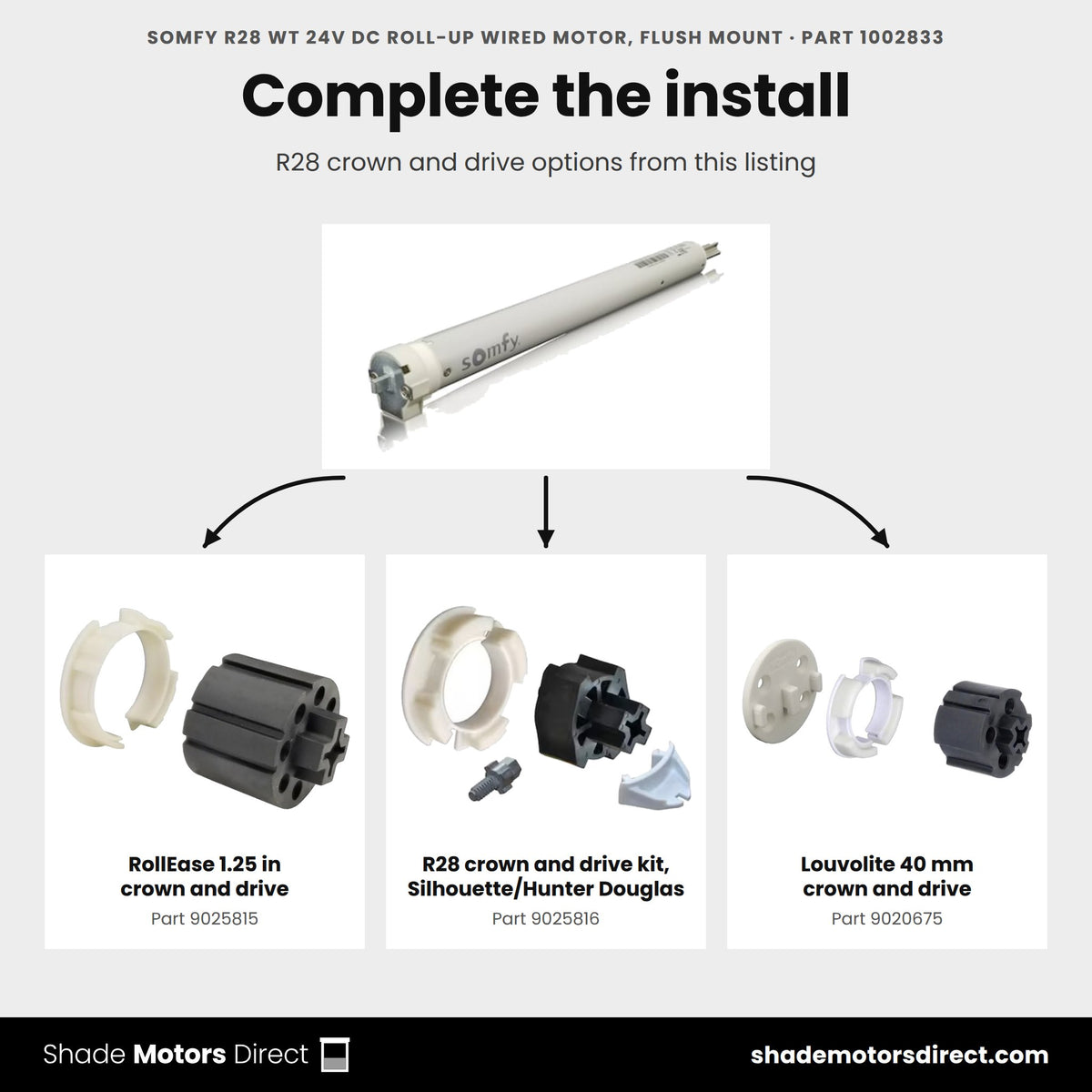

Compatible with: R28 crown/drive hardware, R28 flush-mount brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Roll Up Wired R28 deliver?
Somfy rates part 1002833 at 0.8 Nm of torque and 30 rpm. It runs on 24V DC, draws 0.32 A and uses 7.7 W while running.
How does this motor mount?
Somfy lists part 1002833 as the ear mount version of the Roll Up Wired R28, with a round head. Somfy also makes a pin mount version (1002832) and a star hole mount version (1002834), both sold here.
What tube and shade types does it suit?
Somfy lists a minimum tube inside diameter of 1.05 in. Somfy names roller blinds, solar screens, zebra blinds and Roman blinds as applications for this compact motor.
How is the motor powered and wired?
It is a low-voltage 24V DC motor with a 0.98 ft 2-wire lead. Somfy lists an input range of 20 V to 27 V, so plan a 24V DC supply for each shade run.
How are the limits set, and how often can it run?
The motor uses electronic limits with a capacity of 60 turns. Somfy rates it for 2 cycles per day, with an operating range of 14 °F to 167 °F.
Is there a battery version with a built-in radio?
Yes. The Somfy Roll Up 28 WireFree RTS V2 comes as an external battery version (1241162) and a Li-ion version (1241150). Both carry a built-in RTS receiver for Somfy remotes and wall switches.
Couldn't load pickup availability

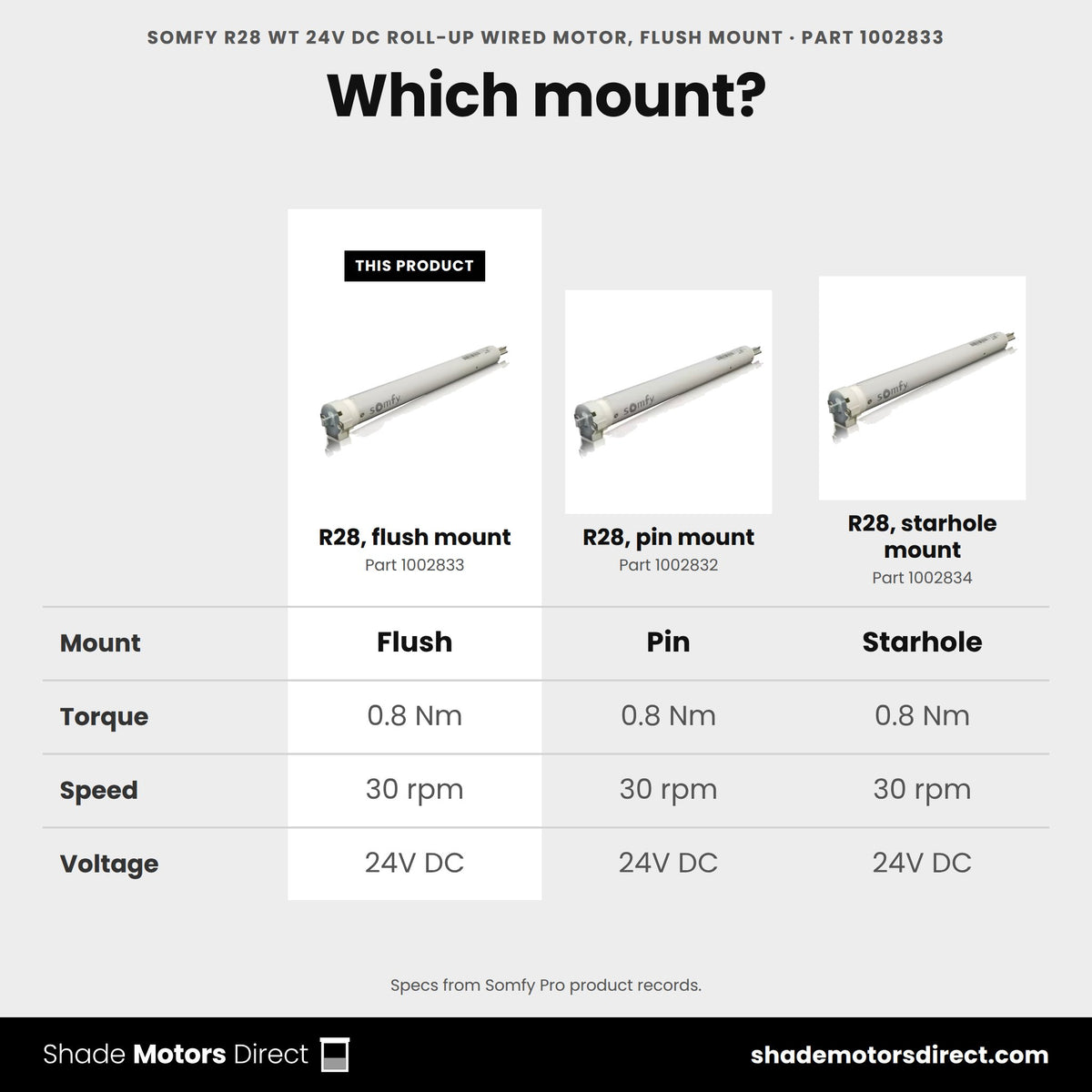

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy R28 WT 24V DC Roll-Up Wired Motor, Flush Mount (0.8Nm, 30rpm) (1002833)
|
Somfy Roll Up Wired R28 (Pin Mount) (1002832)
|
Somfy Roll Up Wired R28 (Starhole Mount) (1002834)
|
Somfy Roll Up 28 WireFree RTS V2 (External Battery) (1241162)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 0.8 | 0.8 | 0.8 | 1.1 |
| Speed (rpm) | 30 | 30 | 30 | — |
| Control | Wired 24V DC | Wired 24V DC | Wired 24V DC | RTS radio |
| Power | 24V DC | 24V DC | 24V DC | 12V DC battery |
| Motor family | Roll Up 28 | Roll Up 28 | Roll Up 28 | Roll Up 28 |
| What's different | The product on this page | Close alternative | Close alternative | 1.1 Nm instead of 0.8, RTS radio |
| Buy | Currently viewing | View details | View details | View details |
