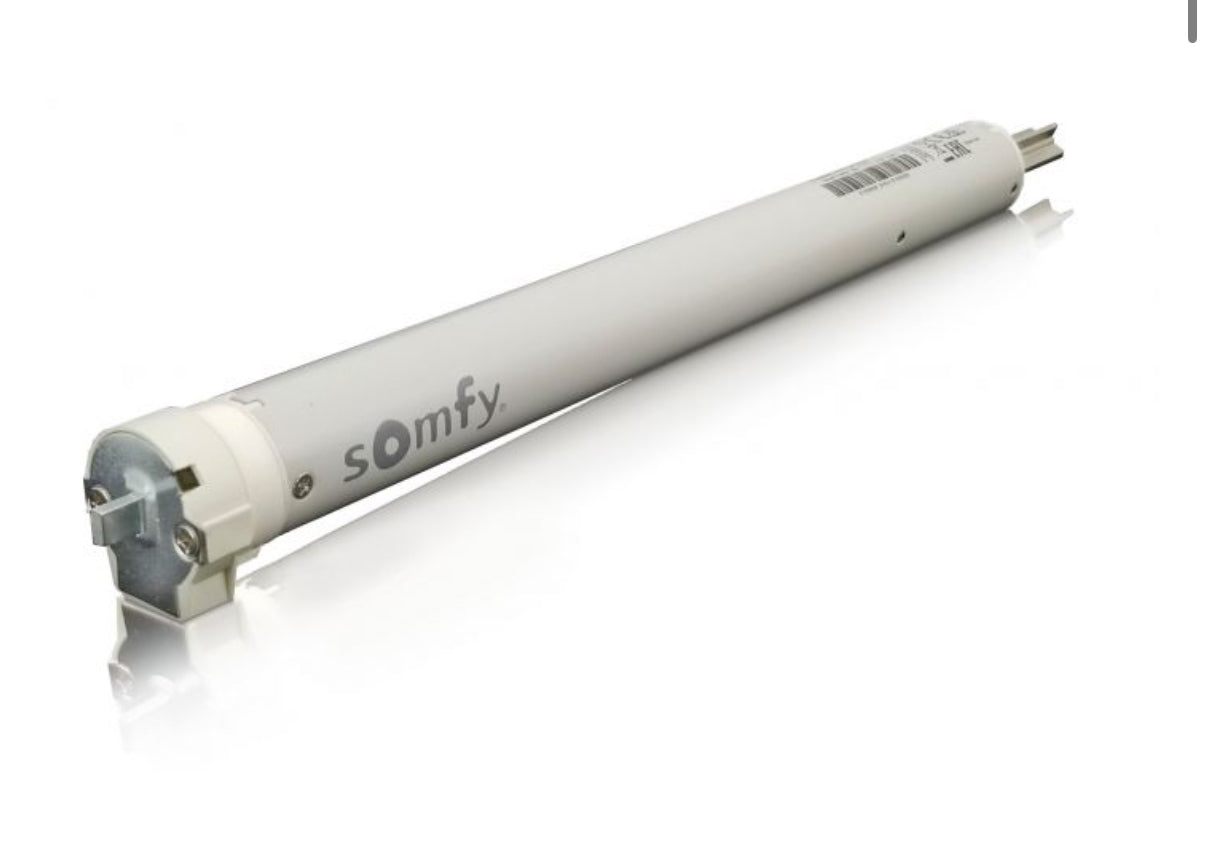

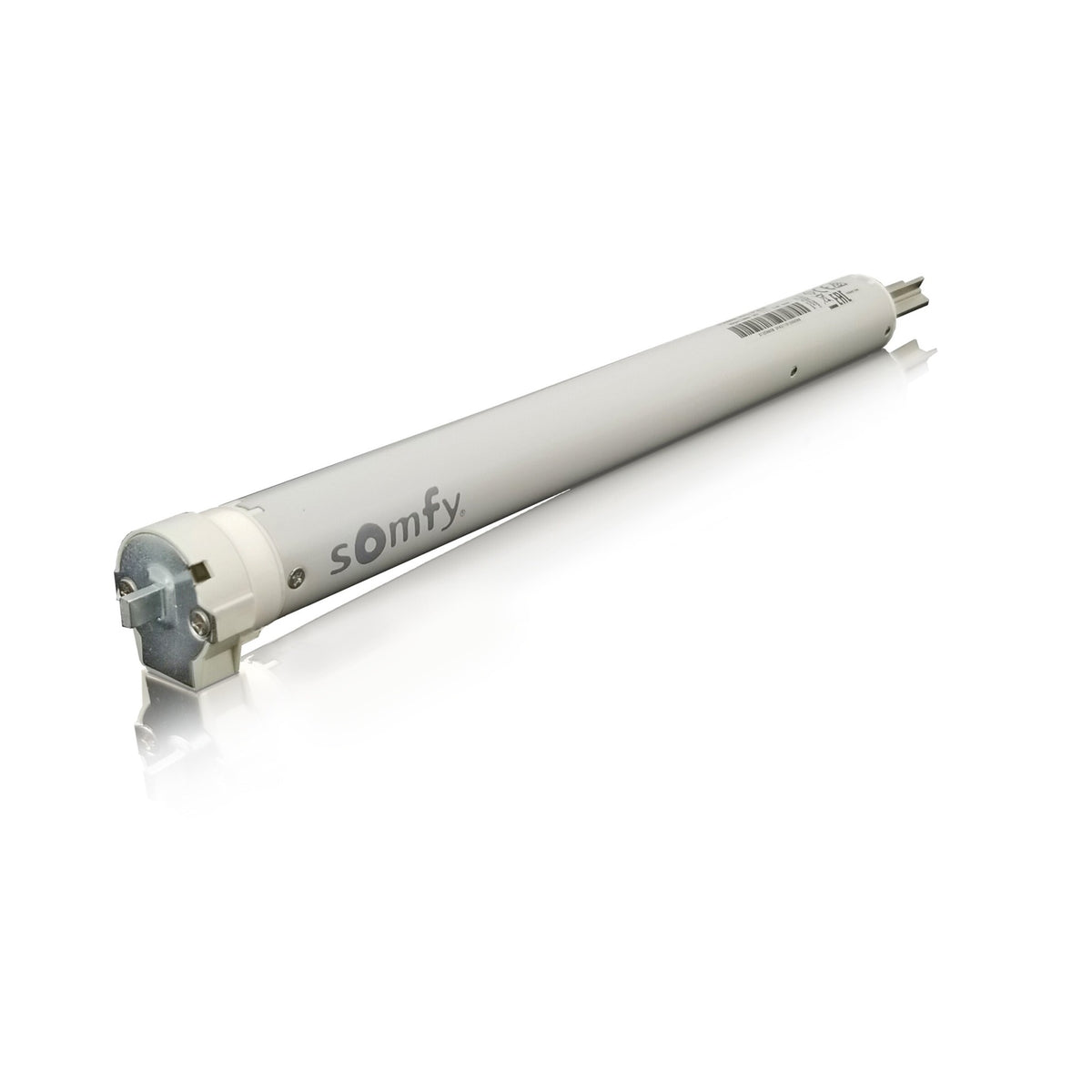

Roll Up Wired R28 (Starhole Mount) -- compact 24V low-voltage motor for small and medium shades

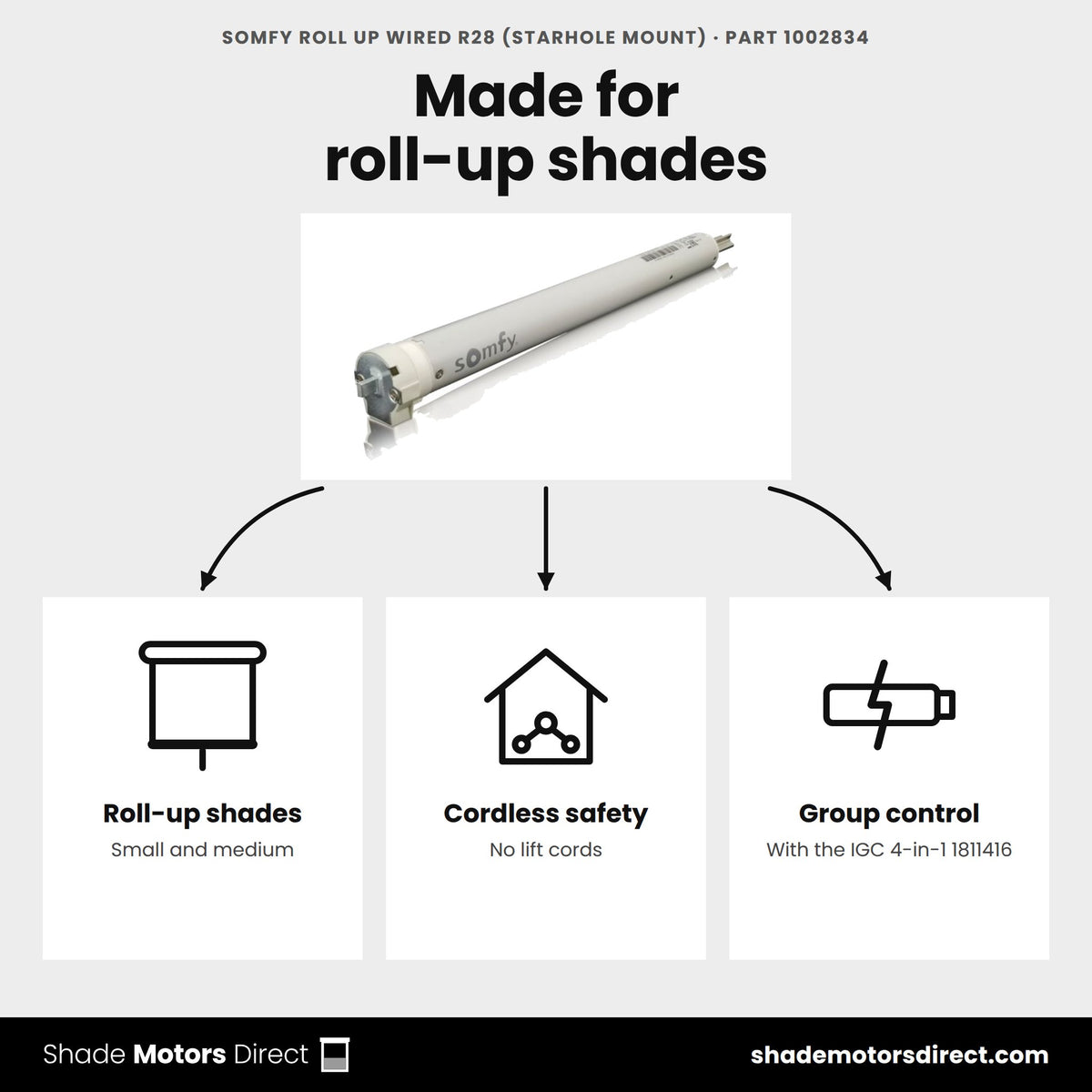

The Roll Up 28 WT is a small, highly reliable 24V DC wired motor for roller, Roman, sheer horizontal, pleated, and cellular shades. Low-voltage wiring means no electrician is required, and the starhole-mount head suits starhole-style bracket systems. Pair it with Somfy wired controls or an IGC controller for individual and group operation.
Benefits
- Compact motor for small and medium roll-up applications
- Low-voltage 24V DC wiring -- no electrician required
- Quiet, low-consumption operation with electronic limits
- Eliminates lift cords for a cleaner, child- and pet-safer window
- Starhole mount head for starhole-style brackets
- Group and preset control available via the IGC 4-in-1 controller (1811416)

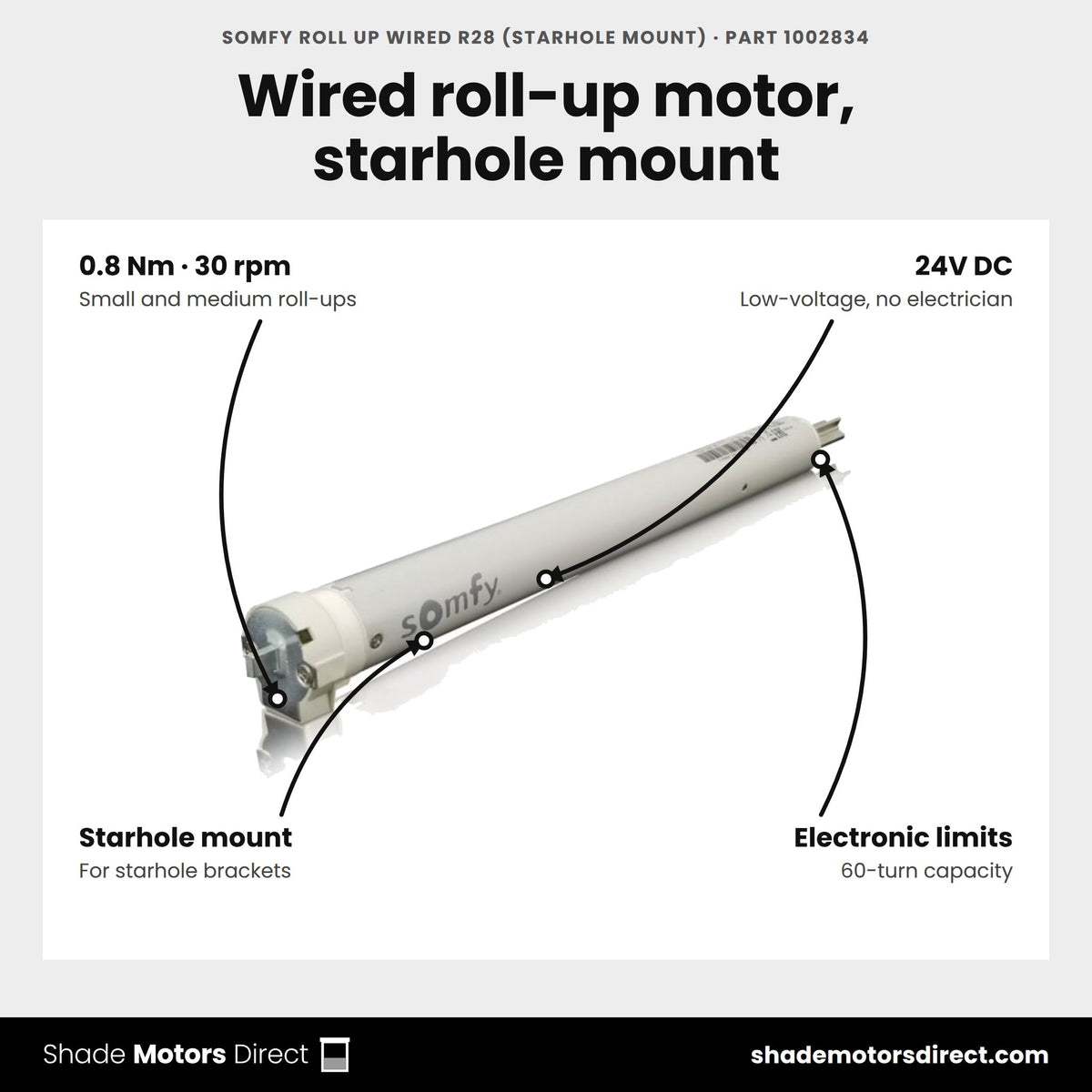

Specifications
| Torque / Speed | 0.8 Nm / 30 rpm |
| Voltage | 24V DC (Somfy Wired Technology) |
| Limits | Electronic, 60-turn capacity |
| Protection / Insulation | IP 30 / Class III |
| Sound level | 48 - 57 dBA |
| Mount | Starhole |
Compatible with: Somfy 24V DC wired controls, IGC 4-in-1 controller 1811416, 24V transformers such as 1822209
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Roll Up Wired R28 built for?
Part 1002834 is a compact 24V DC wired motor for small and medium roller, Roman, sheer horizontal, pleated and cellular shades. Low-voltage wiring means no electrician is needed, and the starhole mount suits starhole-style bracket systems.
What torque and speed does it deliver?
Somfy rates the 1002834 at 0.8 Nm of torque and 30 rpm. It has electronic limits with a capacity of 60 turns and needs a tube with an inside diameter of at least 1.05 in. Somfy lists a noise level of 57 dB.
What power does it need?
It runs on 24V DC within a range of 20 V to 27 V, with a rated current of 0.32 A and 7.7 W in operation. The motor has a 0.98 ft, 2-wire cable. The Somfy 24V DC 1.67 Amp Plug-in Wall Mount Transformer (1822209) is a matching supply.
Does it have a built-in radio?
No. This is a wired motor with no radio receiver, so it runs from a wired 24V DC control. For a battery-powered RTS motor in the same 28 size, look at the Roll Up 28 WireFree RTS V2 (Li-ion) (1241150).
What are its operating limits?
Somfy rates the motor IP 30 with Class III insulation and an operating range of 14 °F to 167 °F. It is rated for 2 daily cycles with a thermal time of 6 min, and it carries Somfy's 5-year warranty.
Which crowns, drives and plates fit?
Options include the RollEase 1.25 in Crown and Drive (9025815), the R28 Sonesse Crown and Drive Kit for Silhouette and Hunter Douglas shades (9025816) and the Motor Plate for ST30 (9013789) for mounting.
Couldn't load pickup availability

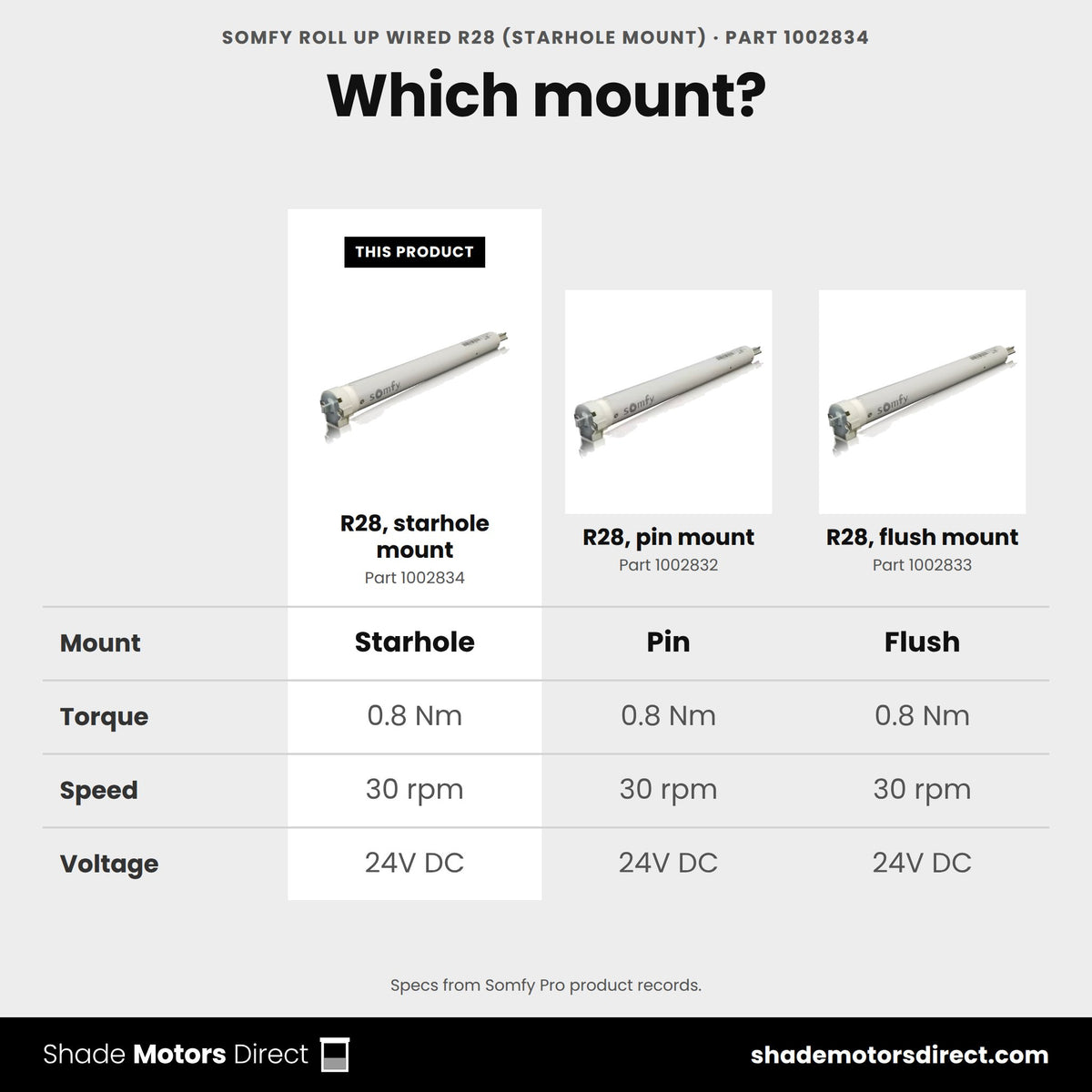

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Roll Up Wired R28 (Starhole Mount) (1002834)
|
Somfy R28 WT 24V DC Roll-Up Wired Motor, Flush Mount (0.8Nm, 30rpm) (1002833)
|
Somfy Roll Up Wired R28 (Pin Mount) (1002832)
|
Somfy Roll Up 28 WireFree RTS V2 (External Battery) (1241162)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 0.8 | 0.8 | 0.8 | 1.1 |
| Speed (rpm) | 30 | 30 | 30 | — |
| Control | Wired 24V DC | Wired 24V DC | Wired 24V DC | RTS radio |
| Power | 24V DC | 24V DC | 24V DC | 12V DC battery |
| Motor family | Roll Up 28 | Roll Up 28 | Roll Up 28 | Roll Up 28 |
| What's different | The product on this page | Close alternative | Close alternative | 1.1 Nm instead of 0.8, RTS radio |
