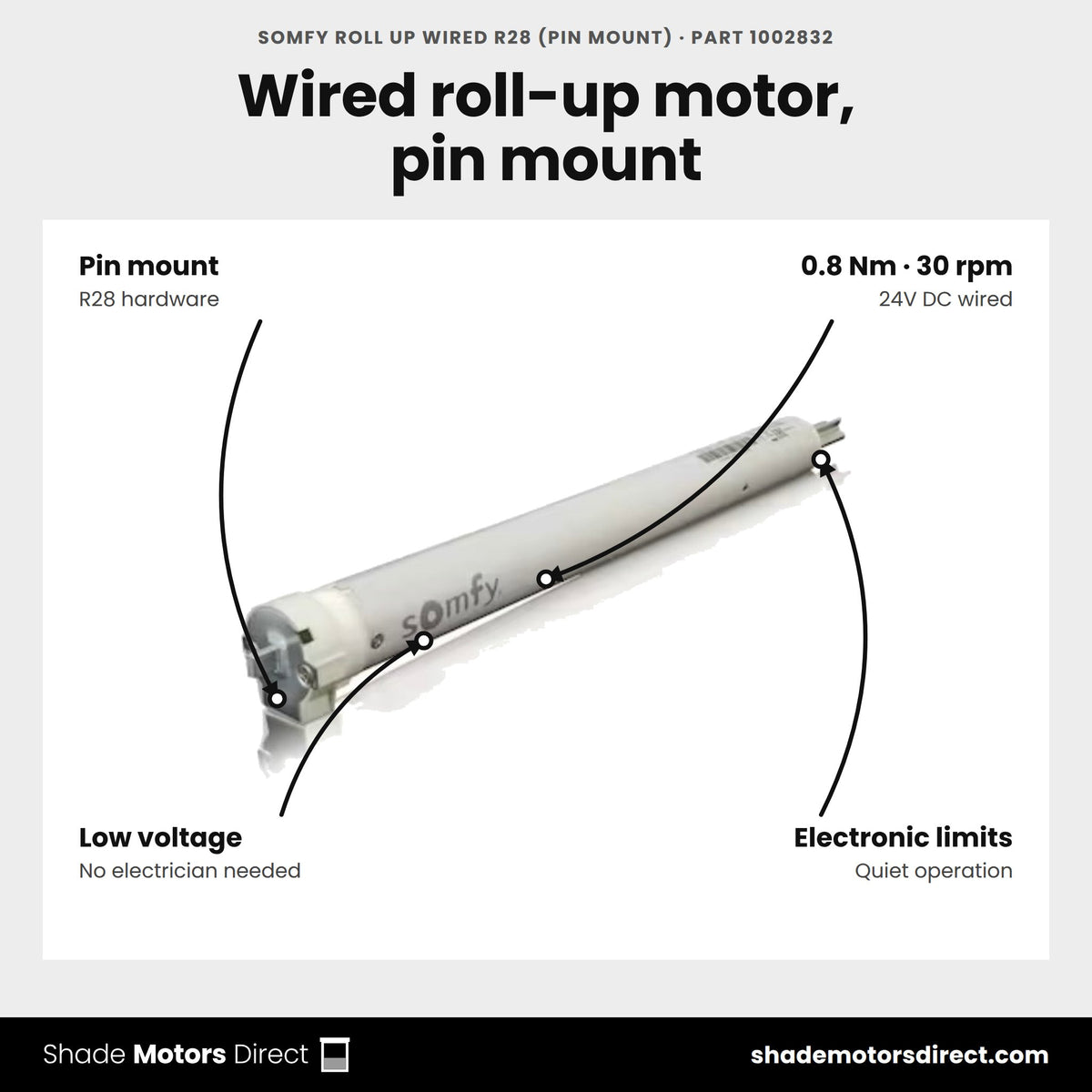

Somfy Roll Up Wired R28 (Pin Mount), part 1002832, features: 0.8 Nm, 30 rpm, 24V DC wired, pin mount, electronic limits

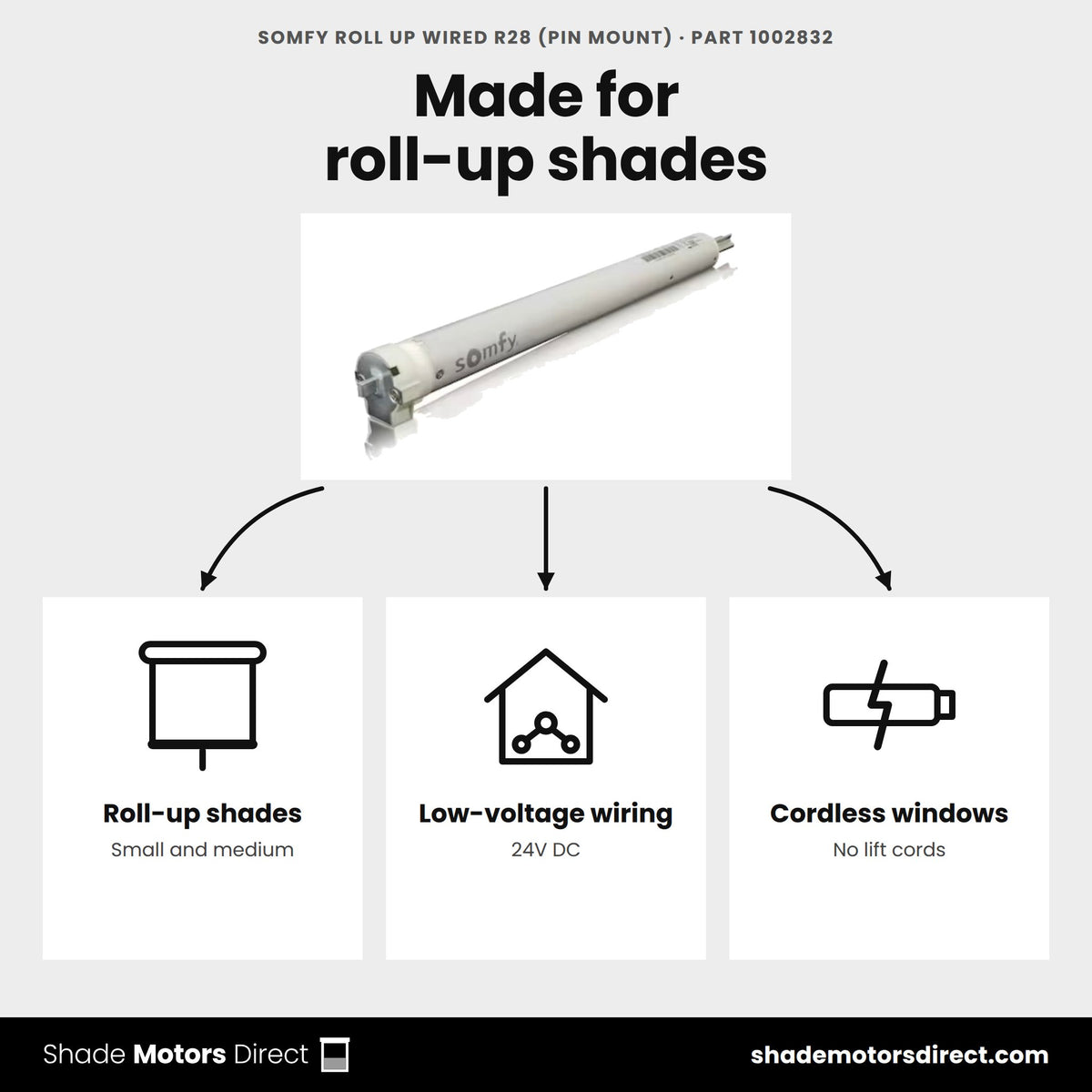

Somfy R28 wired roll-up motor, pin mount 1002832 uses: small and medium roll-up shades, low-voltage 24V wiring

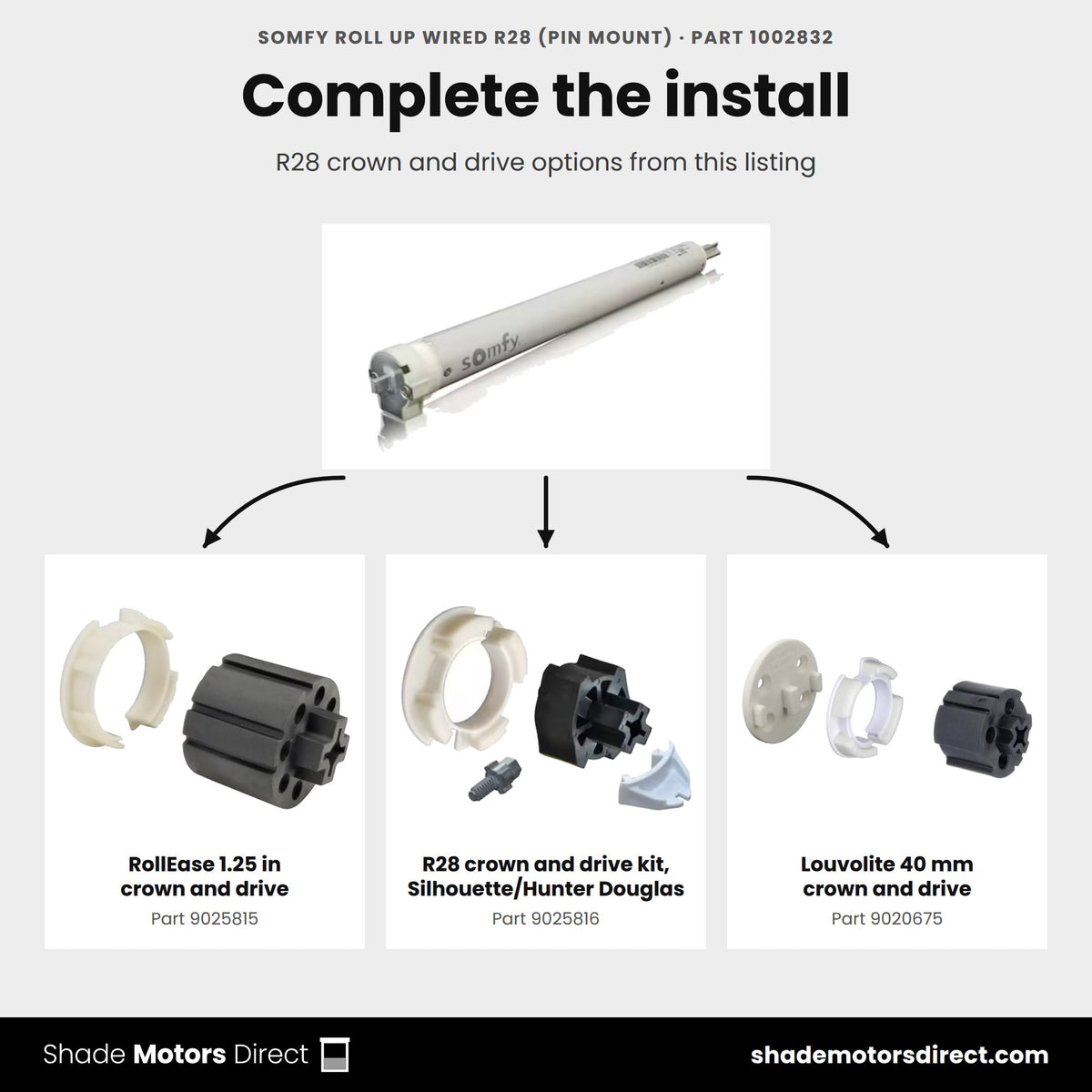

Parts that work with the Somfy R28 wired roll-up motor, pin mount 1002832: RollEase 1.25 in crown and drive 9025815, R28 crown and drive kit, Silhouette/Hunter Douglas 9025816, Louvolite 40 mm crown and drive 9020675

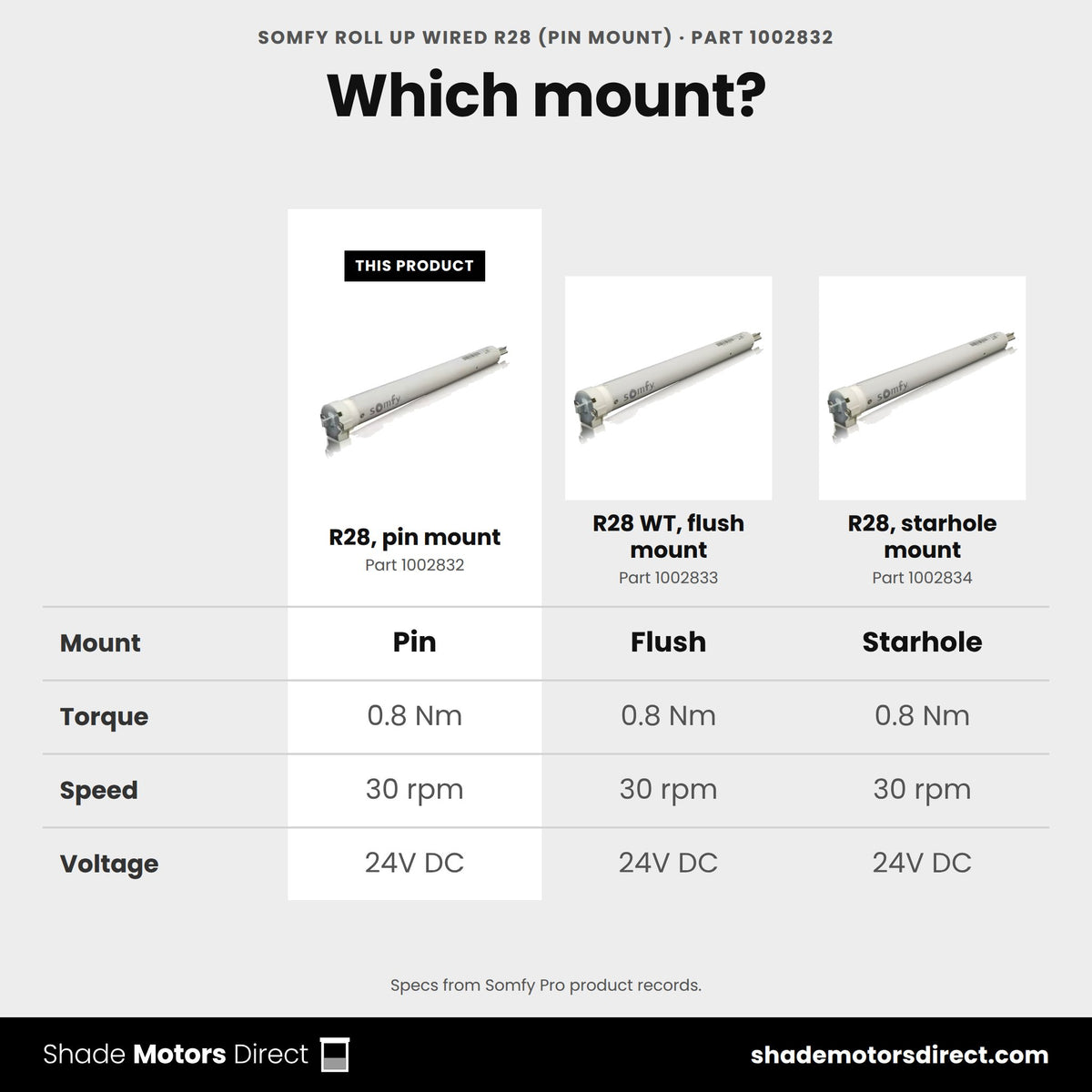

Somfy R28 wired roll-up motor, pin mount 1002832 compared: R28 WT, flush mount 1002833, R28, starhole mount 1002834

Buy the Somfy Roll Up Wired R28 (Pin Mount), part 1002832, genuine new, from ShadeMotorsDirect

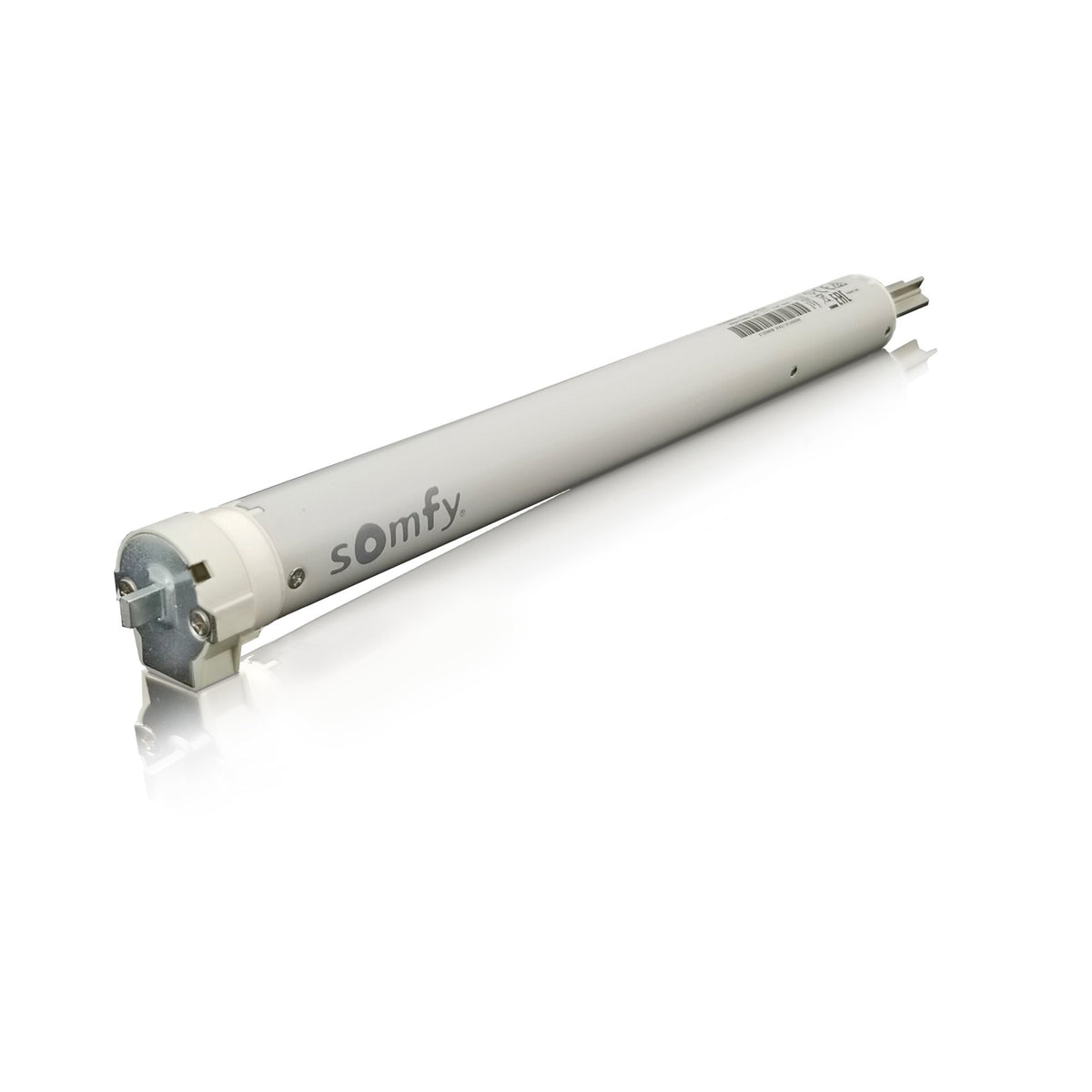

Somfy Roll Up Wired R28 (Pin Mount) (1002832)

SKU: 1002832

$156.95

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

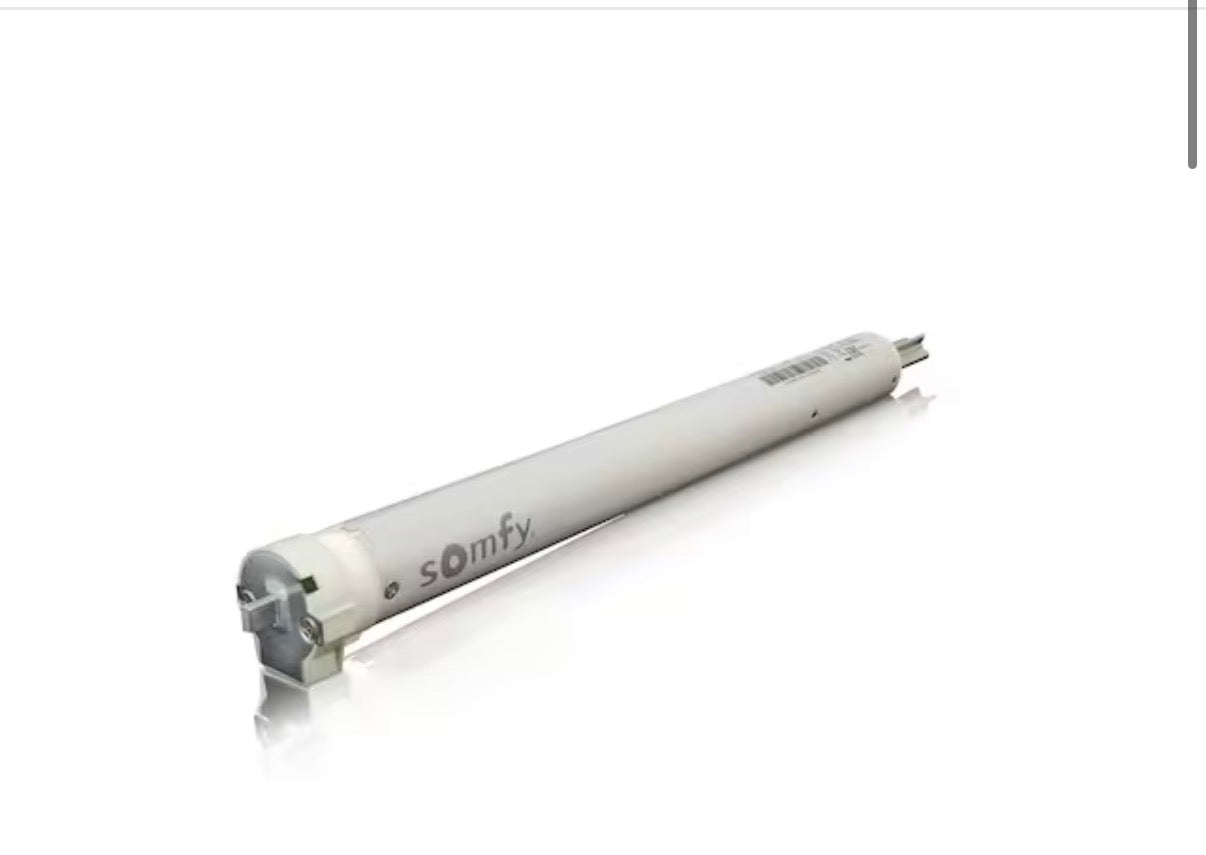

Roll Up Wired R28 (Pin Mount) -- compact 24V low-voltage motor for small and medium shades

The Roll Up 28 WT is a small, highly reliable 24V DC wired motor for roller, Roman, sheer horizontal, pleated, and cellular shades. Low-voltage wiring means no electrician is required, and the pin-mount head suits pin-style bracket systems. Pair it with Somfy wired controls or an IGC controller for individual and group operation.

Benefits

Compact motor for small and medium roll-up applications
Low-voltage 24V DC wiring -- no electrician required
Quiet, low-consumption operation with electronic limits
Eliminates lift cords for a cleaner, child- and pet-safer window
Pin mount head for pin-style brackets
Group and preset control available via the IGC 4-in-1 controller (1811416)

Specifications

Torque / Speed	0.8 Nm / 30 rpm
Voltage	24V DC (Somfy Wired Technology)
Limits	Electronic, 60-turn capacity
Protection / Insulation	IP 30 / Class III
Sound level	48 - 57 dBA
Mount	Pin

Compatible with: Somfy 24V DC wired controls, IGC 4-in-1 controller 1811416, 24V transformers such as 1822209

Official Somfy documentation

Roll Up Wired R28 (Pin Mount) – Somfy Pro Product Page

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Roll Up Wired R28 (Pin Mount)?

It is a compact Somfy 24V DC wired motor for small and medium interior shades. Somfy lists it for roller blinds, solar screens, zebra blinds and Roman blinds. The pin-mount head suits pin-style bracket systems.

Do I need an electrician to install it?

No. The motor runs on low-voltage 24V DC, so the installation needs no electrician. Somfy rates it at 7.7 W running and 0.407 W in standby, and a 24V DC transformer such as the plug-in 1822209 supplies power.

Which controls work with it?

Somfy 24V DC wired controls and switches run it. For individual control, group control and presets, pair it with the Somfy IGC 4-in-1 Motor Control (1811416).

What other mount types does Somfy offer?

This version (1002832) has a pin mount. Somfy makes the Roll Up Wired R28 with an ear mount (1002833) and a starhole mount (1002834), and this store carries both.

How loud is it, and how are limits set?

Somfy rates it at 57 dB with an IP 30 rating for interior use. Electronic limits with a 60-turn capacity stop the shade at its set points. The motor carries Somfy's 5-year warranty.

Which crowns and drives fit it?

Compatible parts in this store include the R28 Sonesse crown and drive kit for Silhouette and Hunter Douglas shades (9025816), the RollEase 1.25 in crown and drive (9025815) and the Sonesse 30 WireFree to 400 Series adapter kit (9020676).

Shade Motors Direct Spec Library Product specs, manuals and technical documents

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy Roll Up Wired R28 (Pin Mount) (1002832)	Somfy R28 WT 24V DC Roll-Up Wired Motor, Flush Mount (0.8Nm, 30rpm) (1002833)	Somfy Roll Up Wired R28 (Starhole Mount) (1002834)	Somfy Roll Up 28 WireFree RTS V2 (External Battery) (1241162)
Price	$156.95	$157.35	$156.95	$197.95
Torque (Nm)	0.8	0.8	0.8	1.1
Speed (rpm)	30	30	30	—
Control	Wired 24V DC	Wired 24V DC	Wired 24V DC	RTS radio
Power	24V DC	24V DC	24V DC	12V DC battery
Motor family	Roll Up 28	Roll Up 28	Roll Up 28	Roll Up 28
What's different	The product on this page	Close alternative	Close alternative	1.1 Nm instead of 0.8, RTS radio
Buy	Currently viewing	View details	View details	View details
