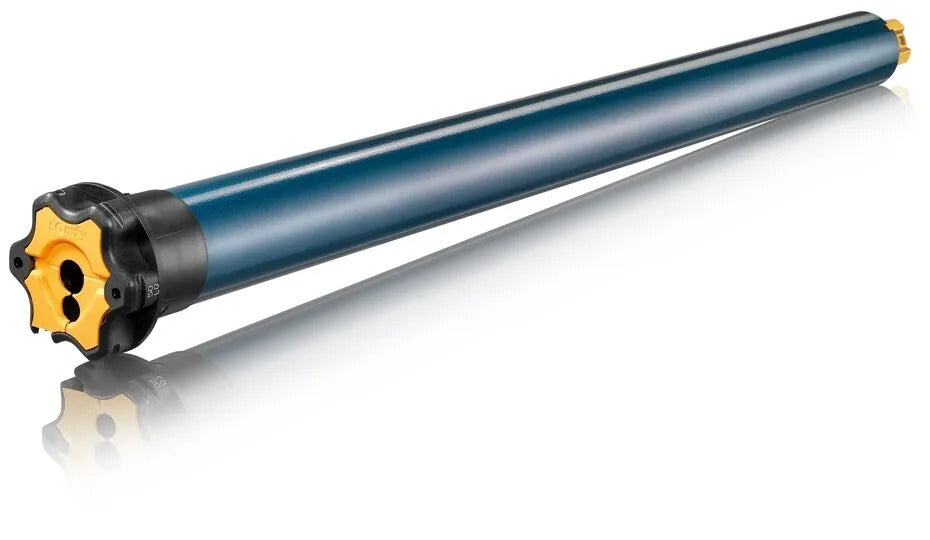

Somfy Sonesse Ultra 506A2 RTS 120V Motor (1002562)
Somfy Sonesse Ultra 506A2 RTS 120V Motor (1002562)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Sonesse ULTRA 50 ultra-quiet tubular motor for interior window coverings
The Sonesse ULTRA 50 range puts window coverings in motion with ultra-quiet precision. This wired motor is built for shades where near-silent operation matters most.
Benefits
- Ultra-quiet operation -- 38 dB
- Mounts six different ways with a snap-on roller tube adaptor connection
- Compatible with Somfy's full range of RTS controls, sensors, and timers
- Voice and app control via TaHoma; integrates with third-party automation
- Backed by Somfy's standard 5-year warranty
Specifications
| Torque / Speed | 6 Nm / 24 rpm |
| Overall length | 32.4 in (823 mm) |
| Minimum tube inside diameter | 1.85 in |
| Noise level | 38 dB |
| Radio Frequency | 433.420 MHz |
| Head type | Star |
| Motor tube size | 50mm |
| Application | Interior window coverings, roller/solar shades, screens |
| Warranty | 5 years |
Compatible with: Sonesse 50 tube, crown & drive, and bracket hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Sonesse ULTRA 506A2 RTS deliver?
Somfy rates part 1002562 at 6 Nm of torque and 24 rpm. It is a 50 mm tubular motor with a star head and electronic limits, built for interior roller shades, solar shades and screens, and it carries Somfy's 5-year warranty.
How quiet is it compared with the standard Sonesse 506S2 RTS?
Somfy rates this ULTRA motor at 38 dB. The Sonesse 506S2 RTS (1001809) runs at 45.1 dB with the same 6 Nm of torque and a faster 32 rpm. Pick the 506A2 for bedrooms, offices and media rooms where quiet comes first.
What is the smallest roller tube this motor fits?
Somfy lists a minimum tube inside diameter of 1.85 in. Matching hardware in our store includes the LT50 2.5" Crown (9707026) and the LT50 2" and 2.5" Soft Clip Drives (9206089 and 9206041).
How is the motor powered and wired?
It runs on 120V AC and ships with a 9.84 ft, 3-wire SJTW cable. The built-in RTS receiver replaces the control wiring, so each shade still needs a power feed at the window.
Which remotes and wall switches work with it?
Any Somfy RTS transmitter works, including the Situo 1 and Situo 5 RTS Pure remotes (1870571, 1870575), the Telis 16 Channel RTS remote (1811081), DecoFlex RTS wall switches and the Telis 1 Chronis RTS timer (1805237). The motor stores up to 12 transmitters.
Can I control it from my phone or a voice assistant?
Yes, through a Somfy TaHoma hub such as the TaHoma Switch (1871037). RTS is one-way radio, so the app and voice assistant send commands to the shade but cannot report its position back.
Couldn't load pickup availability
Replace a Sonesse 50 motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1002562.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Fit the crown and drive wheel for your tube, then slide the new motor in.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Sonesse Ultra 506A2 RTS 120V Motor needs to run
Somfy lists every part below as compatible with part 1002562. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
Somfy backs the Sonesse Ultra 506A2 RTS 120V Motor for 5 years. We handle the claim.
Somfy warranty on the Sonesse Ultra 506A2 RTS 120V Motor, part 1002562.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse Ultra 506A2 RTS 120V Motor (1002562)
|

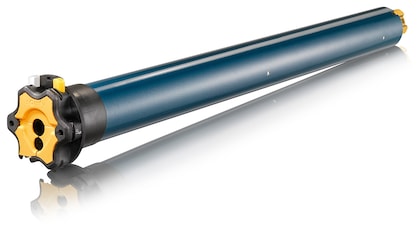

Somfy Sonesse Ultra 50 506A2 120V 4-Wire Motor (star head) (1002558)
|

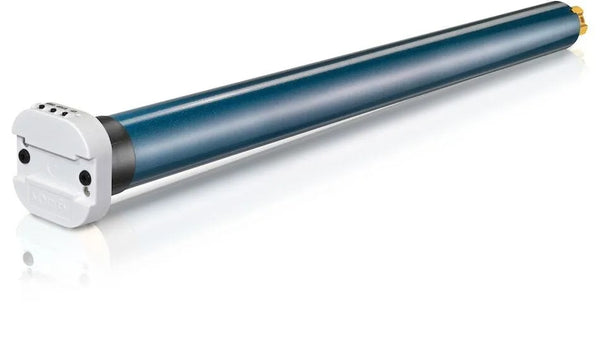

Somfy Sonesse Ultra 504A8 RTS 24V DC Motor (1134023)
|
Somfy Sonesse Ultra 50 506A2 RH 120V 4-Wire Motor (round head) (1002560)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 4.0 | 6.0 |
| Speed (rpm) | 24 | 24 | 25 | 24 |
| Control | RTS radio | Wired 4-wire | RTS radio | Wired 4-wire |
| Power | 120V AC | 120V AC | 24V DC | 120V AC |
| Motor family | Sonesse Ultra 50 | Sonesse Ultra 50 | Sonesse Ultra 50 | Sonesse Ultra 50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 4.0 Nm instead of 6.0 | Same size, Wired 4-wire control |
| Buy | Currently viewing | View details | View details | View details |
Guides for this product
Somfy Sonesse 50 120V Motor Versions and Which One to Order
Wired, RTS, RS485 or ULTRA: match a Somfy Sonesse 50 120V motor to your control, torque, head type and bracket... Read
