Somfy Sonesse 50 Pin End Cap 10mm for 2 inch Tube (9016628)
Somfy Sonesse 50 Pin End Cap 10mm for 2 inch Tube (9016628)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

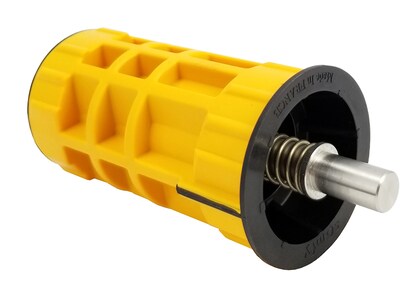

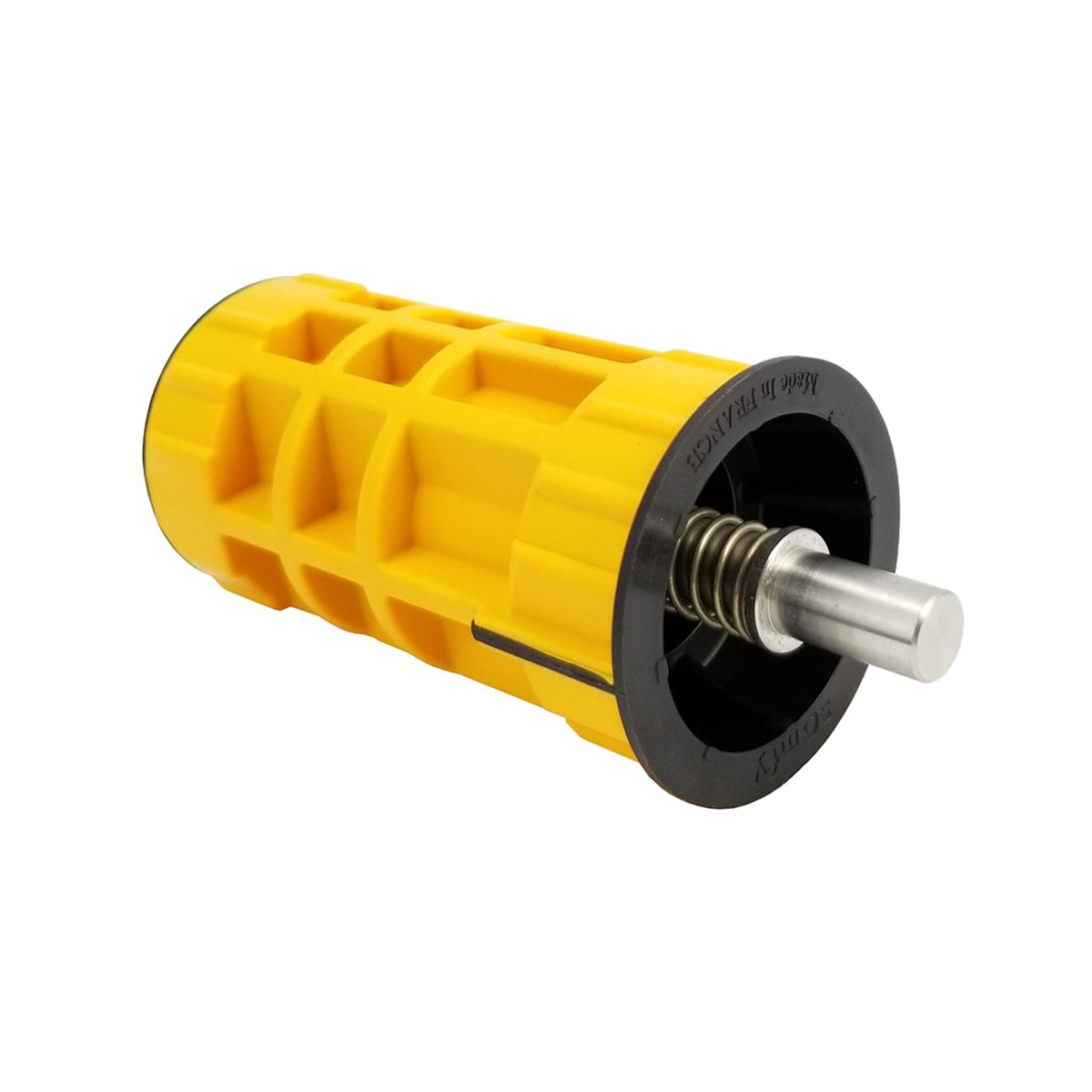

Somfy Sonesse 50 Pin End Cap 10mm for 2 inch Tube -- genuine Somfy accessory for the Sonesse 50 system

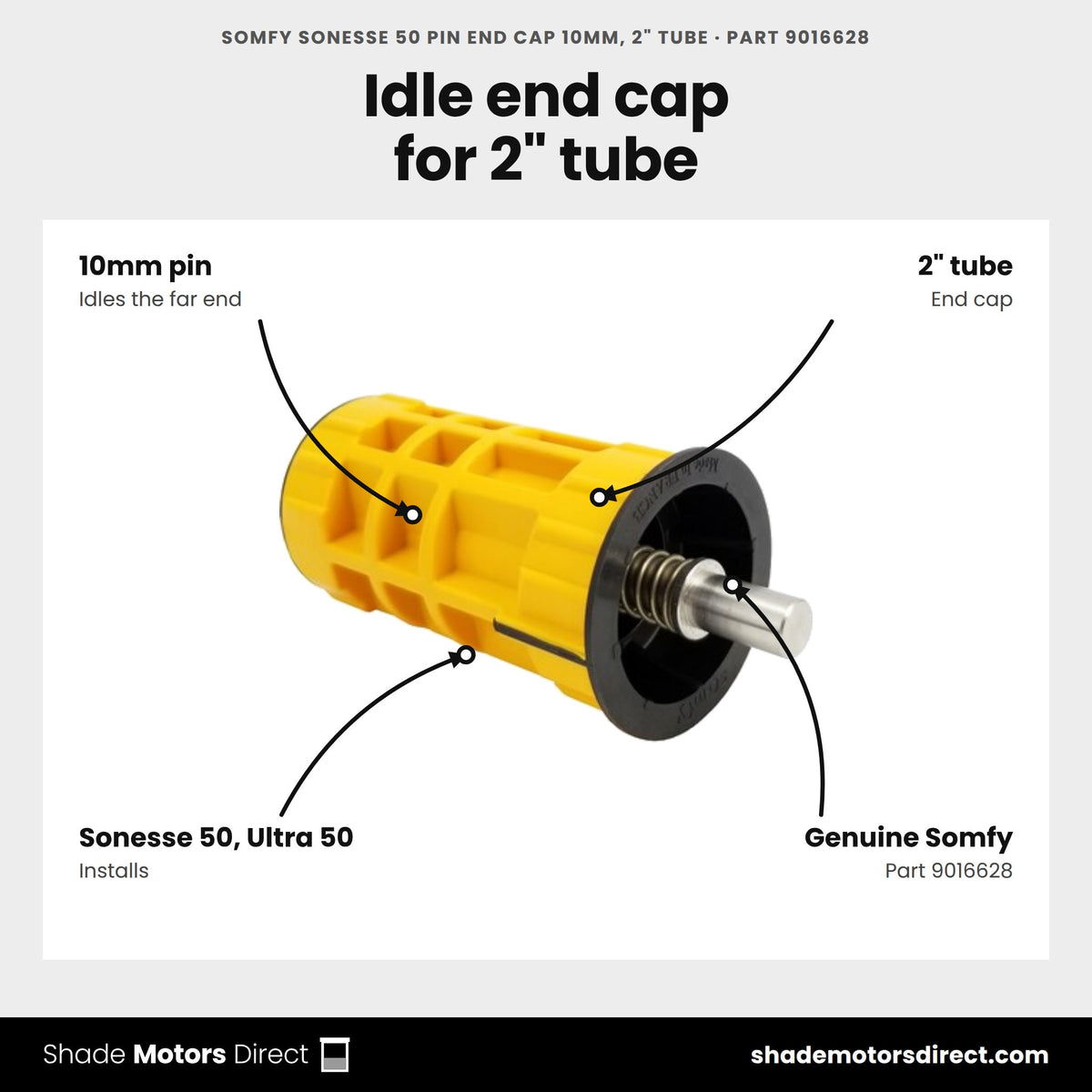

A 10mm pin end cap that idles the far end of a 2" tube. Genuine Somfy part 9016628, matched to the Sonesse 50 range so replacements and new installs use the exact hardware the system was engineered around.
Benefits
- Genuine Somfy part (9016628) -- exact fit, no adaptation needed
- Purpose-made for Sonesse 50 and Ultra 50 installs on 2" tube (10mm pin)
- Matches the factory hardware used across the Sonesse 50 family
- Direct replacement for worn or missing installation hardware
- Backed by Somfy documentation for correct installation
Specifications
| Part type | Accessory |
| Fits | Sonesse 50 and Ultra 50 installs on 2" tube (10mm pin) |
| Genuine part | Somfy 9016628 |
Compatible with: Sonesse 50 and Ultra 50 installs on 2" tube (10mm pin).
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this end cap do?

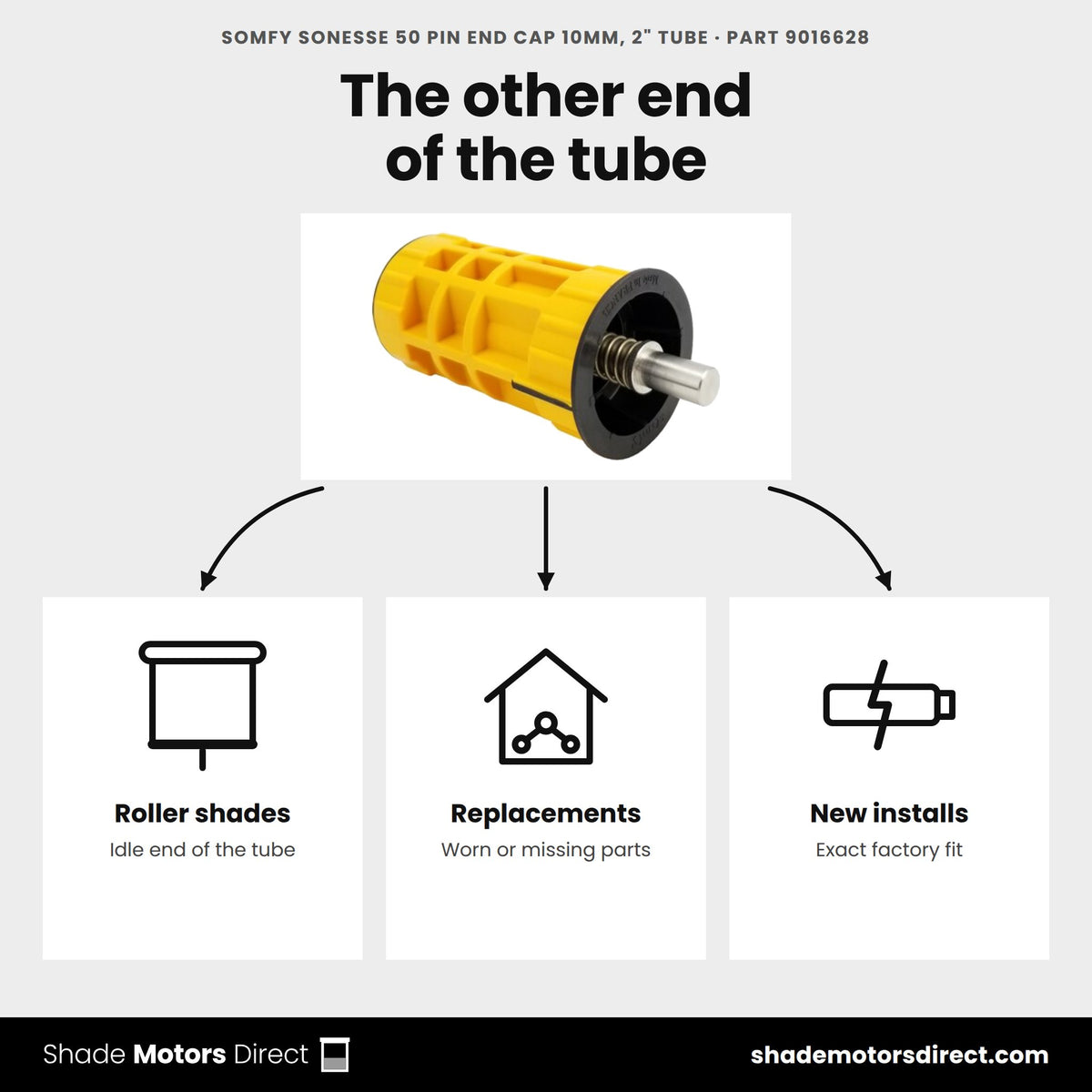

Part 9016628 supports the idle end of a 2 in roller tube, opposite the motor. It has a 10mm pin, and Somfy describes it as a telescopic end cap sold as a quiet accessory for Sonesse 50 systems.
How does the telescopic pin help during install?
The pin retracts into the cap, so you can set the tube between its brackets and then let the pin extend into the idle bracket. That makes it simpler to hang or remove a shade in a tight opening.
Which motors does Somfy list it for?
Somfy lists 47 motors in its 50mm-class range. They include Sonesse 506S2, 510S2 and ULTRA 506A2, Altus RTS 506S2 through 550R2, Oximo RTS, Orea RTS and Maestria RTS models, plus SJTW and RS485 versions.
Which motors in this store pair with it?

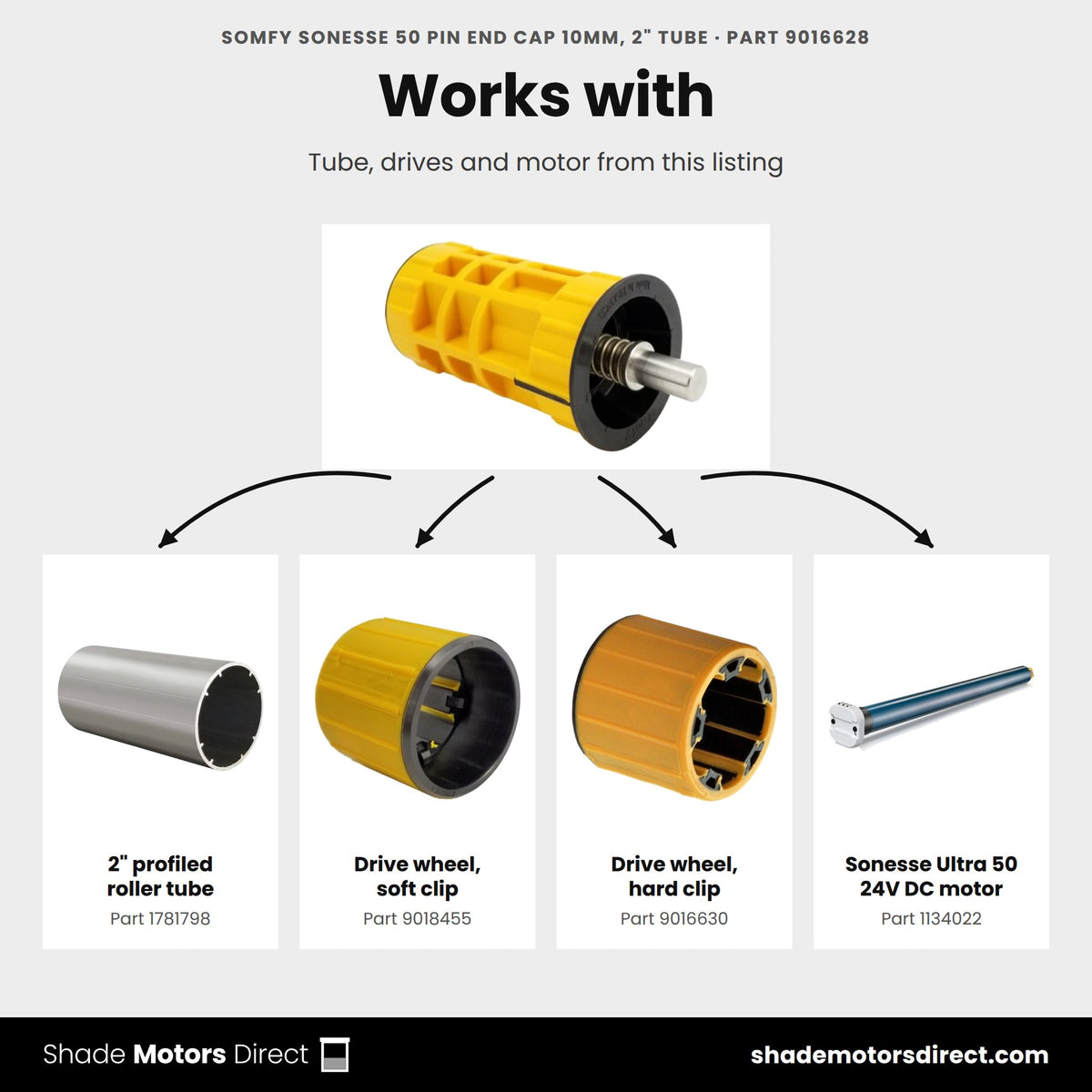

Examples include the Sonesse 506S2 RTS 120V Motor (1001809), the Sonesse Ultra 506A2 RTS 120V Motor (1002562) and the Maestria 525A2 RTS 120V Motor (1134083). Each appears on Somfy's compatible list for this end cap.
Are there other 10mm end caps for 2 in tube?

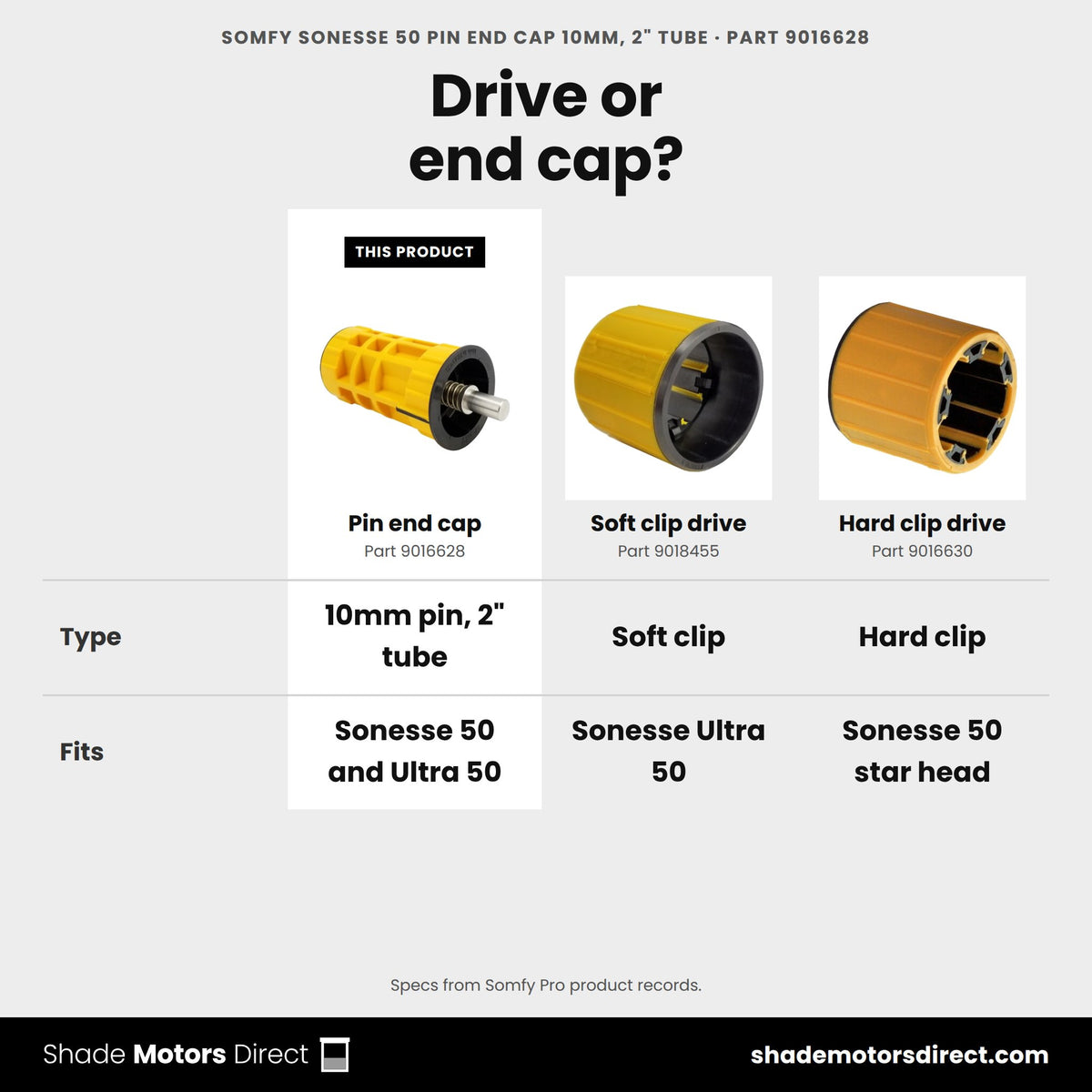

Yes. This store also carries the Somfy Universal End Cap with a collapsible 10mm shaft for 2 in (47mm) round tube (9420800). Match the end cap to your tube and to the idle bracket on the shade.
What warranty does Somfy give on the end cap?
Somfy covers part 9016628 with a 5-year warranty. It is a genuine Somfy part made for its 50mm-class shade systems, so the pin and cap match the brackets those systems use.
