Somfy Sonesse Ultra 504A8 RTS 24V DC Motor (1134023)
Somfy Sonesse Ultra 504A8 RTS 24V DC Motor (1134023)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Sonesse ULTRA 50 ultra-quiet DC tubular motor for interior window coverings
The Sonesse ULTRA 50 range puts window coverings in motion with ultra-quiet precision. This 24V DC motor is built for shades where near-silent operation matters most.
Benefits
- Ultra-quiet operation -- 35 dB
- Square motor head: use the Sonesse ULTRA 50 DC bracket, not a star-head bracket
- Compatible with Somfy's full range of RTS controls, sensors, and timers
- Voice and app control via TaHoma; integrates with third-party automation
- Backed by Somfy's standard 5-year warranty
Specifications
| Torque / Speed | 4 Nm / 25 rpm |
| Overall length | 31.5 in (800 mm) |
| Minimum tube inside diameter | 1.85 in |
| Noise level | 35 dB |
| Power supply | 24V DC |
| Radio Frequency | 433.420 MHz |
| Head type | Square |
| Protection index | IP 20 (interior only) |
| Motor tube size | 50mm |
| Application | Interior window coverings, roller/solar shades, screens |
| Warranty | 5 years |
Compatible with: Sonesse 50 tube, crown & drive, and the square-head Sonesse ULTRA 50 DC bracket
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
How quiet is the Sonesse ULTRA 504A8 RTS?
Somfy rates it at 35 dB, quieter than the 45.1 dB Sonesse 506S2 RTS (1001809). That makes it a strong pick for bedrooms, offices and other interior rooms where shade noise matters.
What are the key specs of part 1134023?
Somfy rates it at 4 Nm and 25 rpm, with a 1.5 A rated current and 36 W draw while running. It fits tubes with a minimum inside diameter of 1.85 in and carries an IP 20 rating for interior use.
How do I power this motor?
It runs on 24V DC through a short two-wire fast connector lead. Somfy lists the 24V DC 1.67 Amp Plug-in Wall Mount Transformer (1822209) as its power supply.
Which bracket does it need?
The 504A8 has a square head, so it mounts with the Sonesse Ultra 50 DC Motor Bracket with Spring Ring (9020957). Star head LT50 brackets are made for other Sonesse 50 motors.
Which remotes and switches work with it?
Any Somfy RTS transmitter works, including the Situo 1 and Situo 5 RTS Pure remotes (1870571, 1870575), the Telis 1 Chronis RTS Timer (1805237) and DecoFlex RTS wall switches. The motor stores 12 channels, and Somfy rates range at 656.2 ft in open field.
Can I control it from my phone?
Yes, through the Somfy TaHoma Switch (1871037), which adds app control, schedules and voice assistant support. RTS is one-way radio, so the app sends commands but does not report shade position.
Couldn't load pickup availability
Replace a Sonesse 50 motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1134023.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Fit the crown and drive wheel for your tube, then slide the new motor in.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Sonesse Ultra 504A8 RTS 24V DC Motor needs to run
Somfy lists every part below as compatible with part 1134023. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
4Also fits
Other parts Somfy lists with this product.
Somfy backs the Sonesse Ultra 504A8 RTS 24V DC Motor for 5 years. We handle the claim.
Somfy warranty on the Sonesse Ultra 504A8 RTS 24V DC Motor, part 1134023.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse Ultra 504A8 RTS 24V DC Motor (1134023)
|

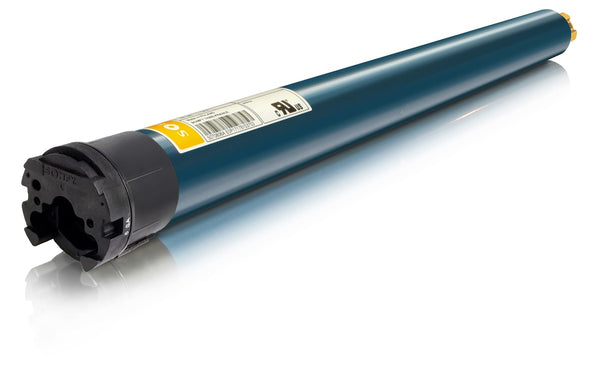

Somfy Sonesse Ultra 50 506A2 RH RTS 120V 3-Wire Motor (Round Head) (1002564)
|
Somfy Sonesse Ultra 50 506A2 120V 4-Wire Motor (star head) (1002558)
|
Somfy Sonesse Ultra 50 506A2 RH 120V 4-Wire Motor (round head) (1002560)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 4.0 | 6.0 | 6.0 | 6.0 |
| Speed (rpm) | 25 | 24 | 24 | 24 |
| Control | RTS radio | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 24V DC | 120V AC | 120V AC | 120V AC |
| Motor family | Sonesse Ultra 50 | Sonesse Ultra 50 | Sonesse Ultra 50 | Sonesse Ultra 50 |
| What's different | The product on this page | 6.0 Nm instead of 4.0 | 6.0 Nm instead of 4.0, Wired 4-wire | 6.0 Nm instead of 4.0, Wired 4-wire |
| Buy | Currently viewing | View details | View details | View details |
