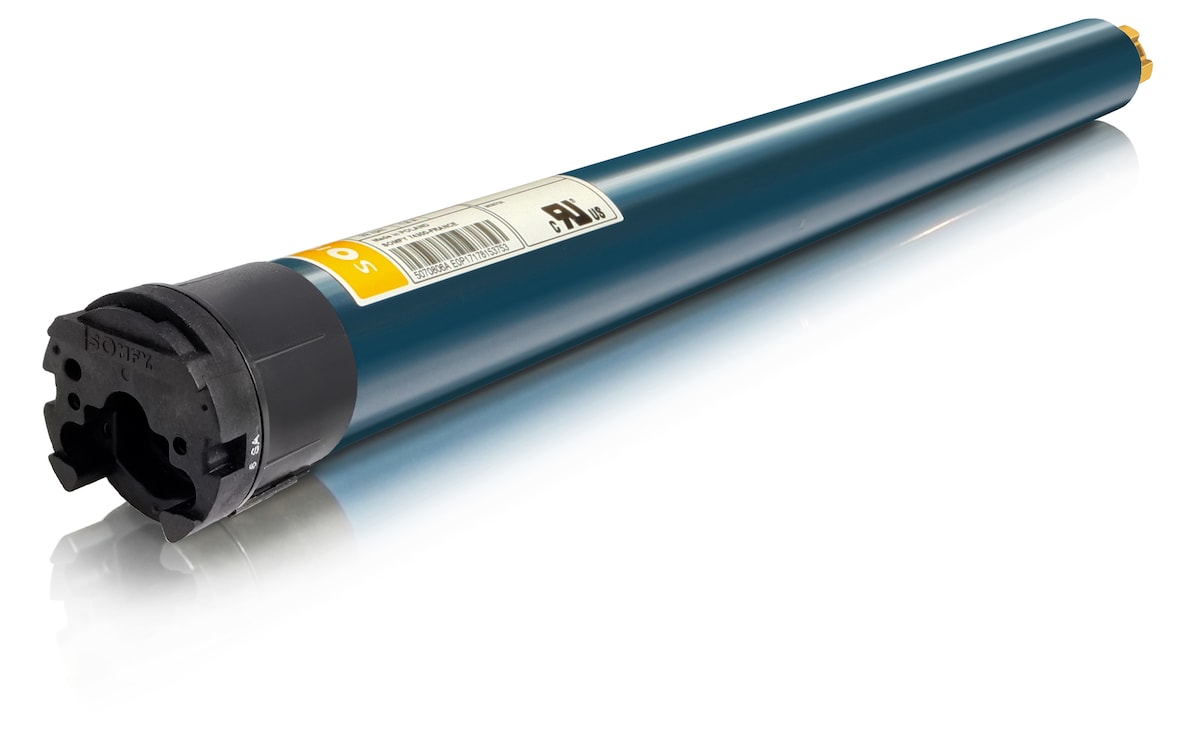

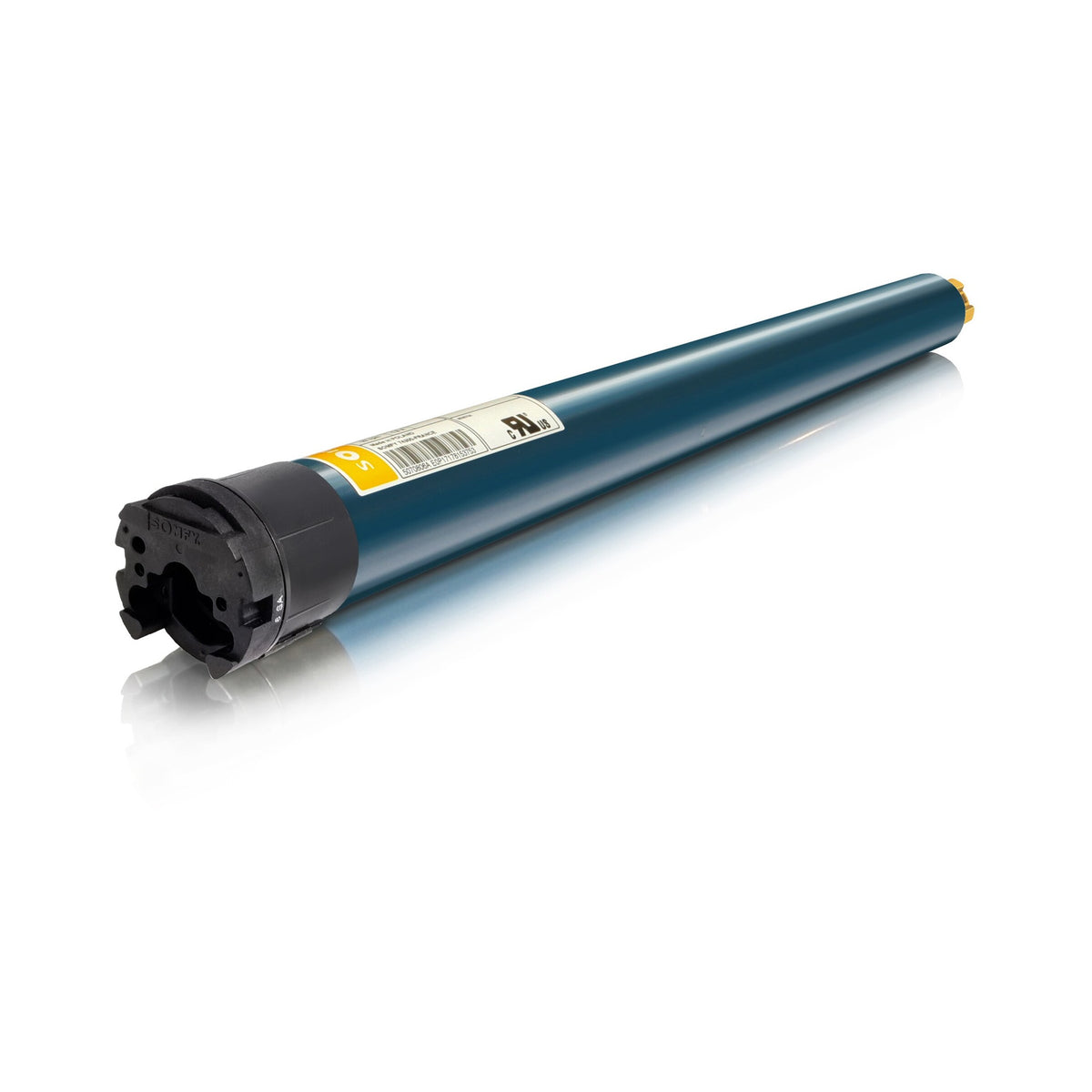

Somfy Sonesse ULTRA 50 506A2 RH RTS 120V 3-Wire Motor (Round Head) -- ultra-quiet wireless motor

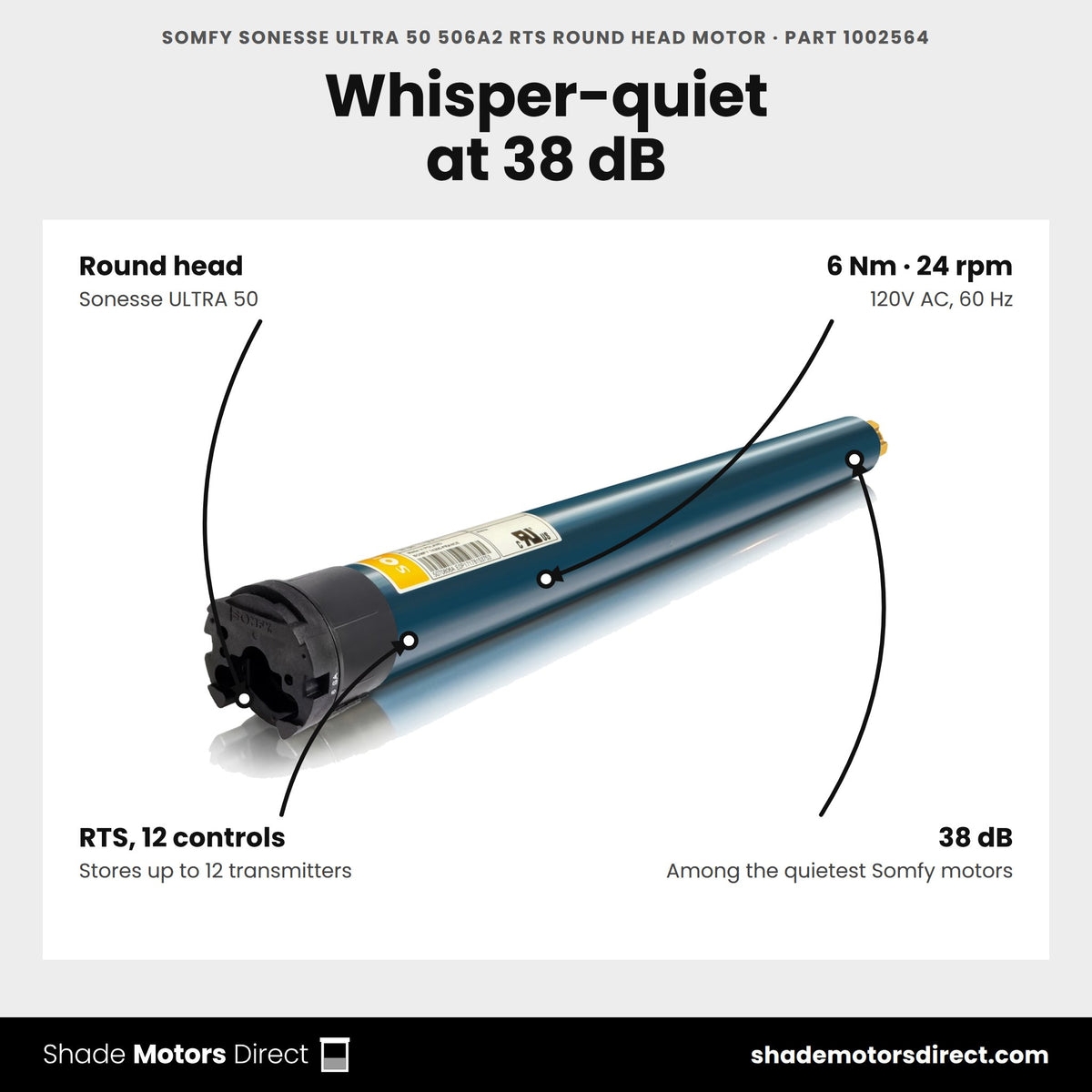

The Sonesse ULTRA 506A2 RH RTS is Somfy's quietest motor platform, rated 38 dB, delivering 6 Nm at 24 rpm for interior shading with wireless RTS control. RH stands for round head, and the built-in receiver means no control wiring back to the motor.
Benefits

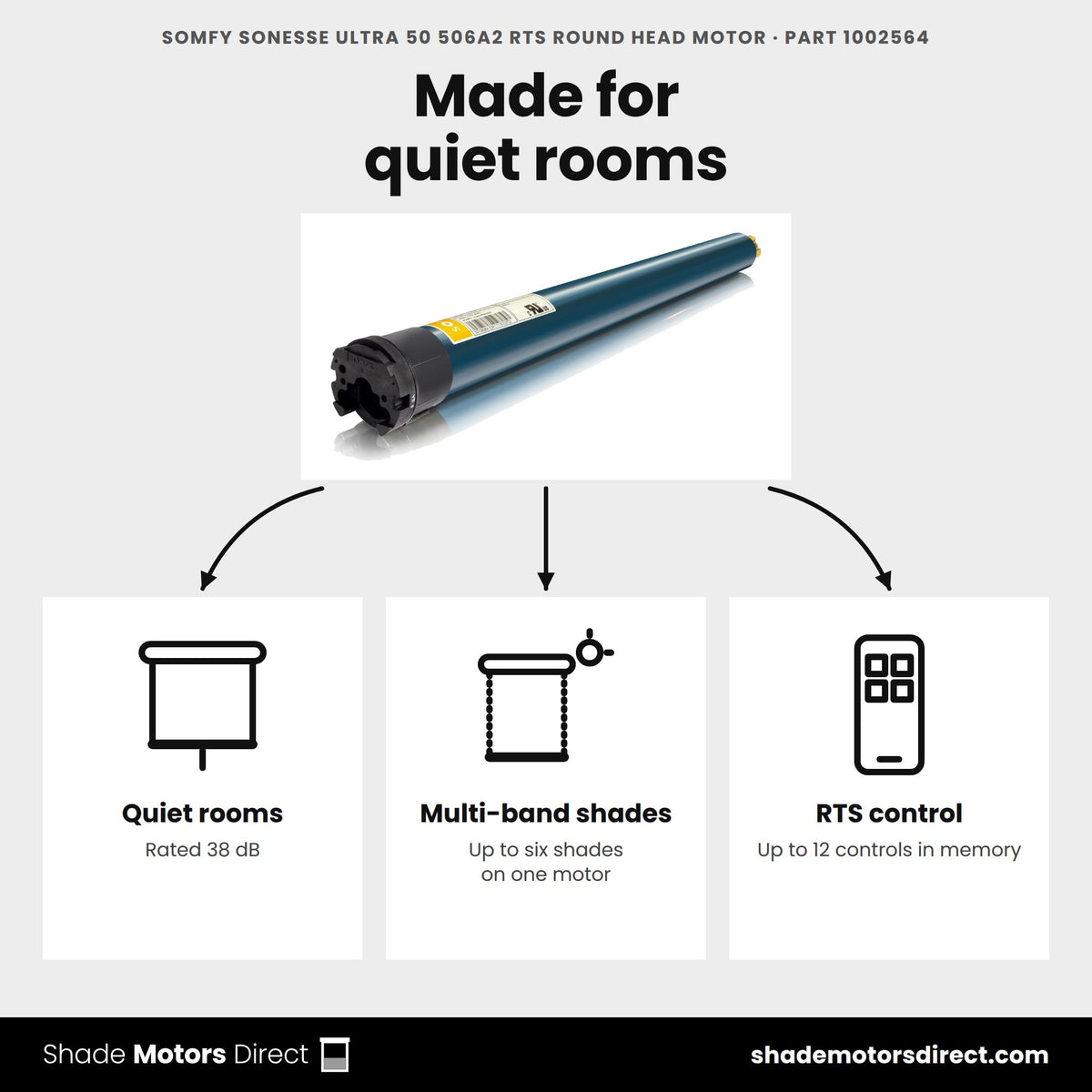

- Among the quietest motors Somfy builds, rated 38 dB
- Single Sonesse ULTRA can multi-band up to six shades
- Radio Technology Somfy (RTS) receiver stores up to 12 controls
- Electronic limit switch with 250-turn capacity
- 5-year Somfy warranty
Specifications
| Torque / Speed | 6 Nm (53 in-lb) / 24 rpm |
| Control | Radio Technology Somfy (RTS), built-in receiver |
| Radio Frequency | 433.420 MHz |
| Memory capacity | 12 |
| Power supply | 120V AC, 60Hz (108-132V), 0.95 A rated current |
| Power consumption | 114 W operating, 0.5 W standby |
| Limit switch | Electronic, 250-turn capacity |
| Power cable | SJTW 3-wire, 9.84 ft, white |
| Noise level | 38 dB |
| Protection index | IP 31 |
| Head type | Round head (RH) |
| Operating temperature | 32 to 140 °F |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, Situo and Telis RTS remotes, DecoFlex RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions

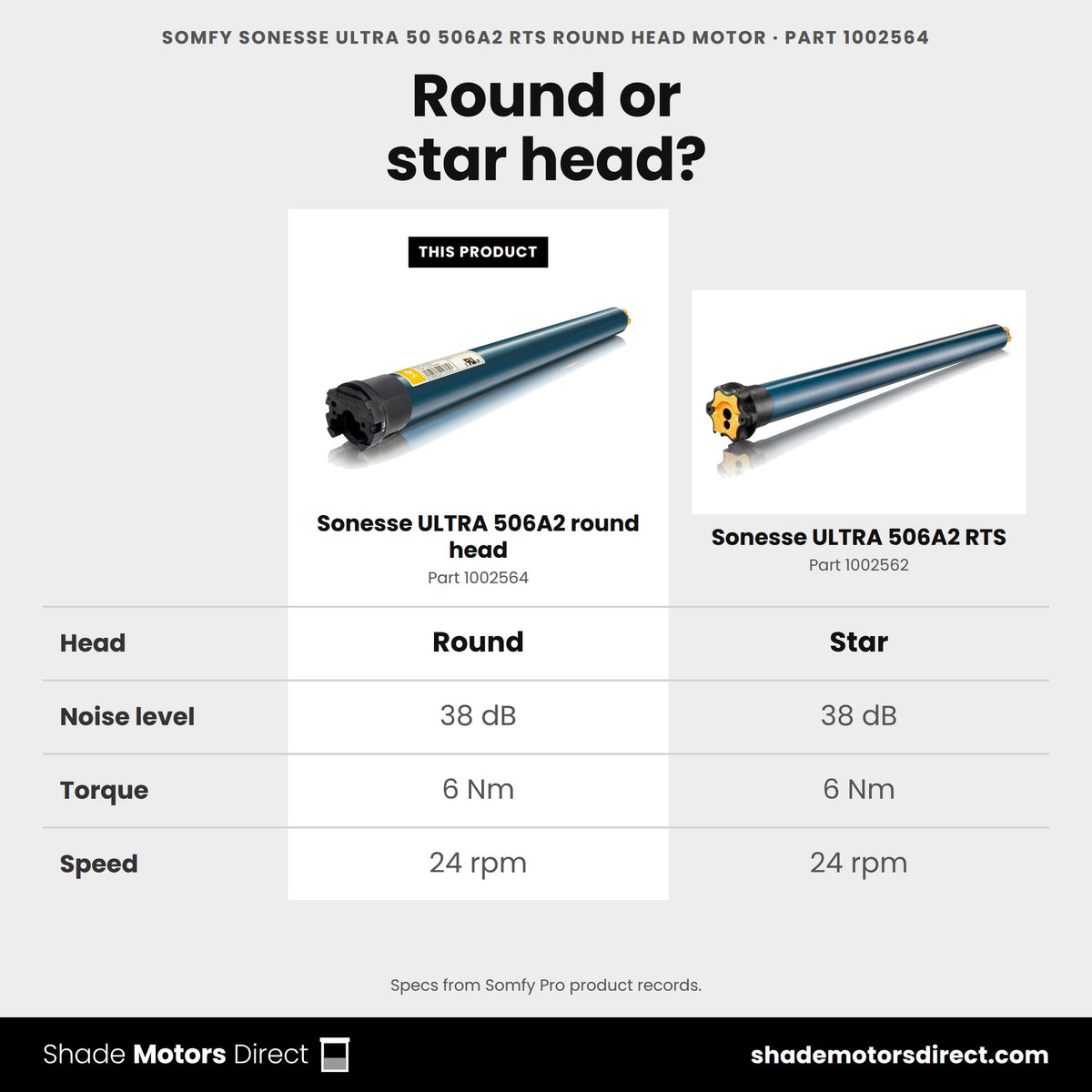

What does RH mean on the 506A2 RH RTS?
RH stands for round head. Somfy part 1002564 is a 120V Sonesse ULTRA motor with a round head, a built-in RTS receiver, 6 Nm of torque and a 24 rpm speed.
How quiet is this motor?
Somfy rates it at 38 dB, which places the Sonesse ULTRA among the quietest motors Somfy makes. It suits bedrooms, offices and other interior spaces where noise matters.

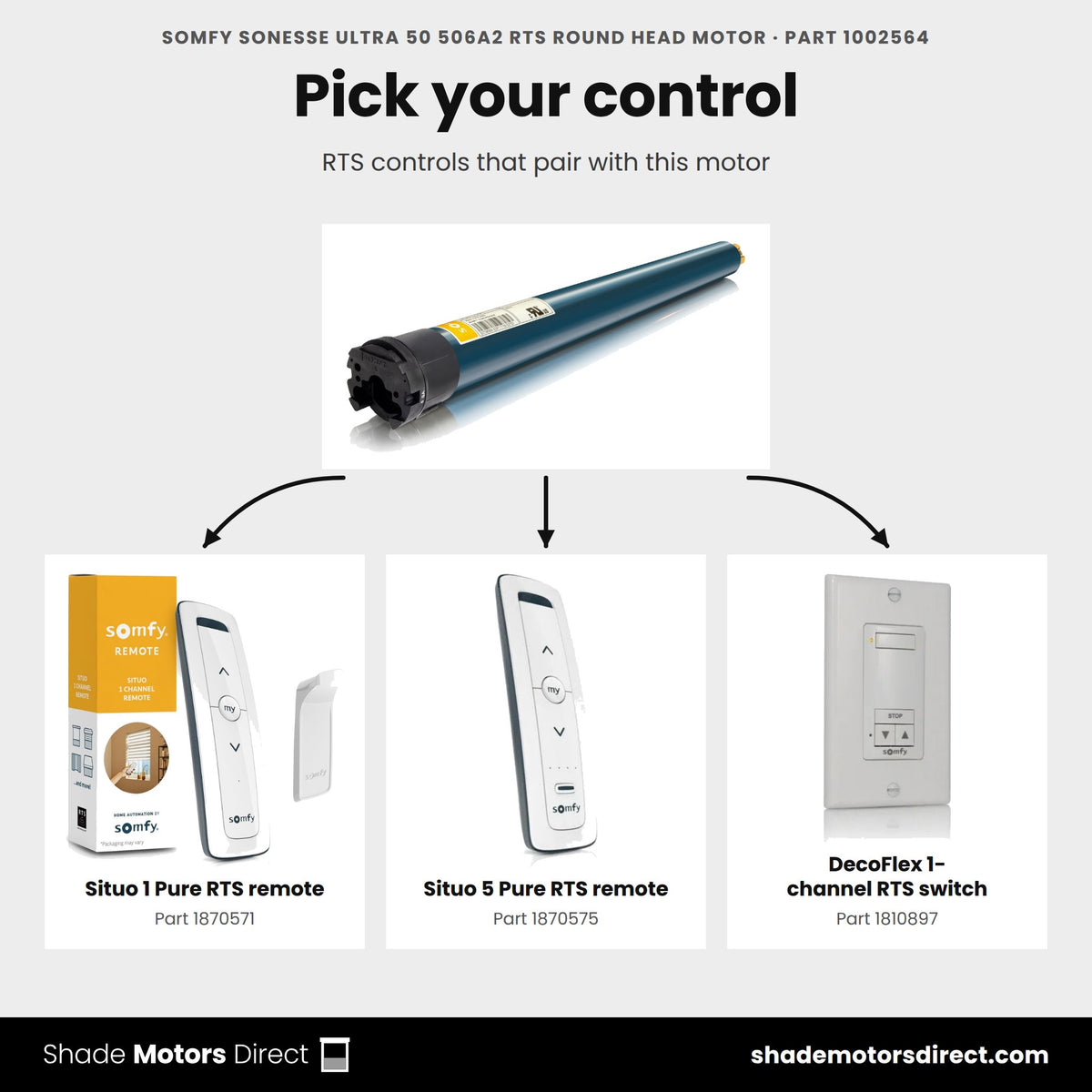

Which controls work with it?
The built-in receiver answers Somfy RTS controls on 433.420 MHz and stores up to 12 of them. Options in our store include the Situo 1 (1870571) and Situo 5 (1870575) remotes and the DecoFlex 1 channel RTS wall switch (1810897).
What power does it need?
It runs on 120V AC at 60Hz and draws 0.95 A, using 114 W in operation and 0.5 W in standby. Somfy ships it with a 9.84 ft white SJTW 3-wire cable, and no control wiring runs back to the motor.
How are the limits set?
The motor has electronic limits with a 250-turn capacity. You set the upper and lower stops with a paired Somfy RTS remote during programming, and you can adjust them later from that same remote.
Can I add app control?
Yes. Pair the motor with a Somfy TaHoma hub and it joins the Somfy app for scenes and schedules, since TaHoma speaks RTS. The Sonesse ULTRA can also multi-band up to six shades from one motor.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse Ultra 50 506A2 RH RTS 120V 3-Wire Motor (Round Head) (1002564)
|

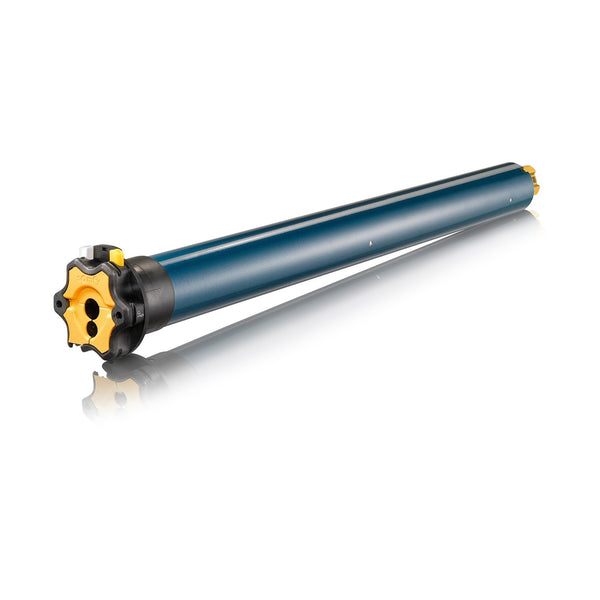

Somfy Sonesse Ultra 50 506A2 120V 4-Wire Motor (star head) (1002558)
|

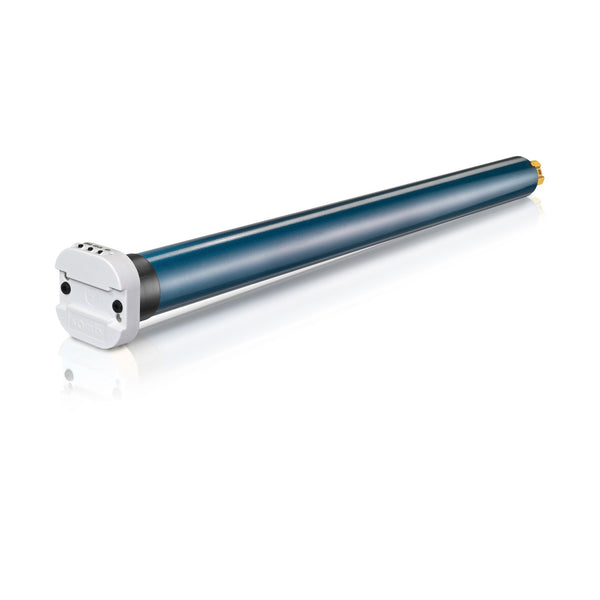

Somfy Sonesse Ultra 504A8 RTS 24V DC Motor (1134023)
|

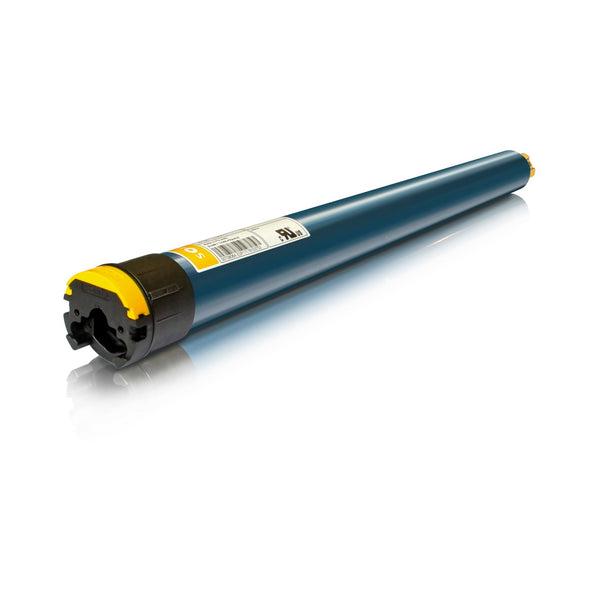

Somfy Sonesse Ultra 50 506A2 RH 120V 4-Wire Motor (round head) (1002560)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 4.0 | 6.0 |
| Speed (rpm) | 24 | 24 | 25 | 24 |
| Control | RTS radio | Wired 4-wire | RTS radio | Wired 4-wire |
| Power | 120V AC | 120V AC | 24V DC | 120V AC |
| Motor family | Sonesse Ultra 50 | Sonesse Ultra 50 | Sonesse Ultra 50 | Sonesse Ultra 50 |
| What's different | The product on this page | Same size, Wired 4-wire control | 4.0 Nm instead of 6.0 | Same size, Wired 4-wire control |
