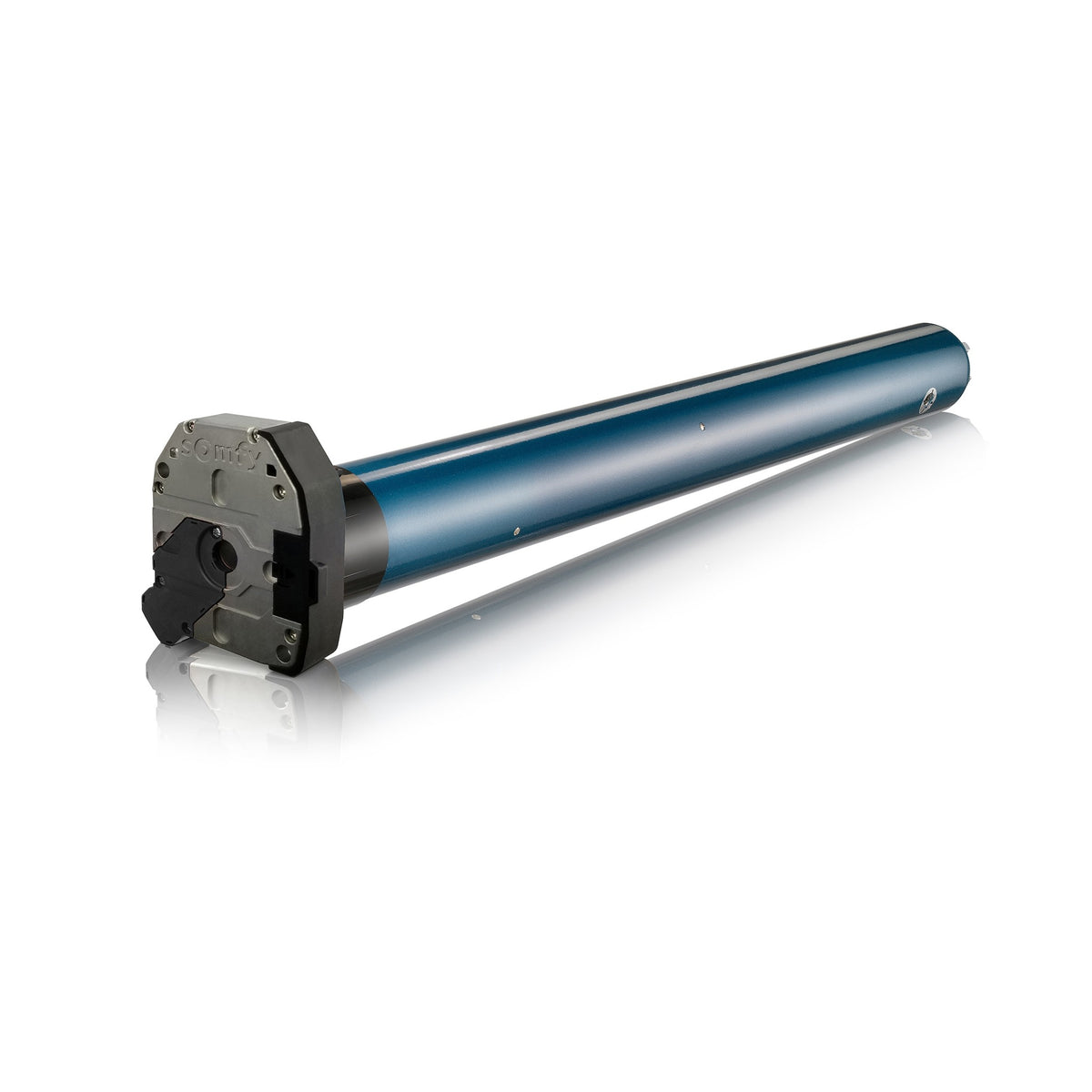

LT50 CMO 550R2 Motor with 6' 4-Wire Pigtail -- 50 Nm wired motor with manual crank override
The Somfy 550R2 CMO is an LT50-series 120V wired tubular motor delivering 50 Nm of torque, with the CMO manual override that lets the application be cranked by hand during a power outage. Supplied with a 6 ft 4-wire pigtail cable for connection to wired switches and controls.

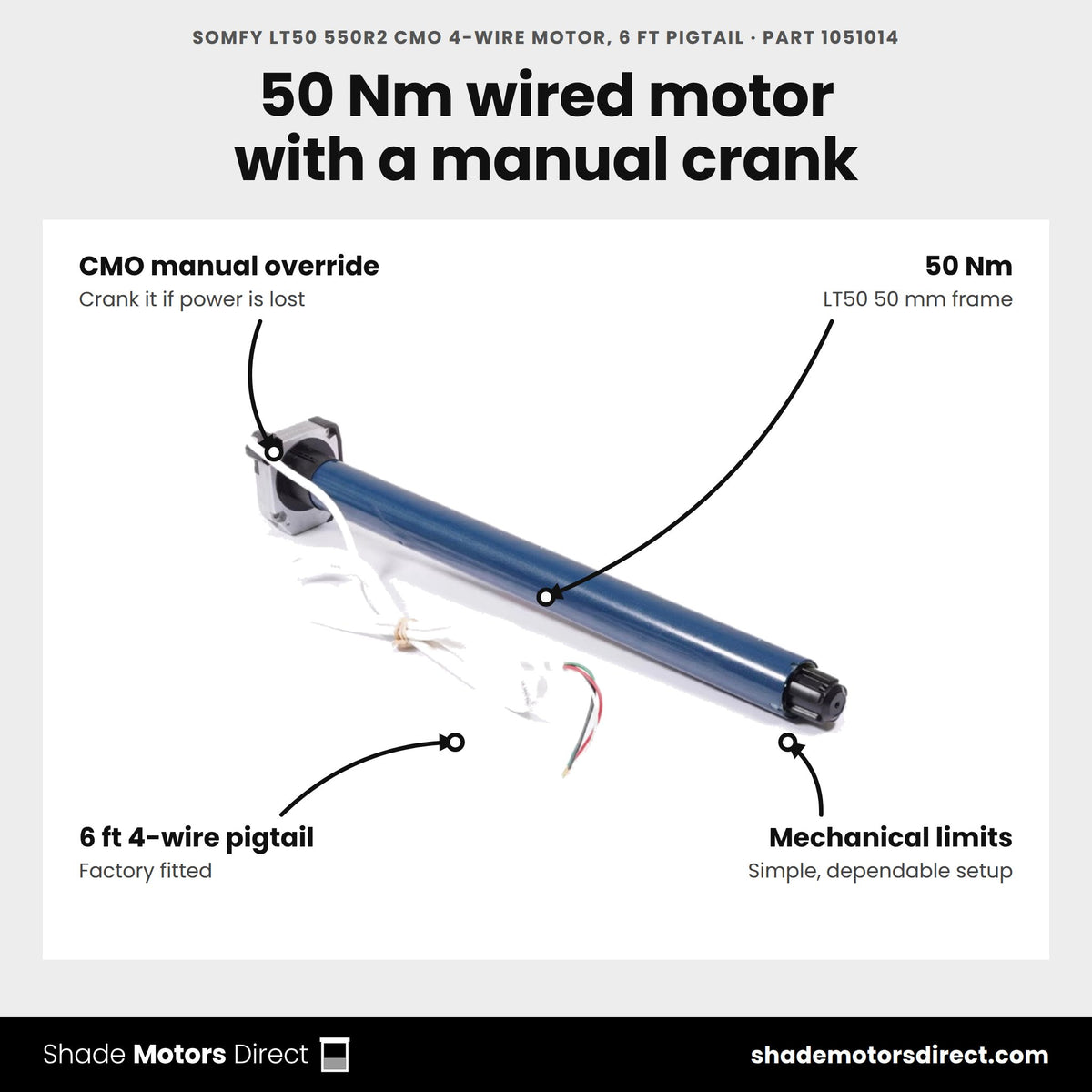

Benefits
- 50 Nm (approx. 440 in-lb) of torque in the proven LT50 50mm frame
- CMO manual override -- operate by crank if power is lost
- Wired 4-wire control pairs with Somfy switches, relays, and interfaces
- 6 ft 4-wire pigtail cable factory-fitted
- Mechanical limit switches for simple, dependable setup
- Crown and drive sold separately to match your tube
Specifications
| Torque | 50 Nm |
| Voltage | 120V AC, 60 Hz |
| Override | CMO manual crank override |
| Cable | 6 ft, 4-wire pigtail |
| Series | Somfy LT50 (50mm class) |
Compatible with: Somfy wired switches and controllers, LT50 crowns, drives, and brackets, CMO crank handles and eyelets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Somfy LT50 550R2 CMO motor used for?
It drives exterior awnings and rolling shutters that need high torque. Part 1051014 is an LT50 tubular motor with a Compact Manual Override and a factory-fitted 4-wire pigtail cable for wired control.
What torque and speed does it deliver?
Somfy rates part 1051014 at 50 Nm of torque and 14 rpm. It runs on 120V/60HZ power, draws 2.1 A and 250 W in operation, carries an IP 44 rating and weighs 7.1 lb. Somfy lists a thermal time of 5 min.
What size tube and hardware does it need?
Somfy lists a minimum tube inside diameter of 1.85 in and a motor external diameter of 1.77 in. Order the crown and drive to match your tube, such as the LT50 DS78MM Crown/Drive Set (9012239) or the Octagonal LT50 70mm set (9012234).
How is it wired and controlled?
The motor comes with a 6.56 ft cable carrying 4 wires. Connect it to a Somfy switch built for the AC motor range, such as the Maintained Toggle Switch, Single Pole (1800380). Mechanical limits offer a capacity of 34 turns.
What does the CMO override do?
The Compact Manual Override lets you crank the awning or shutter by hand when power is lost. The CMO head also mounts in CMO brackets such as the Motor Bracket for Sunea CMO RTS, US (9015802).
Is there a radio-controlled 550R2 CMO?
Yes. The 550R2 RTS CMO (1051466) keeps the 50 Nm class and the manual override, and adds a built-in RTS receiver. Somfy remotes, wall switches and the TaHoma app can then run the awning with no control wiring.
Couldn't load pickup availability
Replace an override motor or build a new awning with a hand-crank backup.
Replacing? Your fabric stays on the roller. Building new? Every part below is Somfy-matched to part 1051014.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Override eye Crank the shade by hand if the power goes out.
- 3Drive Turns the tube.
Replacing a motor
-
1
Retract and cut power
Retract the awning or screen fully, turn off the circuit and support the roller.
-
2
Pull the old motor
Release the motor from its bracket and slide it out of the tube.
-
3
Fit crown and drive
Use the set for your tube profile. Line the override eye up with the crank opening.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch. Set the stops with the limit screws on the motor head.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch. Set the stops with the limit screws on the motor head.
Planning a new awning or screen? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us

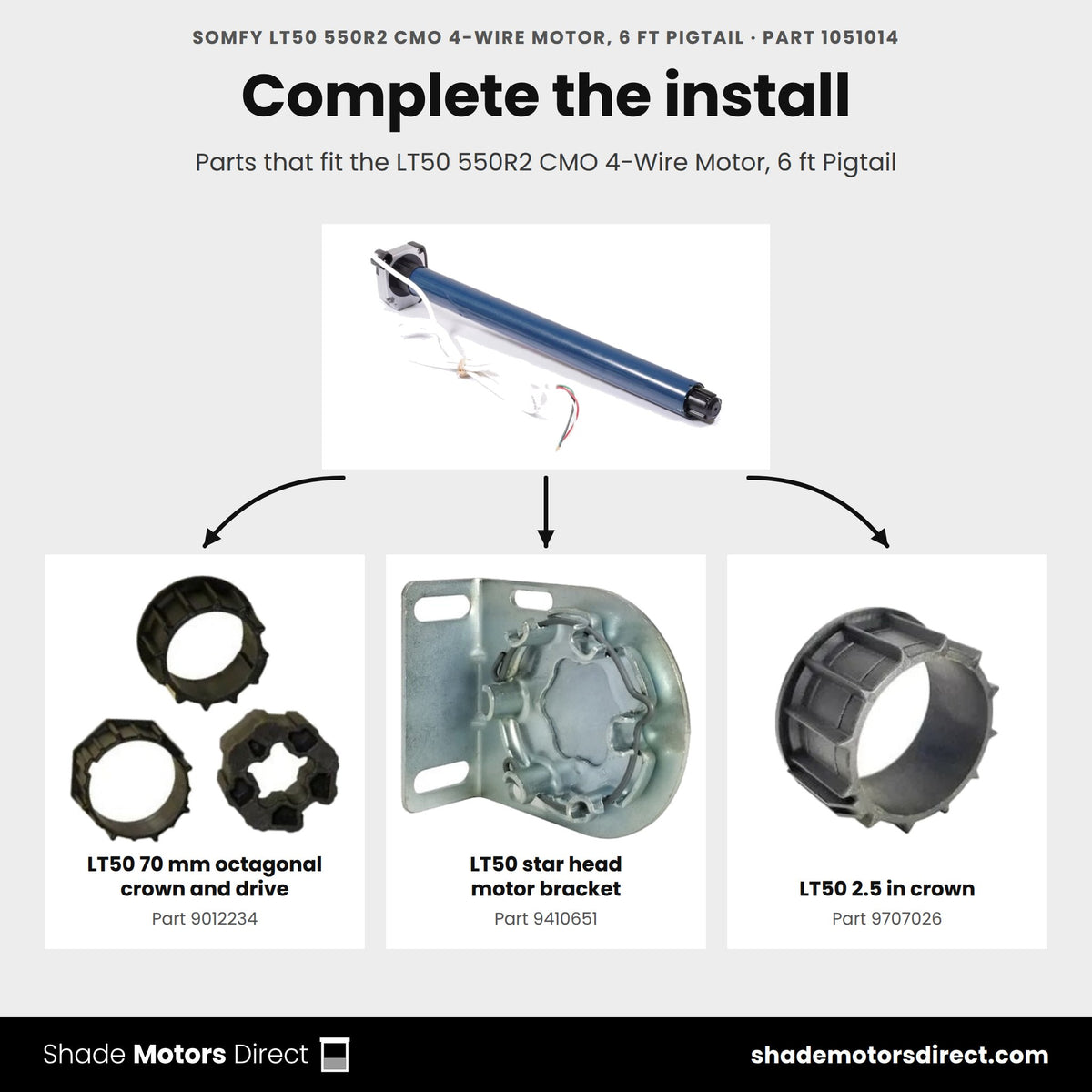

What the LT50 RA CMO 550R2 Motor with 6' 4-Wire Pigtail Cable needs to run
Somfy lists every part below as compatible with part 1051014. Pick one from each row.
1Control
Wired motor. It runs from an up/down switch on the line.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the LT50 RA CMO 550R2 Motor with 6' 4-Wire Pigtail Cable for 5 years. We handle the claim.
Somfy warranty on the LT50 RA CMO 550R2 Motor with 6' 4-Wire Pigtail Cable, part 1051014.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- LT50 / 500 Series Databook (PDF)
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LT50 RA CMO 550R2 Motor with 6' 4-Wire Pigtail Cable (1051014)
|
Somfy 550R2 RTS CMO (1051466)
|
Somfy 540R2 CMO 120V 4-Wire Motor (1049026)
|
Somfy LT60 660R2 CMO 120V 4-Wire Motor (1162014)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 50.0 | 50.0 | 40.0 | 60.0 |
| Speed (rpm) | — | 14 | 14 | 14 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT60 |
| Manual crank override | Yes | Yes | Yes | Yes |
| What's different | The product on this page | Same size, RTS radio control | 40.0 Nm instead of 50.0 | 60.0 Nm instead of 50.0 |
| Buy | Currently viewing | View details | View details | View details |
