Somfy LT60 660R2 CMO 120V 4-Wire Motor (1162014)
Somfy LT60 660R2 CMO 120V 4-Wire Motor (1162014)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

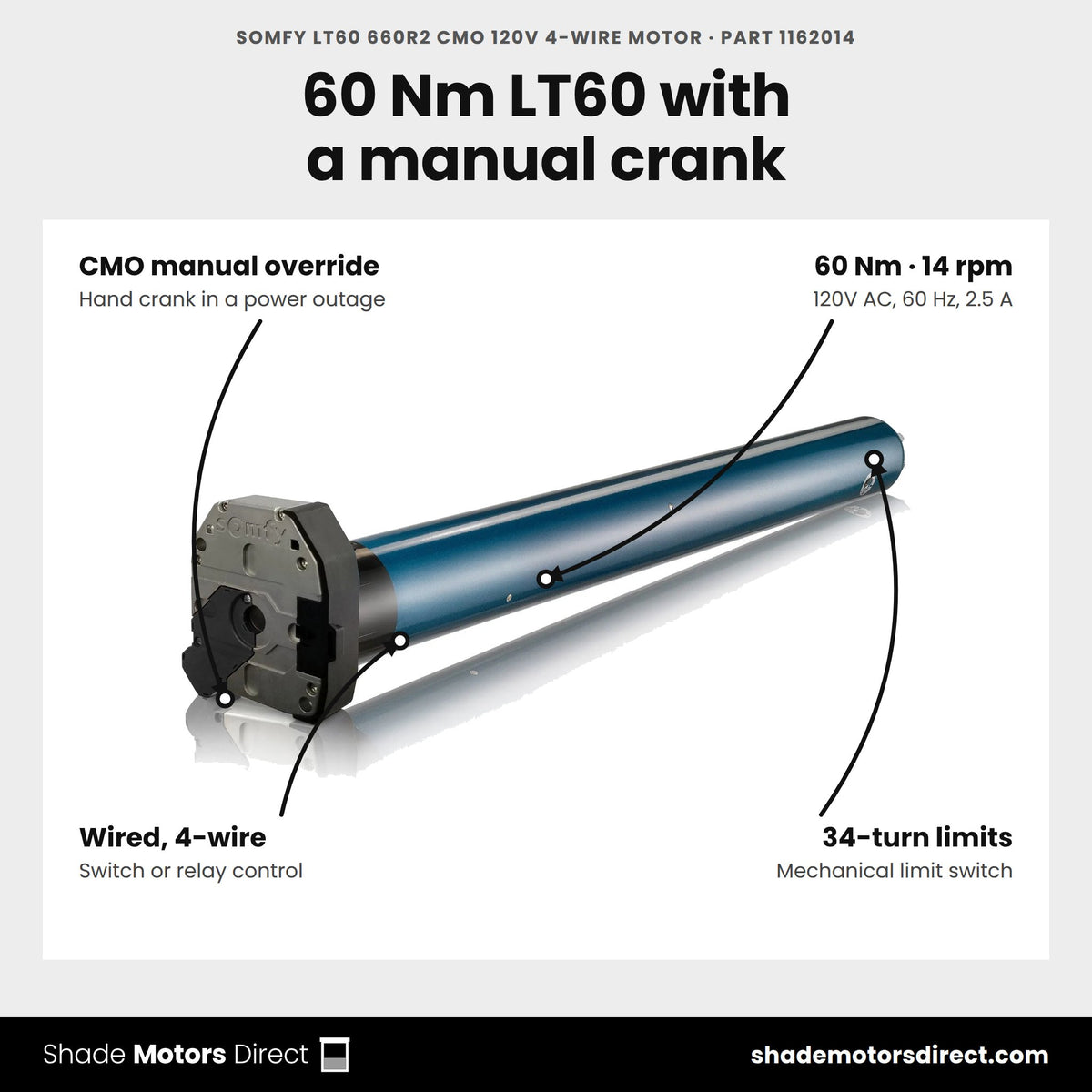

Somfy LT60 660R2 Standard 4-Wire Motor with Compact Manual Override (CMO) for hand-crank operation during a power outage -- heavy-duty exterior tubular motor
The Somfy LT60 660R2 CMO is a wired heavy-duty exterior tubular motor with Compact Manual Override (CMO) for hand-crank operation during a power outage, delivering 60Nm (528" lb) at 14 rpm -- the 600 Series platform built for large awnings and rolling shutters.
Benefits
- Standard 4-wire control -- wired switch or relay
- Compact Manual Override (CMO) for hand-crank operation during a power outage
- Mechanical limit switch with 34-turn capacity
- Removable 6.56 ft 4-wire cable
- IP 44 protection, rated for -13 to 158 °F
- 5-year Somfy warranty
Specifications
| Torque / Speed | 60 Nm (528 in-lb) / 14 rpm |
| Control | Standard 4-wire |
| Override | Compact Manual Override (CMO) |
| Power supply | 120V AC, 60Hz, 2.5 A rated current |
| Limit switch | Mechanical, 34-turn capacity |
| Cable | 4-wire, 6.56 ft, removable |
| Minimum tube internal diameter | 2.37 in |
| Protection | IP 44 |
| Weight | 10.3 lb |
| Warranty | 5 years |
Compatible with: LT60 crown and drive sets, CMO awning override shafts
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the LT60 660R2 CMO deliver?
Somfy rates part 1162014 at 60 Nm (530 in-lb) of torque and 14 rpm. It belongs to the Somfy LT60 600 Series, which Somfy designs for larger applications such as heavy awnings and rolling shutters.
What does the CMO manual override do?
CMO stands for Compact Manual Override. When power is not available, you can turn the awning or shutter by hand with a crank through an override shaft, such as the Somfy CMO Awning Override Shaft, 100mm with Geiger eye (9707287). Somfy lists a 1:55 override gear ratio.
How is this motor powered and wired?
It runs on 120V/60Hz AC with a rated current of 2.5A, drawing 285 W in operation and 0 W in standby. A standard 4-wire cable of about 6.5 ft connects it to a wired switch or relay.
How are the limits set, and what is it rated for?
Limits are set on a mechanical limit switch with a 34-turn capacity. Somfy rates the motor IP 44 with an operating range of 14°F to 104°F and a noise level of 63 dB. It carries a 5-year Somfy warranty.

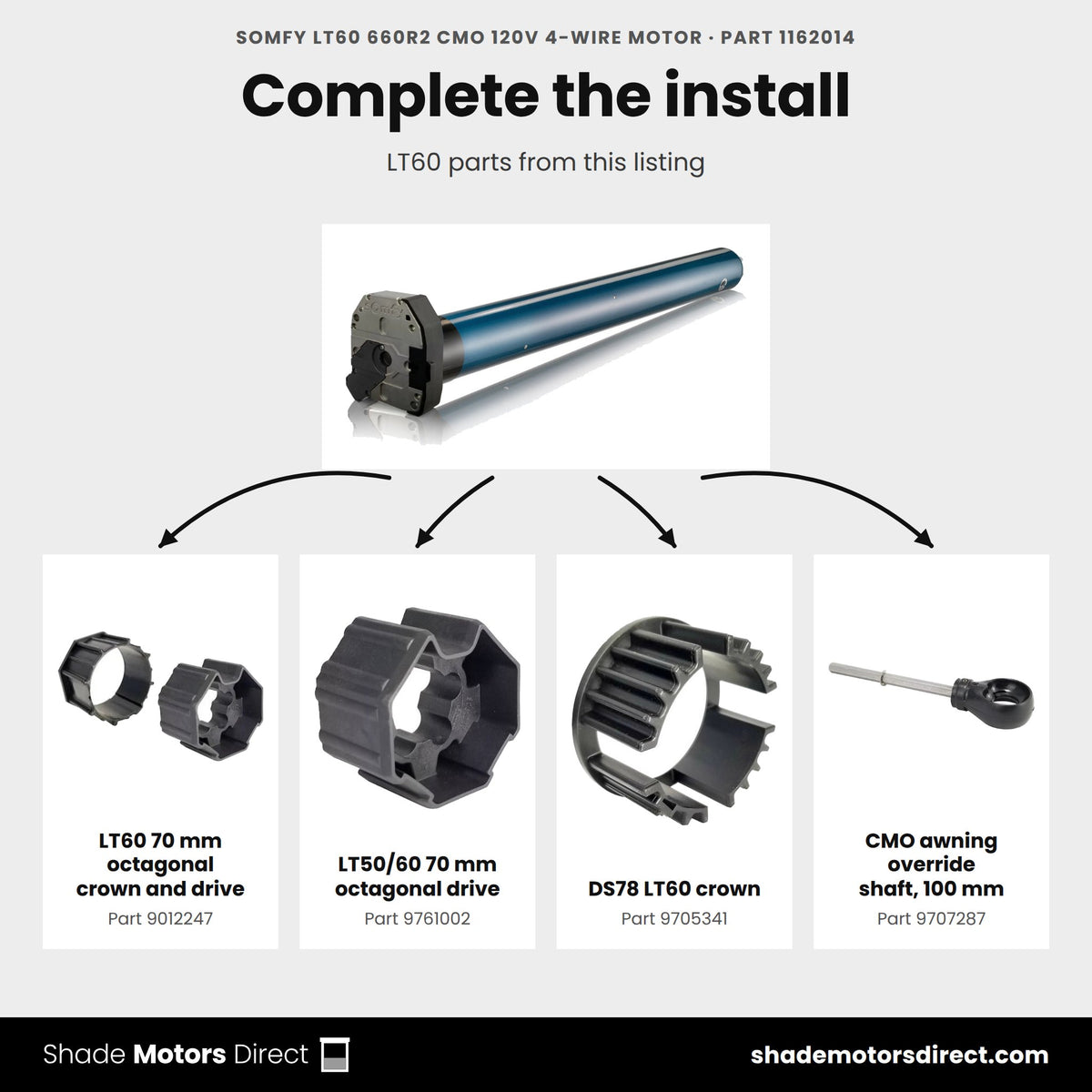

Which crowns and drives fit it?
Use LT60 tube hardware. The Somfy Octagonal LT60 70mm Crown and Drive Set (9012247) covers both parts in one order. The 70mm Octagonal LT60 Crown (9705340) pairs with drive 9761002, and the DS78 LT60 Crown (9705341) pairs with drive 9761001.
Can I control it with a remote?
Yes, with a Somfy Universal RTS Receiver (1810627), which adds RTS radio control to 110V AC wired motors. Once paired, the motor answers to Somfy RTS remotes and wall switches, and to Somfy RTS wind and sun sensors.
Couldn't load pickup availability

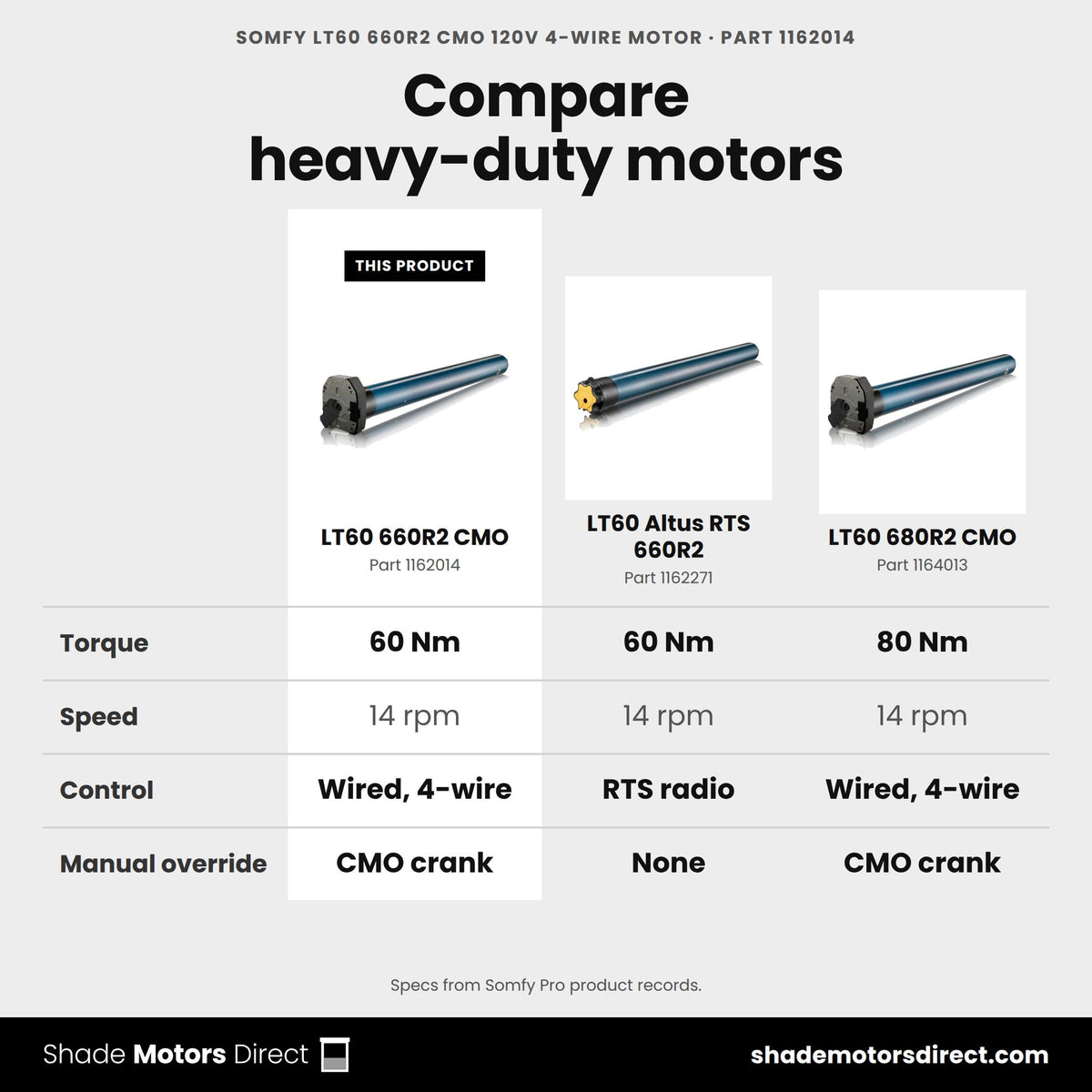

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LT60 660R2 CMO 120V 4-Wire Motor (1162014)
|
Somfy LT60 Altus RTS 660R2 (1162271)
|

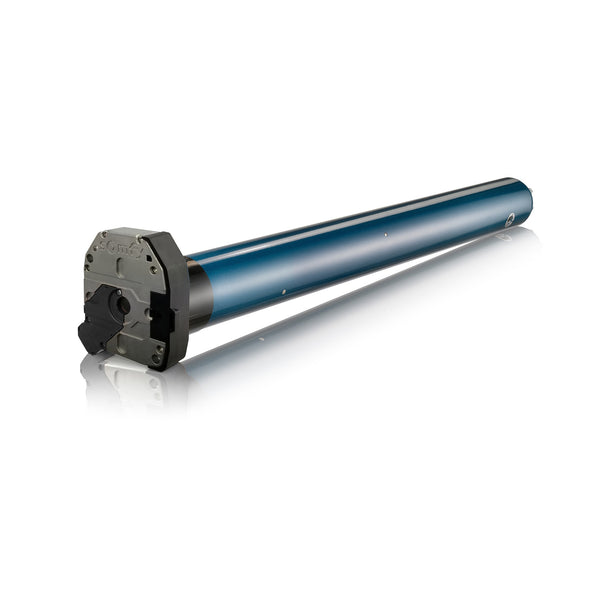

Somfy LT50 RA CMO 550R2 Motor with 6' 4-Wire Pigtail Cable (1051014)
|
Somfy LT60 680R2 CMO 120V 4-Wire Motor (1164013)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 60.0 | 60.0 | 50.0 | 80.0 |
| Speed (rpm) | 14 | 14 | — | 14 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT60 | LT60 | LT50 | LT60 |
| Manual crank override | Yes | — | Yes | Yes |
| What's different | The product on this page | Same size, RTS radio control | 50.0 Nm instead of 60.0 | 80.0 Nm instead of 60.0 |
| Buy | Currently viewing | View details | View details | View details |
