LT50 550R2 RTS CMO motor -- 50 Nm radio motor with manual crank override

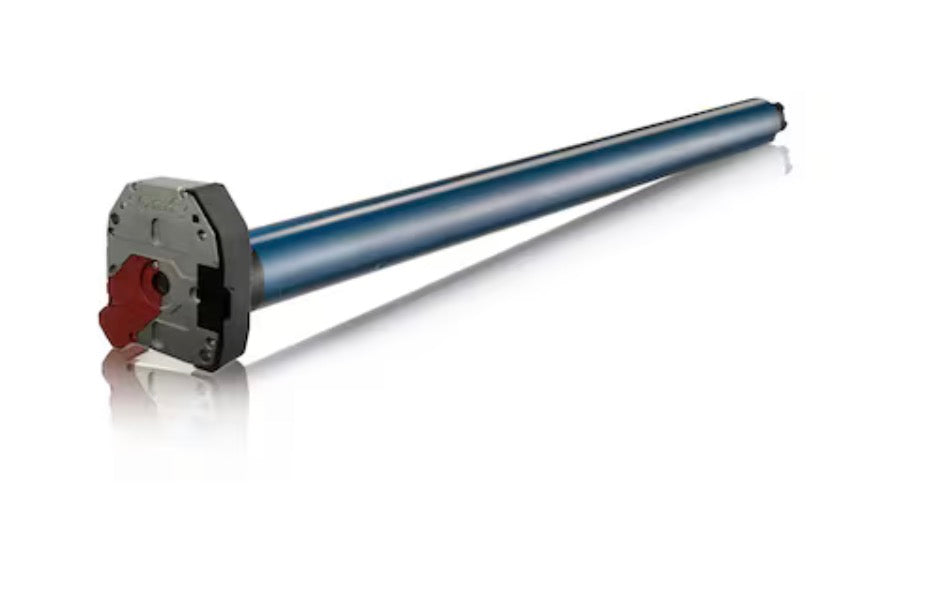

The Somfy 550R2 RTS CMO is a heavy-duty LT50-series 120V tubular motor delivering 50 Nm of torque at 14 rpm, with a built-in RTS radio receiver and a compact manual override (CMO) so the application can still be cranked by hand during a power outage. Factory reference 550R2 RTS CMO 50/14.
Benefits

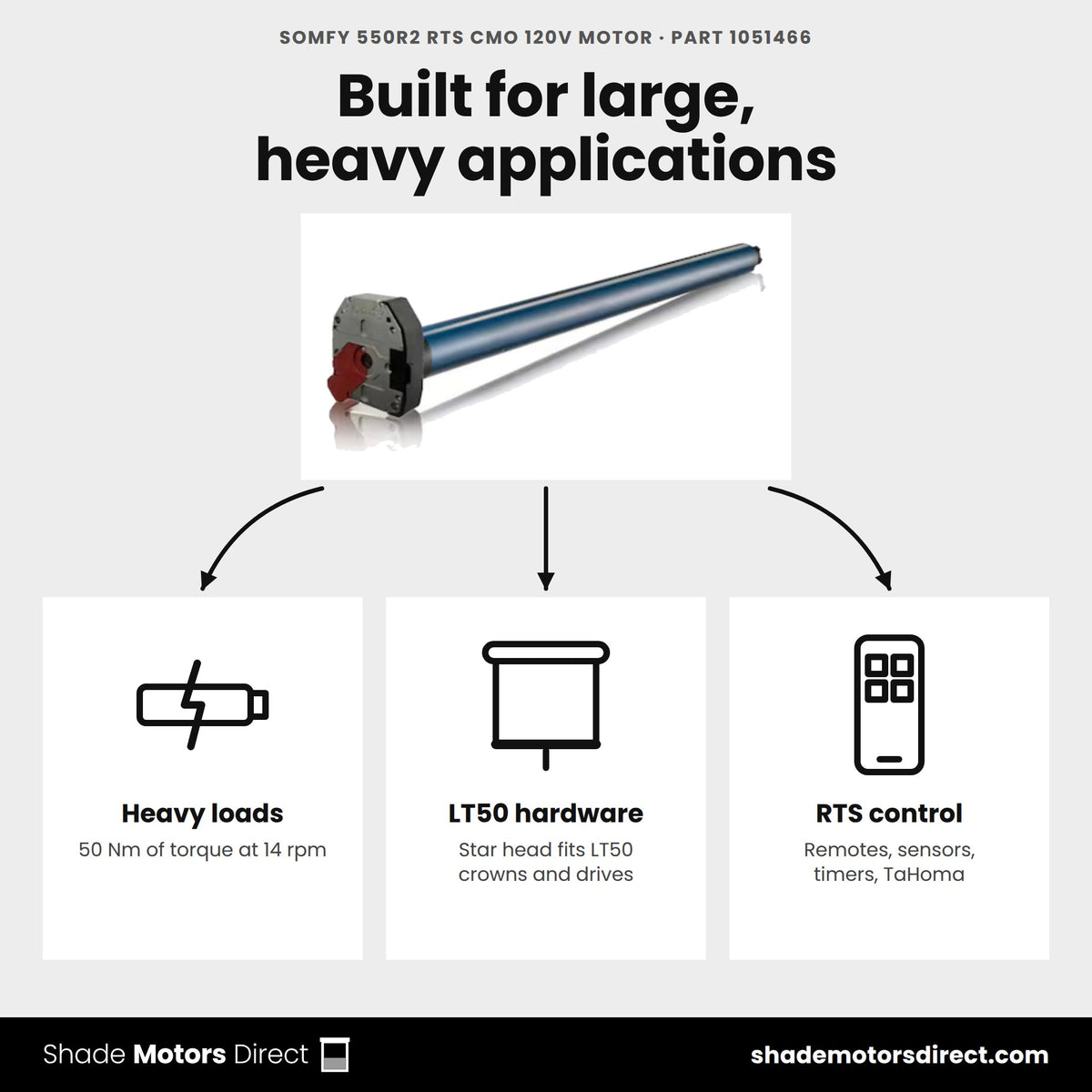

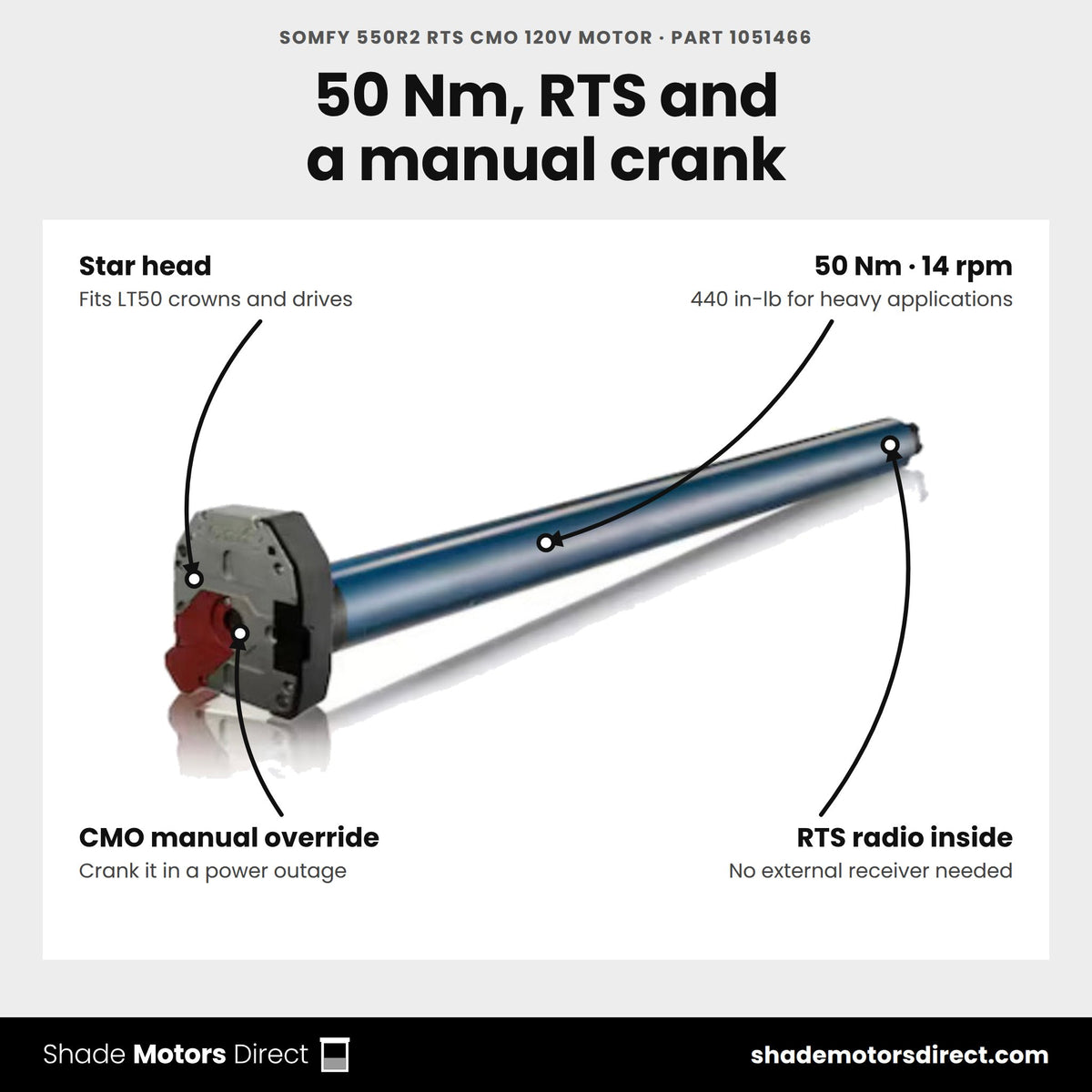

- 50 Nm (440 in-lb) of torque at 14 rpm for large, heavy applications
- Compact manual override (CMO) crank keeps the application usable during a power outage
- Built-in RTS receiver runs on Somfy remotes and wireless wall switches, no external receiver
- Compatible with Somfy RTS sensors, timers, and TaHoma
- Star drive head fits the full LT50 crown and drive ecosystem
- Genuine Somfy quality, backed by a 5-year warranty
Specifications
| Torque / Speed | 50 Nm (440 in-lb) / 14 rpm |
| Overall length | 30.98 in (787 mm) |
| Minimum tube inside diameter | 1.85 in |
| Radio Frequency | 433.420 MHz |
| Control | Radio Technology Somfy (RTS), built-in receiver, with CMO manual override |
| Head type | Star |
| Power | 120V AC, 60 Hz |
| Limit type | Mechanical, rapid-adjustment push buttons |
| Warranty | 5 years |
Compatible with: LT50 / 500 Series tubes, crowns, drives, brackets, and CMO crank handles
Official Somfy documentation
- LT50 / 500 Series – Databook (PDF)
- RTS Pocket Programming Guide (PDF)
- LT50 550R2 RTS CMO – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the 550R2 RTS CMO deliver?
Somfy rates part 1051466 at 50 Nm of torque and 14 rpm. It runs on 120V/60Hz, draws 2.1 A and 250 W, and suits awnings and rolling shutters.
What does CMO mean?
CMO stands for compact manual override. The motor head accepts a crank, so an awning or shutter can be moved by hand during a power outage.
Does it need an external receiver?
No. An RTS radio receiver is built in, so Somfy RTS remotes and wall switches control it with no receiver or control wiring. The motor stores up to 12 channels, and Somfy rates open-field range at 656.2 ft.
Which remotes and switches work with it?
Any Somfy RTS transmitter works, including Telis 1 (1810643) and Telis 4 (1810645) Patio remotes, Situo RTS Pure remotes, the Situo 5 Soliris RTS Pure II (1870579), DecoFlex RTS wall switches and the Telis 1 Chronis RTS timer (1805237).
How is it wired, and how are the limits set?
It ships with a 9.84 ft SJTW cable with 3 wires. Limits are set mechanically with the push buttons on the CMO limit switch unit at the motor head, and Somfy lists a thermal time of 5 min for long runs.
What tube size does it need, and can it go outdoors?
Somfy lists a minimum tube inside diameter of 1.85 in and an IP 44 rating. The compatible parts on this page include LT50 crown and drive sets and the Motor Bracket for Sunea CMO RTS (9015802).
Couldn't load pickup availability
Replace an override motor or build a new awning with a hand-crank backup.
Replacing? Your fabric stays on the roller. Building new? Every part below is Somfy-matched to part 1051466.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Override eye Crank the shade by hand if the power goes out.
- 3Drive Turns the tube.
Replacing a motor
-
1
Retract and cut power
Retract the awning or screen fully, turn off the circuit and support the roller.
-
2
Pull the old motor
Release the motor from its bracket and slide it out of the tube.
-
3
Fit crown and drive
Use the set for your tube profile. Line the override eye up with the crank opening.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new awning or screen? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us

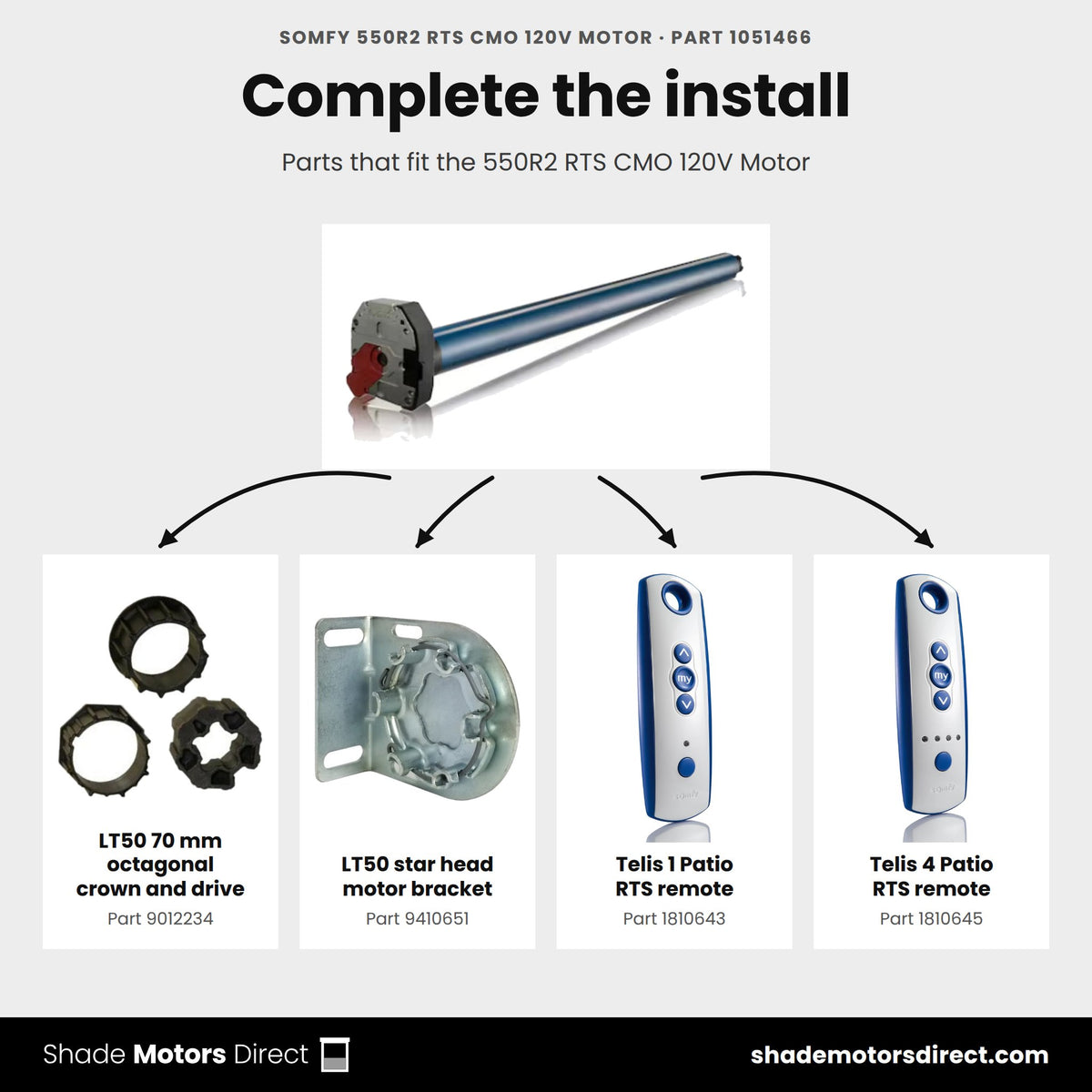

What the 550R2 RTS CMO needs to run
Somfy lists every part below as compatible with part 1051466. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the 550R2 RTS CMO for 5 years. We handle the claim.
Somfy warranty on the 550R2 RTS CMO, part 1051466.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.

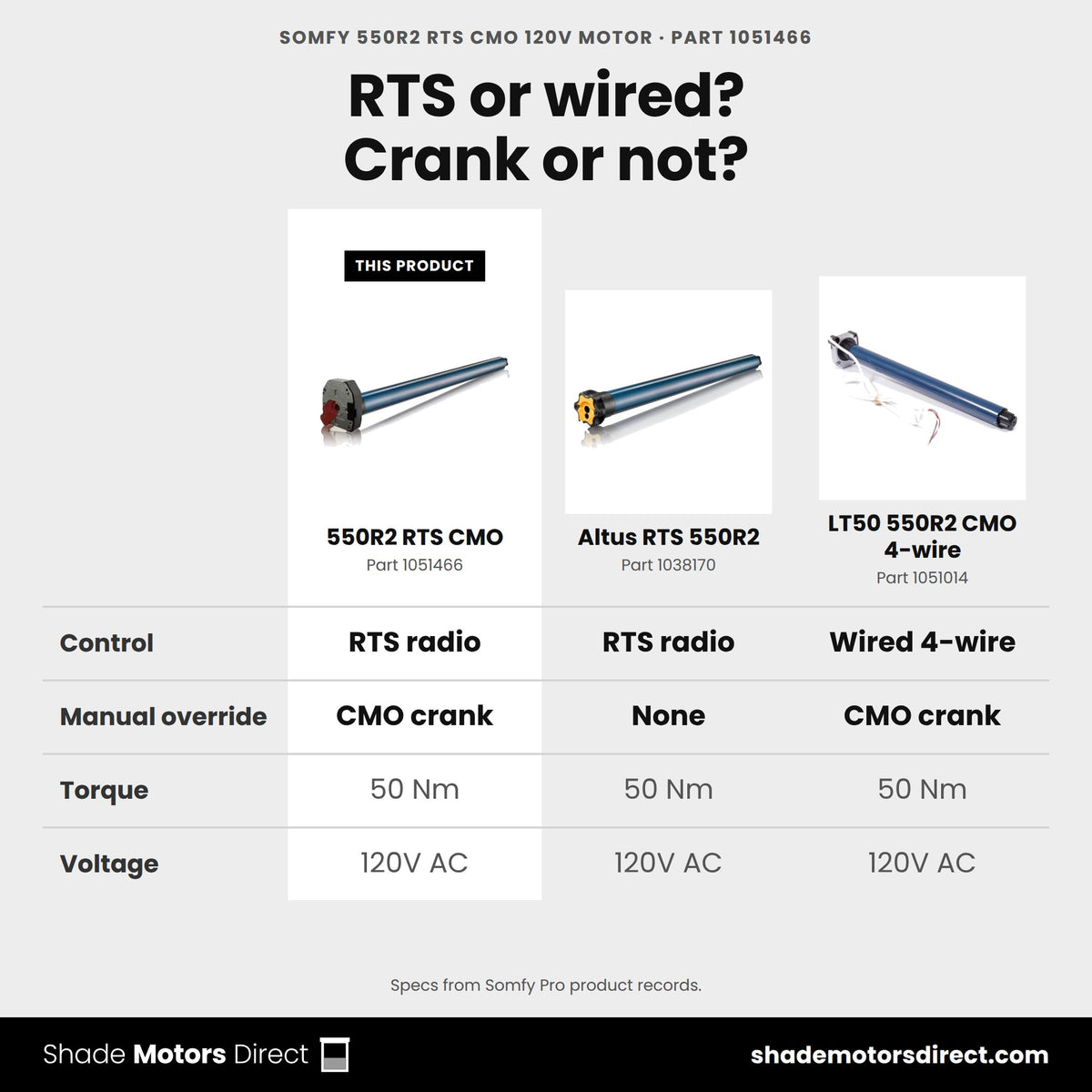

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 550R2 RTS CMO (1051466)
|

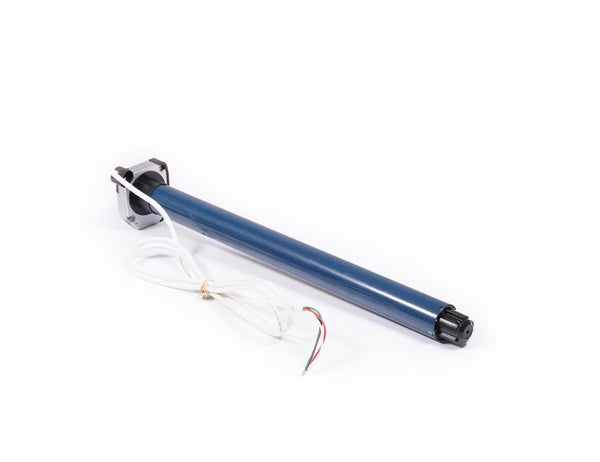

Somfy LT50 RA CMO 550R2 Motor with 6' 4-Wire Pigtail Cable (1051014)
|
Somfy 540R2 RTS CMO 120V 3-Wire Motor (1051477)
|

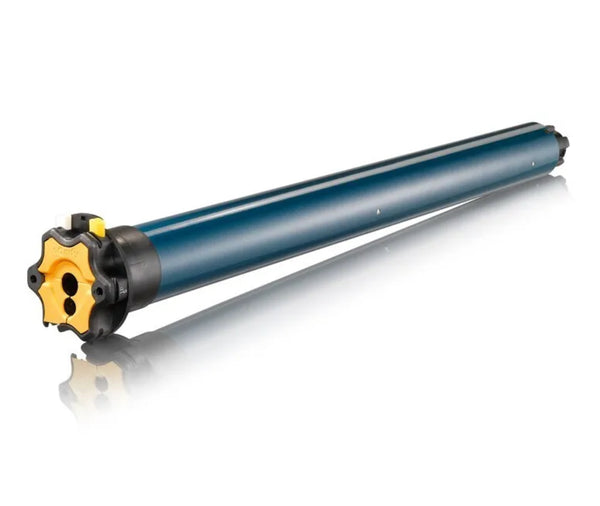

Somfy 550R2 120V 4-Wire Motor (1051464)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 50.0 | 50.0 | 40.0 | 50.0 |
| Speed (rpm) | 14 | — | 14 | 14 |
| Control | RTS radio | Wired 4-wire | RTS radio | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| Manual crank override | Yes | Yes | Yes | — |
| What's different | The product on this page | Same size, Wired 4-wire control | 40.0 Nm instead of 50.0 | Same size, Wired 4-wire control |
| Buy | Currently viewing | View details | View details | View details |
