Somfy Dual Push-Button Switch Station with Screw Terminal (White) (1800407)
Somfy Dual Push-Button Switch Station with Screw Terminal (White) (1800407)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

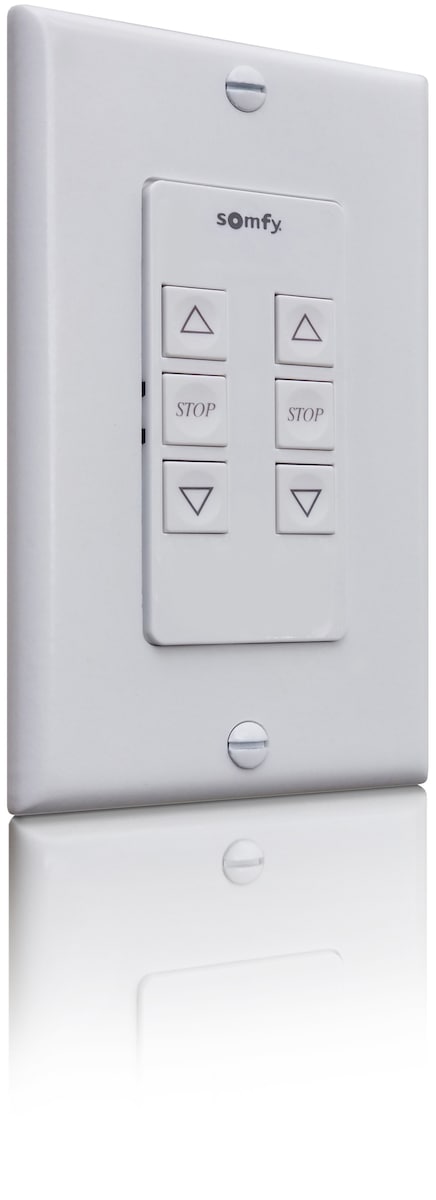

Dual Push-Button Switch Station with Screw Terminal (White) -- wired Up/Stop/Down wall control for Somfy IGC systems
Somfy built the 1800407 dual push-button station (factory reference DIGC2-W) for its Decorator IGC switch line. It gives Up, Stop and Down control through Somfy IGC and IGC/3N1 controls, synchronizes one or two Dry Contact (DCT) motors over dedicated wiring, and fits a standard single-gang electrical box on 120V/60Hz.
Benefits
- Individual or group control of motorized products
- Dedicated wired control that synchronizes 1 or 2 Dry Contact (DCT) motors
- Up/Stop/Down operation for Somfy IGC and IGC/3N1 controls
- Installs in a single-gang electrical box
- Ships as a complete assembly: screw terminals, wall plate, screws and push-button switch
Specifications
| Part number | 1800407 (DIGC2-W with terminals) |
| Type | Dual push-button switch station, wired |
| Control | Wired (no built-in radio receiver) |
| Works with | Somfy IGC and IGC/3N1 controls |
| Power supply | AC, 120V/60Hz |
| Mounting | Single-gang electrical box |
| Connection | Screw terminals |
| Finish | White |
| Somfy application | Rolling shutters |
| Warranty | 5 years |
Compatible with: Somfy IGC and IGC/3N1 controls; wired synchronization of 1 or 2 Dry Contact (DCT) motors
Official Somfy documentation
- Decorator IGC Switch – Electronic Control Catalog Page (PDF)
- Dual Push-Button Switch Station – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Dual Push-Button Switch Station control?
Part 1800407 is a wired Up, Stop and Down wall station from Somfy's Decorator IGC switch line. It sends commands through Somfy IGC and IGC/3N1 controls for individual or group control of motorized products.
Can it run two motors together?
Yes. Somfy rates it for dedicated wired synchronization of one or two Dry Contact (DCT) motors, so a pair of shades or shutters moves together from one station.
Does it work with RTS or Zigbee motors?
No. This is a wired station with no radio receiver. RTS and Zigbee motors take a Somfy RTS or Zigbee wall switch or remote instead.
How does it install?
It fits a standard single-gang electrical box and runs on 120V/60Hz. The kit includes the screw terminals, wall plate, screws and push-button switch, so you supply only the box and wiring.
Is there a single-button version?
Yes. Somfy's 1800406 (DIGC1-W) is the single push-button station from the same line. The dual 1800407 puts two buttons on one plate.
What warranty comes with it?
Somfy covers part 1800407 with its 5-year warranty, and ShadeMotorsDirect sells it as a genuine Somfy part.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Dual Push-Button Switch Station with Screw Terminal (White) (1800407)
|

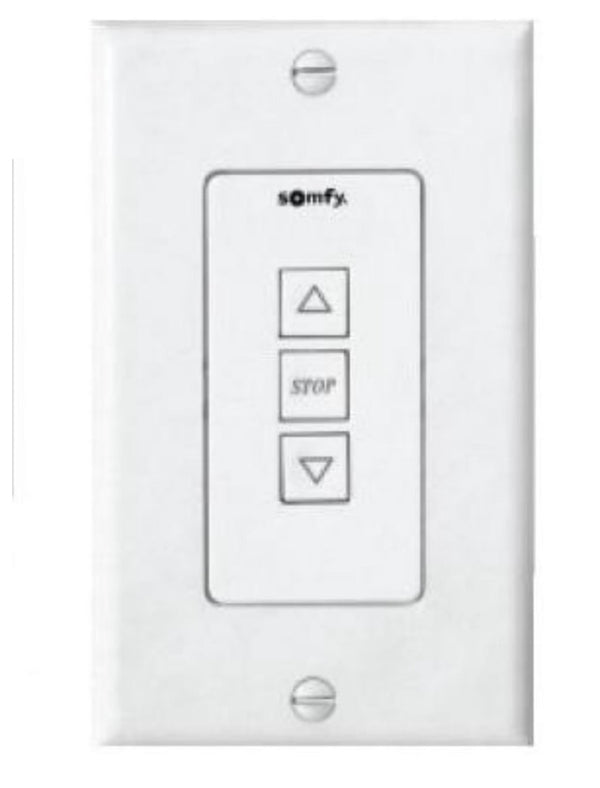

Somfy Smart Home Single Push Button Switch Station (White) (1800406)
|

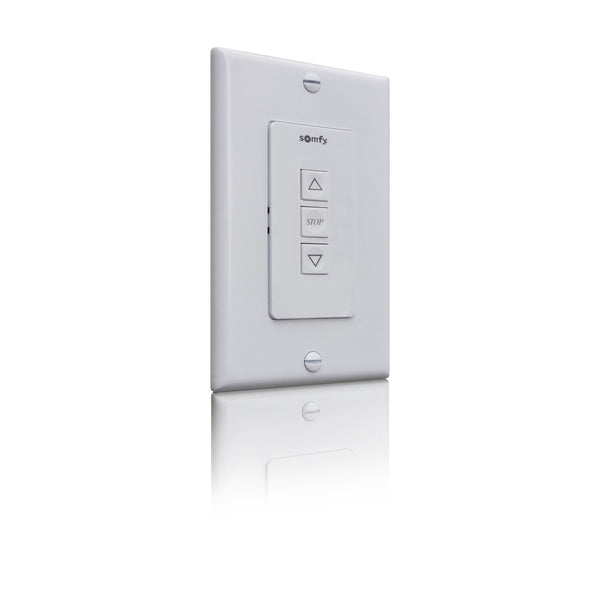

Somfy Single Push-Button Switch Station (White) (1810571)
|
Somfy Dry Contact Open, Close, Stop Wall Switch (White) (1800219)
|
|---|---|---|---|---|
| Price | ||||
| Control | Wired (momentary) | Wired (momentary) | Wired (momentary) | Wired (dry contact) |
| What's different | The product on this page | Close alternative | Close alternative | Same size, Wired (dry contact) control |
| Buy | Currently viewing | View details | View details | View details |
