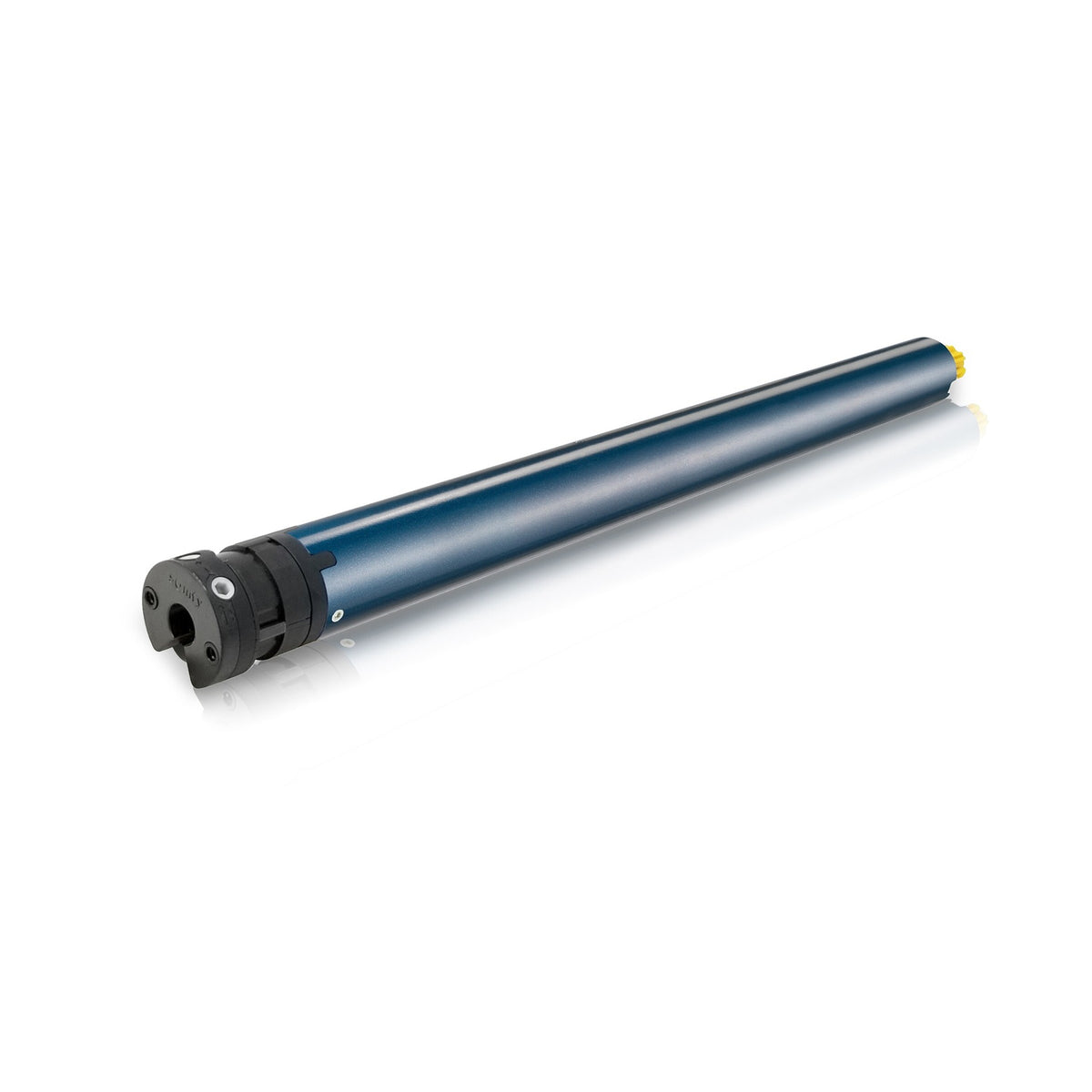

Somfy Sonesse 40 409R2 WT 120V 4-Wire Motor (Fast Connector) -- wired interior motor
The Sonesse 40 409R2 WT is a wired 120V motor delivering 9Nm at 14rpm with progressive-adjustment (PA) limits, for interior shades and heavier blinds, with a Fast Connector for quick power hookup.

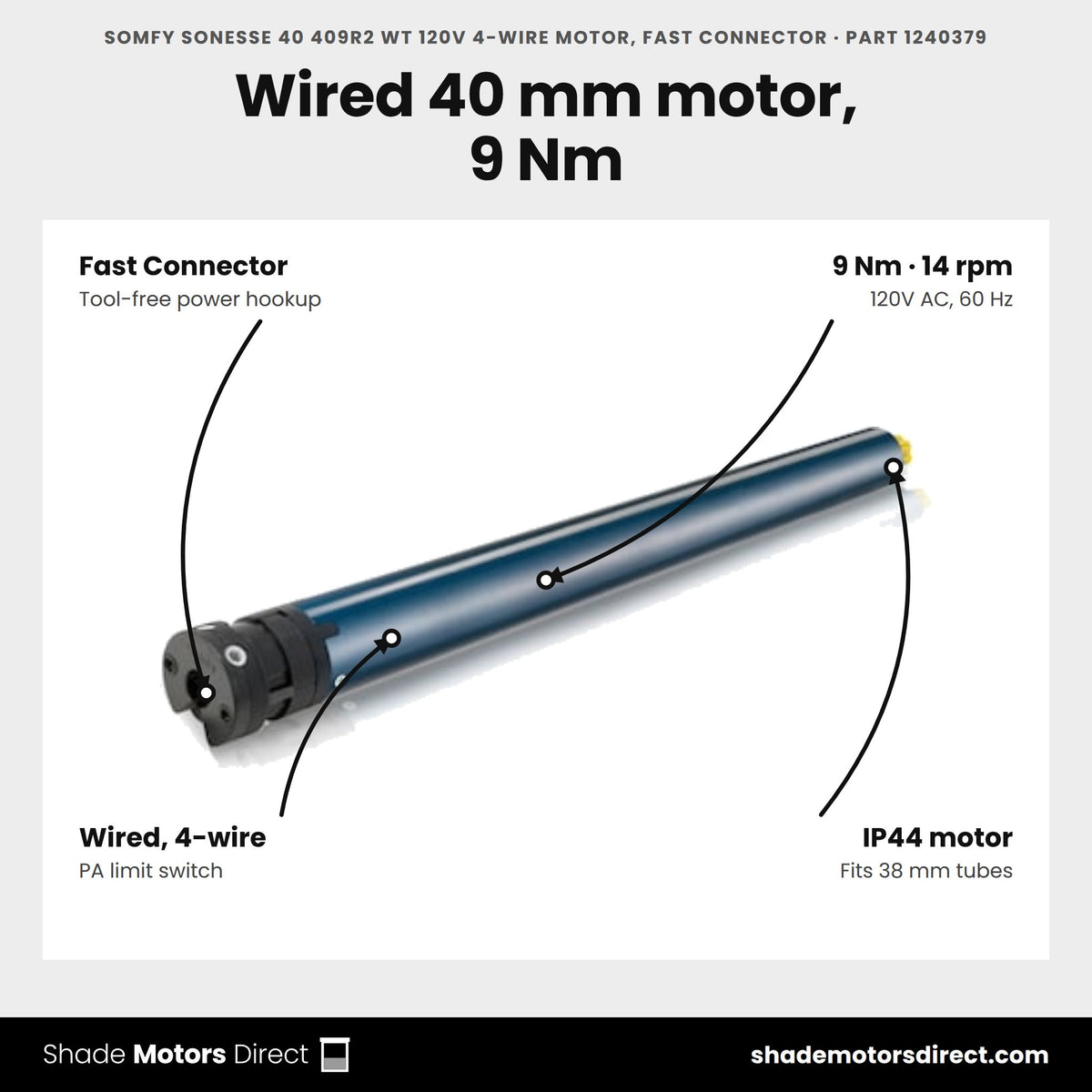

Benefits
- Standard wired 4-wire control, progressive-adjustment (PA) limit switch
- Fast Connector for quick, tool-free power hookup
- Fits small-diameter tubes (38mm+ internal diameter)
- IP44 motor / IP55 fast connector rating
- 5-year Somfy warranty
Specifications
| Torque / Speed | 9 Nm (80 in-lb) / 14 rpm |
| Control | Standard 4-wire (PA limits) |
| Power supply | 120V AC, 60Hz |
| Rating | IP44 motor, IP55 fast connector |
| Cable | Fast Connector, 1.6 ft SJTW |
| Warranty | 5 years |

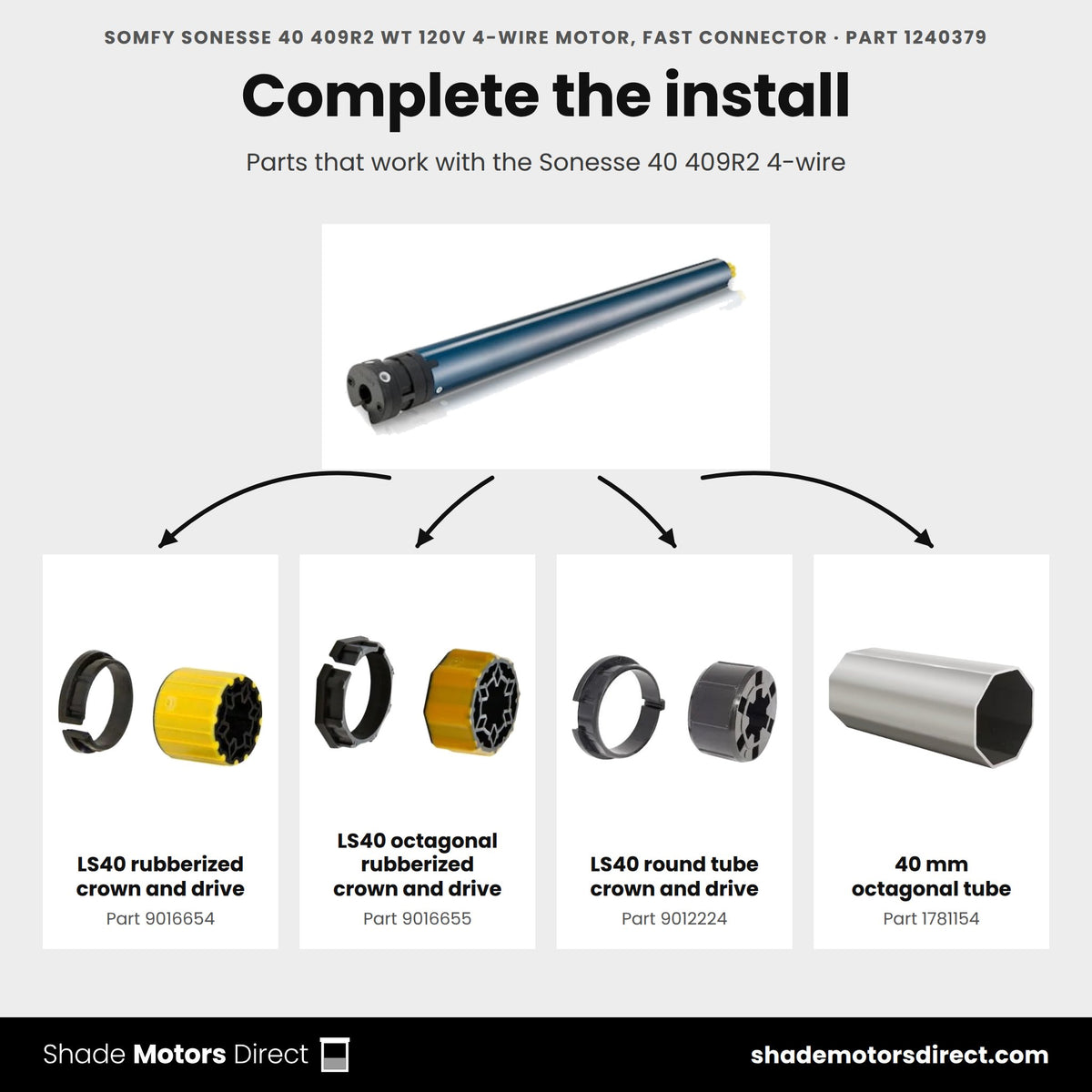

Compatible with: 40mm octagonal and round roller tubes, 400 Series crown and drive sets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Sonesse 40 WT 409R2 deliver?
Somfy rates part 1240379 at 9 Nm of torque and 14 rpm on 120V AC. It draws 0.95 A, and Somfy lists a noise level of 40 dB.
What is the smallest roller tube this motor fits?
Somfy lists a minimum tube inside diameter of 1.46 in, with a motor body of 1.39 in. The compatible parts on this page include LS40 crown and drive sets (9012224, 9016654, 9016655) and the 40mm octagonal tube (1781154).
What does the Fast Connector do?
The motor ends in a 1.64 ft 4-wire lead with a Somfy Fast Connector. Your supply cable plugs into it at the motor, so there is no splicing inside the headrail.

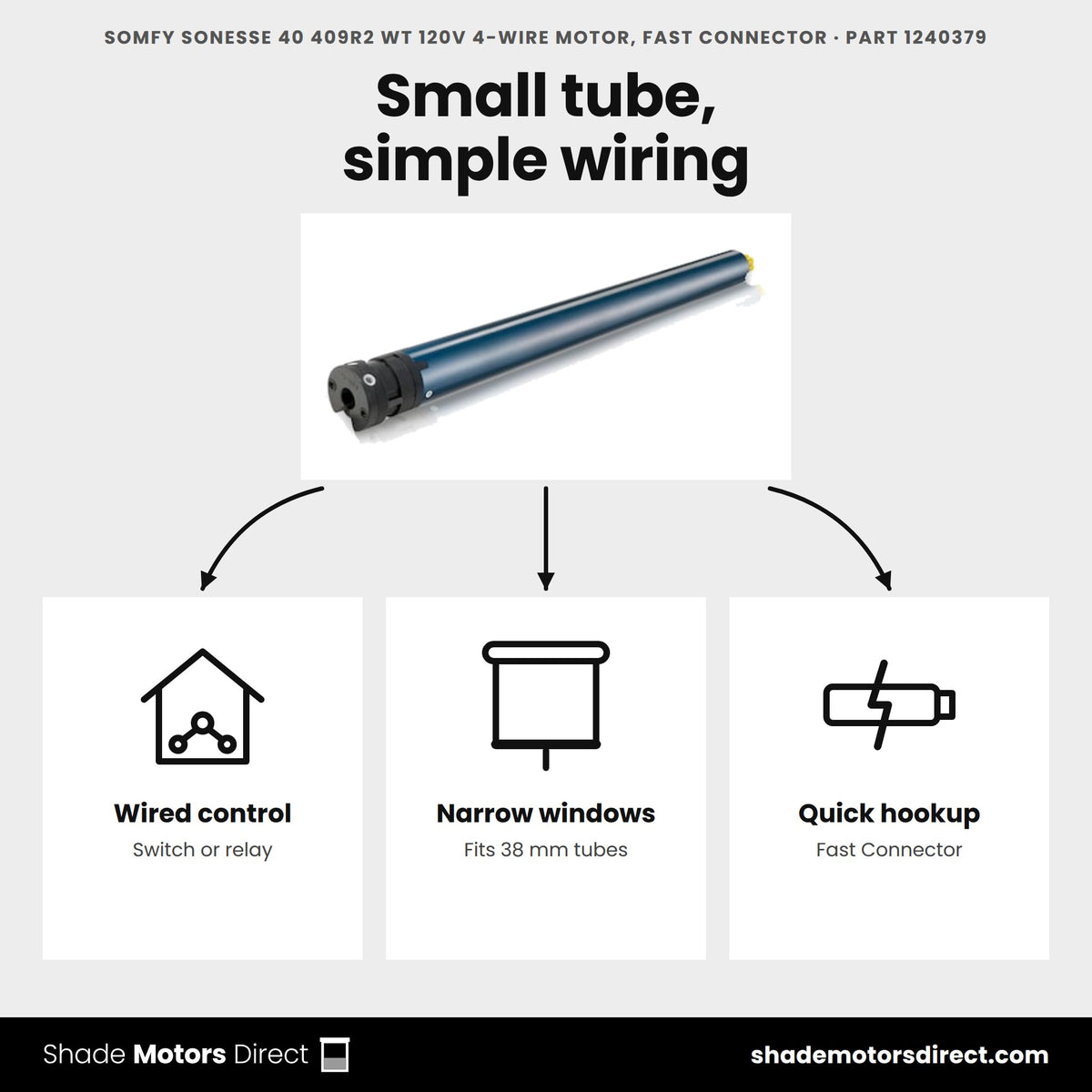

How do I wire and control it?
It is a standard 4-wire 120V AC motor, run from a wired wall switch or a third-party relay. Somfy rates it IP 44, with an operating range of 32 °F to 140 °F.
How are the limits set?
The motor uses mechanical limit switches with a capacity of 40 turns. You set the upper and lower stops at the motor head during installation, before the shade goes into service.
Is there a version with a built-in radio?
Yes. The Somfy Sonesse 40 RTS 409R2 (1240382) keeps the 9 Nm and 14 rpm and adds an RTS receiver for Somfy remotes and wall switches. For a Zigbee network, choose the Sonesse 40 409R2 Zigbee 3.0 motor (1245922).
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 40 409R2 WT 120V 4-Wire Motor (fast connect) (1240379)
|
Somfy Sonesse 40 409R2 RS485 SDN Motor (9Nm, 14rpm) (1240564)
|
Somfy Sonesse 40 406A2 WT 120V 4-Wire Motor (fast connect) (1240378)
|
Somfy LS40 409R2 Sonesse RTS 120V Motor (1240382)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 9.0 | 9.0 | 6.0 | 9.0 |
| Speed (rpm) | 14 | 14 | 24 | 14 |
| Control | Wired 4-wire | RS485 (SDN) | Wired 4-wire | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | Sonesse 40 | Sonesse 40 | Sonesse 40 | Sonesse 40 |
| What's different | The product on this page | Same size, RS485 (SDN) control | 6.0 Nm instead of 9.0 | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
