Somfy Single Push-Button Switch Station (White) (1810571)

SKU: 1810571

$56.95

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

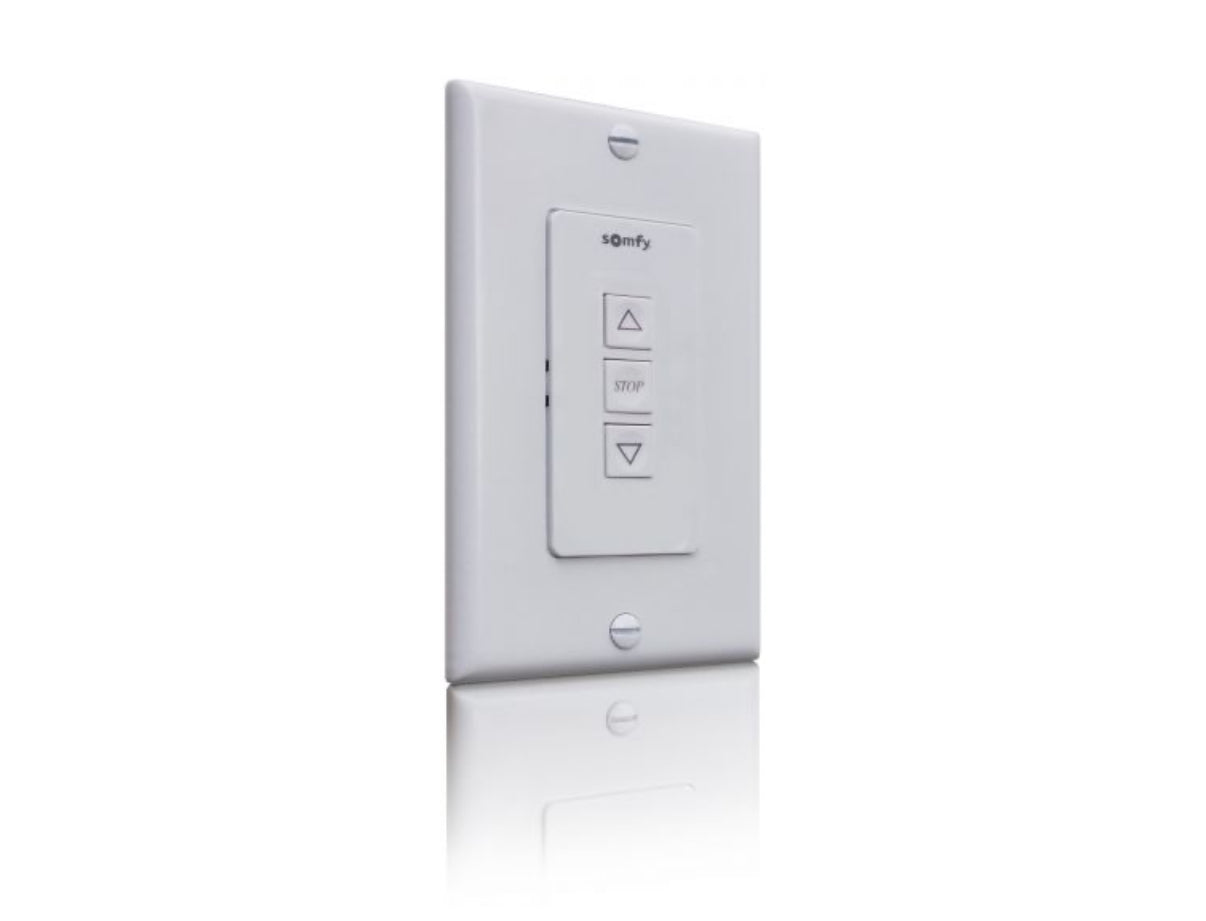

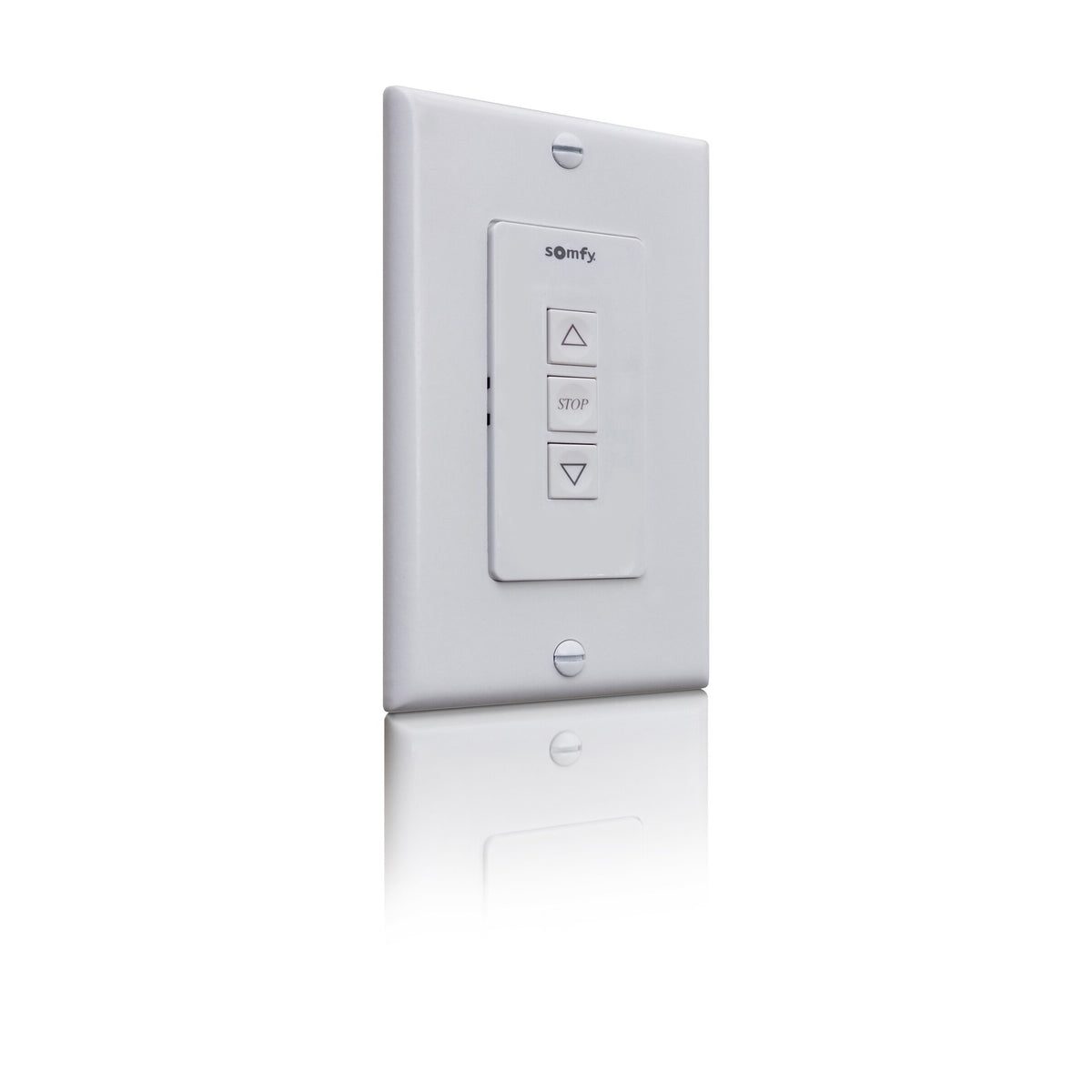

Single Push-Button Switch Station (White) -- momentary wall station for wired motor control

This single push-button switch station sends momentary commands to compatible Somfy wired motors and control interfaces, providing a minimal, architectural control point at the door or beside the window.

Benefits

Momentary push-button command station
Pairs with Somfy wired motors and control interfaces
Minimal single-button design in clean white
Standard wall mounting

Specifications

Type	Momentary push button, single
Finish	White

Compatible with: Somfy wired motor control systems and interfaces

Official Somfy documentation

Single Push-Button Switch Station – Somfy Pro Product Page

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Single Push-Button Switch Station?

It is a wired in-wall control with Up, Stop and Down buttons on one white station. Somfy built it for its IGC and IGC/3N1 motor controls, for individual or group control of wired motors.

How does it connect to the motor control?

It connects through a 6 pin modular connector and a modular cable that runs to the motor controller. The plug-in link keeps the wiring between the wall station and the control simple.

How is it mounted and powered?

It installs in a standard single gang electrical box. Somfy lists it with its 120V/60Hz AC range, and the station works as part of a wired Somfy control system.

Which products is it made for?

Somfy lists it for rolling shutters with its IGC and IGC/3N1 controls. The control drives the motor, and this station sends the Up, Stop and Down commands to one motor or a group.

What warranty and colors are available?

Somfy covers part 1810571 with a 5-year warranty. This listing is the white version, and Somfy also offers the station in ivory to match other wall plates.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace a worn wall switch or wire a new motor to the wall.

Single Push-Button Switch Station, part 1810571.

Replacing one

1
Turn off power
Switch off the circuit at the breaker.
2
Move the wires
Move each wire from the old control to the same terminal on the Single Push-Button Switch Station.
3
Test it
Restore power and run the motor up and down.

Line-voltage wiring needs a licensed electrician. Questions on the wiring? Send us a photo. Ask us

Starting new

1
Turn off power
Switch off the circuit at the breaker.
2
Wire it
Connect the motor leads to the terminals as the wiring guide shows.
3
Test it
Restore power and run the motor up and down.

Line-voltage wiring needs a licensed electrician. Questions on the wiring? Send us a photo. Ask us

Motors the Single Push-Button Switch Station controls

These Somfy motors work with part 1810571.

412R2 RH without Fast Connector Part 1024192 $267.09

$267.09

Sonesse 40 404S2 WT 120V 4-Wire Motor Part 1240377 $244.52

$244.52

Sonesse 40 404S2 WT 120V 4-Wire Motor Part 1001553 $244.52

$244.52

Sonesse 40 406A2 WT 120V 4-Wire Motor Part 1240378 $255.26

$255.26

Sonesse 40 409R2 WT 120V 4-Wire Motor Part 1240379 $262.74

$262.74

Sonesse 50 510S2 RH Standard 120V 4-Wire Motor Part 1001810 $345.00

$345.00

More Somfy motors work with it too. Ask us if yours isn't listed.

Somfy backs the Single Push-Button Switch Station for 5 years. We handle the claim.

5years

Somfy warranty on the Single Push-Button Switch Station, part 1810571.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy Single Push-Button Switch Station (White) (1810571)	Somfy Smart Home Single Push Button Switch Station (White) (1800406)	Somfy DC Decorator Paddle Switch Maintained (White) (9012074)	Somfy DecoFlex 1 Channel RTS Wireless Ivory Wall Switch (1810898)
Price	$56.95	$74.99	$48.95	$171.95
Control	Wired (momentary)	Wired (momentary)	Wired	RTS radio
Power	—	—	—	Battery
What's different	The product on this page	Close alternative	Same size, Wired control	Same size, RTS radio control
Buy	Currently viewing	View details	View details	View details
