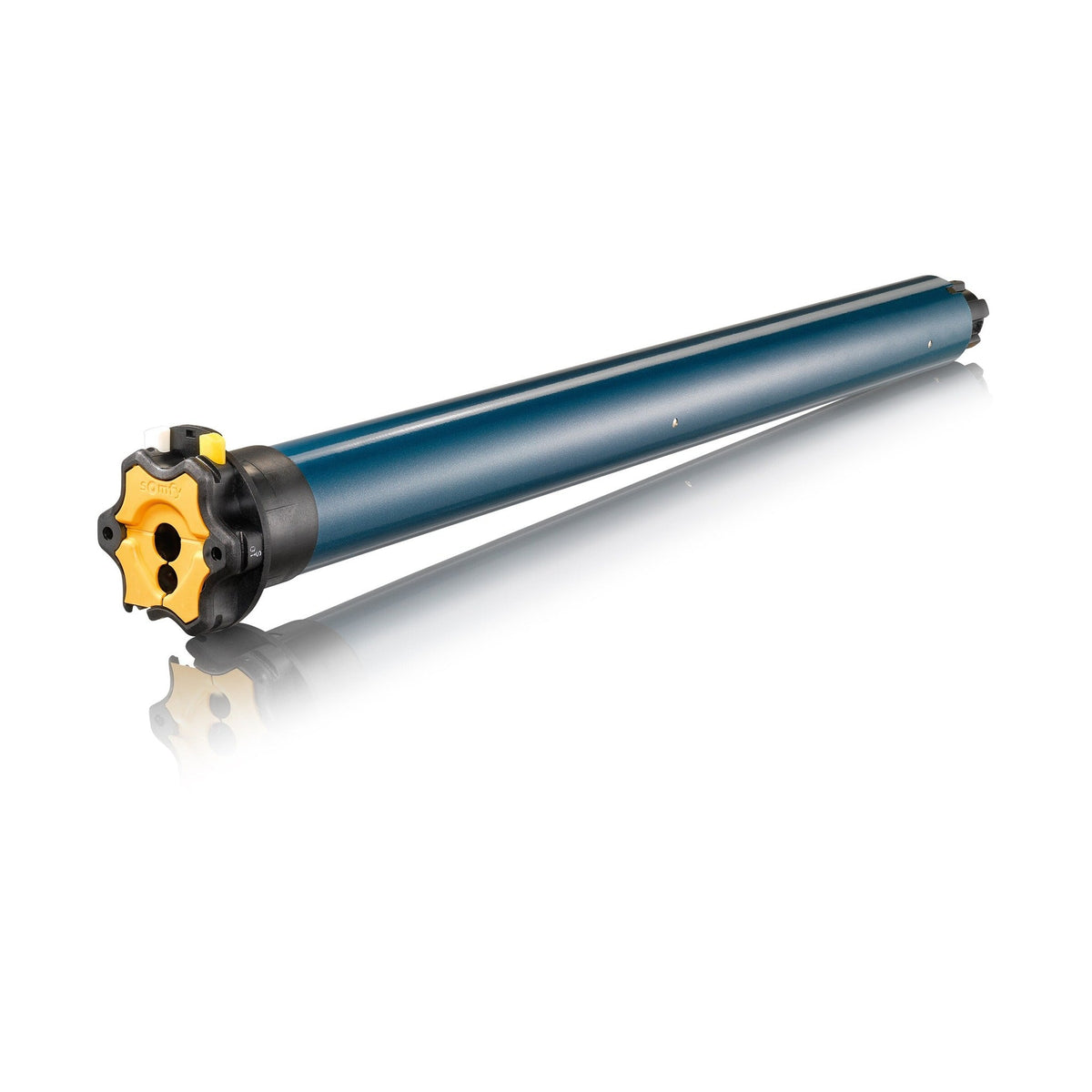

Somfy LT50 530R2 120V 4-Wire Motor -- standard exterior tubular motor

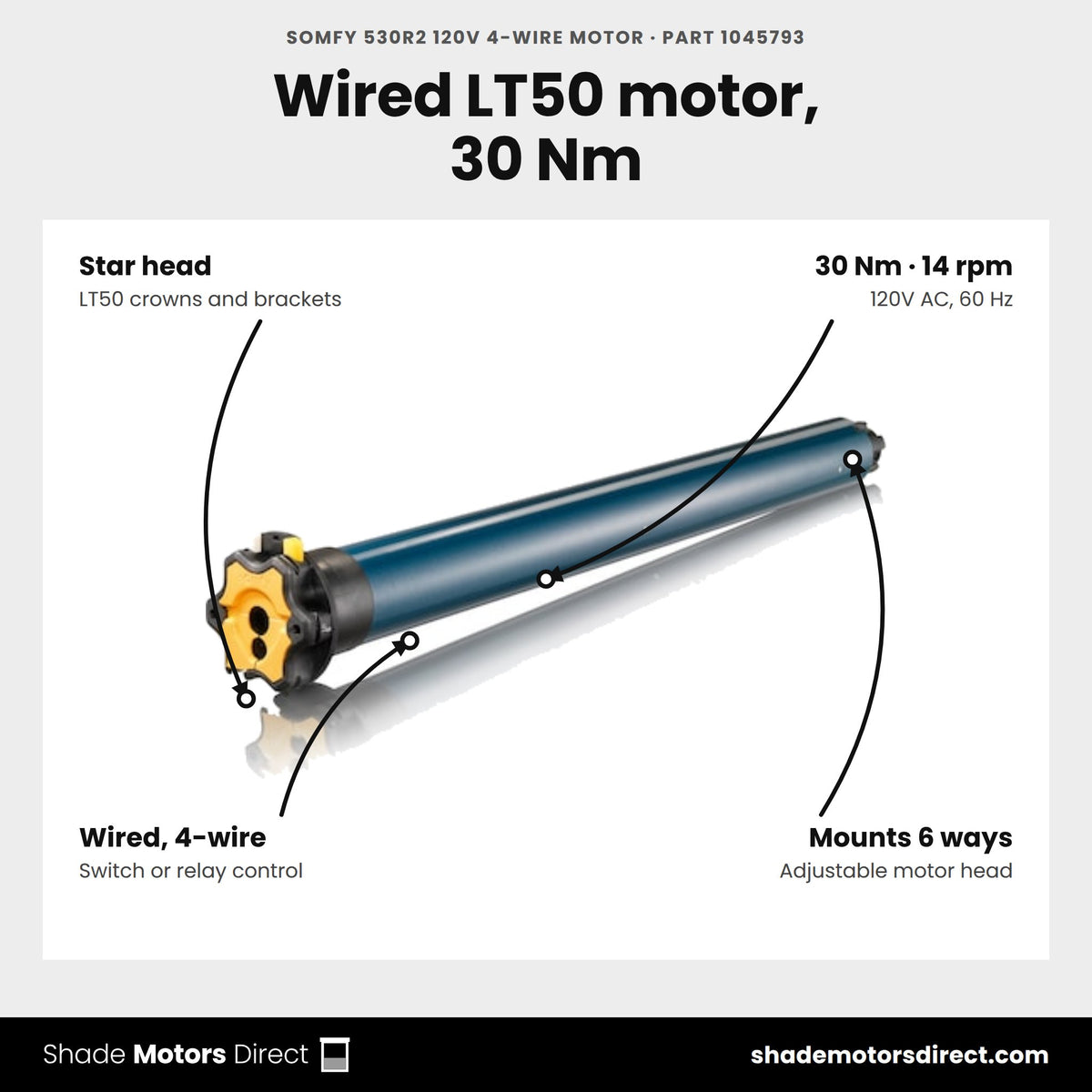

The Somfy LT50 530R2 is a 120V AC standard 4-wire star head motor built for awnings and rolling shutters. It delivers 30Nm (264" lb) of torque at 14 rpm, wired for control from a switch or third-party relay rather than radio.
Benefits
- Standard 4-wire star head motor -- ideal for pre-construction wiring while walls are open
- Adjustable motorhead orientation installs in 6 different positions
- Detachable power cable at the motor head for quick replacement or length management
- Snap-on drive wheels for quick assembly; rapid push-button limit setting
- Eco-designed -- draws no power in standby mode
- 5-year Somfy warranty
Specifications
| Torque / Speed | 30 Nm (264 in-lb) / 14 rpm |
| Control | Standard 4-wire (wired switch or relay) |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 motor brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the 530R2 deliver?
Somfy rates part 1045793 at 30 Nm of torque and 14 rpm on 120V/60Hz power. It draws 1.5 A and 170 W in operation and 0 W in standby.
What is it built for?
Somfy lists it for awnings and rolling shutters. It is a standard LT50 motor with a star head, and its 30 Nm of torque suits larger exterior products.
How is it wired and controlled?
It ships with a 9.84 ft SJTW cable with 4 wires, so a wired switch or relay sets the direction. It has no radio receiver, so add the Somfy Universal RTS Receiver for 110V AC motors (1810627) to run it from RTS remotes and wall switches.
What tube size and mounting parts does it need?

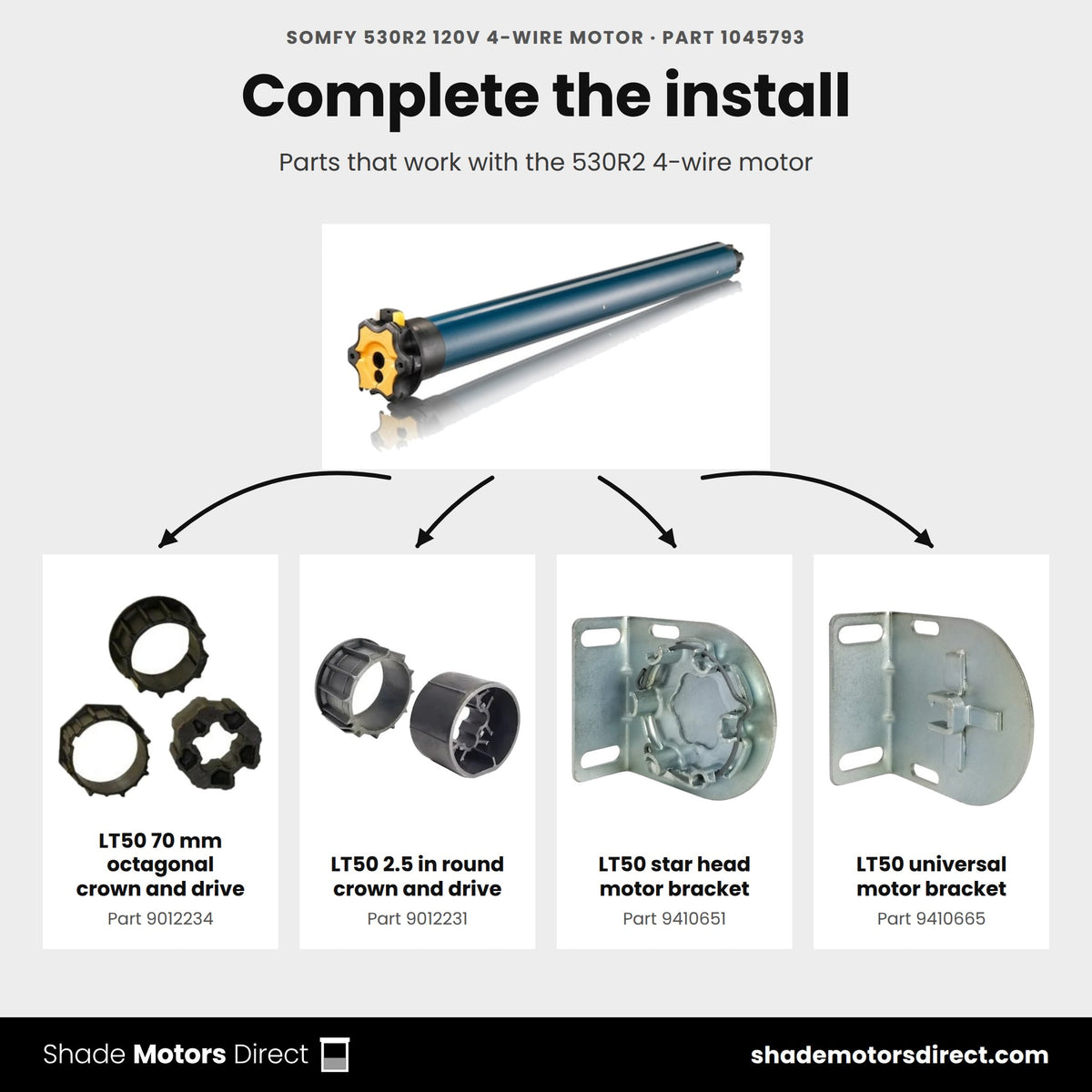

Somfy lists a minimum tube inside diameter of 1.85 in. The compatible parts on this page include the LT50 2.5 in Round Crown and Drive Set (9012231), the Octagonal LT50 70mm set (9012234) and the LT50 motor bracket (9410651).
How are the limits set, and how long can it run?
It uses a mechanical limit switch with a capacity of 46 turns. Somfy lists a thermal time of 5 min, so let the motor cool after long back-to-back runs. The Somfy Standard Motor Tester Cable, 4-Wire (9012116) lets an installer test-run the motor before final wiring.
How loud is it, and can it handle outdoor temperatures?
Somfy rates the 530R2 at 55 dB and IP 44, with a working range of -13 to 158 °F. Thermal protection trips at 284 °F, and Somfy backs the motor with a 5-year warranty.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 530R2 120V 4-Wire Motor (1045793)
|

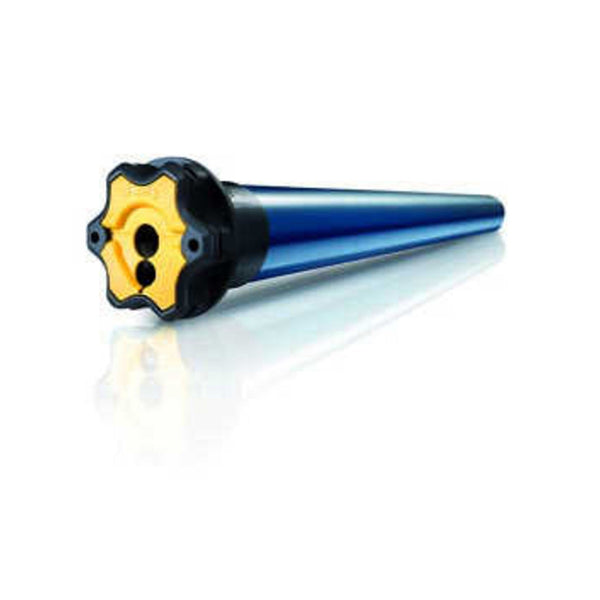

Somfy 530R2 Altus RTS 120V 3-Wire Motor (1038169)
|
Somfy 525A2 120V 4-Wire Motor (1043424)
|
Somfy 535A2 120V 4-Wire Motor (1047368)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 30.0 | 30.0 | 25.0 | 35.0 |
| Speed (rpm) | 14 | 14 | 20 | 20 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| What's different | The product on this page | Same size, RTS radio control | 25.0 Nm instead of 30.0 | 35.0 Nm instead of 30.0 |
| Buy | Currently viewing | View details | View details | View details |
