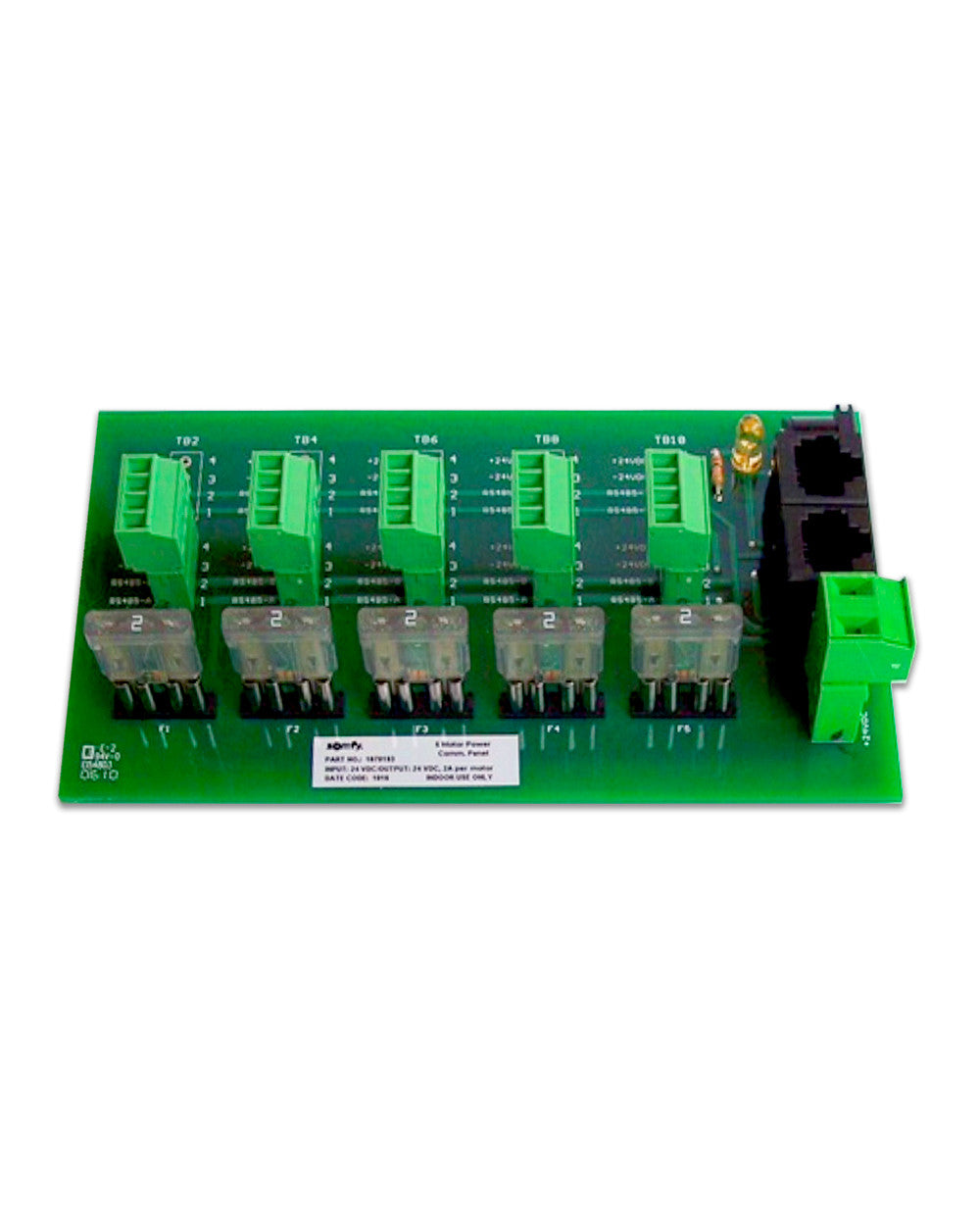

12/24V DC Power Distribution Panel, 5 Motors -- clean central wiring for low-voltage shade systems
This Somfy distribution panel routes 12V or 24V DC power to up to five motors from a central supply, giving multi-shade installations one tidy, serviceable wiring point instead of scattered plug-in transformers.
Benefits
- Distributes 12V or 24V DC to up to 5 motors
- Central panel simplifies service and troubleshooting
- Pairs with DIN-rail or plug-in supplies for a professional install
- Cleaner architecture than individual transformers at each window
Specifications
| Motors | Up to 5 |
| Voltage | 12V or 24V DC |
Compatible with: Somfy 12V and 24V DC motors, 12V 10A DIN rail transformer 9014246
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the 12/24V DC Power Distribution Panel do?
It routes 12V or 24V DC power from one central supply to up to 5 Somfy motors. Multi-shade projects get a single, serviceable wiring point in place of a transformer at each window.
How many motors can one panel serve?
One panel serves up to 5 motors. For larger 24V DC projects, the Somfy Power Distribution Enclosure Kit - 15 Motor (1870197) feeds up to 15 Somfy 24V DC motors from a single input.
Which voltages does it handle?
It distributes 12V DC or 24V DC, so it fits Somfy 12V and 24V DC motor systems. Keep every motor on the panel at the voltage of the supply that feeds it.
Which power supply should I pair with it?
The panel pairs with DIN rail or plug-in supplies. For a 12V system, the Somfy 12 Volt DC 10 Amp Din Rail Mount Transformer (9014246) gives the panel one central 12V source.
Why use a panel instead of separate transformers?
A central panel keeps wiring tidy and puts every motor connection in one place, which makes service and troubleshooting faster. It cuts the number of outlets and plug-in adapters near the windows as well.
Couldn't load pickup availability
Replace a failed power supply or power new low-voltage motors.
12- 1Motor terminals Five plug-in blocks, one per motor.
- 2Fuses Each motor output has its own fuse.
Replacing one
-
1
Cut power
Unplug or switch off the old supply.
-
2
Swap it
Move each motor lead to the 12/24V DC Power Distribution Panel 5 Motors. Stay within its rating.
-
3
Power up
Restore power and test each motor.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the load
Count the motors on this supply and stay within its rating.
-
2
Mount and wire
Mount it near the motors and connect the motor leads.
-
3
Power up
Plug it in or have an electrician connect it, then test each motor.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Parts that go with the 12/24V DC Power Distribution Panel 5 Motors
Somfy lists these parts for use with part 1870193.
1Power
Cables, chargers and power made for this motor.
2Network
Data and network parts for wired control.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the 12/24V DC Power Distribution Panel 5 Motors for 5 years. We handle the claim.
