Power distribution enclosure for up to 15 24V DC shade motors
This UL-listed power distribution enclosure supplies and fuses power for up to 15 Somfy 24V DC motors from a single input, reducing wiring cost and complexity on multi-motor RTS, DCT, or RS485 installations.
Benefits
- Single power input feeds multiple fused motor outputs
- LED indicator per output shows power status at a glance
- Each motor output is individually fused for protection
- Plug-in connectors for quick, tool-light installation
- Assembled unit in a UL-listed enclosure
Specifications
| Capacity | Up to 15 24V DC motors |
| Power supply | 120V AC / 60Hz input |
| Protection index | IP 20 |
| Insulation class | Class II |
| Color/Finish | Grey |
| Operating temperature | 41°F to 122°F |
| Approval | UL |
| Warranty | 5 years |
Compatible with: Sonesse 30 RTS/DCT/RS485/Zigbee 24V DC motors, Sonesse ULTRA 504 A8 DC RTS
Official Somfy documentation
- Low Voltage Databook (PDF)
- Power Distribution Enclosure Kits RTS Guide (PDF)
- Wiring Detail: ST30 DCT to Enclosure Kit (PDF)
- Wiring Detail: ST30 RTS to Enclosure Kit (PDF)
- Wiring Detail: ST30 V2 RS485 to Enclosure Kit (PDF)
- Wiring Detail: Irismo to Enclosure Kit (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Power Distribution Enclosure Kit 15 Motor do?
Part 1870197 is an assembled enclosure that feeds up to 15 Somfy 24V DC motors from a single power input. It gives a multi-shade job one central power point in place of a separate supply at each window.
Which motors can it power?
Somfy lists 24V DC motors such as the Sonesse 30 RTS 24V DC (1241142), Sonesse 30 DCT 24V DC (1241146), Sonesse 30 Zigbee 24V DC (1241970) and Sonesse ULTRA 504A8 RTS 24V DC (1134023).
What power does the enclosure need?
It takes a 120V/60Hz AC input and supplies 24V DC to each motor output. Somfy builds it around one dedicated power input, so a single feed at the enclosure serves every motor on it.
How does it protect the motors?
Each motor output has its own fuse. An LED indicator on each output shows whether that motor has power, which makes a dead circuit quick to find during service.
How does it install, and where should it go?
The kit arrives assembled in a UL listed enclosure with plug-in connectors for quick wiring. Somfy rates it IP 20 in a grey finish, so mount it in a dry, protected space such as a closet or equipment room.
Which other sizes are there?
This kit handles 15 motors and carries a 5-year Somfy warranty. For smaller or larger jobs, choose the 5 motor (1870196), 10 motor (1870192) or 20 motor (1870198) enclosure and match it to your motor count.
Couldn't load pickup availability
Replace a failed power supply or power new low-voltage motors.

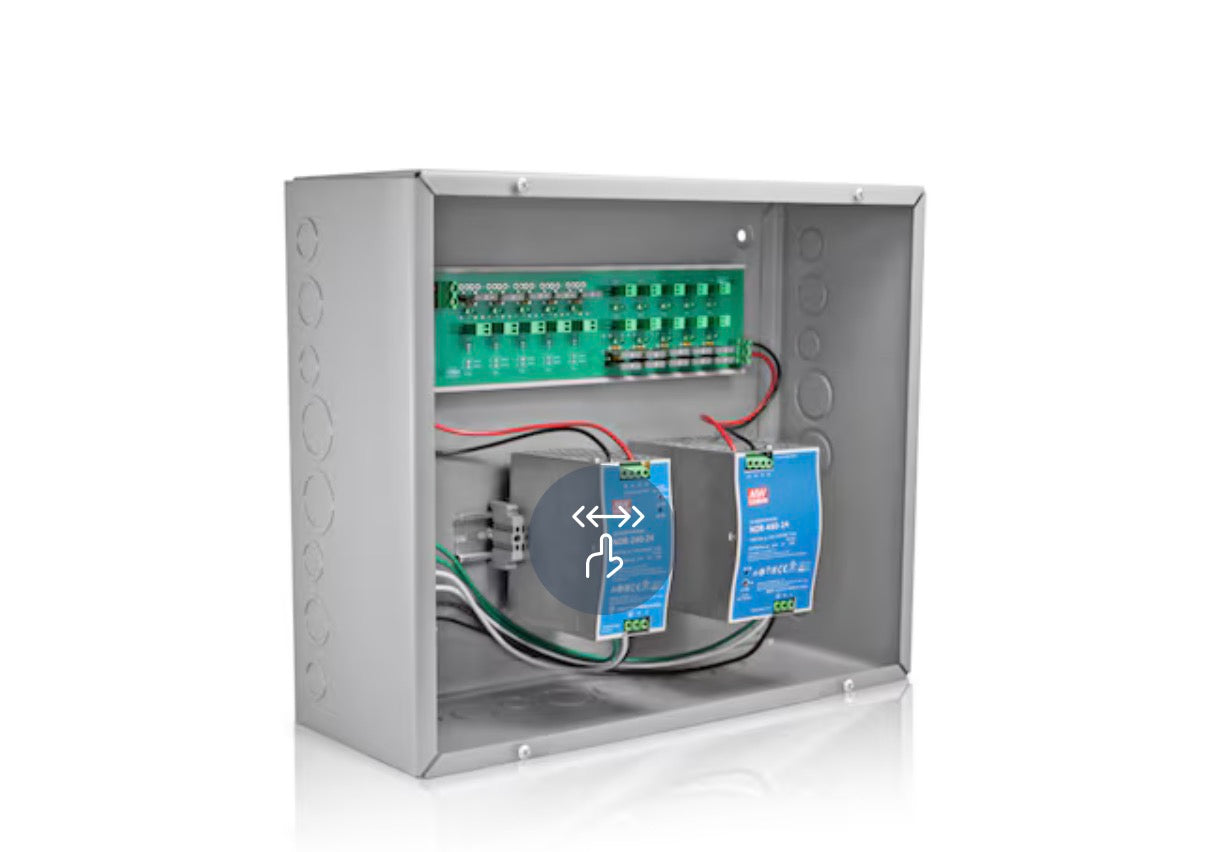

123- 1Motor terminals Connect each motor here.
- 2Power supplies Turn line power into 24V DC.
- 3Knockouts Run conduit in from the sides.
Replacing one
-
1
Cut power
Unplug or switch off the old supply.
-
2
Swap it
Move each motor lead to the Power Distribution Enclosure Kit - 15 Motor. Stay within its rating.
-
3
Power up
Restore power and test each motor.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the load
Count the motors on this supply and stay within its rating.
-
2
Mount and wire
Mount it near the motors and connect the motor leads.
-
3
Power up
Plug it in or have an electrician connect it, then test each motor.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
