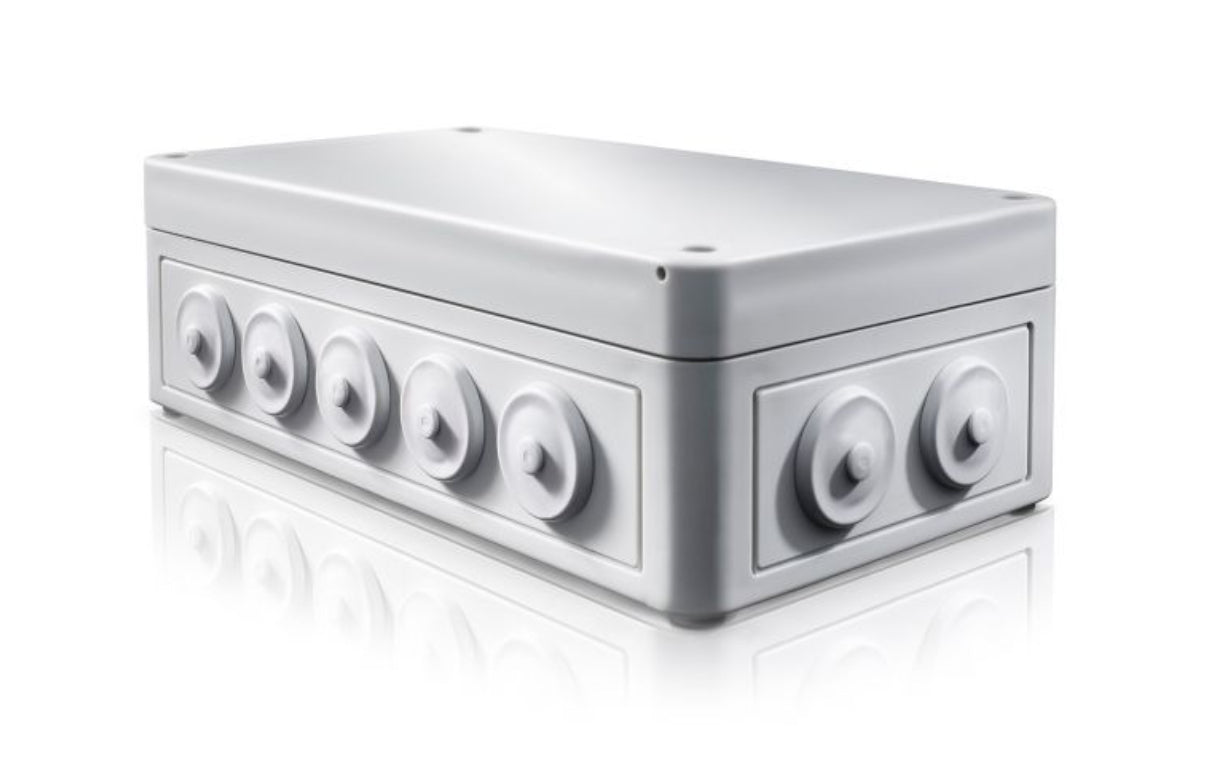

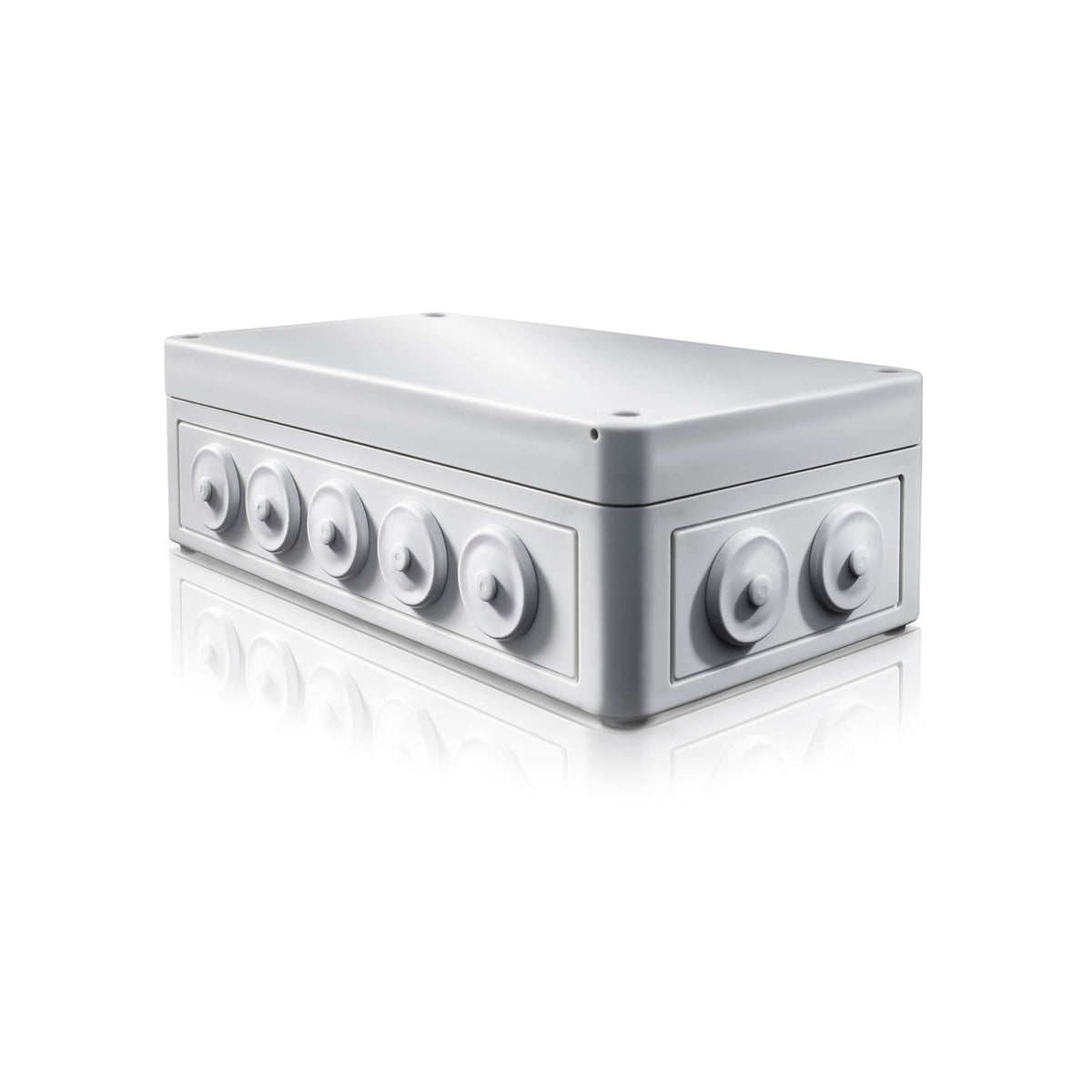

Somfy Pergola 12V/24V 2-motor RTS Receiver (1871434)
Somfy Pergola 12V/24V 2-motor RTS Receiver (1871434)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Pergola 12V/24V 2-motor RTS Receiver -- adds RTS control to pergola tilt motors

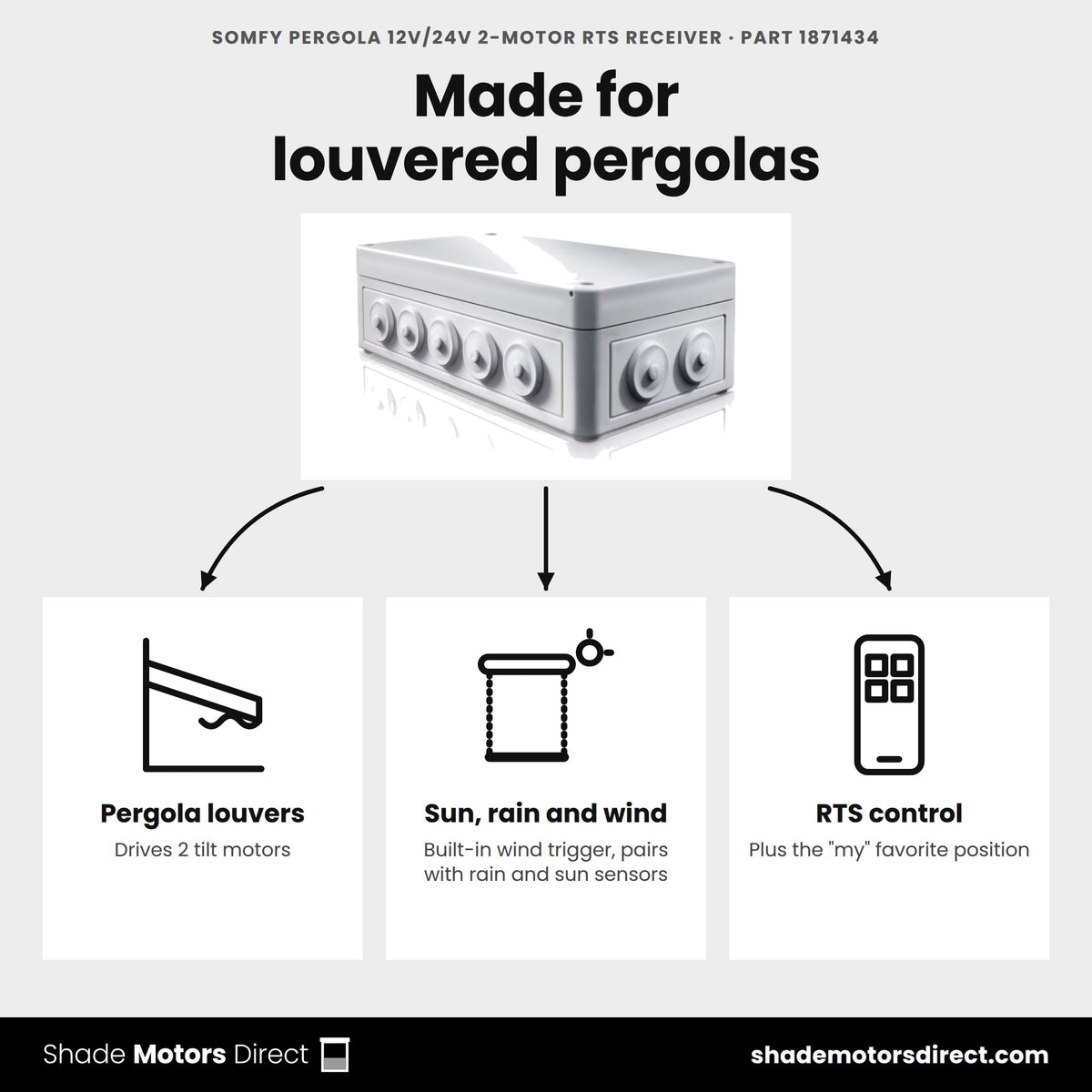

This receiver adds RTS control to two pergola tilt motors, integrating them with RTS transmitters, sensors, home automation interfaces, and smartphone apps -- the same consistent RTS ecosystem used for awnings, lighting, and shades.

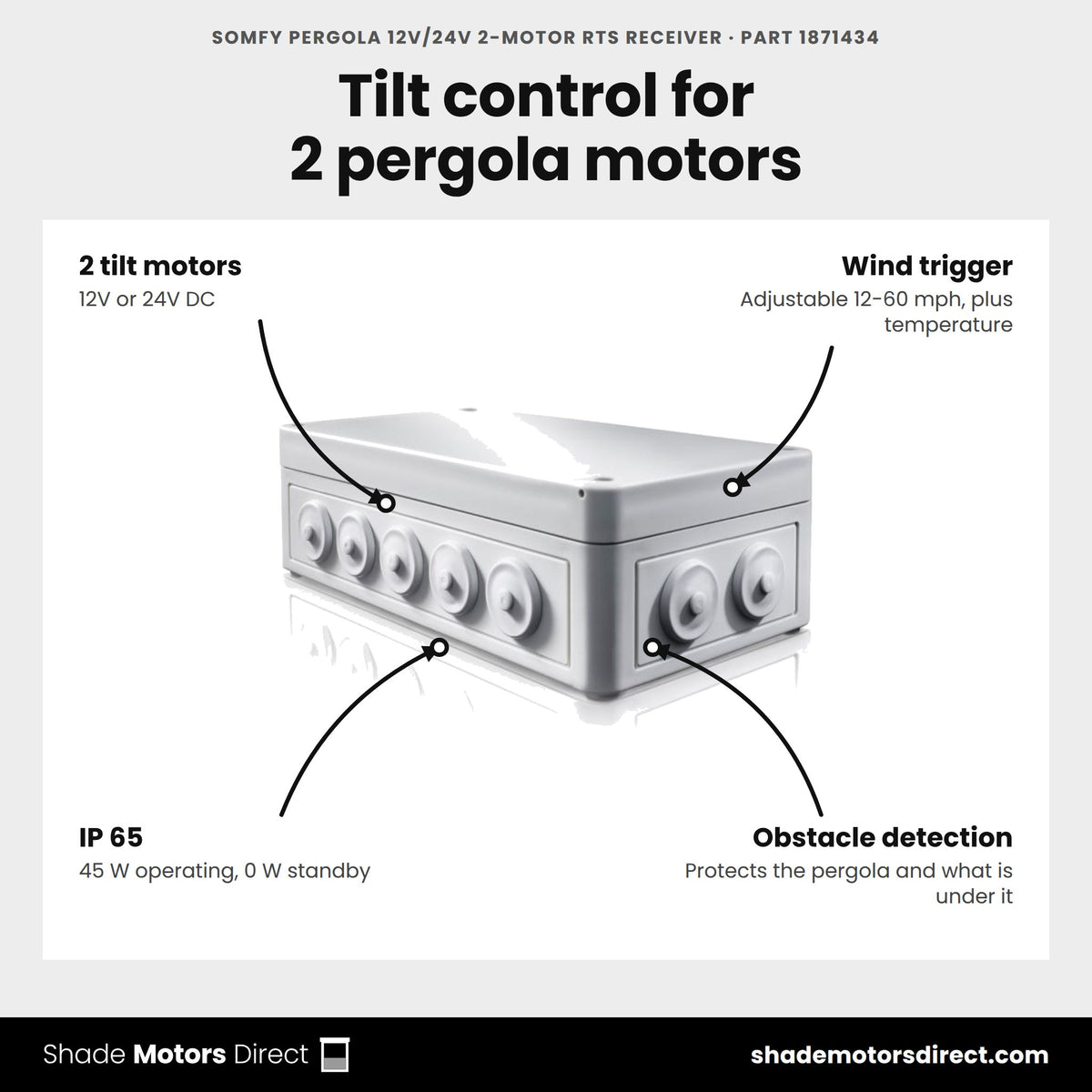

Benefits
- Controls 2 pergola tilt motors, supports 12V or 24V DC
- Built-in and remote antenna options for reliable reception
- Adjustable 12-60 mph wind trigger, plus built-in temperature sensing
- Compatible with wired/wirefree rain sensors and wirefree sun sensor
- Obstacle detection protects the pergola and objects beneath it
- Full and semi-automatic limit setting; "my" favorite intermediate position
Specifications
| Protection Index | IP 65 |
| Voltage | 22.8-25.2V DC |
| Consumption | 45W operating, 0W standby |
| Radio Frequency | 433.420 MHz |
| Warranty | 5 years |
Compatible with: Pergola Tilt 24V motors, Eolis/Ondeis/Sunis RTS sensors, LED light kits
Official Somfy documentation
- Pergola 12V/24V 2-motor RTS Receiver & Antenna Kit Spec Sheet (PDF)
- Pergola Tilt Control Unit Quick Guide (PDF)
- Pergola Motors Spec Sheet (PDF)
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Pergola 12V/24V 2-motor RTS Receiver do?
It adds Somfy RTS radio control to two 12V or 24V DC pergola motors. Part 1871434 lets the pergola respond to the same RTS remotes, sensors and home automation interfaces used for awnings, screens and shades.
How is the receiver powered?
Somfy lists a 24V DC power supply for this receiver. The unit carries overload and over current protection, and it works with motors with and without encoders.
Which sensors can I connect for automatic operation?
The receiver supports wind sensing with an adjustable 12 to 60 mph trigger, plus temperature monitoring. It accepts wired and wirefree rain sensors and wirefree sun sensors, such as the Ondeis WireFree RTS Rain and Sun Sensor (9019617) and the Sunis WireFree RTS Sun Sensor (9020412).
What protects the pergola and people below it?
Somfy builds in obstacle detection to protect the pergola and objects beneath it. Full and semi-automatic limit setting and a favorite my position round out setup.
Can it control pergola lighting?
Yes. Somfy lists support for an LED light kit, so lights and louvers run from the same RTS system on 433.420 MHz. For up to four separate dimmable lighting zones, pair it with the LED RTS 24V DC Receiver (1870872).
What if the receiver sits where radio reception is weak?

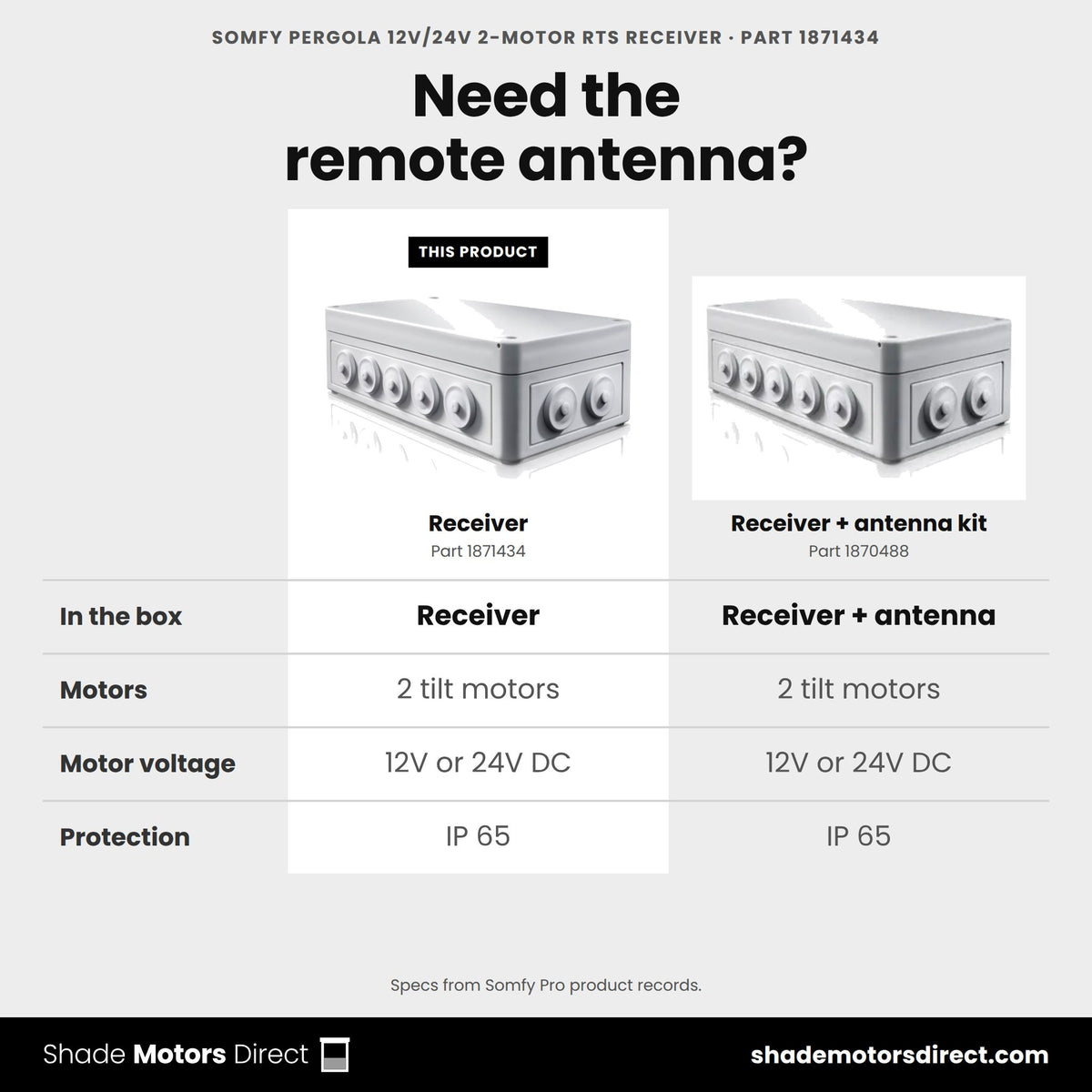

The receiver offers built-in and remote antenna options. If you need the remote antenna, the Pergola 12V/24V 2-motor RTS Receiver and Antenna Kit (1870488) packages both parts together.
Couldn't load pickup availability
Replace a failed receiver or add Somfy radio control to new equipment.
12- 1Cable glands Seal where each wire enters the box.
- 2End glands More wire entries on the end.
Replacing one
-
1
Note the wiring
Photograph the old receiver's connections, then cut power.
-
2
Swap it
Wire the Pergola 12V/24V 2-motor RTS Receiver the same way.
-
3
Pair and test
Pair your remote or system to it and test each channel.
Tell us what you want to control. We'll confirm the right receiver before you order. Ask us
Starting new
-
1
Wire it
Connect it to power and to the device or system it controls.
-
2
Pair it
Pair your remote or system to it, the same way you add an RTS motor.
-
3
Test each channel
Run each channel and check the right device responds.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Pergola 12V/24V 2-motor RTS Receiver controls
These Somfy motors work with part 1871434.
Somfy backs the Pergola 12V/24V 2-motor RTS Receiver for 5 years. We handle the claim.
Somfy warranty on the Pergola 12V/24V 2-motor RTS Receiver, part 1871434.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Pergola 12V/24V 2-motor RTS Receiver (1871434)
|
Somfy LED 12V DC HZ Receiver (2008405)
|
Somfy LED RTS 24V DC Receiver (1870872)
|
Somfy Outdoor RTS Light Receiver (500W) (1810875)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS radio | Hz radio | RTS radio | RTS radio |
| Power | 12-24V DC | 12V DC | 24V DC | — |
| What's different | The product on this page | Same size, Hz radio control | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
Guides for this product

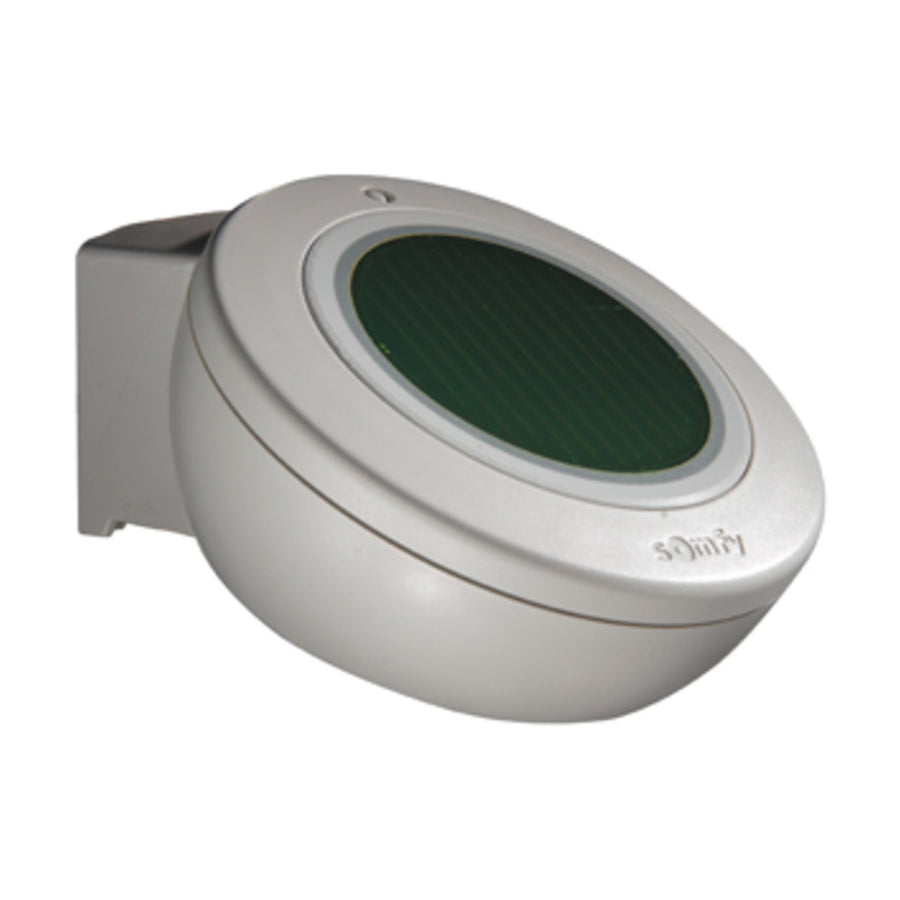

Somfy Ondeis Rain Sensor 24V DC for Pergolas and Wired Systems
