Somfy LT60 680R2 CMO 120V 4-Wire Motor (1164013)
Somfy LT60 680R2 CMO 120V 4-Wire Motor (1164013)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

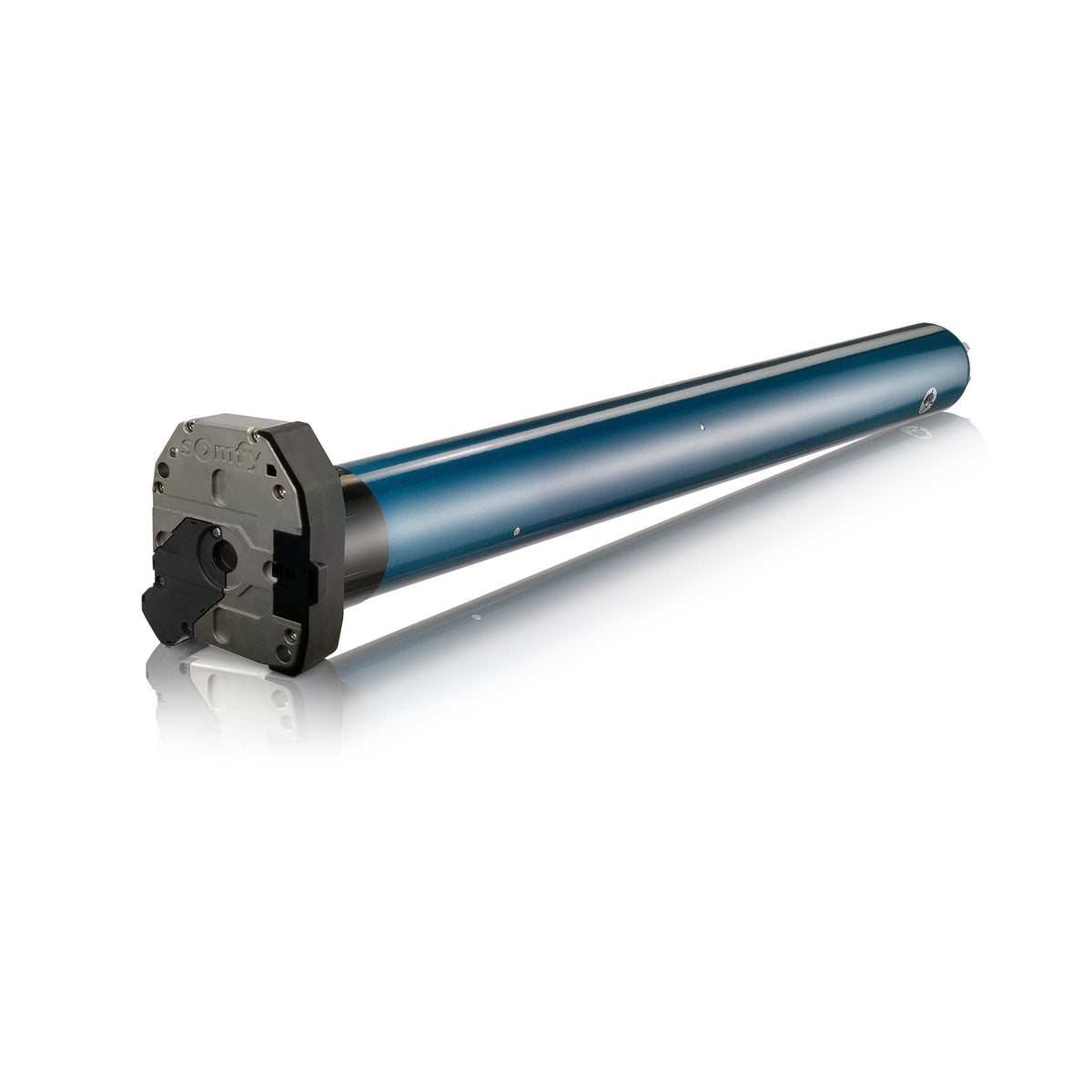

Somfy LT60 680R2 Standard 4-Wire Motor with Compact Manual Override (CMO) for hand-crank operation during a power outage -- heavy-duty exterior tubular motor

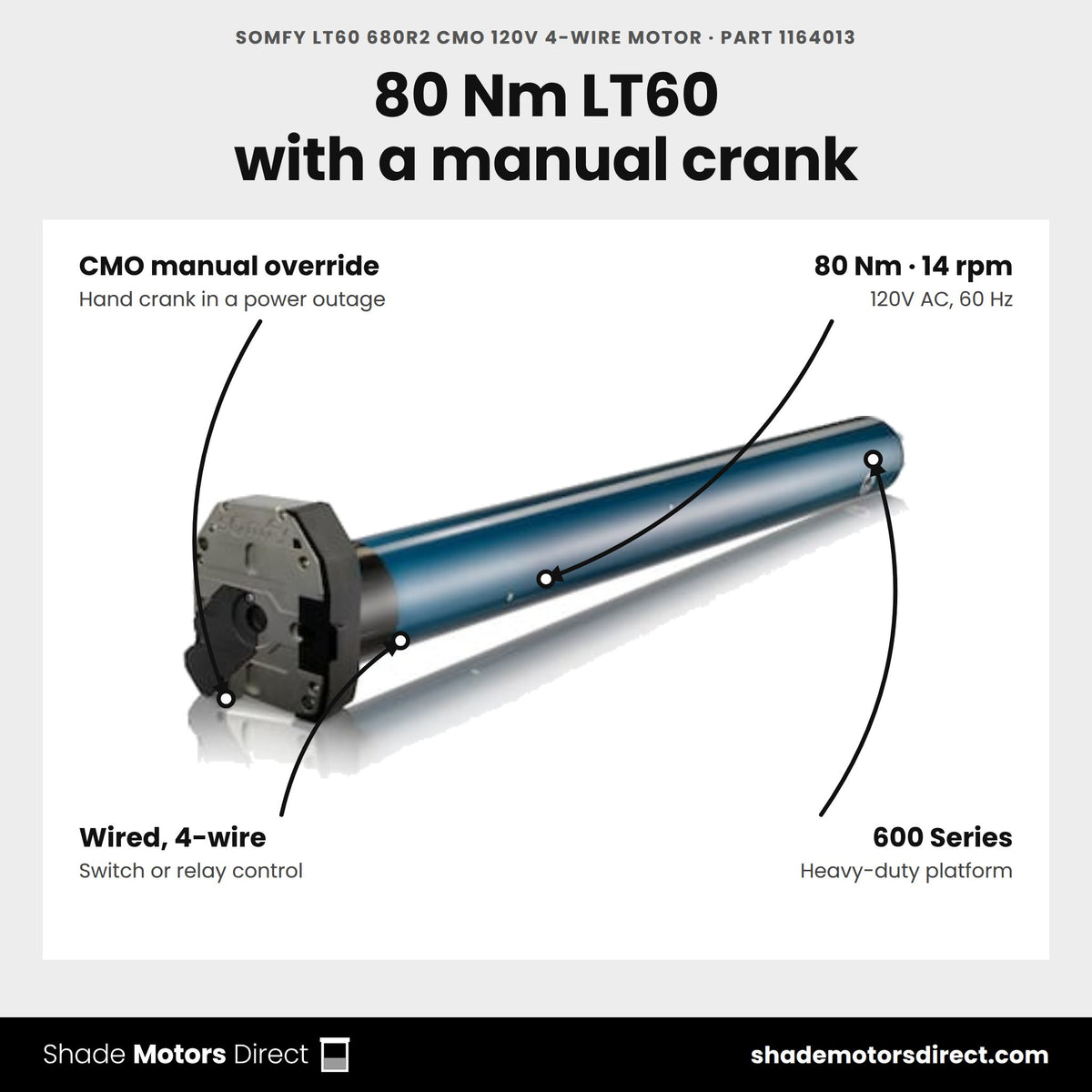

The Somfy LT60 680R2 is a wired heavy-duty exterior tubular motor with Compact Manual Override (CMO) for hand-crank operation during a power outage, delivering 80Nm (704" lb) at 14 rpm -- the 600 Series platform built for large awnings and rolling shutters beyond the LT50's torque range.
Benefits
- Standard 4-wire control -- wired switch or relay
- Compact Manual Override (CMO) for hand-crank operation during a power outage

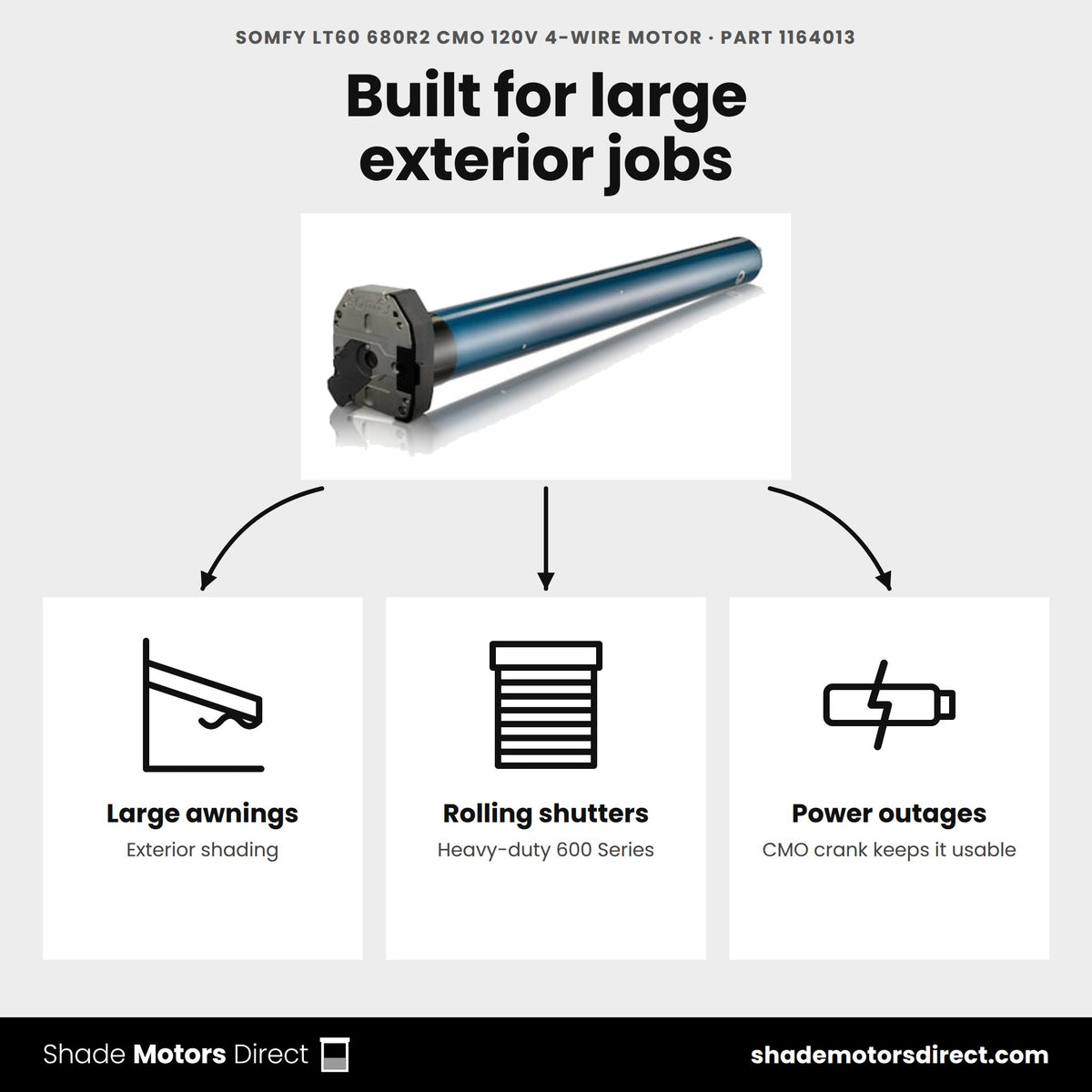

- Heavy-duty 600 Series platform built for large exterior awnings and rolling shutters
- Star-head mounting, detachable power cable at the motor head
- 5-year Somfy warranty
Specifications
| Torque / Speed | 80 Nm (704 in-lb) / 14 rpm |
| Control | Standard 4-wire |
| Override | Compact Manual Override (CMO) |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT60 crown and drive sets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the 680R2 CMO motor?
Part 1164013 is a Somfy 600 Series 4-wire tubular motor with Compact Manual Override (CMO) for larger awnings and rolling shutters. The 680R2 model delivers 80 Nm of torque at 14 rpm.
What does the manual override do?
The CMO lets you crank the awning or shutter by hand when power is out. The compatible parts on this page include the CMO Awning Override Shaft, 100mm with Geiger Eye (9707287) for hand-crank setups.
How is it wired and controlled?
It is a standard 4-wire motor with no radio receiver, so it runs from wired wall switches or a relay. It takes 120V AC, 60 Hz and draws 285 W in operation. Somfy calls for professional installation.
Can I add a remote to this motor?
This motor has no built-in radio, so RTS remotes do not pair with it. If you want remote control with a built-in receiver, the Altus RTS 680R2 (1164261) offers the same 80 Nm rating.
Is it rated for outdoor use?
Somfy gives the 680R2 CMO an IP 44 protection index and lists awnings and rolling shutters as its applications. Somfy backs the motor with a 5-year warranty.

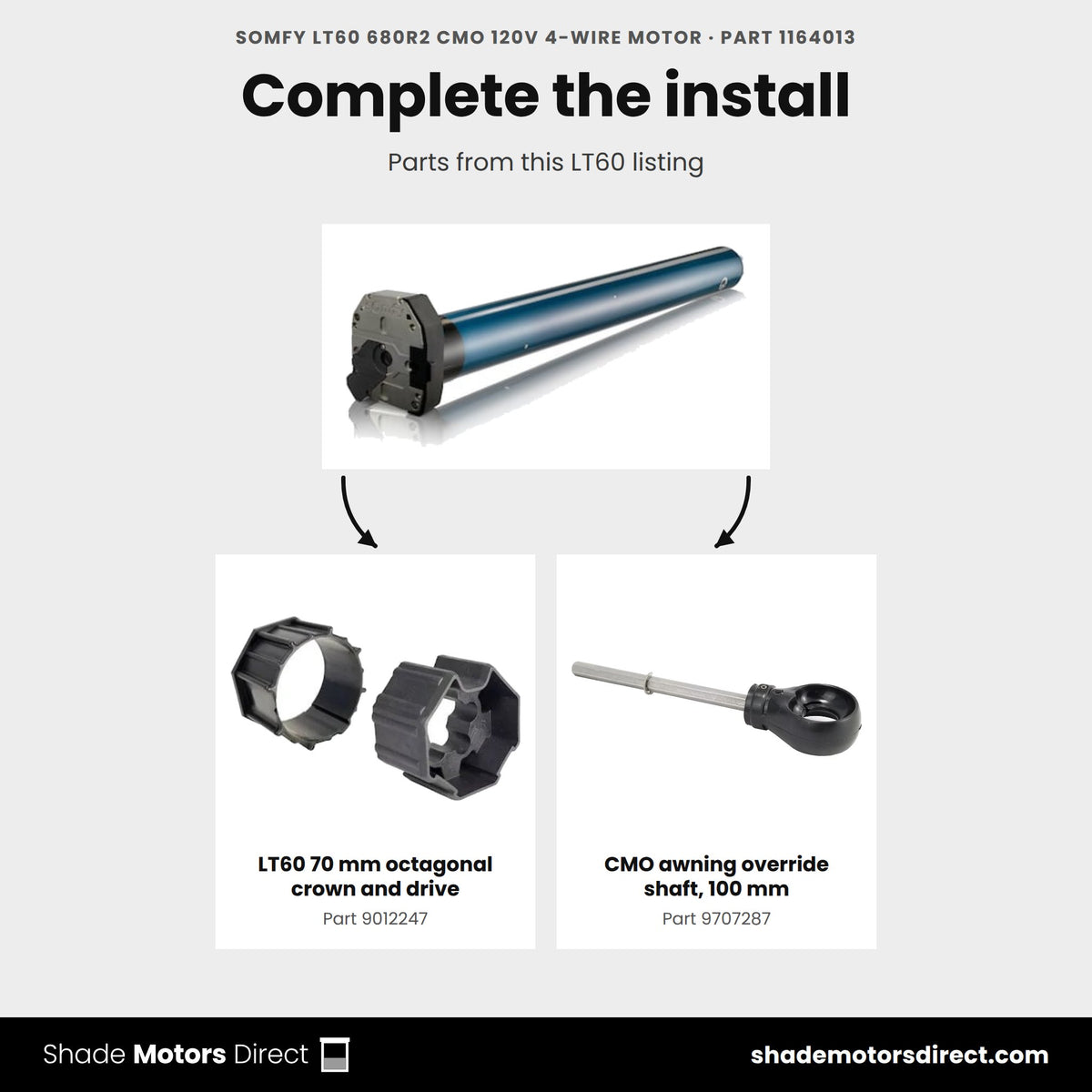

Which crown and drive fits?
The compatible parts on this page include the Octagonal LT60 70mm Crown and Drive Set (9012247). Match the crown and drive to your roller tube profile before ordering, since the motor ships without them.
Couldn't load pickup availability

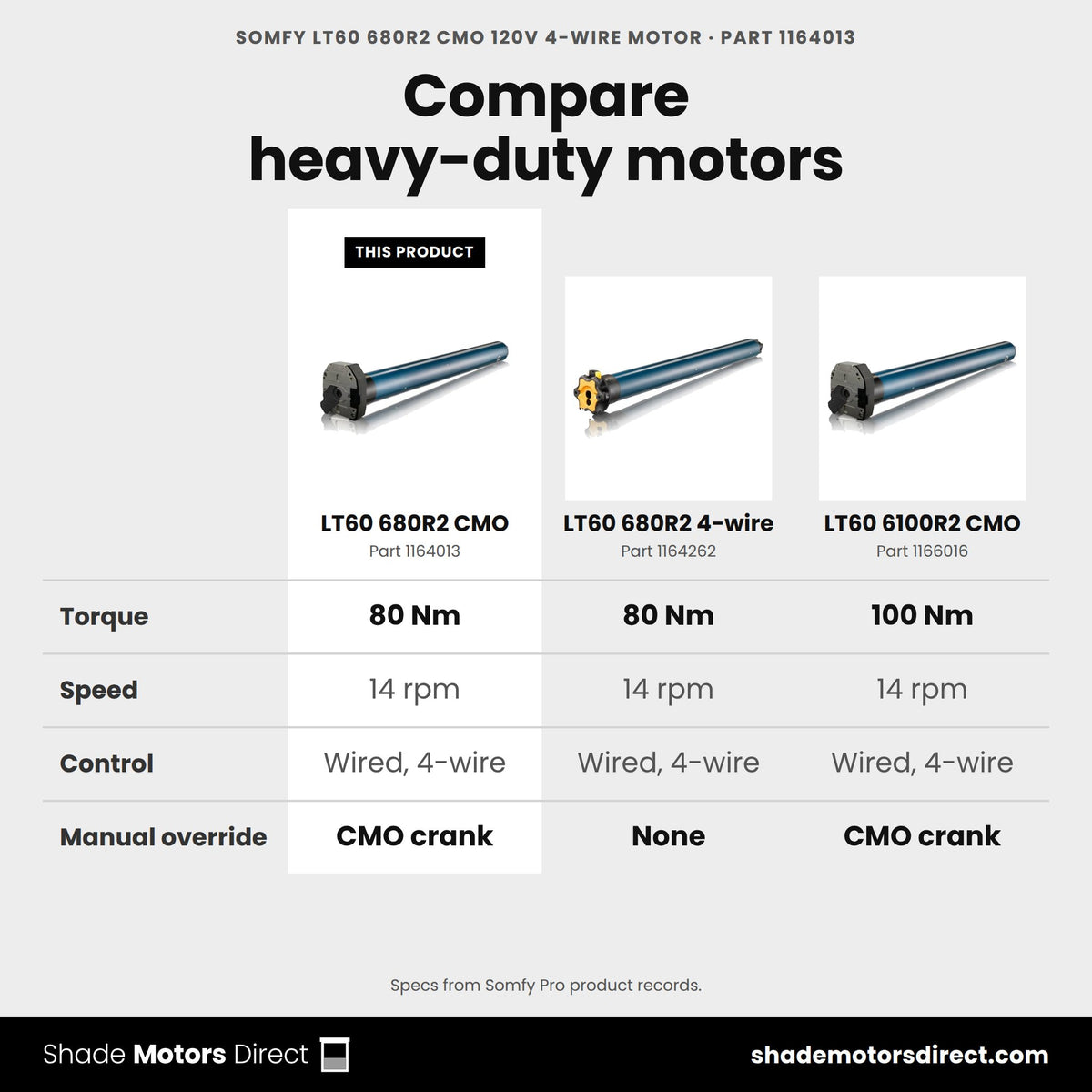

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LT60 680R2 CMO 120V 4-Wire Motor (1164013)
|
Somfy LT60 680R2 Altus RTS 120V 3-Wire Motor (1164261)
|

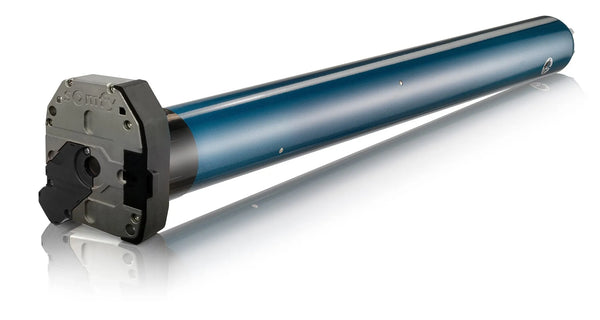

Somfy LT60 660R2 CMO 120V 4-Wire Motor (1162014)
|
Somfy LT60 6100R2 CMO 120V 4-Wire Motor (1166016)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 80.0 | 80.0 | 60.0 | 100.0 |
| Speed (rpm) | 14 | 14 | 14 | 14 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT60 | LT60 | LT60 | LT60 |
| Manual crank override | Yes | — | Yes | Yes |
| What's different | The product on this page | Same size, RTS radio control | 60.0 Nm instead of 80.0 | 100.0 Nm instead of 80.0 |
| Buy | Currently viewing | View details | View details | View details |
