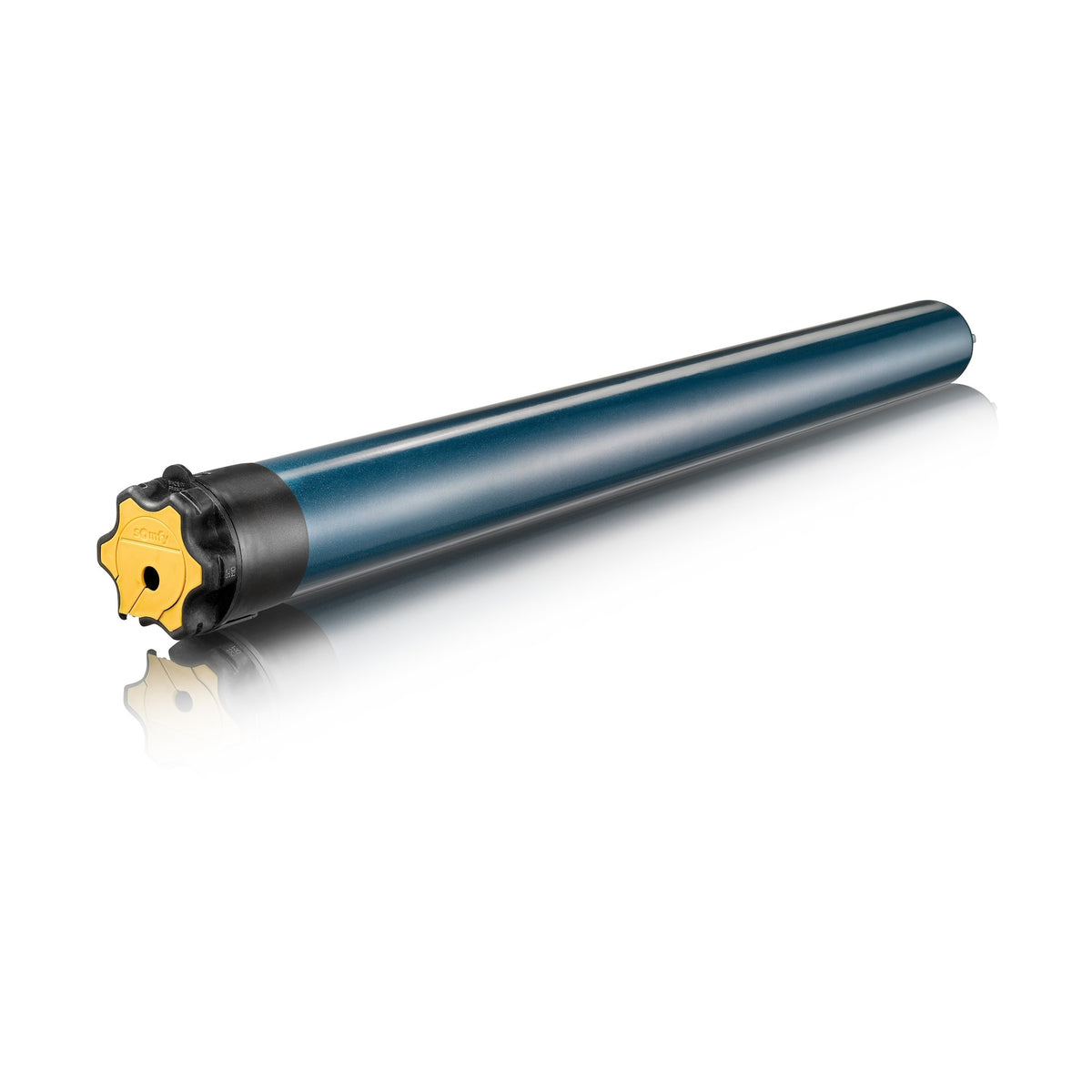

LT60 Altus RTS 660R2 -- universal RTS motor for larger shutters and awnings
The LT60 Altus RTS 660R2 is Somfy's universal 600 Series tubular motor for larger rolling shutters and retractable awnings, with a radio receiver built in so it runs on Somfy RTS remotes and wall switches with no separate receiver to install.

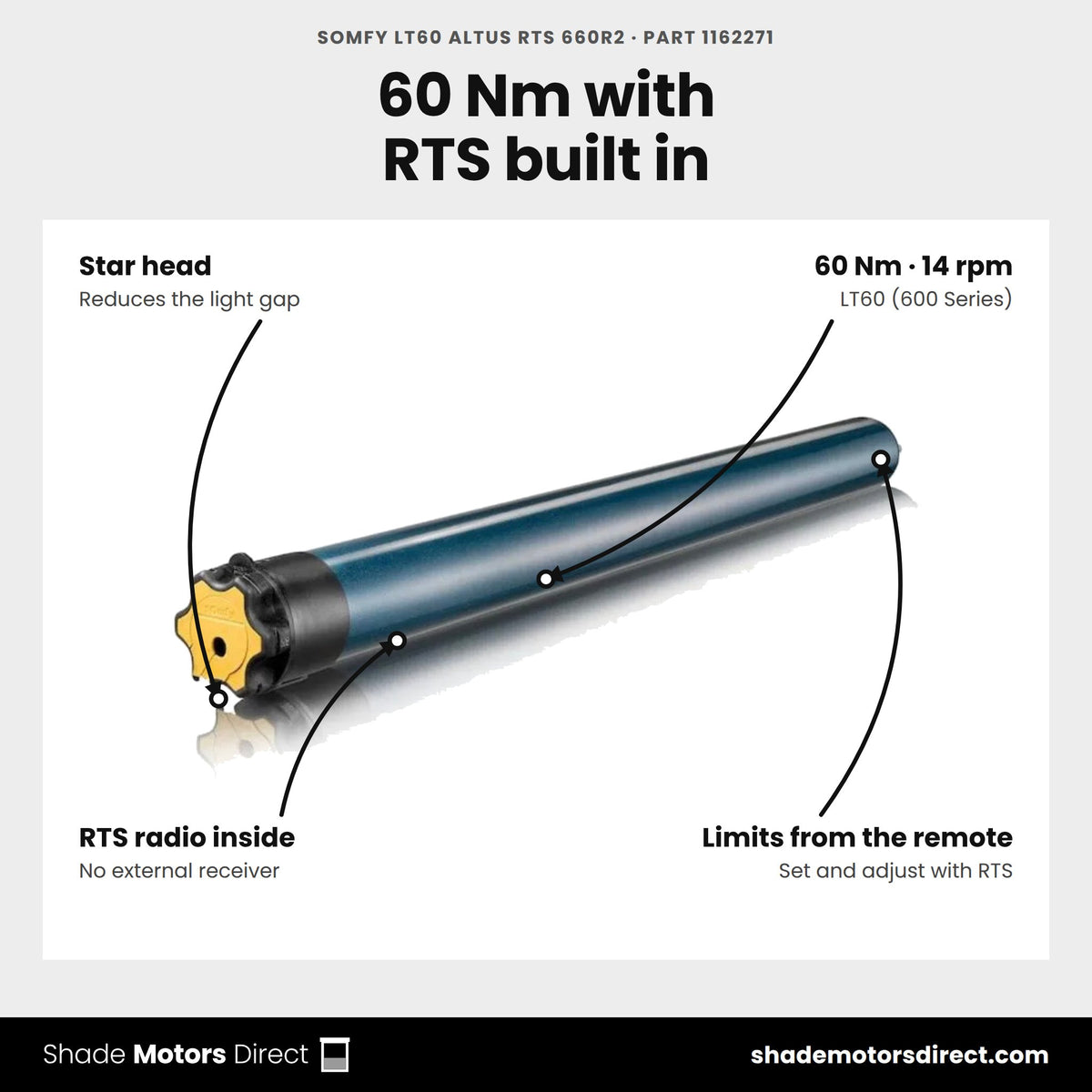

Benefits
- Built-in RTS radio receiver -- no external receiver or control wiring needed
- Plug-and-play power cord, or hardwire it in -- interchangeable cord lengths available
- Limits set and adjusted directly from a handheld RTS remote
- Long-range RTS control (no line-of-sight needed) plus smartphone/tablet and voice control via TaHoma
- Star head reduces the light gap
Specifications
| Torque / Speed | 60 Nm / 14 rpm |
| Series | LT60 (600 Series) |
| Radio Frequency | 433.420 MHz |
| Head type | Star |
| Control | Radio Technology Somfy (RTS), built-in receiver |
| Power | 120V, plug-in or hardwired |
| Warranty | 5 years |
Compatible with: LT60 crown and drive sets, Somfy RTS remotes and wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Altus RTS 660R2 built for?
The Altus RTS 660R2 (1162271) is a 120V tubular motor for retractable awnings, rolling shutters and exterior screens. A Somfy RTS radio receiver is built in, so it runs from RTS remotes and wall switches with no separate receiver to install.
What torque and speed does it deliver?
Somfy rates the 660R2 at 60 Nm of torque and 14 rpm. It has a star head, an electronic limit switch with a 200 turn capacity and thermal protection that trips at 266 °F.
What power and wiring does the motor need?
It runs on 120V/60Hz, draws 2.5 A and consumes 285 W during operation. It comes with a 9.84 ft white 3-conductor SJTW cable. The radio replaces control wiring, so you run power to the motor and nothing else.
Which remotes and switches work with it?
Any Somfy RTS transmitter pairs with it, including the Telis 1 Channel RTS Patio Remote (1810643), the Telis 4 RTS Patio Remote (1810645) and DecoFlex RTS wall switches. The motor stores up to 12 channels, and Somfy rates range at 164.05 ft in open field.
Can I control it from my phone or a voice assistant?
Yes. Add a Somfy TaHoma switch (1871037) to run the motor from the TaHoma app and by voice. RTS is one-way radio, so the app sends commands but does not report position. The Somfy my button saves a favorite stop point.
Which crown and drive does the 660R2 need?
The 660R2 is an LT60 motor, so it takes LT60 crown and drive adaptors sized to your tube. For 70mm octagonal tube, the Octagonal LT60 70mm Crown and Drive Set (9012247) fits. Confirm your tube size and profile before you order.
Couldn't load pickup availability
Replace a heavy-duty LT60 motor or build a large new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1162271.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Crown Grips the inside of the tube.
- 3Drive Turns the tube.
Replacing a motor
-
1
Cut power, take it down
Turn off the circuit and support the roller before you remove it.
-
2
Pull the old motor
Slide it out of the tube and take off its crown and drive.
-
3
Fit LT60 crown and drive
Pick the set for your tube, slide the new motor in and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Pair and set limits
Pair your Somfy RTS remote, then set the top and bottom limits.
Planning a new large shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
What the LT60 Altus RTS 660R2 needs to run
Somfy lists every part below as compatible with part 1162271. Pick one from each row.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Tube fit
Match the crown and drive to your tube size and profile.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the LT60 Altus RTS 660R2 for 5 years. We handle the claim.
Somfy warranty on the LT60 Altus RTS 660R2, part 1162271.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- 600 Series -- Databook (PDF)
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LT60 Altus RTS 660R2 (1162271)
|
Somfy LT60 660R2 Standard 120V 4-Wire Motor (1162272)
|
Somfy Altus RTS 550R2 (1038170)
|
Somfy LT60 680R2 Altus RTS 120V 3-Wire Motor (1164261)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 60.0 | 60.0 | 50.0 | 80.0 |
| Speed (rpm) | 14 | 14 | 14 | 14 |
| Control | RTS radio | Wired 4-wire | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT60 | LT60 | LT50 | LT60 |
| What's different | The product on this page | Same size, Wired 4-wire control | 50.0 Nm instead of 60.0 | 80.0 Nm instead of 60.0 |
| Buy | Currently viewing | View details | View details | View details |
