Short answer: The Somfy Situo 5 RTS Pure II (1870575) is a five-channel handheld RTS remote. Each channel runs one shade or a group of shades on 433.420 MHz, out to 65 ft in open field, from one CR2032 coin cell. It pairs with Somfy RTS motors and receivers through the PROG button. Zigbee, wired and SDN motors need a different control.
Pick the Situo 5 when one hand runs five zones
The Situo 5 fits a living room, a bedroom wing or a patio where up to five shades, or five groups of shades, answer to one remote. You assign a motor to a channel by pairing it there. Put the east window on channel 1 and the three south windows on channel 2. Channels 3 to 5 stay free for the patio awning and later additions.
Somfy's RTS Pocket Programming Guide ties group control to pairing. A channel paired to three motors moves those three together. A channel paired to one motor moves one shade. You build the groups at the remote, so the motors need no extra wiring or hub.
For a single shade, the Somfy Situo 1 RTS Pure remote (1870571) costs less and carries one channel. Pick the Situo 5 once a room holds two or more zones you want to run apart.
Motors and shades the Situo 5 RTS runs
Somfy lists five application types for this remote: awnings, exterior solar screens, interior blinds, shades and draperies, pergolas, and rolling shutters. The common thread is the radio. The motor, or a receiver wired to it, has to carry Somfy RTS.
Two RTS motors show the range. The Somfy Sonesse 30 RTS 24V DC motor (1241142) drives interior roller shades on low-voltage power, and the Somfy Sonesse ULTRA 30 WireFree RTS Li-ion motor (1003310) runs cordless shades on an internal battery. The Situo 5 pairs with both the same way.
Leave the Situo 5 off the order for Zigbee motors, wired 4-wire motors with no receiver, and RS485 SDN motors. Those speak other protocols. Our RTS vs Zigbee comparison sorts out which control belongs with which motor family.
Situo 5 RTS Pure II verified specs
| Somfy reference | 1870575, Situo 5 RTS Pure II |
| Channels | 5, each for one product or a group |
| Radio | RTS, 433.420 MHz, omni-directional |
| Range (open field) | 65 ft |
| Battery | 1 x CR2032, 3 V |
| Antenna | Integrated |
| Size | 5.51 x 1.77 x 0.79 in |
| Operating temperature | 32 to 118 F |
| Storage temperature | -4 to 140 F |
| Protection index | IP 20 |
| Approvals | FCC, CE |
| Finish | Pure |
| Warranty | 5 years |
The 65 ft figure is Somfy's open-field number. Walls, glass and metal framing shorten it in a house. IP 20 carries no water rating, so the remote belongs indoors or under a covered patio roof, while the awning it runs sits out in the weather.
Pairing the Situo 5 to an RTS motor
You need a control that already runs the motor, such as the original remote or wall switch. Somfy publishes these steps in its RTS Pocket Programming Guide for standard RTS motors, including the Altus, Roll Up 28, CL32 and the ST30, ST40 and ST50 lines:
- On the Situo 5, press the channel selection button to pick the channel, 1 to 5. Somfy notes that channel 5 is active once all four LEDs light.
- On the control already programmed to the motor, press and hold the PROG button until the shade jogs.
- Give the PROG button on the Situo 5 a brief press. The shade jogs again to confirm the pairing.
Repeat the three steps on the same channel for each motor you want in a group. Somfy uses the identical sequence to delete a control from a motor.
Drapery motors, LED light kits and some receivers use different sequences, and a brand-new motor with no programmed control goes through Somfy's first-time setup first. Check the install guide for your motor in the Somfy spec library before you start.
Setting the my position
The my button stops a moving shade and also stores one favorite position per motor. Somfy's steps for setting it:
- Move the shade to the height you want and give my a brief press to stop it there.
- Press and hold my until the shade jogs.
To delete it, send the shade to the my position, then press and hold my for 5 seconds until the shade jogs.
Wall holder, battery, hub add-ons and ordering
Somfy ships the Situo 5 with a discreet wall holder, so the remote can live on the wall by the door and still lift off for handheld use. A lost or broken holder has a direct replacement, the Somfy Situo II RTS mounting bracket (9028048).
Power comes from one CR2032 3 V coin cell. The Situo 1 and 5 consumer instructions, linked from the product page, cover battery access.

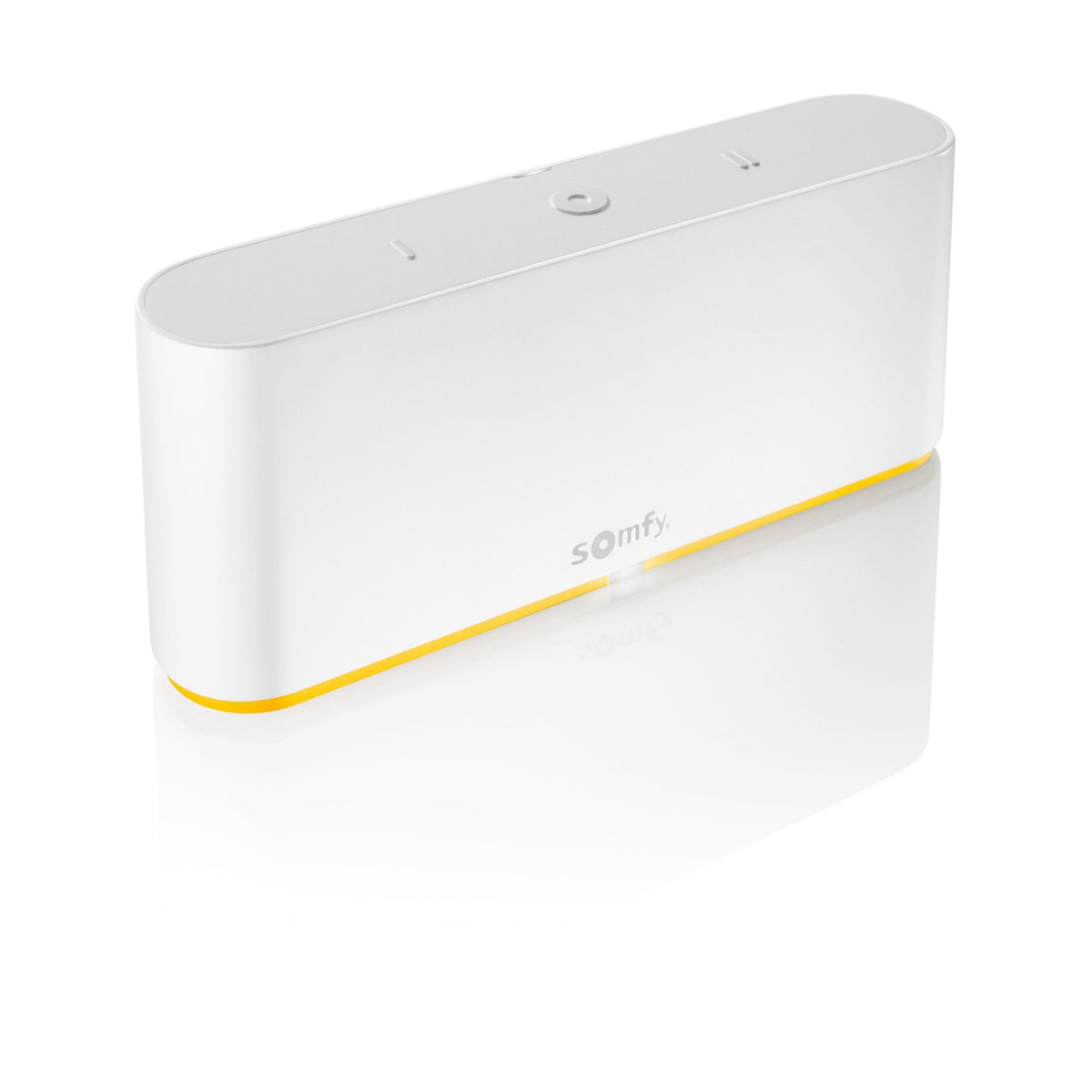

The Situo 5 keeps working after you add a hub. The Somfy TaHoma Switch (1871037) adds app control and schedules for the same RTS motors, and the handheld still runs them on its own channels.
Systems with a Soliris sun and wind sensor call for the Somfy Situo 5 Soliris RTS Pure II (1870579). It keeps the five channels and adds a sun function that lets the sensor move awnings and screens by sun intensity. For an awning-first setup, our Somfy remote for awning guide compares the options.
Confirm two things before you order: an RTS receiver in the motor, and a zone count between two and five. The Somfy Situo 5 RTS Pure II remote (1870575) ships with the wall holder and a 5-year Somfy warranty. The natural next part is a second remote or a wall switch for the other end of the room, and you will find both among our Somfy RTS remotes.
Sources: Somfy Situo 5 RTS Pure II product page, somfysystems.com, ref 1870575; somfypro.com e-cat 1870575; Somfy RTS Pocket Programming Guide (2019); Somfy Situo 5 Soliris RTS Pure II product page, ref 1870579.
Situo 5 RTS FAQ
Does the Somfy Situo 5 RTS work with Zigbee motors?
No. The Situo 5 RTS Pure II transmits on Somfy RTS at 433.420 MHz, and Zigbee motors listen on a different radio. Pair it with RTS motors or motors fitted with an RTS receiver. For Zigbee shades, pick a Zigbee remote or a hub such as the TaHoma Switch, which runs RTS and Zigbee motors from one app.
What battery does the Situo 5 RTS remote use?
Somfy specifies one CR2032 coin cell at 3 V, and the remote has an integrated antenna. Keep a spare CR2032 on hand, and follow the Situo 1 and 5 consumer instructions linked from the product page for opening the case. The CR2032 sits in most hardware stores, so a replacement takes minutes to find.
How do I use the fifth channel on a Situo 5?
Press the channel selection button to step through the channels. Somfy's RTS Pocket Programming Guide says channel 5 is active once all four LEDs light at the same time. Pair motors to channel 5 the same way as channels 1 to 4, by holding PROG on an existing control until the shade jogs, then giving PROG on the Situo 5 a brief press.
Can one Situo 5 channel run several shades at once?
Yes. Somfy ties group control to pairing, so any motor you pair to a channel moves with that channel. Pair three RTS motors to channel 2 and a single press runs the three together. Use the same PROG sequence for each motor, one at a time, with channel 2 selected on the Situo 5 before each pairing.
