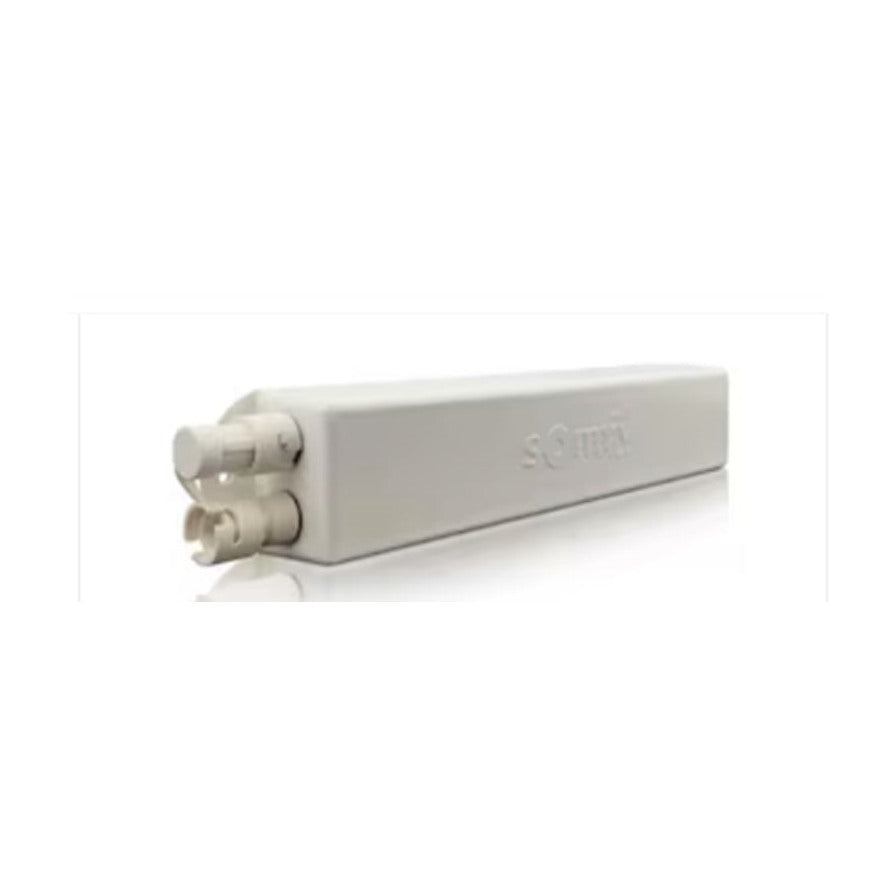

Somfy RTS 12V Dimming LED Control -- wireless dimming for 12V LED lighting

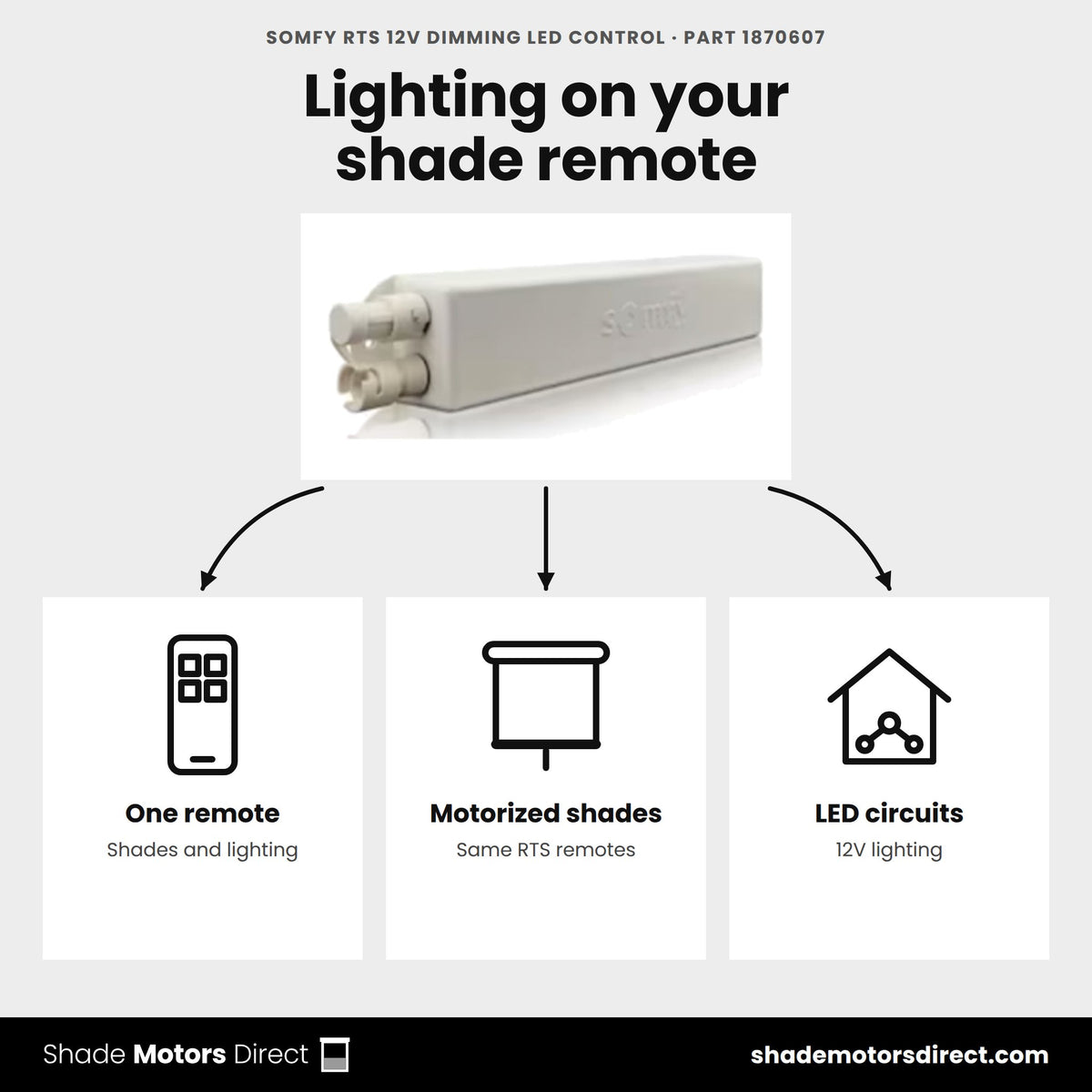

This RTS receiver adds dimmable control of 12V LED lighting circuits, so lighting can be dimmed or switched from the same RTS remotes controlling your motorized shades.

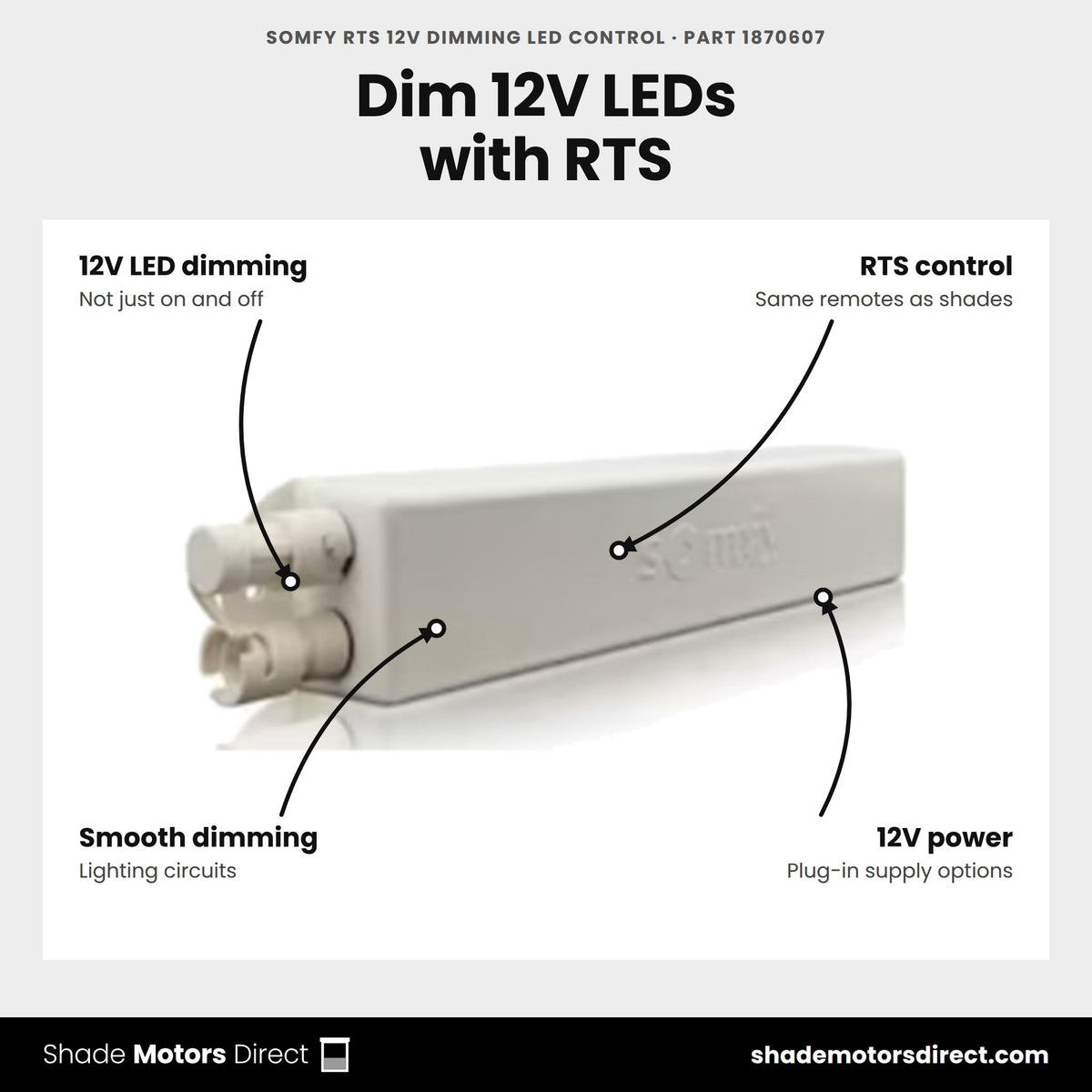

Benefits
- Adds RTS dimming control to 12V LED lighting circuits
- Controlled from the same remotes as RTS shades and awnings
- Smooth dimming, not just on/off switching
Specifications
| Power | 12V |
| Control | RTS, dimming |
| Warranty | 5 years |
Compatible with: 12V LED lighting circuits, Somfy RTS remotes
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the RTS 12V Dimming LED Control do?
Part 1870607 is a Somfy RTS receiver that powers and dims 12V DC LED lighting. The same RTS remote that runs an awning or pergola can switch the lights and set them to one of 12 brightness levels.
What power does it need?
It connects to line voltage. Somfy lists an input of 120-230VAC at 50-60Hz and a 12V DC output to the lights, with a UL class 2 power supply.
How much lighting can it drive?
Somfy rates the output at 60W max, which covers up to 6 Somfy LED bars. Add up the wattage of every strip on the circuit and keep the total under that limit.
Can it mount outdoors?
Yes. Somfy rates the receiver IP 67 and outdoor rated, which suits awnings, pergolas and patio covers. The housing measures 12.39 in by 2.30 in by 1.63 in, so plan space for it in the frame or soffit.
Which remotes work with it?
Somfy RTS transmitters control it, including the Telis 1 Channel RTS Patio Remote (1810643) and the Telis 4 RTS Multi-Channel Patio Remote (1810645). A multi-channel remote can put the lights and the awning on separate channels. Somfy lists a 65 ft range under optimal conditions.
Does it have a favorite setting?
Yes. Somfy lists a My position alongside the 12 brightness levels. As with the My button on an RTS shade, one press recalls a saved favorite setting.
Couldn't load pickup availability
Replace a failed receiver or add Somfy radio control to new equipment.
Replacing one
-
1
Note the wiring
Photograph the old receiver's connections, then cut power.
-
2
Swap it
Wire the RTS 12V Dimming LED Control the same way.
-
3
Pair and test
Pair your remote or system to it and test each channel.
Tell us what you want to control. We'll confirm the right receiver before you order. Ask us
Starting new
-
1
Wire it
Connect it to power and to the device or system it controls.
-
2
Pair it
Pair your remote or system to it, the same way you add an RTS motor.
-
3
Test each channel
Run each channel and check the right device responds.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

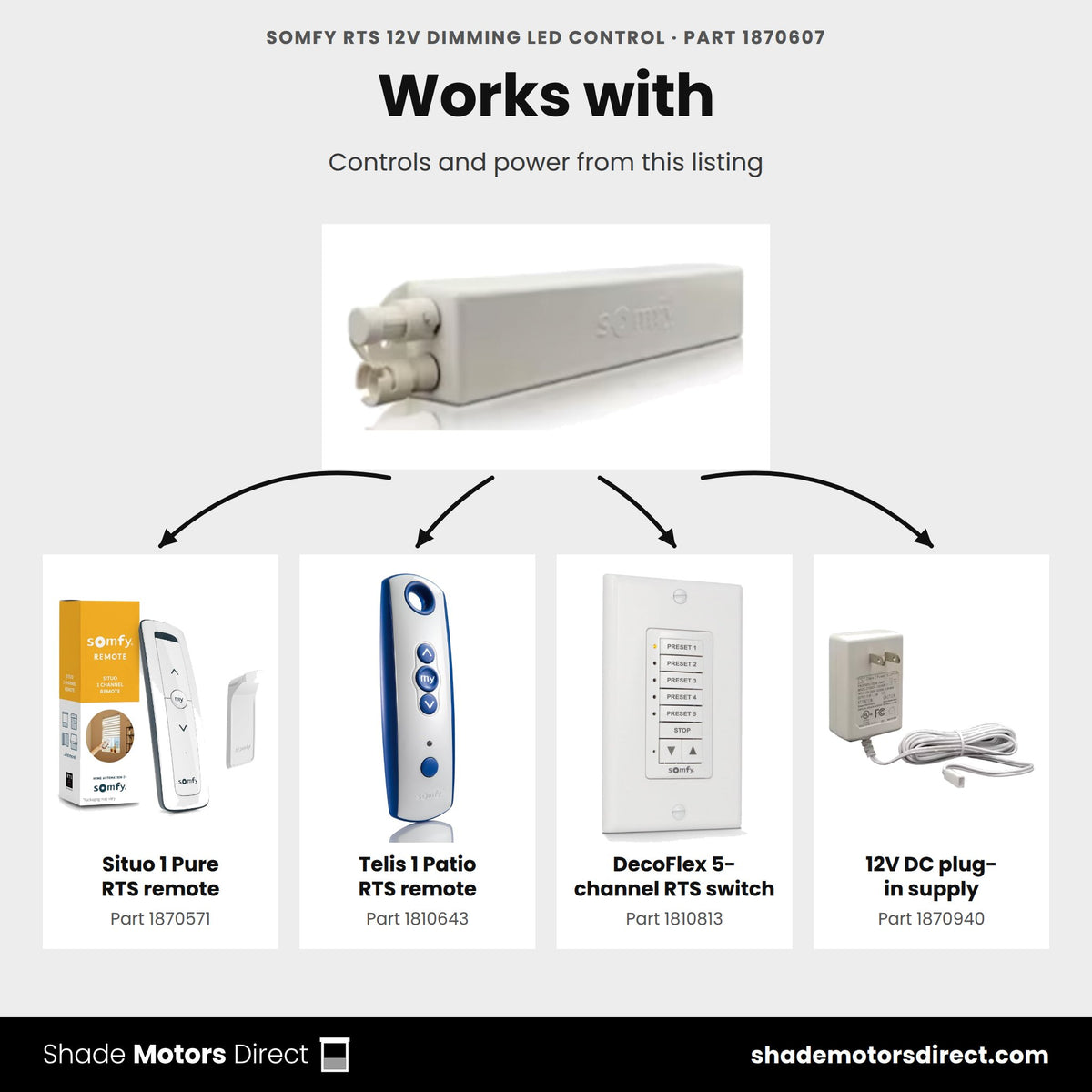

Parts that go with the RTS 12V Dimming LED Control
Somfy lists these parts for use with part 1870607.
1Control
Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.
2Also fits
Other parts Somfy lists with this product.
Somfy backs the RTS 12V Dimming LED Control for 5 years. We handle the claim.
Somfy warranty on the RTS 12V Dimming LED Control, part 1870607.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- LED RTS 24V DC Receiver Spec Sheet (PDF)

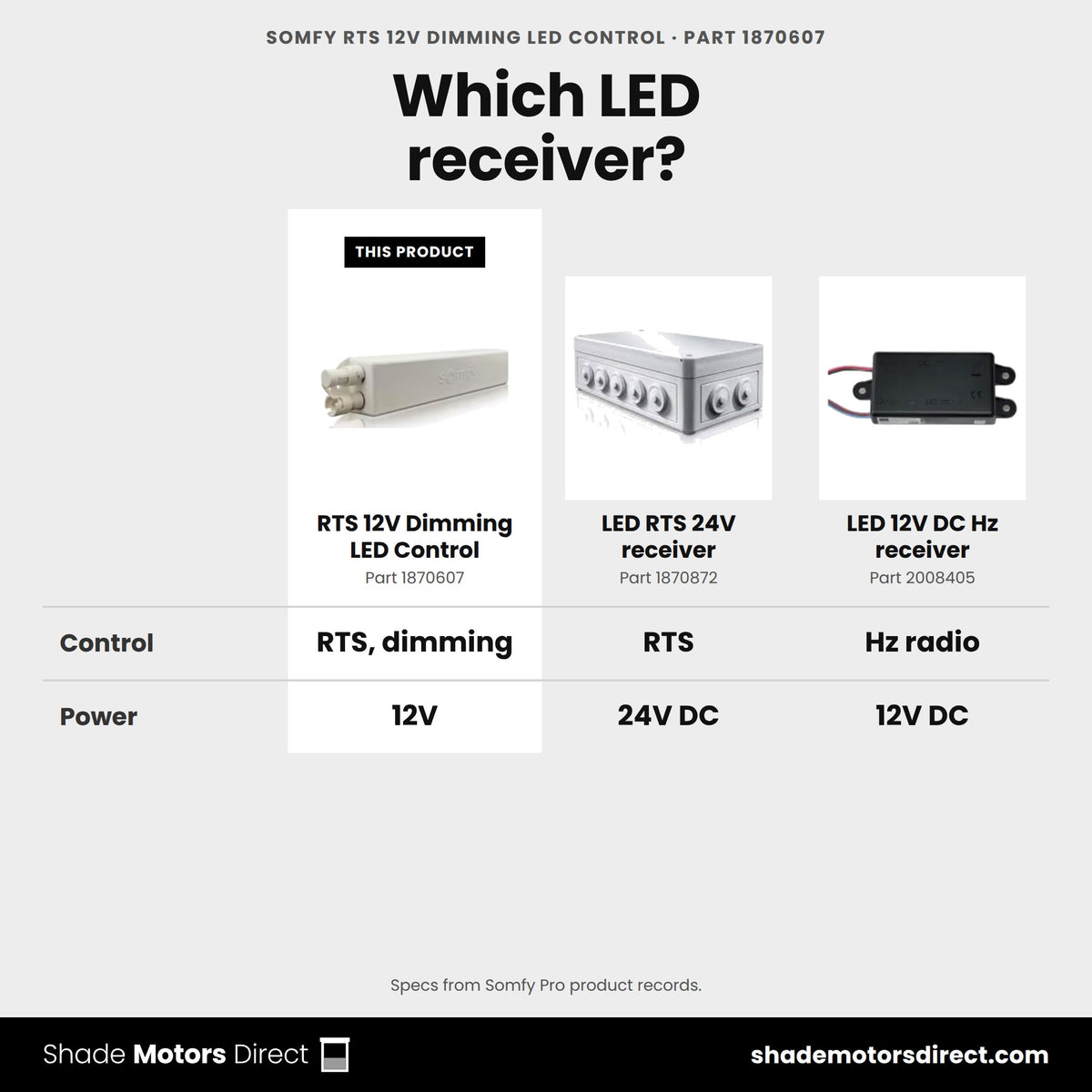

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy RTS 12V Dimming LED Control (1870607)
|
Somfy LED 12V DC HZ Receiver (2008405)
|
Somfy LED RTS 24V DC Receiver (1870872)
|
Somfy Outdoor RTS Light Receiver (500W) (1810875)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS radio | Hz radio | RTS radio | RTS radio |
| Power | 12V DC | 12V DC | 24V DC | — |
| What's different | The product on this page | Same size, Hz radio control | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
