Somfy R24 12V Rechargeable Li-ion RTS Motor (0.55Nm, 20-38rpm) (1240278)
Somfy R24 12V Rechargeable Li-ion RTS Motor (0.55Nm, 20-38rpm) (1240278)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

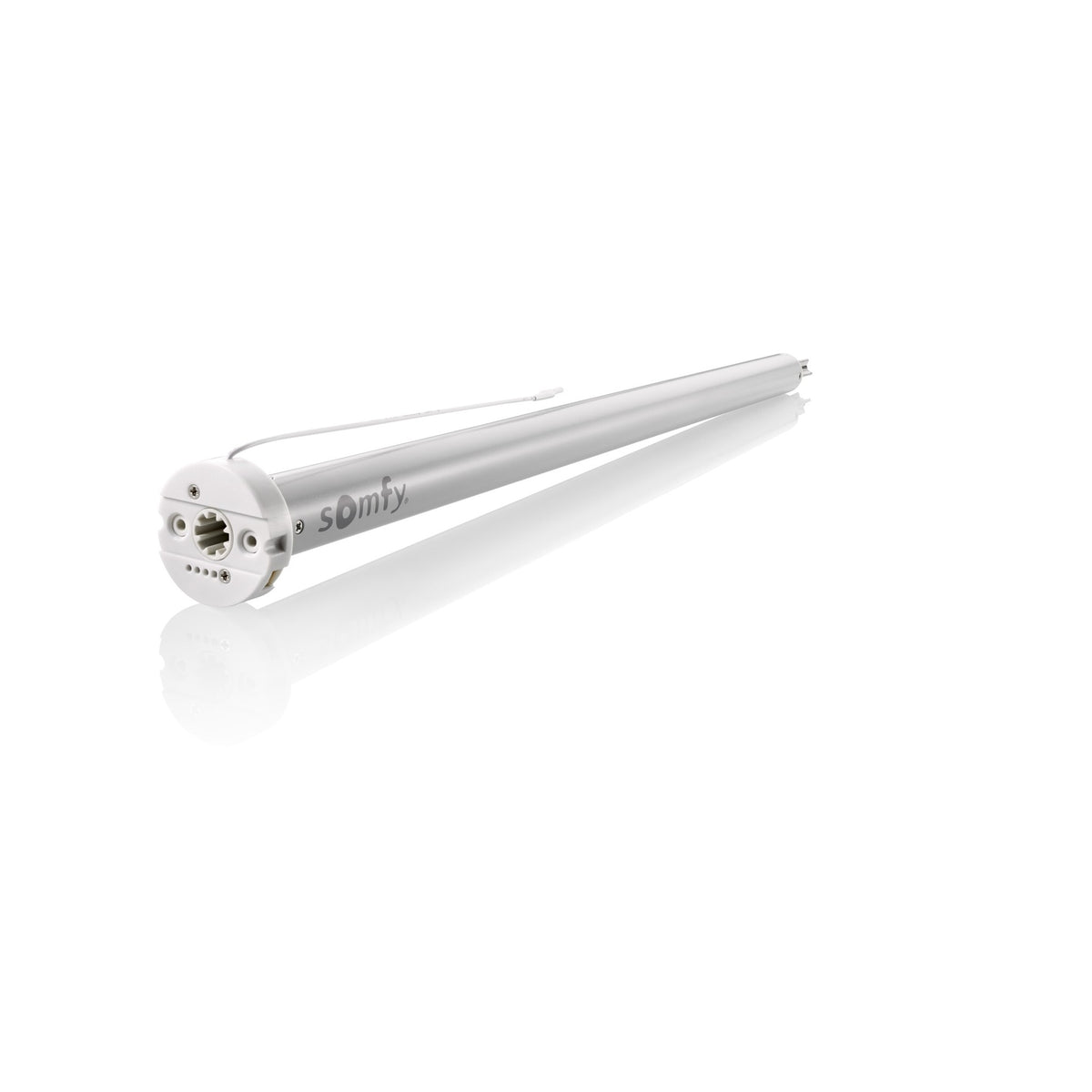

Somfy R24 12V Rechargeable Li-ion RTS Motor -- compact battery roll-up motor

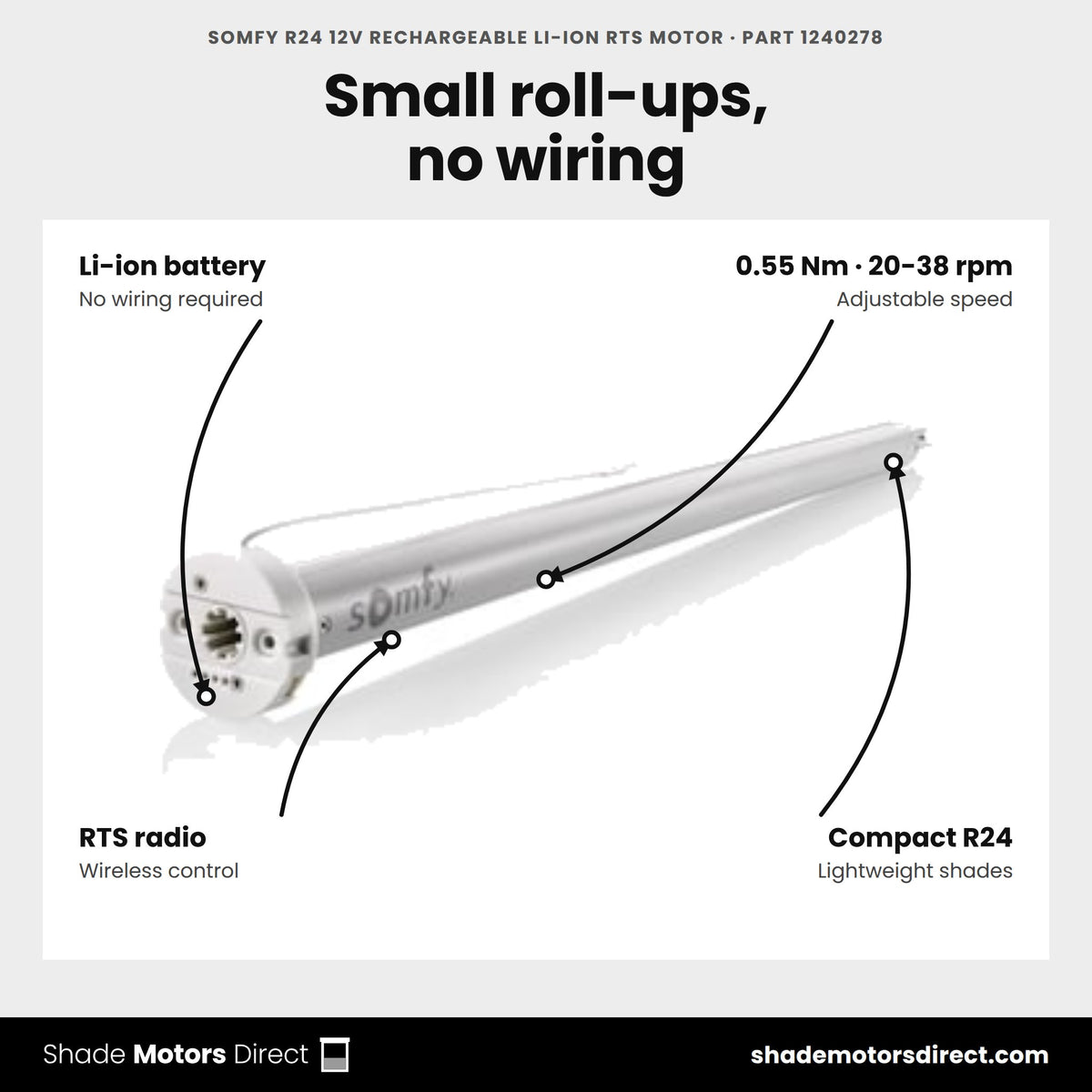

The R24 is a compact, rechargeable lithium-ion battery motor delivering 0.55Nm at 20-38rpm (adjustable) for lightweight interior roll-up shades, with RTS wireless control and no wiring required.
Benefits
- No wiring required -- rechargeable lithium-ion battery power
- Radio Technology Somfy (RTS) wireless control
- Adjustable speed, 20-38rpm
- Compact form factor for lightweight roll-up shades
- 5-year Somfy warranty
Specifications
| Torque / Speed | 0.55 Nm / 20-38 rpm (adjustable) |
| Control | RTS (433.42 MHz radio) |
| Power | Rechargeable lithium-ion battery |
| Warranty | 5 years |

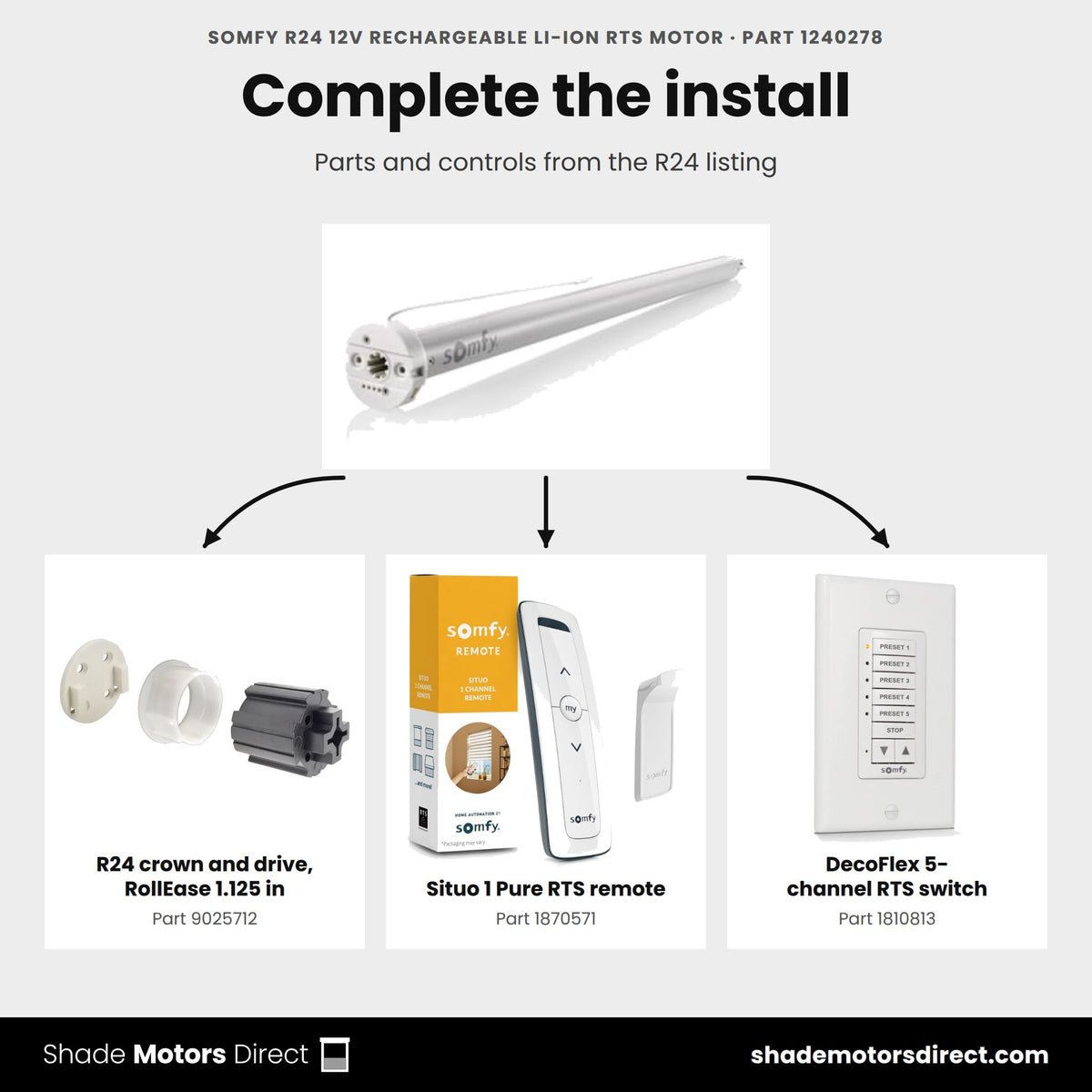

Compatible with: R24 crown/drive hardware, USB-C or DC charging accessories
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Roll Up 24 WireFree RTS motor?

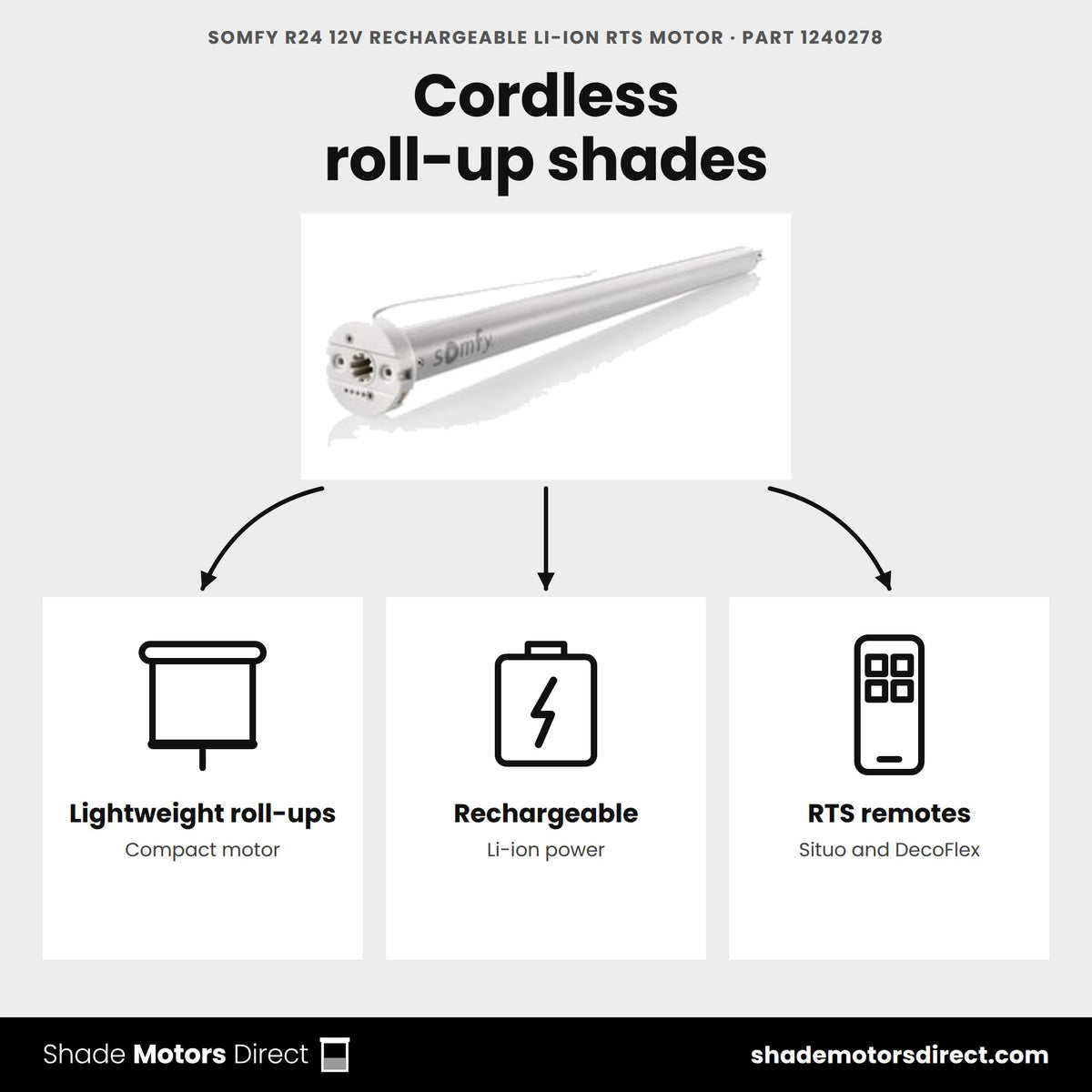

Part 1240278 is a small Somfy battery motor for light interior shades. Somfy lists blinds, roller, roman, woven, zebra and layered shades as applications, and its built-in rechargeable lithium-ion battery removes the need for wiring.
What torque, speed and tube size does it need?
Somfy rates it at 0.55 Nm and 38 rpm. The motor measures 0.83 in across and needs a tube with an inside diameter of at least 0.87 in. The R24 Crown and Drive for RollEase 28mm tubes (9025712) is a listed match.
How do I recharge it?
Somfy offers a magnetic charging connection for its V2 Li-ion motors. Listed accessories include the Magnetic Adapter (9028562), Magnetic Rigid Cable (9028560), 8 in Extension Charging Cable (9021131) and WireFree Li-ion Plug-in Charger (9025166). An LED warns when the battery runs low.
Can solar power keep it charged?
Yes. Somfy offers a solar charging option, and the 12V DC WireFree V2 Solar Pack (9027294) is one of the motor's listed accessories. Solar charging cuts trips to recharge shades on tall or hard-to-reach windows.
Which remotes and switches work with it?
Any Somfy RTS transmitter, including Situo 1 and 5 channel remotes (1870571, 1870575) and DecoFlex RTS wall switches (1810813, 1810897). Somfy lists 12 channels and an RTS range of 656.2 ft in open field.
Can I control it from my phone or a voice assistant?
Yes, through a Somfy TaHoma switch (1871037). RTS is one-way radio, so the app sends commands but cannot report the shade's position. The motor uses a slow start and stop for smooth shade movement.
Couldn't load pickup availability

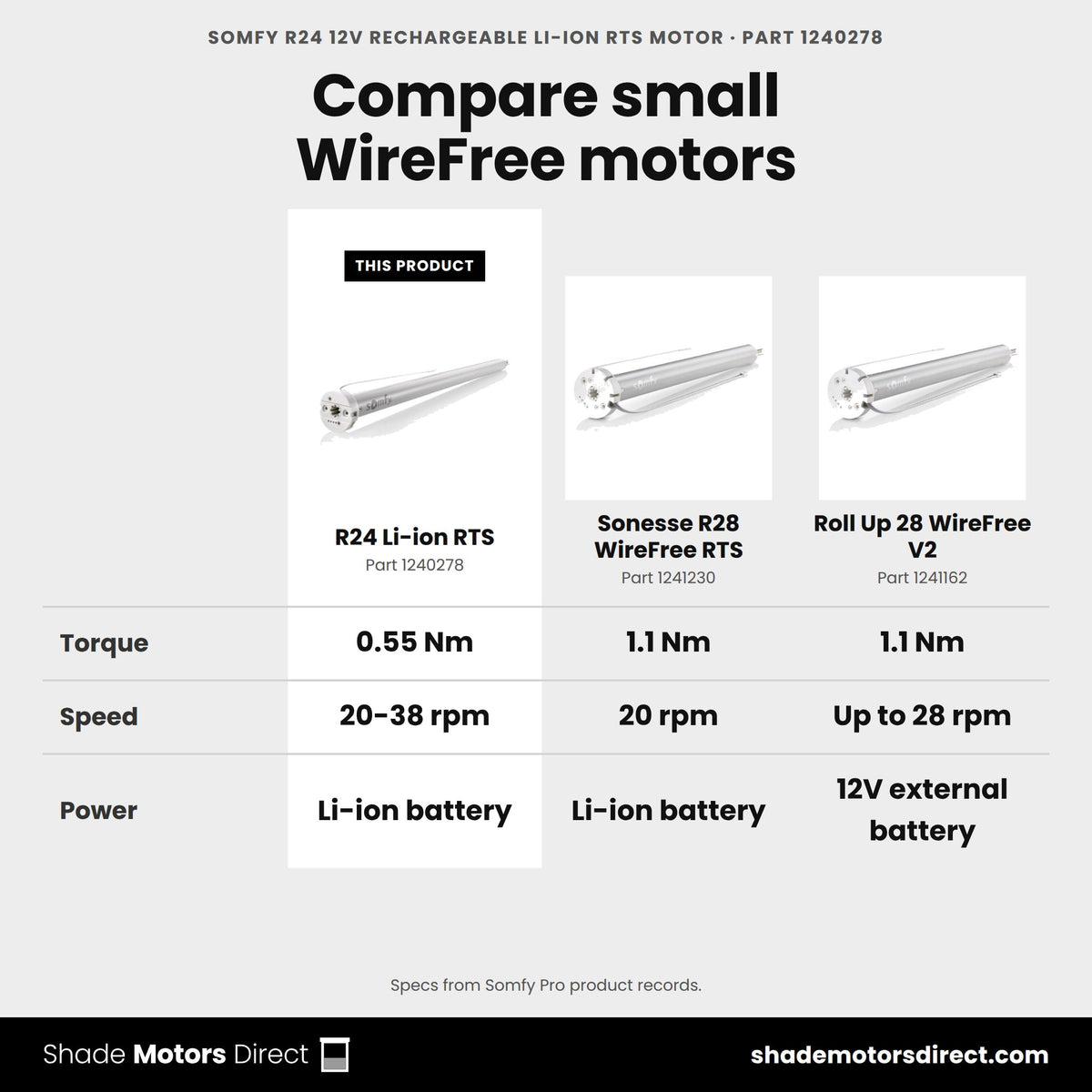

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy R24 12V Rechargeable Li-ion RTS Motor (0.55Nm, 20-38rpm) (1240278)
|
Somfy Roll Up 28 WireFree RTS V2 (External Battery) (1241162)
|
Somfy Roll Up 28 WireFree RTS V2 (Li-ion) (1241150)
|
Somfy Sonesse R28 12V DC RTS Roll Up WireFree Motor (1241230)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 0.55 | 1.1 | 1.1 | 1.1 |
| Speed (rpm) | — | — | — | 20 |
| Control | RTS radio | RTS radio | RTS radio | RTS radio |
| Power | Li-ion battery | 12V DC battery | Li-ion battery, built-in | Li-ion battery |
| Motor family | R24 | Roll Up 28 | Roll Up 28 | Sonesse 28 |
| What's different | The product on this page | 1.1 Nm instead of 0.55 | 1.1 Nm instead of 0.55 | 1.1 Nm instead of 0.55 |
| Buy | Currently viewing | View details | View details | View details |
