Somfy Sonesse 28 WireFree RTS Motor, External Battery (1241230)

SKU: 1241230

$198.00

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

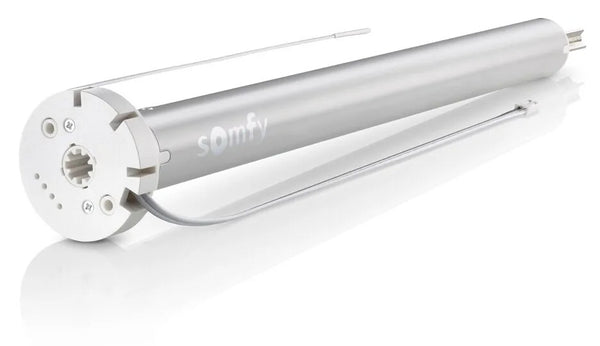

Sonesse 28 WireFree RTS (External Battery) -- cordless roller shade motor

This wirefree Sonesse 28 motor has no built-in battery. It runs on an external 12V DC power source, sold separately: the rechargeable Li-ion battery pack (9021217, charged with the 9025166 charger), the reloadable 12V battery tube (9018685) loaded with 8 AA lithium batteries (9014834), the WireFree solar pack (9027294), or the 12V DC plug-in supply (1870940). Mount it, connect power, and pair it to your RTS control. It's built to be extremely compact and designed for silence.

Benefits

No electrician or in-wall wiring required -- battery powered
Runs on an external 12V DC battery pack, battery tube, solar kit or plug-in supply
Extremely compact motor head designed for quiet operation
RTS wireless remote and wall-switch control
Can run from the Somfy WireFree solar pack (9027294)

Specifications

Torque / Speed	1.1 Nm / 20 rpm
Overall length	13.7 in (347 mm)
Noise level	49 dB
Power	12V DC external battery (sold separately)
Control protocol	RTS
Warranty	5 years

Compatible with: Li-ion battery pack 9021217 (charged with 9025166), reloadable battery tube 9018685 with 8 AA lithium batteries 9014834, WireFree solar pack 9027294, 12V DC plug-in supply 1870940, and RollEase crown/drive kits

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Sonesse 28 WireFree RTS motor?

Part 1241230 is a compact Somfy battery motor for interior shades, including sheer and layered styles. It runs on an external rechargeable lithium-ion battery pack, so no power wiring runs to the window.

Which battery and charging options work with it?

It takes an external 12V lithium-ion pack such as the Rechargeable Lithium-ion Battery Pack (9021217), and the WireFree Li-ion Plug-in Charger (9025166) recharges it. The 12V DC WireFree V2 Solar Pack (9027294) keeps the battery topped up, and a 12V DC power supply can run the motor without a battery.

How loud is it?

Somfy rates it at 49 dB and builds it to its Designed for Silence standard. The small motor head suits smaller windows, and the motor offers adjustable speed for smooth movement.

Which remotes and switches work with it?

Any Somfy RTS transmitter, including Situo remotes (1870571, 1870575), the Telis 16 Channel (1811081) and DecoFlex RTS wall switches. The Situo 5 Variation RTS Pure II (1811612) adds speed control. Somfy rates RTS range at 656.2 ft in open field.

Can I control it from my phone or a voice assistant?

Yes, through a Somfy TaHoma switch (1871037), which links to Amazon Alexa, Google Home and other platforms. RTS is one-way radio, so the app sends commands but cannot report the shade's position.

Which crown and drive adapters fit?

The compatible parts on this page include the R28 Sonesse Crown & Drive Kit for Silhouette and Hunter Douglas shades (9025816) and the RollEase 1.25 in Crown & Drive (9025815). Match the adapter to your shade maker's tube before ordering.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace the motor in a small roller shade or build a new one.

Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1241230.

Sonesse 28 WireFree RTS Motor, External Battery, part 1241230. 1.1 Nm at 20 rpm.

Replacing a motor

1
Take the shade down
Cut power and lift the roller out of its brackets.
2
Pull the old motor
Slide it out of the tube. The fabric stays on the tube.
3
Fit crown and drive
Fit the kit for your tube brand and size, then slide the new motor in.
4
Pair and set limits
Charge or connect the battery. Then pair your RTS remote and set the limits.

Tell us your shade brand and tube size. We'll match the crown and drive before you order. Ask us

Building a new shade

1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
4
Pair and set limits
Charge or connect the battery. Then pair your RTS remote and set the limits.

Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us

Find your crown, drive and bracket.

1Measure the tube end, outside edge to outside edge.

If a row lists a wall thickness, match that too.

RollEase tube, ribs inside

Somfy RollEase 1.25" Crown & Drive (9025815)

Part 9025815Crown and drive set

Louvolite tube, ribs inside

Somfy Sonesse 40mm Louvolite Crown & Drive (9020675)

Part 9020675Crown and drive set

RollEase / ZMC tube, ribs inside

Somfy Sonesse 30 WireFree (ST30WF) & Ultra (ST30UWF) Crown & Drive Kit for Rollease 2" Shade Tubes (9021017)

Part 9021017Crown and drive set

Hunter Douglas Silhouette, 2004 and later

Somfy R28 Sonesse Crown & Drive Kit (Post 04) Silhouette Hunter Douglas (9025816)

Part 9025816Crown and drive set

2Pick the bracket that matches how your shade mounts.

Every bracket here fits this motor's head.

Part 9013789Plate to fit the motor into Acmeda brackets.

Part 9016378Plate to fit the motor into RollEase SkyLine or ZMC XL brackets.

Not sure? Send us a photo of the tube end and the motor end. Ask us

What the Sonesse 28 WireFree RTS Motor, External Battery needs to run

Somfy lists every part below as compatible with part 1241230. Pick one from each row.

1Control

Built-in RTS radio. Any Somfy RTS remote, wall switch or timer pairs with it.

Situo 1 Channel RTS Pure Remote Part 1870571 $77.95

$77.95

Situo 5 Channel RTS Pure Remote Part 1870575 $96.95

$96.95

DecoFlex 1 Channel RTS Wireless Wall Switch White Part 1810897 $171.95

$171.95

See all remotes and switches

2Tube fit

Match the crown and drive to your tube size and profile.

Sonesse 30 WireFree to 400 Series Adapter Kit Part 9020676 $5.25

$5.25

Sonesse 40mm Louvolite Crown & Drive Part 9020675 $5.25

$5.25

Sonesse 30 WireFree Part 9021017 $11.95

$11.95

See all crowns and drives

3Power

Cables, chargers and power made for this motor.

Sonesse Ultra 30 WireFree Plug-in Charger Part 9025166 $33.95

$33.95

See all power parts

4Mounting

Holds the motor head and the idle end in place.

Motor Plate for ST30 Part 9013789 $4.95

$4.95

RollEase Sonesse 30 Motor Bracket Adapter Plate Part 9016378 $4.84

$4.84

See all brackets and tubes

Somfy backs the Sonesse 28 WireFree RTS Motor, External Battery for 5 years. We handle the claim.

5years

Somfy warranty on the Sonesse 28 WireFree RTS Motor, External Battery, part 1241230.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.
Somfy documents: WireFree Databook (PDF)

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy Sonesse 28 WireFree RTS Motor, External Battery (1241230)	Somfy Sonesse 28 Zigbee 12V Rechargeable Li-ion Motor (1241755)	Somfy Sonesse 28 Zigbee 12V Rechargeable Li-ion Motor (1241755)	Somfy Sonesse 28 Zigbee 12V Rechargeable Li-ion Motor (1241755)
Price	$198.00	$247.17	$247.17	$247.17
Torque (Nm)	1.1	1.1	1.1	1.1
Speed (rpm)	20	20	20	20
Control	RTS radio	Zigbee	Zigbee	Zigbee
Power	Li-ion battery	Li-ion battery	Li-ion battery	Li-ion battery
Motor family	Sonesse 28	Sonesse 28	Sonesse 28	Sonesse 28
What's different	The product on this page	Same size, Zigbee control	Same size, Zigbee control	Same size, Zigbee control
Buy	Currently viewing	View details	View details	View details

Somfy Sonesse 28 WireFree RTS Motor, External Battery (1241230)
