Somfy Sonesse Ultra 30 Zigbee WireFree 12V Li-ion Motor (1241752)
Somfy Sonesse Ultra 30 Zigbee WireFree 12V Li-ion Motor (1241752)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

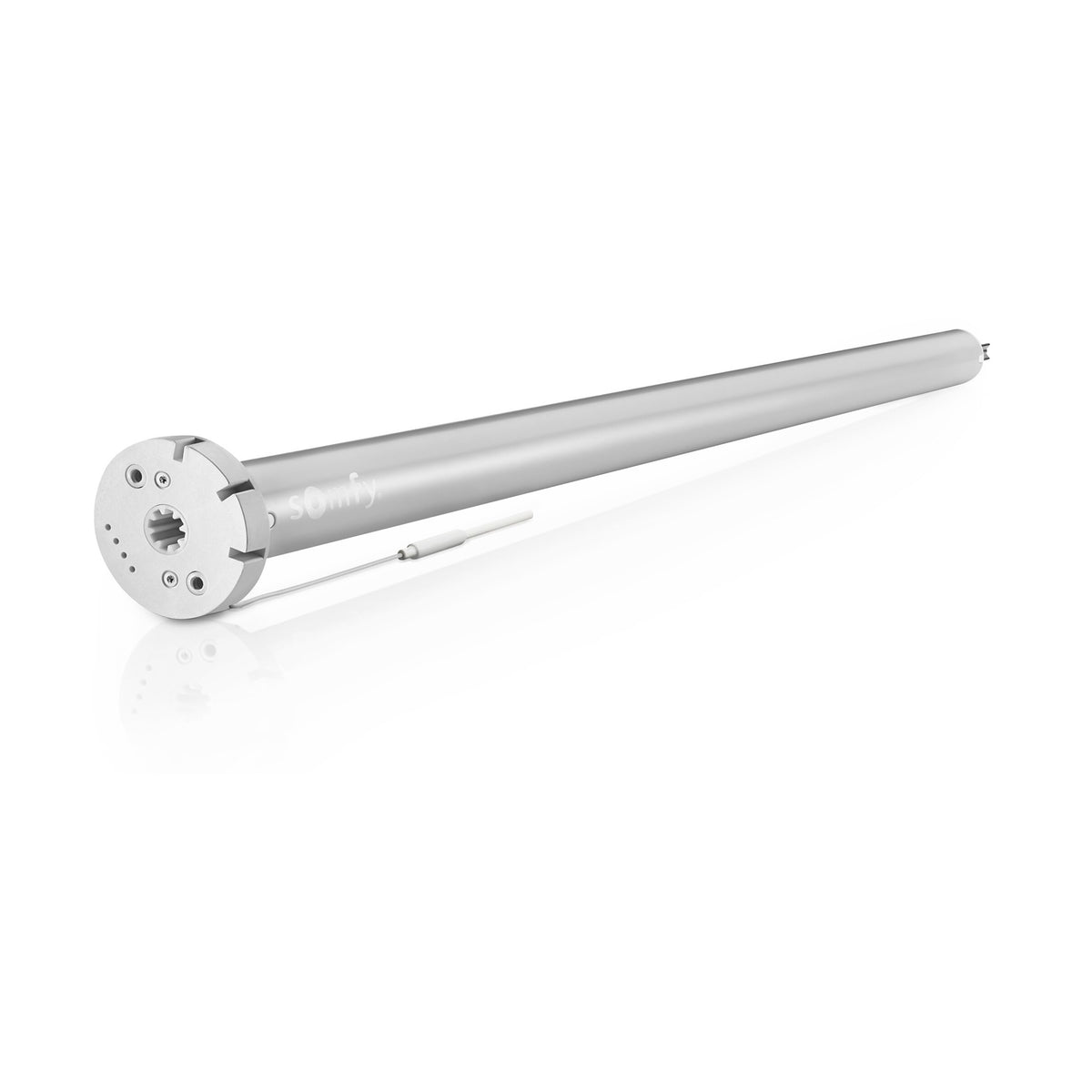

Sonesse 30 WireFree Zigbee -- battery-powered, cordless roller shade motor
This wirefree Sonesse 30 motor runs on a rechargeable lithium-ion battery, so there's no wiring to run -- just charge it, mount it, and pair it to your Zigbee control. It's built to be extremely compact and designed for silence.

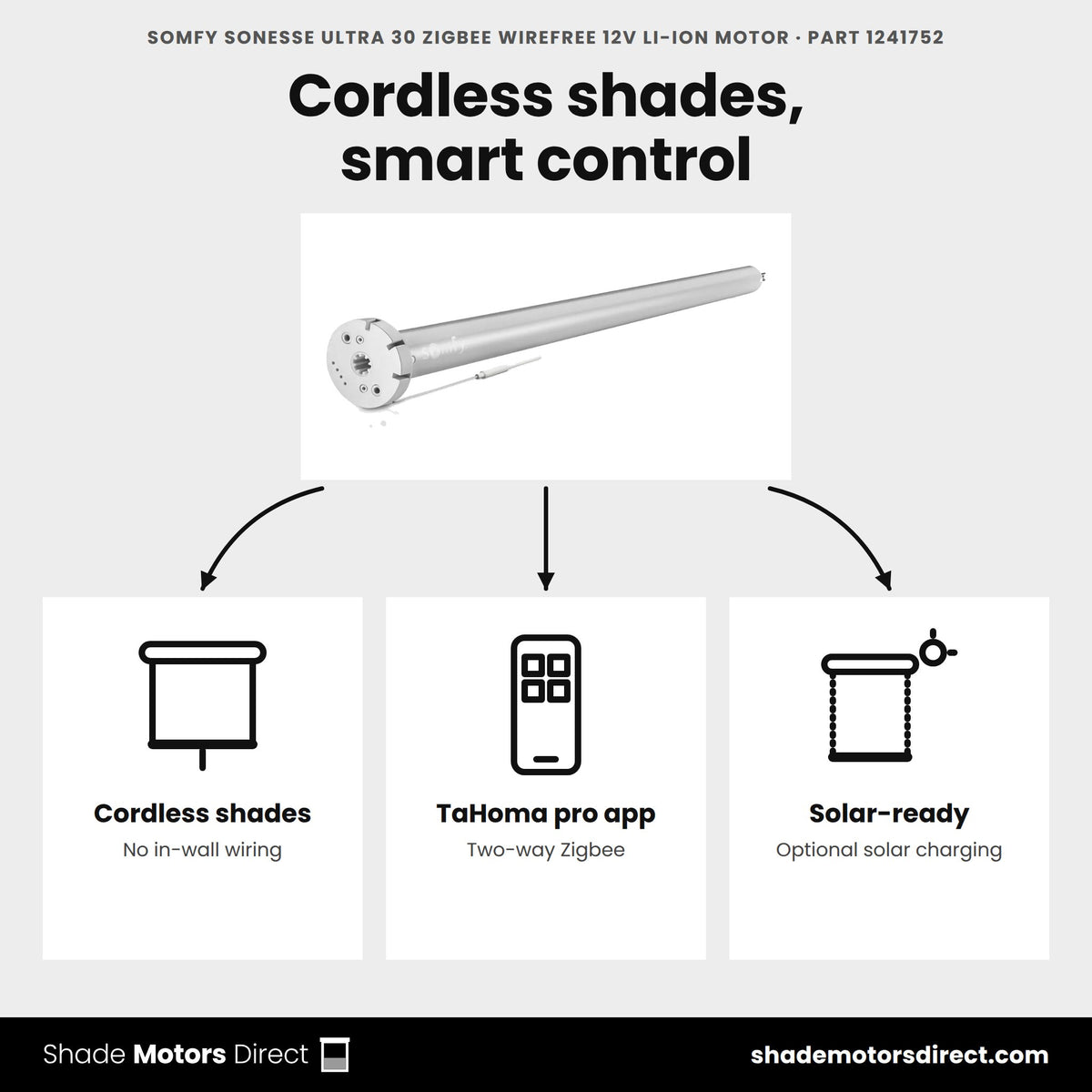

Benefits
- No electrician or in-wall wiring required -- battery powered
- Rechargeable lithium-ion battery for repeated use
- Extremely compact motor head designed for quiet operation
- Two-way Zigbee control via TaHoma pro app
- Compatible with optional solar charging to extend time between charges

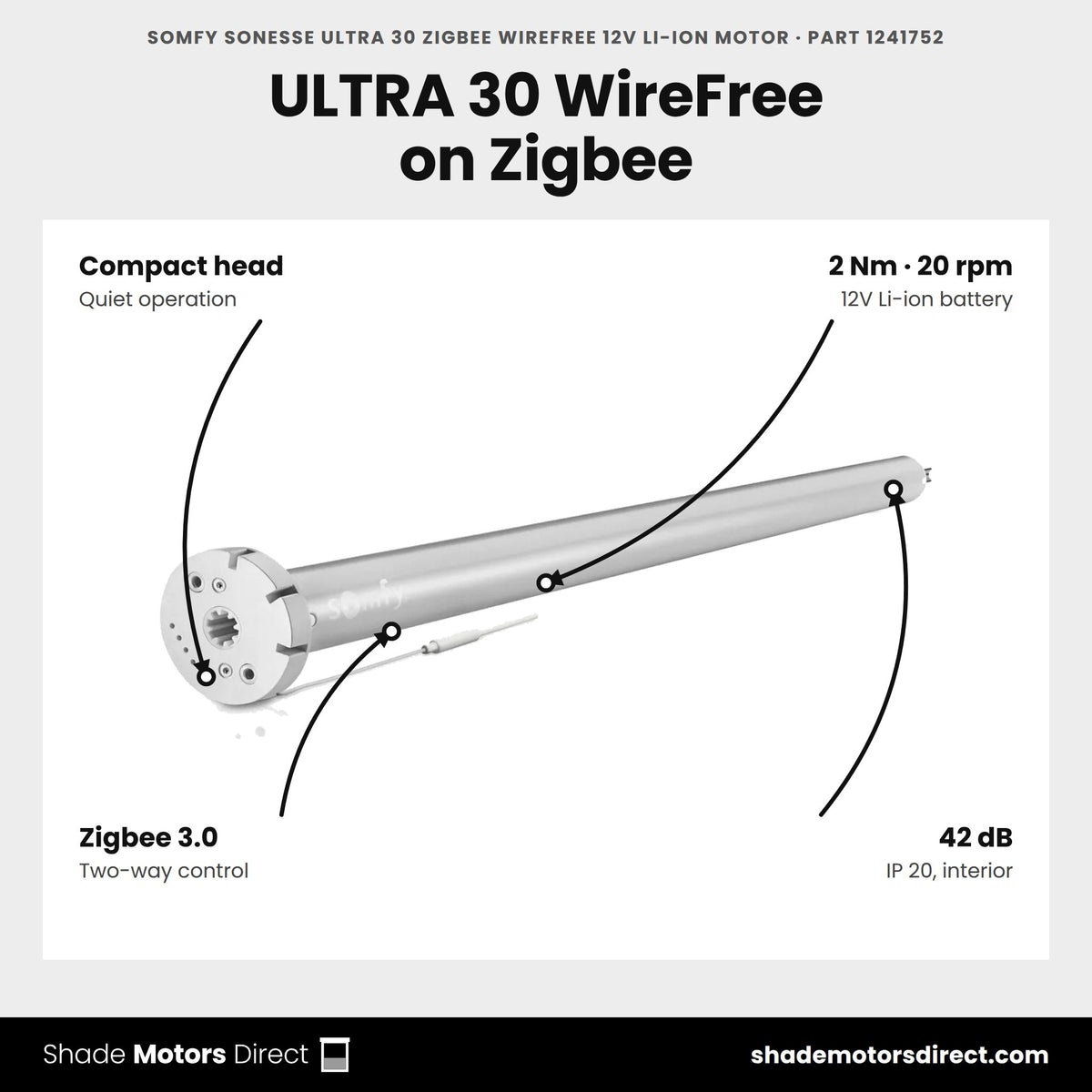

Specifications
| Torque / Speed | 2 Nm / 20 rpm |
| Power | 12V DC rechargeable Li-ion battery, 15 W during operation |
| Control protocol | Zigbee 3.0, two-way communication |
| Radio Frequency | 2.450 GHz |
| Noise level | 42 dB |
| Protection index | IP 20 (interior use only) |
| Warranty | 5 years |

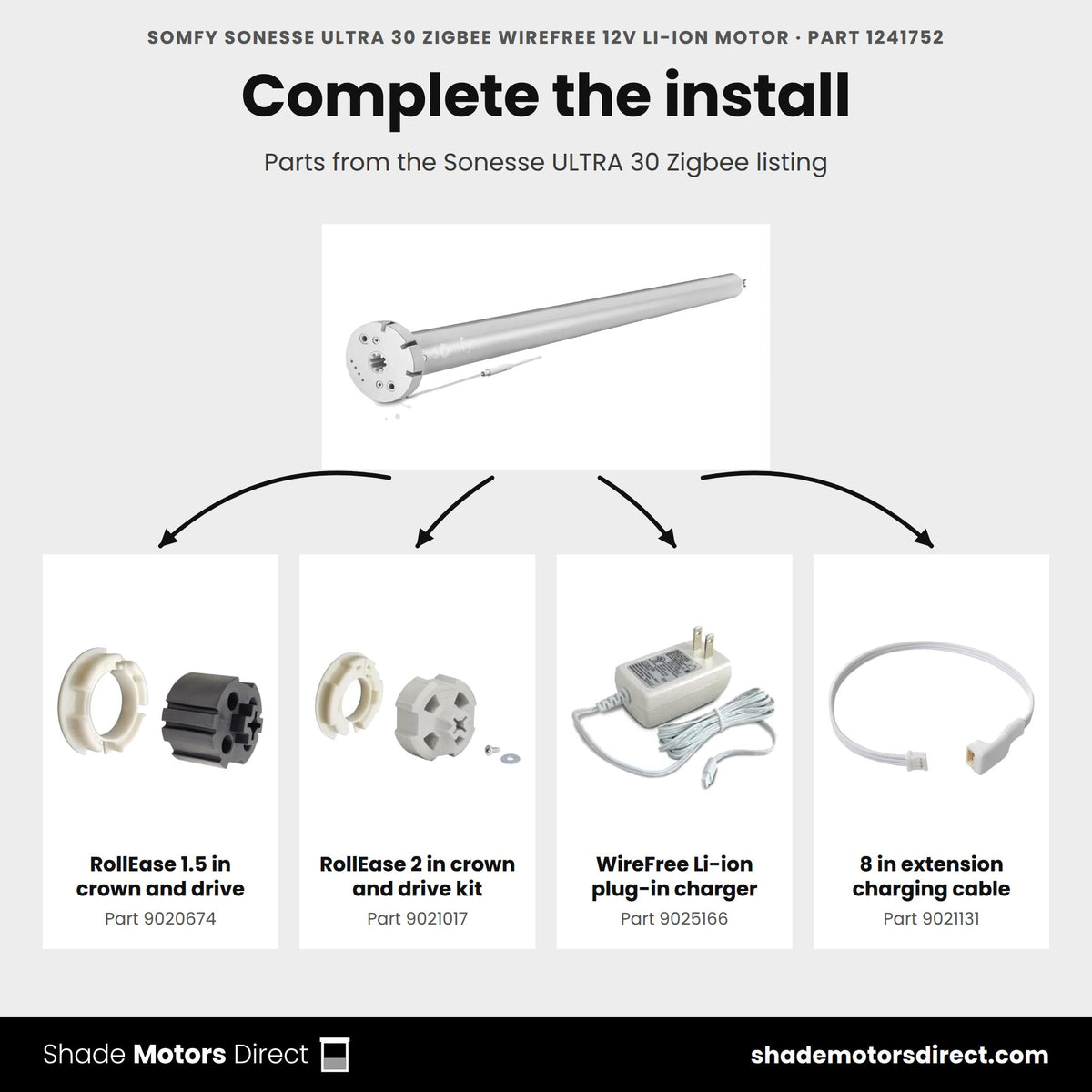

Compatible with: the Somfy WireFree Li-ion plug-in charger 9025166, Somfy charging accessories, and RollEase crown/drive kits
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse ULTRA 30 WireFree Zigbee motor built for?
It powers interior roller shades with no wiring to the window. Somfy part 1241752 runs on a built-in rechargeable 12V lithium-ion battery and uses Zigbee 3.0 radio, so it can report its status back to your controls.
What torque, speed and noise level does it have?
Somfy rates part 1241752 at 2 Nm of torque and 20 rpm, with a noise level of 42 dB. It has a round head and electronic limits with a capacity of 80 turns.
What size roller tube does it fit?
Somfy lists a minimum tube inside diameter of 1.14 in. The compatible parts on this page include RollEase 1.5 in and 2 in crown and drive kits, a 40mm Louvolite crown and drive, and a 400 Series adapter kit.
How long does a charge last, and how do I recharge it?
Somfy rates the battery at about one recharge per year under its reference conditions. Charge it with the WireFree Plug-in Charger (9025166), and add an 8 in or 94.5 in extension charging cable (9021131, 9021016) to reach the motor. Somfy also offers a solar panel kit.
Which controls work with it?
It pairs with Somfy Zigbee controls, including the Ysia 5 Channel Zigbee Remote (1871154). Somfy rates Zigbee range at 262.48 ft in open field. RTS remotes and switches do not control this motor, so pick the Sonesse ULTRA 30 WireFree RTS (1003310) if you already own RTS controls.
Can I use an app or voice assistant?
Yes. Somfy lists it for the TaHoma pro app, and the TaHoma Switch (1871037) adds Amazon Alexa, Google Home and Apple HomeKit control. Because Zigbee is two-way, the app can show where the shade sits.
Couldn't load pickup availability
Replace a Sonesse 30 motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1241752.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Takes the drive wheel that turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Take out the motor screws if fitted, then slide the motor out. The fabric stays on the tube.
-
3
Fit crown and drive
Fit the kit for your tube, then slide the new motor in.
-
4
Join and set limits
Charge or connect the battery. Then add the motor to your Zigbee hub and set the limits.
Tell us your shade brand and tube size. We'll match the crown and drive kit before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Join and set limits
Charge or connect the battery. Then add the motor to your Zigbee hub and set the limits.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Sonesse Ultra 30 Zigbee WireFree 12V Li-ion Motor needs to run
Somfy lists every part below as compatible with part 1241752. Pick one from each row.
1Control
Built-in Zigbee 3.0 radio. Pairs with Ysia remotes, DecoFlex Zigbee switches and TaHoma.
2Tube fit
Match the crown and drive to your tube size and profile.
3Power
Cables, chargers and power made for this motor.
4Mounting
Holds the motor head and the idle end in place.
5Also fits
Other parts Somfy lists with this product.
Somfy backs the Sonesse Ultra 30 Zigbee WireFree 12V Li-ion Motor for 5 years. We handle the claim.
Somfy warranty on the Sonesse Ultra 30 Zigbee WireFree 12V Li-ion Motor, part 1241752.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- WireFree Databook (PDF)

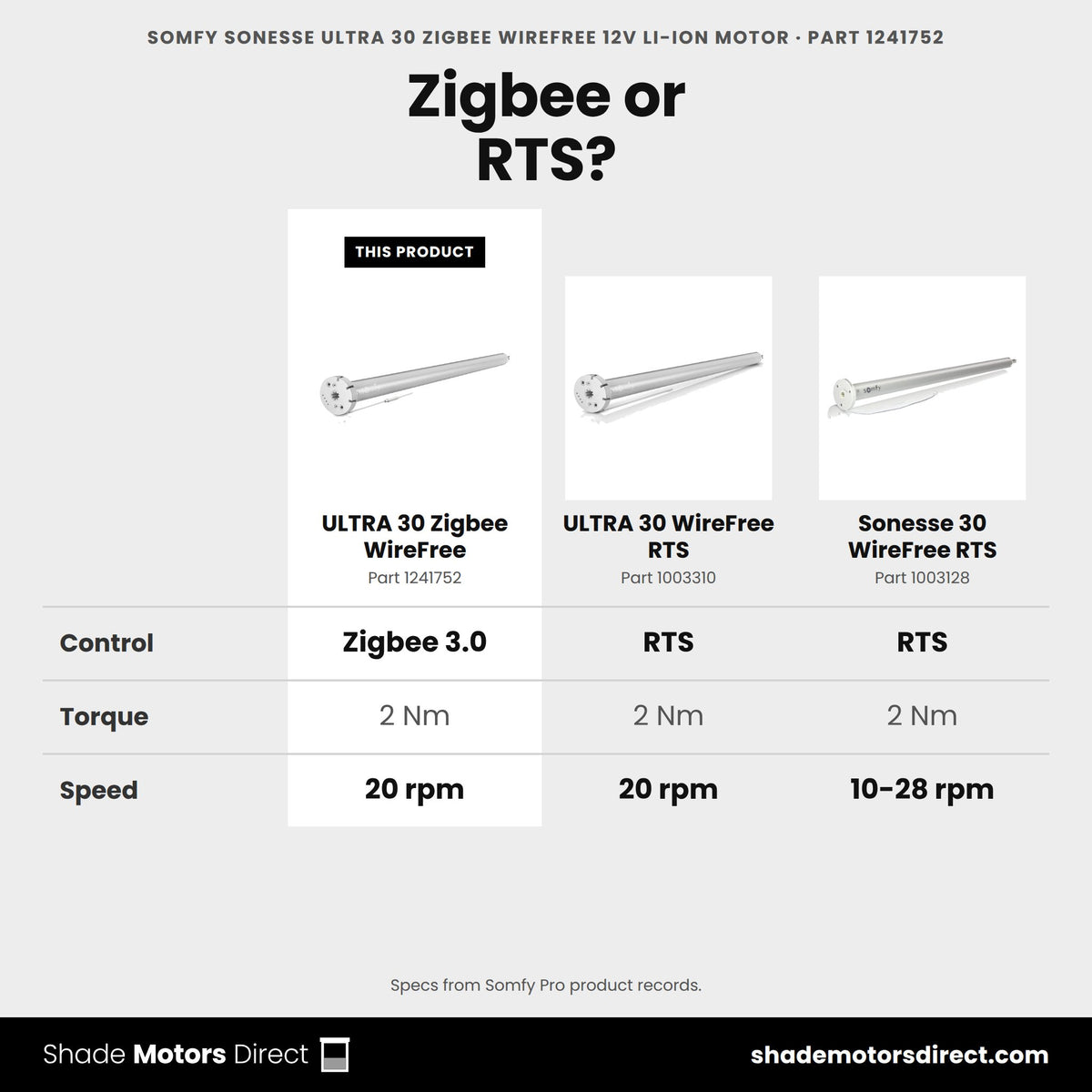

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse Ultra 30 Zigbee WireFree 12V Li-ion Motor (1241752)
|
Somfy Sonesse 30 DCT 24V DC (1241146)
|
Somfy Sonesse 30 RS485 24V DC (1241144)
|
Somfy Sonesse 30 RTS 24V DC Motor (1241142)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 2.0 | 2.0 | 2.0 | 2.0 |
| Speed (rpm) | 20 | 25 | 25 | 25 |
| Control | Zigbee 3.0 | Dry contact (DCT) | RS485 (SDN) | RTS radio |
| Power | 12V Li-ion battery | 24V DC | 24V DC | 24V DC |
| Motor family | Sonesse 30 | Sonesse 30 | Sonesse 30 | Sonesse 30 |
| What's different | The product on this page | Same size, Dry contact (DCT) control | Same size, RS485 (SDN) control | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
