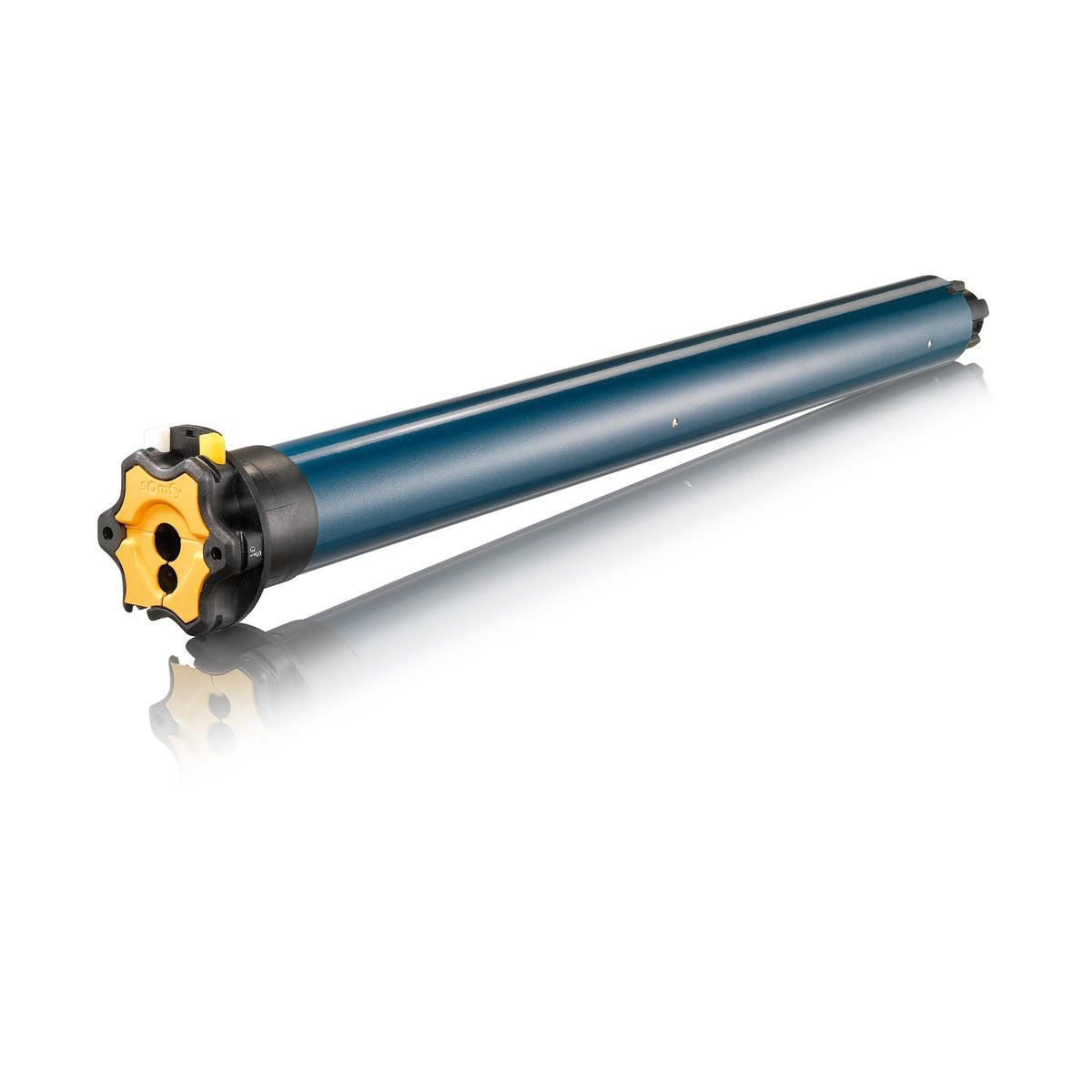

Somfy LT60 6100R2 Standard 120V 4-Wire Motor (1166290)
Somfy LT60 6100R2 Standard 120V 4-Wire Motor (1166290)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

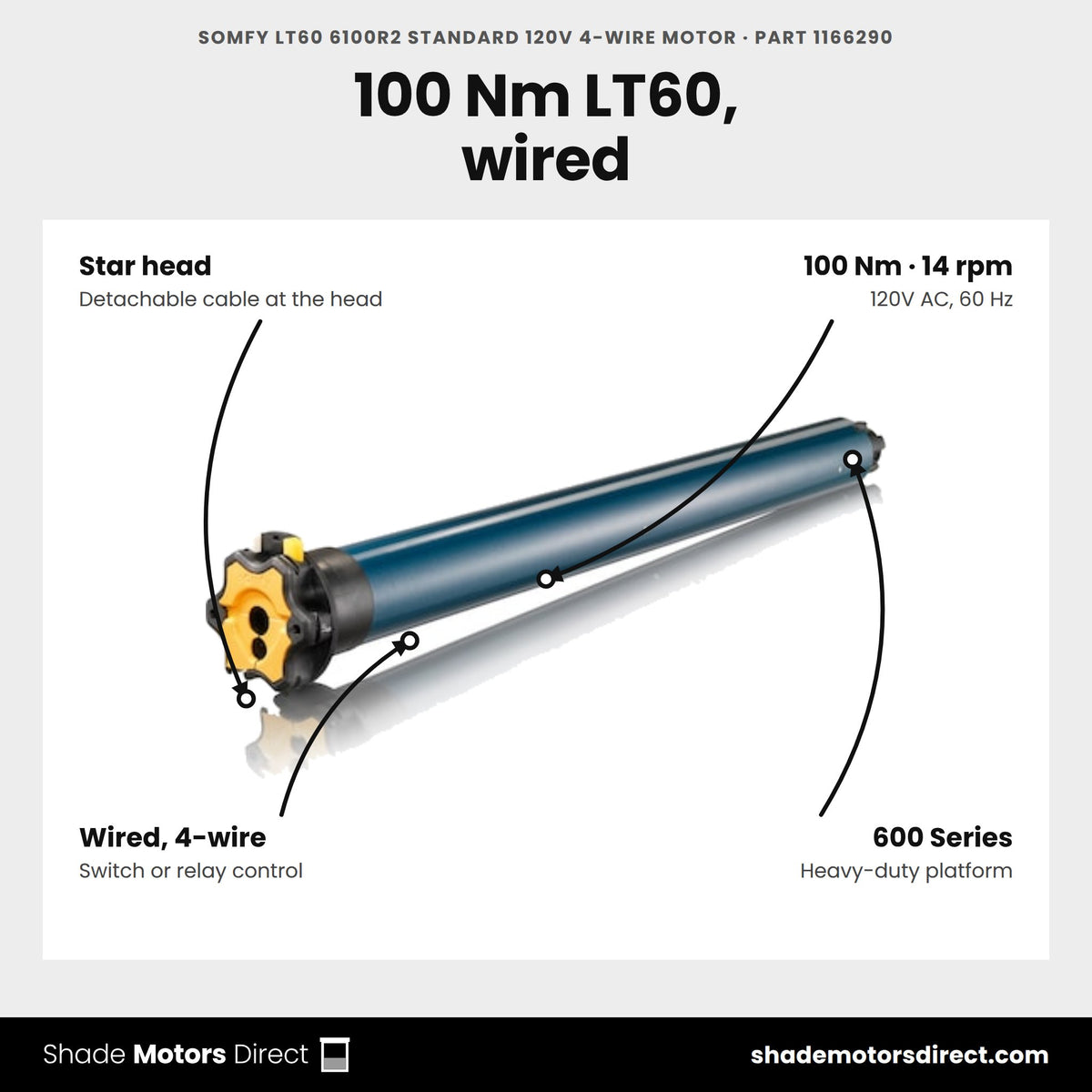

Somfy LT60 6100R2 Standard 4-Wire Motor -- heavy-duty exterior tubular motor
The Somfy LT60 6100R2 is a wired heavy-duty exterior tubular motor, delivering 100Nm (880" lb) at 14 rpm -- the 600 Series platform built for large awnings and rolling shutters beyond the LT50's torque range.
Benefits
- Standard 4-wire control -- wired switch or relay
- Heavy-duty 600 Series platform built for large exterior awnings and rolling shutters
- Star-head mounting, detachable power cable at the motor head
- 5-year Somfy warranty
Specifications
| Torque / Speed | 100 Nm (880 in-lb) / 14 rpm |
| Control | Standard 4-wire |
| Override | None |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT60 crown and drive sets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the LT60 6100R2 Standard motor?
The 6100R2 (1166290) is a heavy-duty Somfy LT60 tubular motor for large awnings and rolling shutters. Somfy lists it as the 6100R2 100/14 SJTW, rated at 100 Nm of torque at 14 rpm.
What power and wiring does it need?
It runs on 120V AC at 60 Hz with a 4-wire SJTW cable. Somfy rates it at 430 W while running and 0 W in standby. The power cable detaches at the star-shaped motor head.
How do I control the 6100R2?
A wired switch runs it and can control one shade or a group. Somfy calls this standard 4-wire motor an ideal choice for pre-construction projects while the walls are open.
Is it rated for outdoor use?
Yes. Somfy gives the 6100R2 an IP 44 rating and lists it for exterior awnings and rolling shutters. The motor carries a 5-year Somfy warranty.
How loud is it, and how does it compare with other LT60 motors?
Somfy rates the 6100R2 at 67 dB. It is the highest-torque LT60 standard motor in this store, above the 660R2 (1162272) at 60 Nm and the 680R2 (1164262) at 80 Nm.
Which crown and drive fits, and is there an RTS version?
This store lists the Octagonal LT60 70mm Crown and Drive Set (9012247) as compatible. For RTS remote control, Somfy makes the LT60 6100R2 Altus RTS 120V 3-wire motor (1166289).
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LT60 6100R2 Standard 120V 4-Wire Motor (1166290)
|
Somfy LT60 6100R2 Altus RTS 120V 3-Wire Motor (1166289)
|
Somfy LT60 680R2 Standard 120V 4-Wire Motor (1164262)
|
Somfy LT60 6100R2 CMO 120V 4-Wire Motor (1166016)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 100.0 | 100.0 | 80.0 | 100.0 |
| Speed (rpm) | 14 | 14 | 14 | 14 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT60 | LT60 | LT60 | LT60 |
| Manual crank override | — | — | — | Yes |
| What's different | The product on this page | Same size, RTS radio control | 80.0 Nm instead of 100.0 | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
