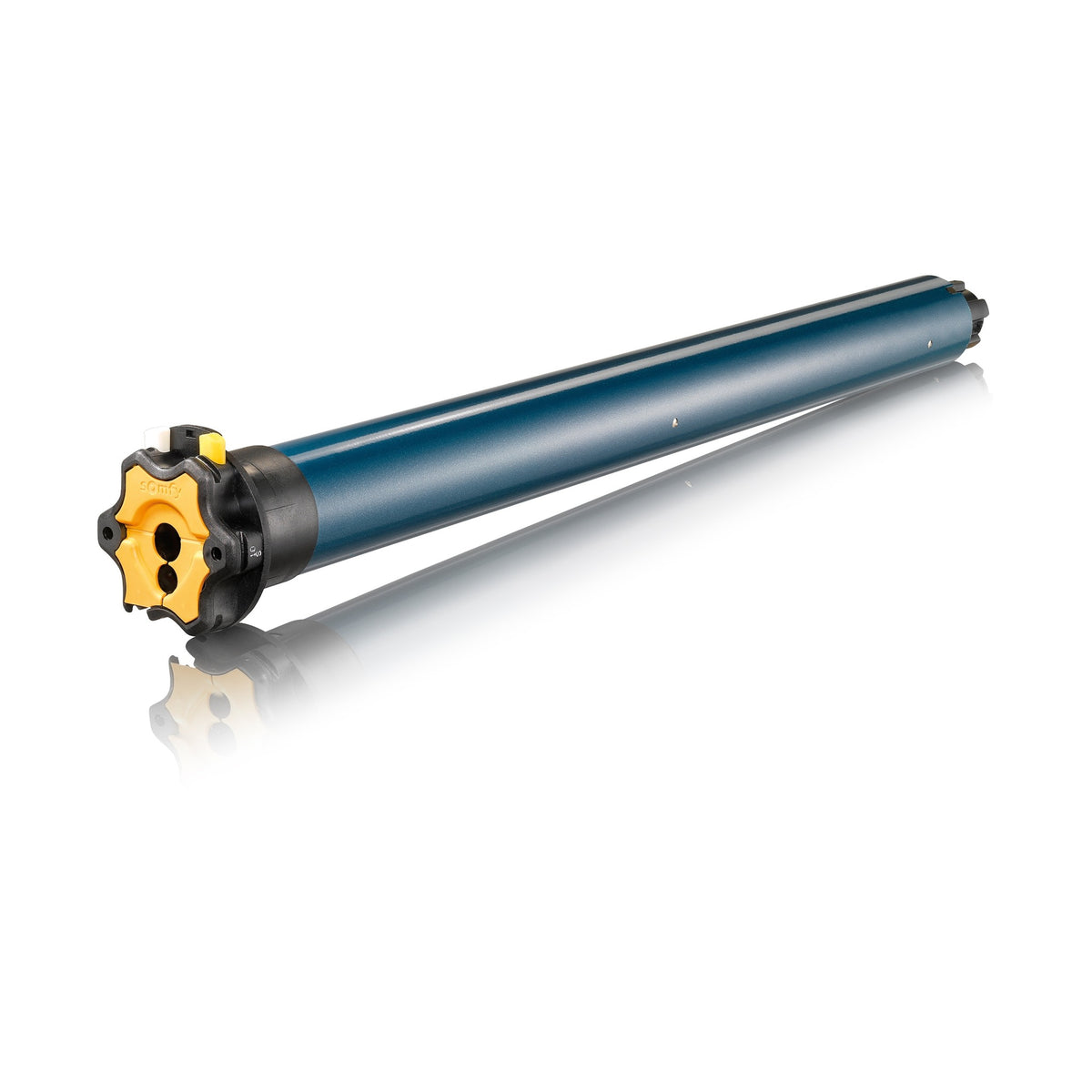

Somfy LT60 680R2 Standard 4-Wire Motor -- heavy-duty exterior tubular motor

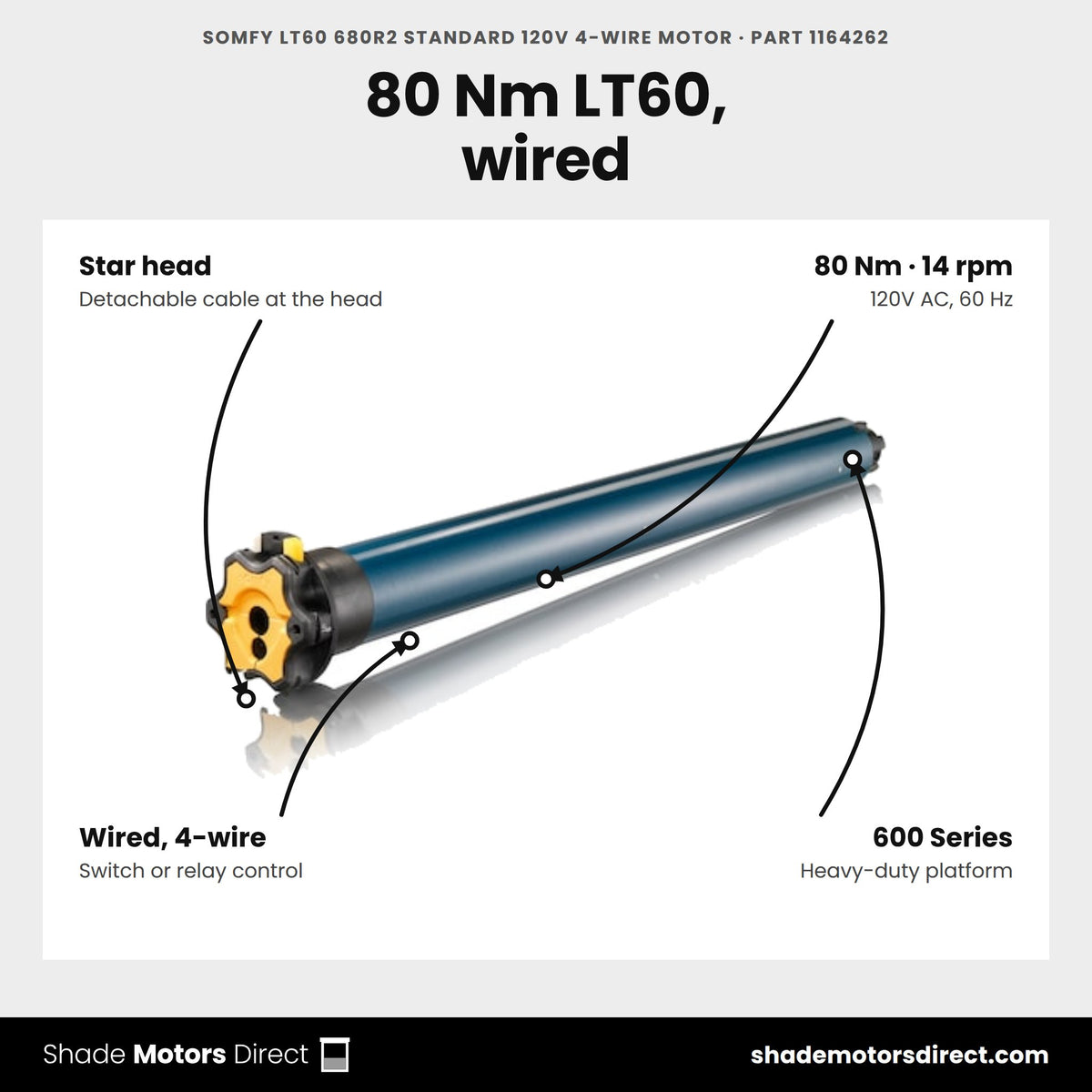

The Somfy LT60 680R2 is a wired heavy-duty exterior tubular motor, delivering 80Nm (704" lb) at 14 rpm -- the 600 Series platform built for large awnings and rolling shutters beyond the LT50's torque range.
Benefits
- Standard 4-wire control -- wired switch or relay
- Heavy-duty 600 Series platform built for large exterior awnings and rolling shutters
- Star-head mounting, detachable power cable at the motor head
- 5-year Somfy warranty
Specifications
| Torque / Speed | 80 Nm (704 in-lb) / 14 rpm |
| Control | Standard 4-wire |
| Override | None |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |
Compatible with: LT60 crown and drive sets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Somfy LT60 680R2 80/14 SJTW motor?
It is a standard 120V AC, 4-wire LT60 tubular motor with a star head, built for large awnings and rolling shutters. A wired switch or a relay controls it, which suits projects wired during construction.
What torque and speed does part 1164262 deliver?
Somfy rates it at 80 Nm of torque and 14 rpm, with a rated current of 3.4 A and 0 W draw in standby. Limit switch capacity is 34 turns, with a thermal time of 5 min.
What is the smallest roller tube it fits?

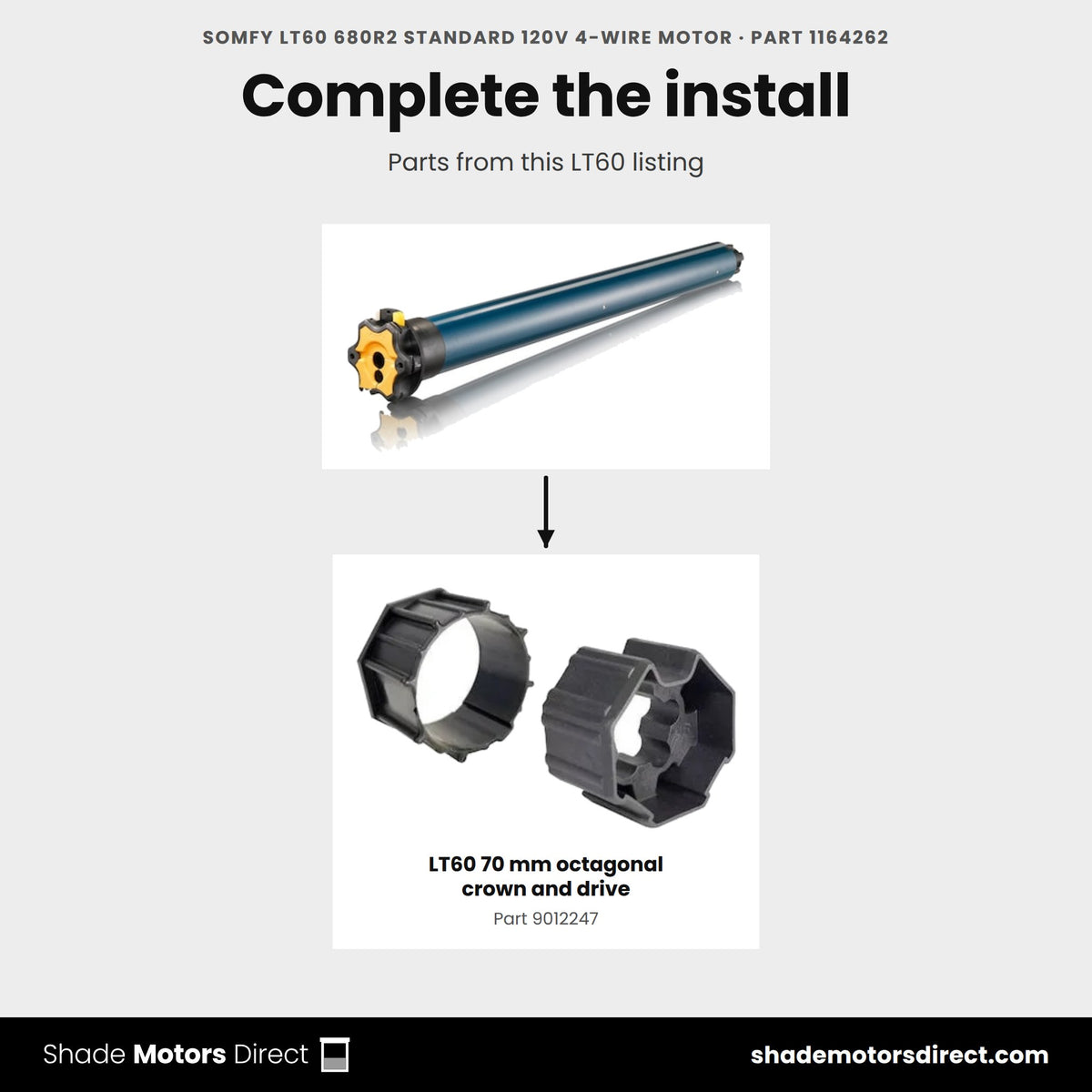

Somfy lists a minimum tube inside diameter of 2.37 in. The compatible part on this page is the Somfy Octagonal LT60 70mm Crown and Drive Set (9012247), which matches the motor to a 70mm octagonal tube.
How is it powered and wired?
It runs on 120V/60Hz, within a 108 to 126 V AC range, and ships with a 9.84 ft, 4-wire SJTW cable. The Somfy Standard Motor Tester Cable, 4-Wire (9012116) lets installers run the motor before final wiring.
Is it rated for outdoor use?
Yes. Somfy rates the motor at IP 44 with an operating range of -13 °F to 158 °F, suited to exterior awnings and shutters. Somfy lists a noise level of 65 dB and backs it with a 5-year warranty.

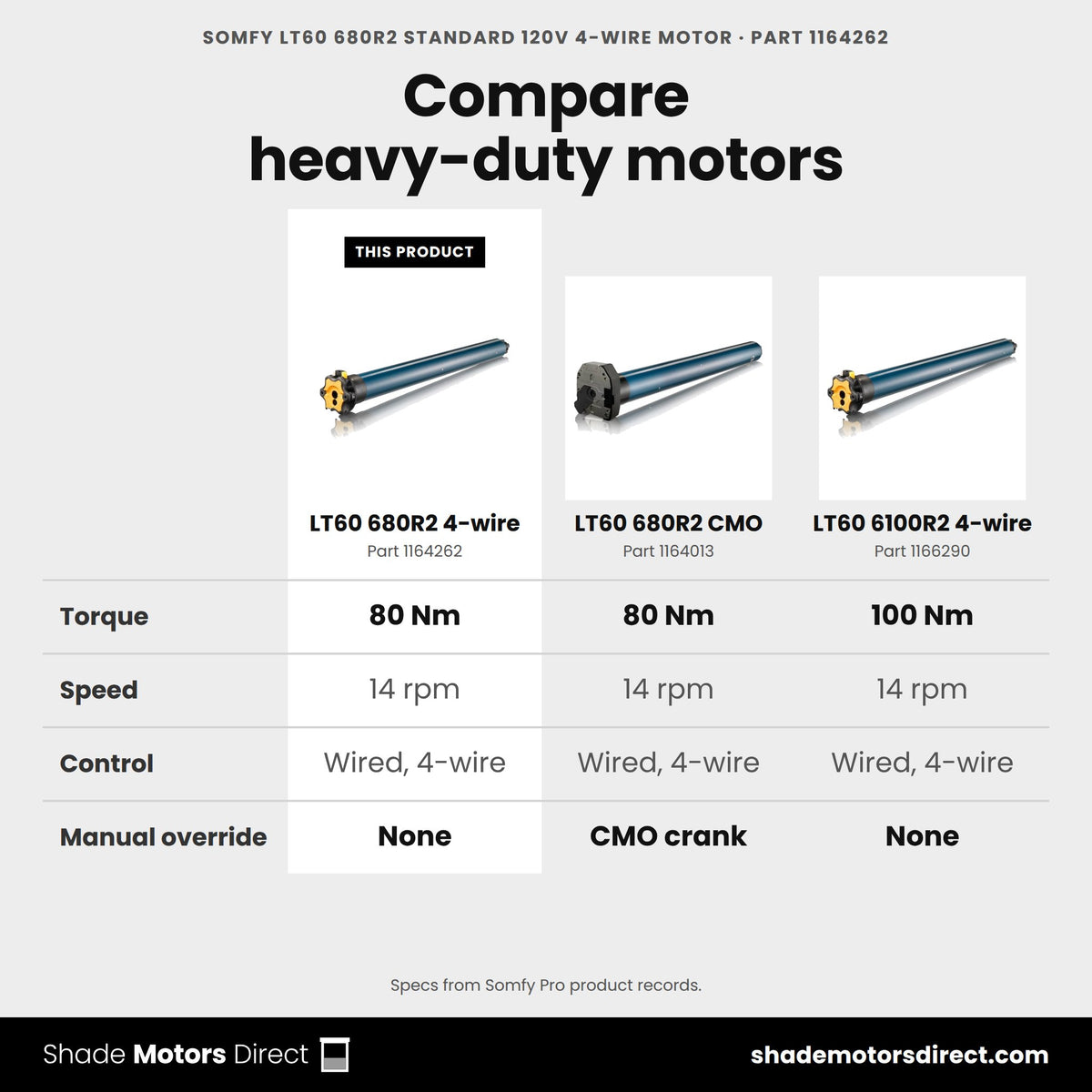

Which other LT60 motors should I compare?

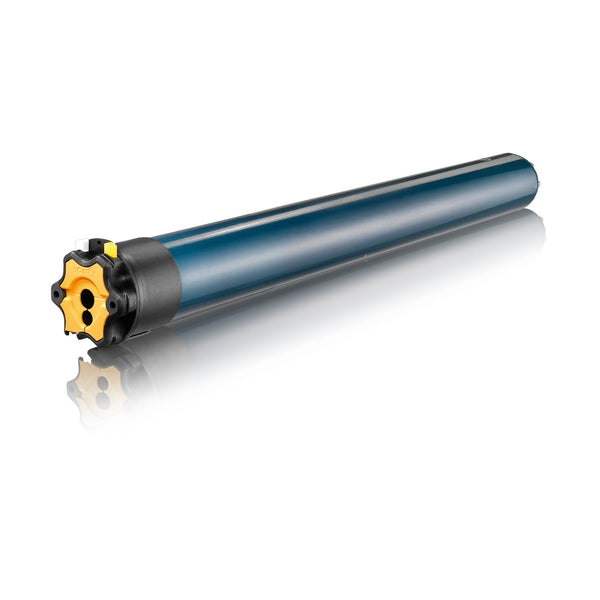

The Somfy Altus RTS 680R2 (1164261) adds a built-in RTS receiver for remote and app control. For lighter loads, the LT60 660R2 (1162272) gives 60 Nm, and the 6100R2 (1166290) standard motor offers more torque for the largest awnings.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy LT60 680R2 Standard 120V 4-Wire Motor (1164262)
|
Somfy LT60 680R2 Altus RTS 120V 3-Wire Motor (1164261)
|
Somfy LT60 660R2 Standard 120V 4-Wire Motor (1162272)
|
Somfy LT60 6100R2 Standard 120V 4-Wire Motor (1166290)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 80.0 | 80.0 | 60.0 | 100.0 |
| Speed (rpm) | 14 | 14 | 14 | 14 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT60 | LT60 | LT60 | LT60 |
| What's different | The product on this page | Same size, RTS radio control | 60.0 Nm instead of 80.0 | 100.0 Nm instead of 80.0 |
| Buy | Currently viewing | View details | View details | View details |
