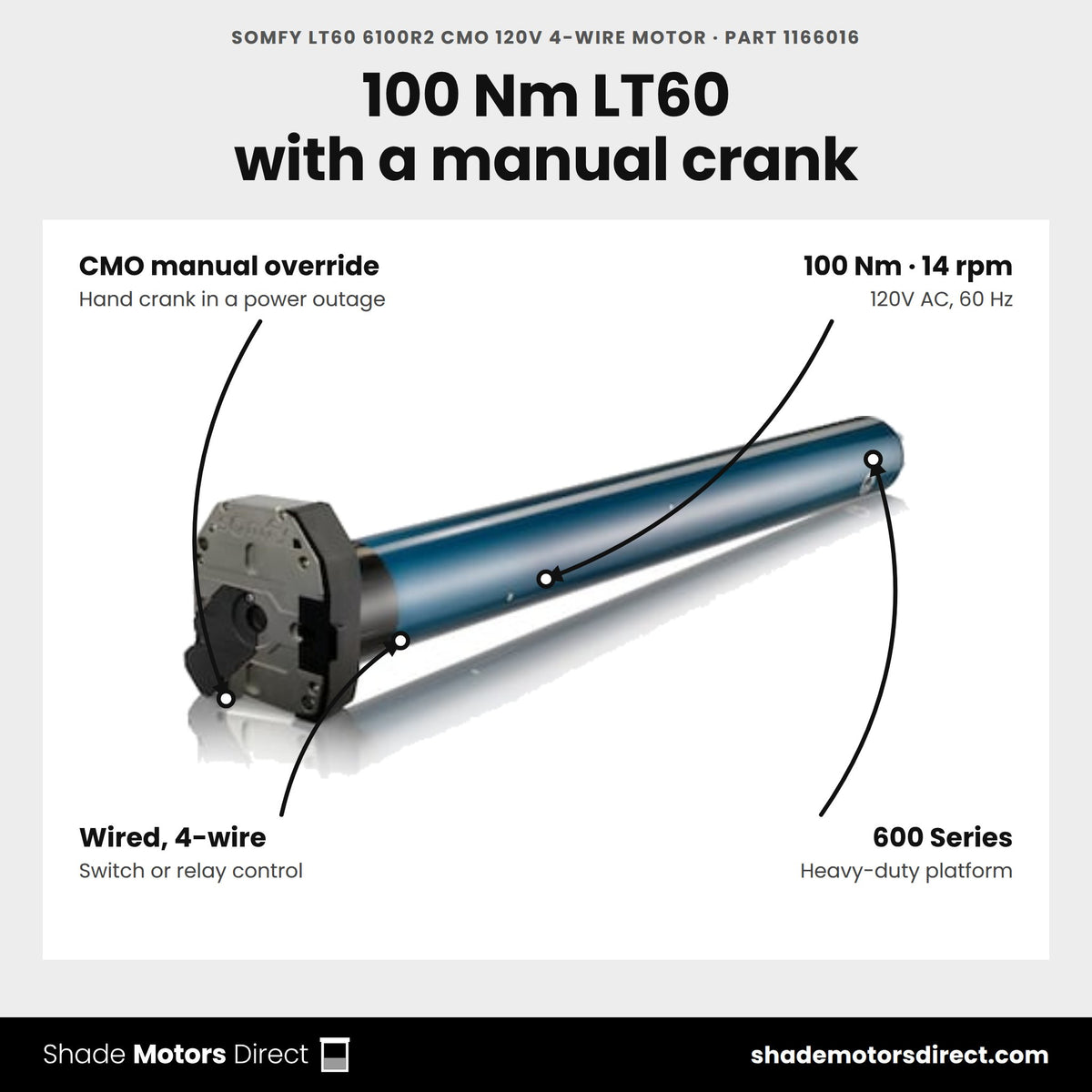

Somfy LT60 6100R2 CMO 120V 4-Wire Motor, part 1166016, features: 100 Nm, 14 rpm, CMO manual override, wired 4-wire control, 600 Series

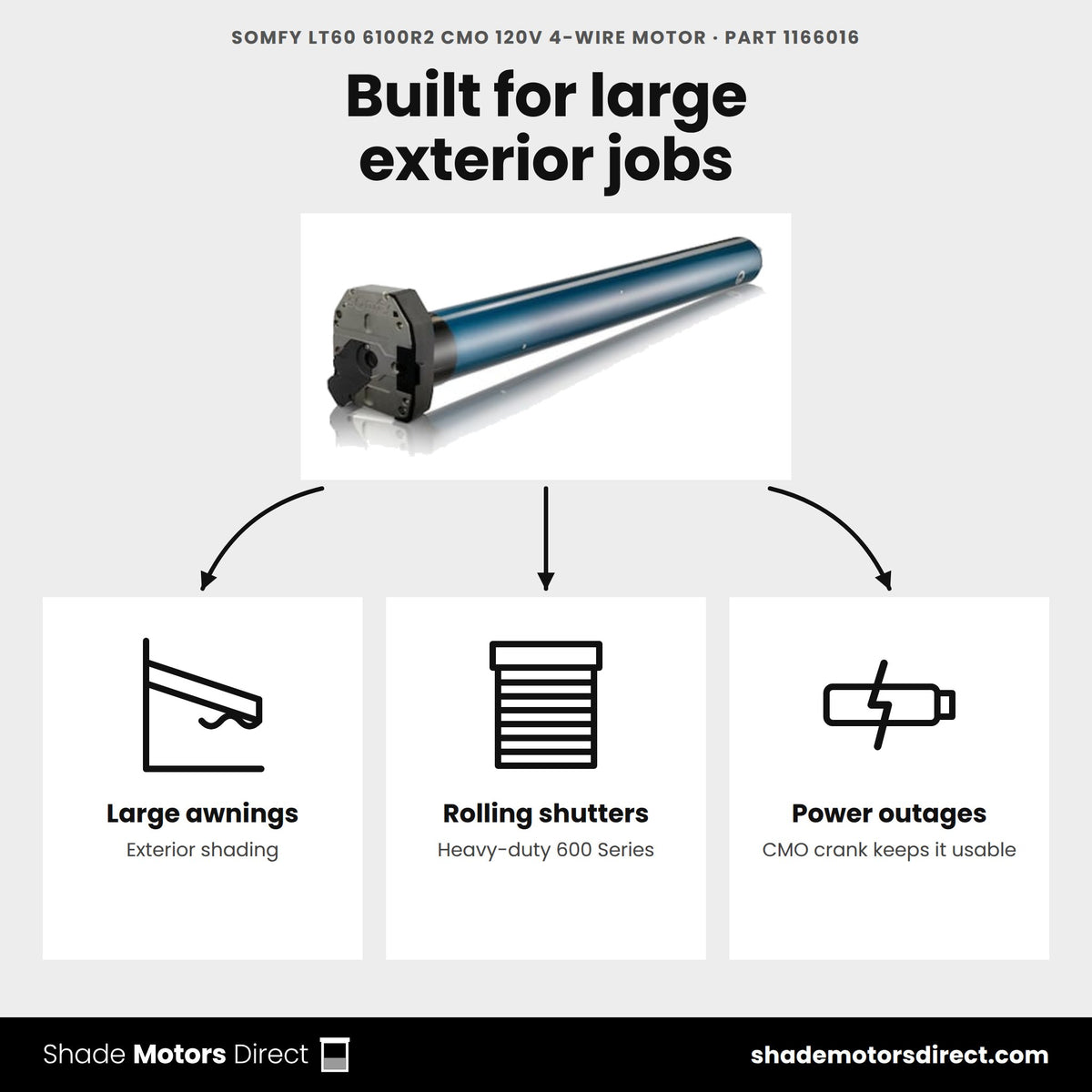

Somfy LT60 6100R2 CMO motor 1166016 uses: large exterior awnings, rolling shutters, hand crank during power outages

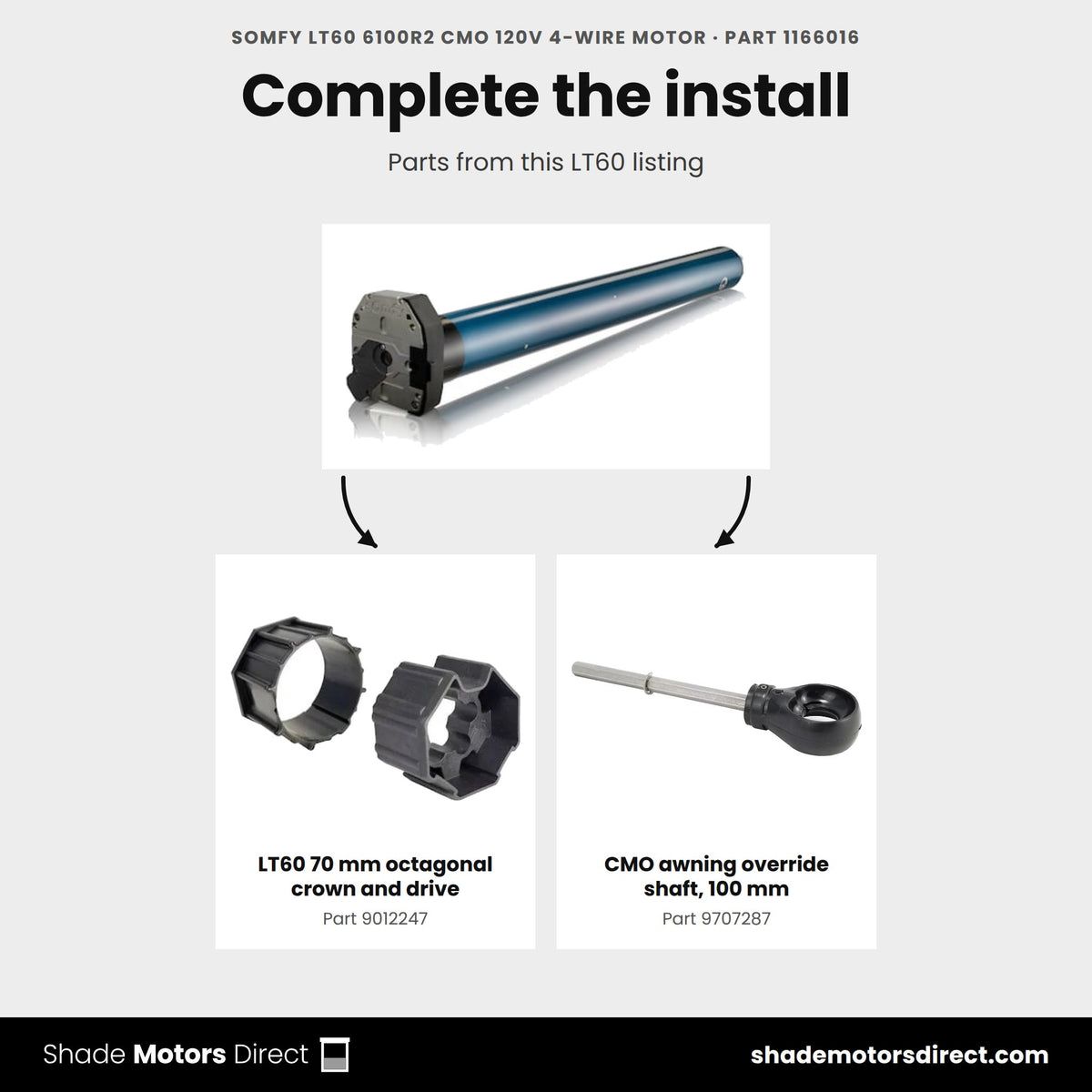

Parts that work with the Somfy LT60 6100R2 CMO motor 1166016: LT60 70 mm octagonal crown and drive 9012247, CMO awning override shaft, 100 mm 9707287

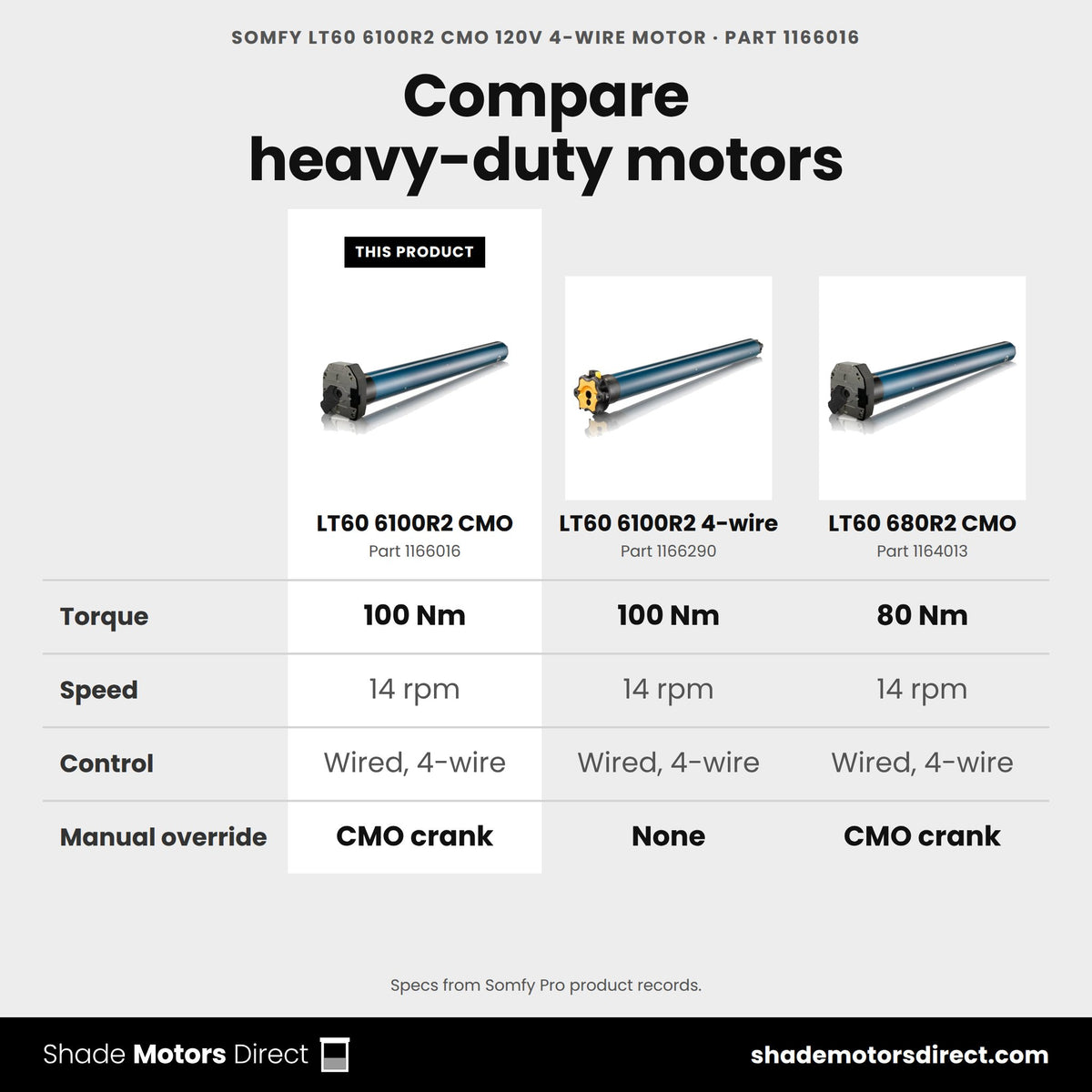

Somfy LT60 6100R2 CMO motor 1166016 compared: LT60 6100R2 4-wire 1166290, LT60 680R2 CMO 1164013

Buy the Somfy LT60 6100R2 CMO 120V 4-Wire Motor, part 1166016, genuine new with 5-year warranty, from ShadeMotorsDirect

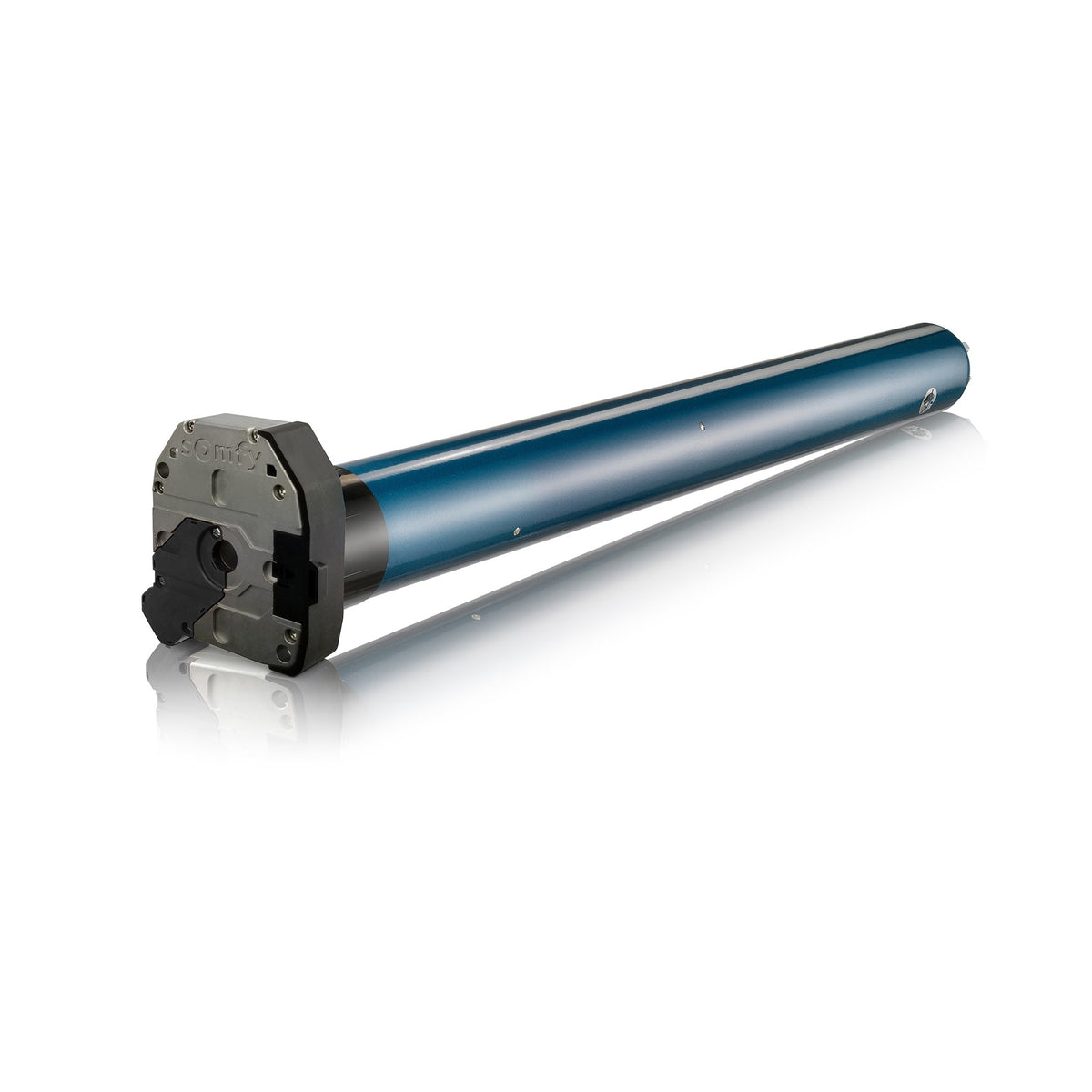

Somfy LT60 6100R2 CMO 120V 4-Wire Motor (1166016)

SKU: 1166016

$782.28

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

Somfy LT60 6100R2 Standard 4-Wire Motor with Compact Manual Override (CMO) for hand-crank operation during a power outage -- heavy-duty exterior tubular motor

The Somfy LT60 6100R2 is a wired heavy-duty exterior tubular motor with Compact Manual Override (CMO) for hand-crank operation during a power outage, delivering 100Nm (880" lb) at 14 rpm -- the 600 Series platform built for large awnings and rolling shutters beyond the LT50's torque range.

Benefits

Standard 4-wire control -- wired switch or relay
Compact Manual Override (CMO) for hand-crank operation during a power outage
Heavy-duty 600 Series platform built for large exterior awnings and rolling shutters
Star-head mounting, detachable power cable at the motor head
5-year Somfy warranty

Specifications

Torque / Speed	100 Nm (880 in-lb) / 14 rpm
Control	Standard 4-wire
Override	Compact Manual Override (CMO)
Power supply	120V AC, 60Hz
Head type	Star head
Warranty	5 years

Compatible with: LT60 crown and drive sets

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the LT60 6100R2 CMO motor used for?

Part 1166016 is a heavy-duty 120V tubular motor for large awnings and rolling shutters. Somfy rates it at 100 Nm and 14 rpm, the step up when a project needs more torque than the LT50 range delivers. It is a wired 4-wire motor with no radio receiver.

What does the CMO head do?

The Compact Manual Override (CMO) head lets you run the awning or shutter with a hand crank when the power is out. The CMO Awning Override Shaft, 100mm with Geiger Eye (9707287), links the crank to the motor.

What power and wiring does it need?

It runs on 120V/60Hz, within 108 V to 126 V, with a rated current of 3.8 A and 430 W in operation. The 6.56 ft, 4-wire cable detaches from the motor and has stripped ends for connection to a wall switch or relay.

Which switches control it?

Use a 120V maintained switch wired to the motor's up and down leads, such as the Somfy Maintained Rocker Switch Kit (1800342). To add RTS remote control, the Universal RTS Receiver for 110V AC Motors (1810627) connects between the power feed and the motor.

What tube size and hardware does it fit?

Somfy lists a minimum tube internal diameter of 2.37 in. The Octagonal LT60 70mm Crown and Drive Set (9012247) fits this motor. The motor weighs 11.97 lb, so choose brackets rated to carry that load along with the awning or shutter.

How are the limits set, and is there a radio version?

The 6100R2 uses mechanical limits with a capacity of 34 turns. Somfy rates it at 67 dB and IP 44, and it carries a 5-year warranty. For a built-in radio receiver, the LT60 6100R2 Altus RTS (1166289) is the RTS version.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

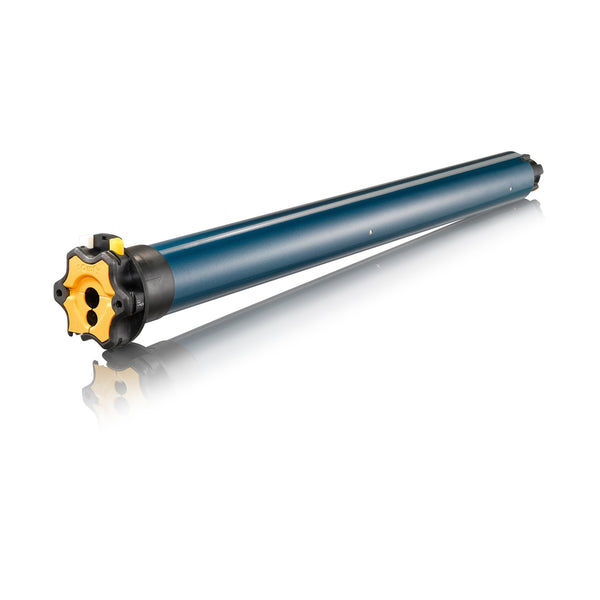

Specification	You're viewing Somfy LT60 6100R2 CMO 120V 4-Wire Motor (1166016)	Somfy LT60 6100R2 Altus RTS 120V 3-Wire Motor (1166289)	Somfy LT60 680R2 CMO 120V 4-Wire Motor (1164013)	Somfy LT60 6100R2 Standard 120V 4-Wire Motor (1166290)
Price	$782.28	$687.80	$645.98	$555.61
Torque (Nm)	100.0	100.0	80.0	100.0
Speed (rpm)	14	14	14	14
Control	Wired 4-wire	RTS radio	Wired 4-wire	Wired 4-wire
Power	120V AC	120V AC	120V AC	120V AC
Motor family	LT60	LT60	LT60	LT60
Manual crank override	Yes	—	Yes	—
What's different	The product on this page	Same size, RTS radio control	80.0 Nm instead of 100.0	Close alternative
Buy	Currently viewing	View details	View details	View details
