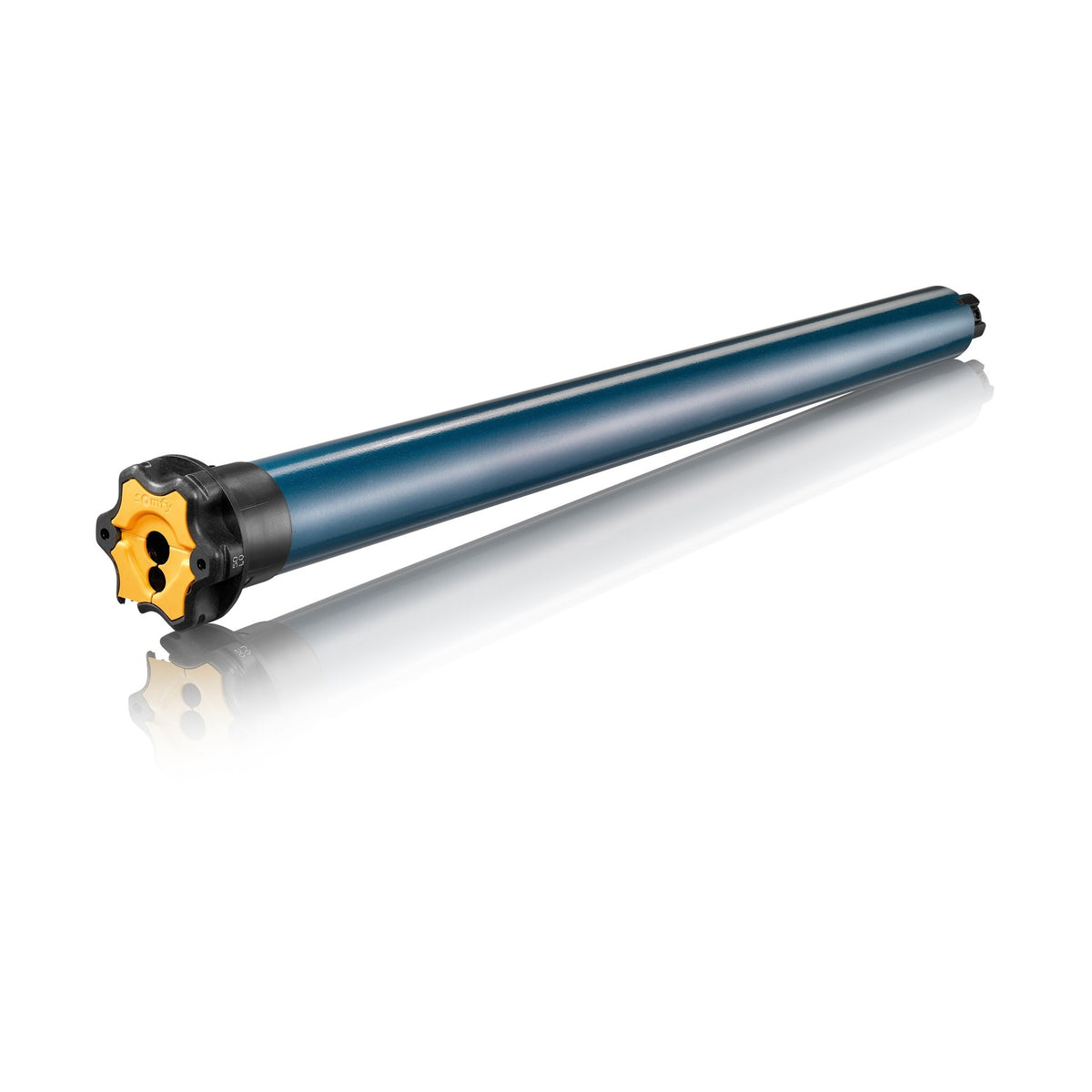

Somfy LT50 535A2 Orea RTS 120V 3-Wire Cassette Awning Motor (legacy 1037522) (1038173)

Somfy LT50 535A2 Orea RTS 120V Cassette Awning Motor, part 1038173, features: 35 Nm, 20 rpm, built-in RTS radio, made for the Orea cassette awning platform

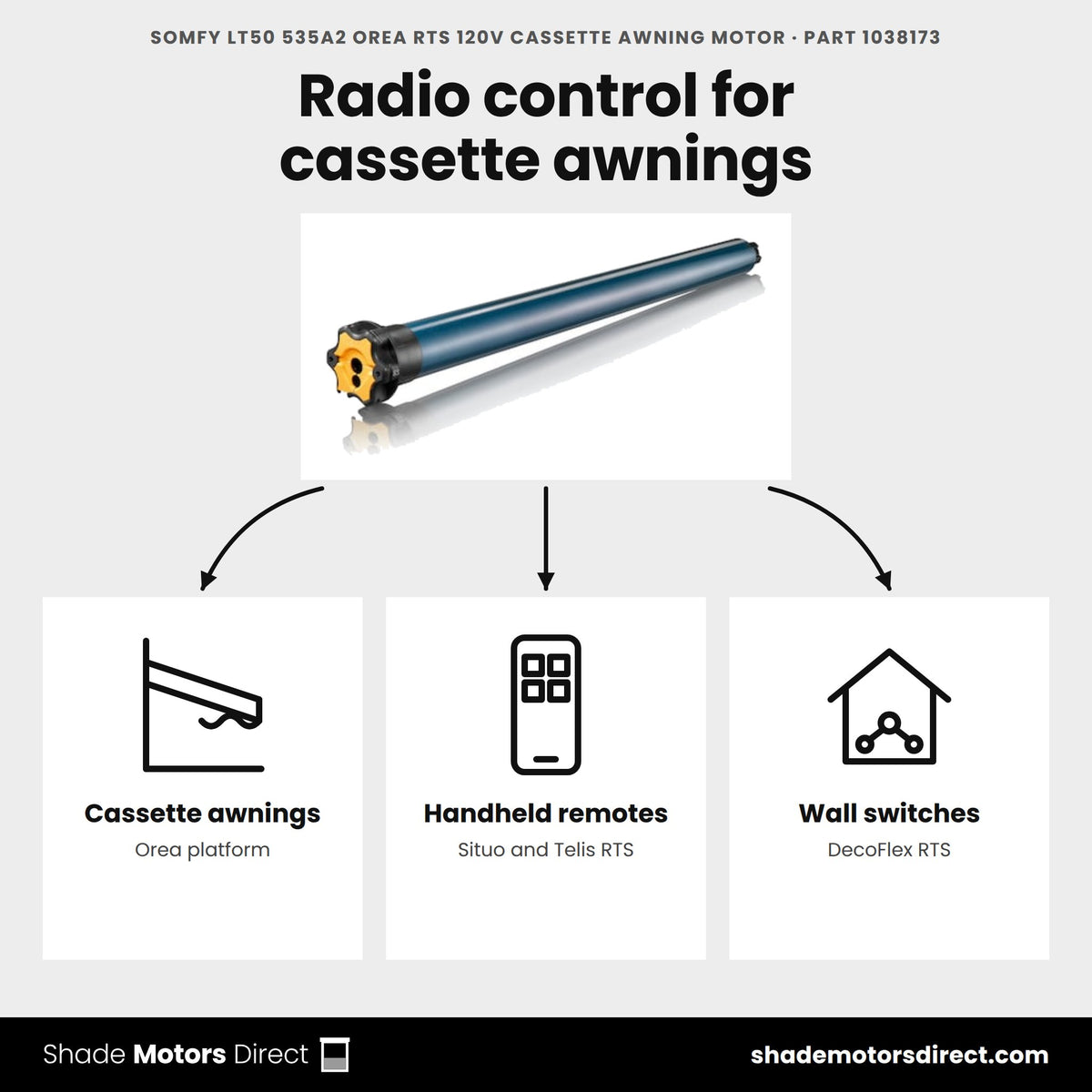

Somfy LT50 535A2 Orea RTS motor 1038173 uses: Orea cassette awnings, Situo and Telis remotes, DecoFlex RTS switches

Parts that work with the Somfy LT50 535A2 Orea RTS motor 1038173: Situo 1 Pure RTS remote 1870571, DecoFlex 5-channel RTS switch 1810813, Telis 16 Pure RTS remote 1811081

Somfy LT50 535A2 Orea RTS motor 1038173 compared: Orea 550R2 RTS 1038174, Oximo 525A2 RTS 1033402

Buy the Somfy LT50 535A2 Orea RTS 120V Cassette Awning Motor, part 1038173, genuine new with 5-year warranty, from ShadeMotorsDirect

Somfy LT50 535A2 Orea RTS 120V 3-Wire Cassette Awning Motor (legacy 1037522) (1038173)

SKU: 1038173

$546.50

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

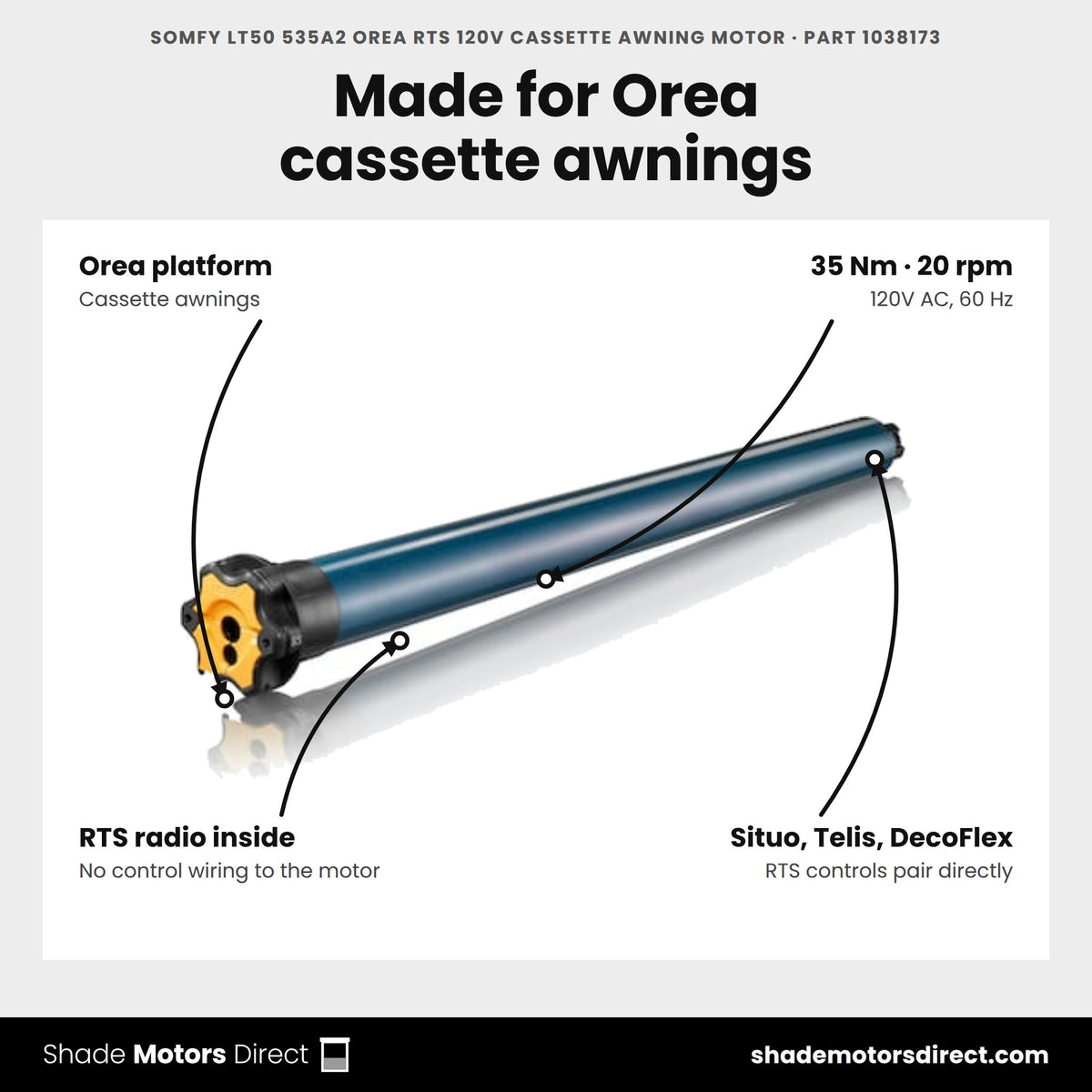

Somfy Orea 535A2 RTS Motor -- wireless cassette awning motor

The Somfy Orea 535A2 RTS is a wireless, radio-controlled motor built for Orea cassette-integrated awning and shading systems, delivering 35Nm (310" lb) at 20 rpm. Orea integrates the motor into a cassette awning housing -- crown/drive and bracket hardware is cassette-specific and not part of ShadeMotorsDirect's standard LT50 accessory set, so none is listed here; confirm cassette hardware compatibility directly with the cassette system being installed. Legacy reference 1037522.

Benefits

Radio Technology Somfy (RTS) -- no control wiring back to the motor required
Pairs with Situo/Telis handheld remotes and DecoFlex wall switches
Purpose-built for the Orea cassette awning platform
5-year Somfy warranty

Specifications

Torque / Speed	35 Nm (310 in-lb) / 20 rpm
Control	RTS (433.42 MHz radio)
Power supply	120V AC, 60Hz
Platform	Orea cassette
Warranty	5 years

Compatible with: Orea cassette awning hardware, Situo/Telis RTS remotes, RTS wall switches

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Orea RTS 535A2 designed for?

Part 1038173 is a 120V RTS tubular motor that Somfy builds for cassette awnings, and Somfy also lists exterior solar screens among its applications. It carries the legacy reference 1037522 for buyers matching an older part.

What torque and speed does it deliver?

Somfy rates the Orea RTS 535A2 at 35 Nm of torque and 20 rpm. It draws 240 W while running and 0 W in standby, fits tubes with an inside diameter of 1.85 in or larger, and lists a noise level of 56 dB.

Which crown, drive and brackets does it need?

Orea mounting hardware is specific to the cassette system, so match the crown, drive and brackets to the cassette you are installing. Somfy lists a star head and a 1.85 in minimum tube inside diameter to help you confirm fit.

How is the motor powered and wired?

It runs on 120V/60Hz through a 3-wire cable, and the RTS receiver inside the motor removes the need for control wiring. Somfy describes the install as plug-and-play and rates the motor IP 44.

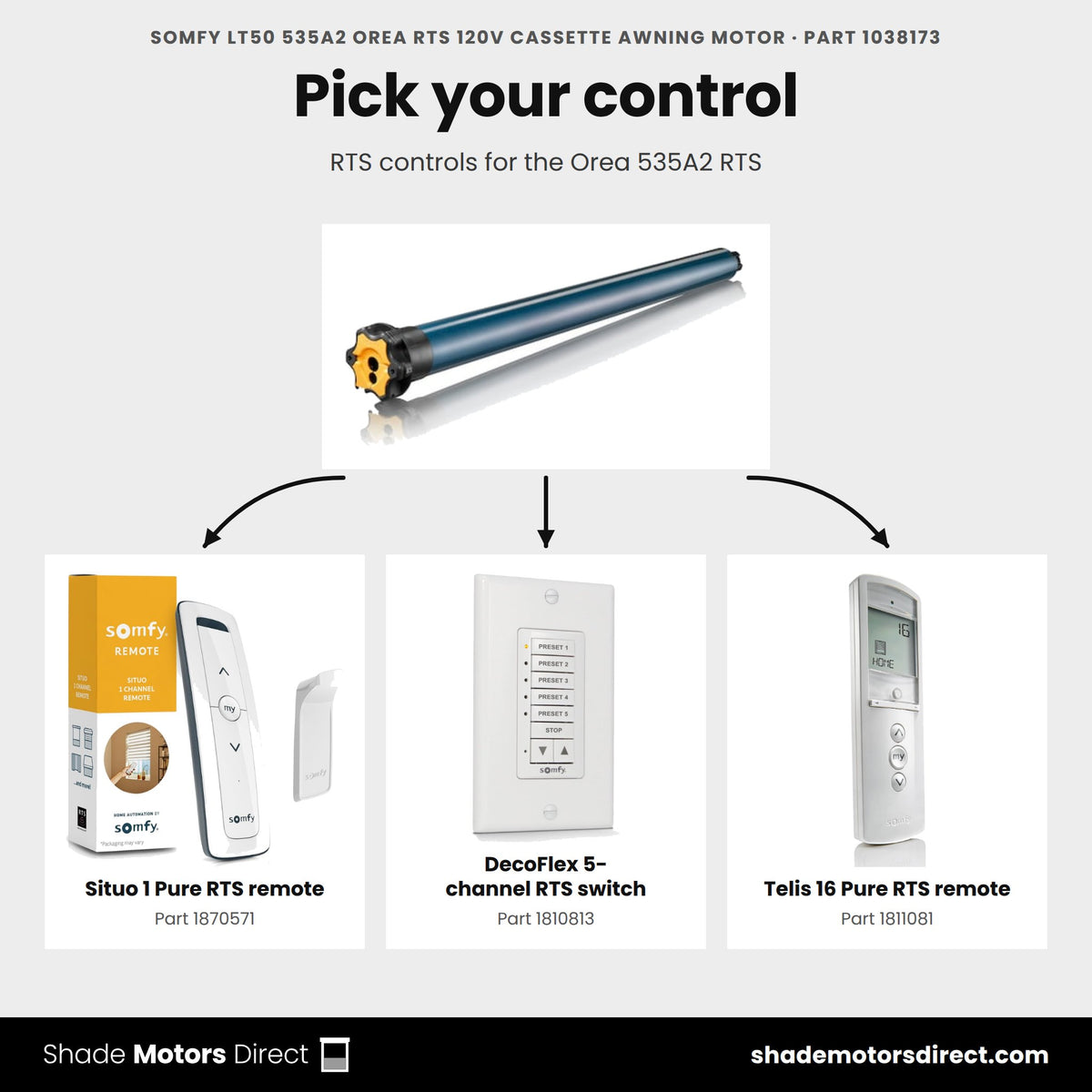

Which remotes and sensors work with it?

Any Somfy RTS remote, wall switch, timer or sensor pairs with it, such as the Situo 1 Channel RTS Pure Remote (1870571) or the Eolis 3D WireFree RTS Wind Sensor (1816081). Somfy lists 12 channels and 656.2 ft of open-field range.

Can I run the awning from my phone?

Yes. A Somfy TaHoma Switch (1871037), or the version with an Ethernet adaptor (1871038), adds app and voice control. RTS sends one-way commands, so the app does not show the awning's position.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

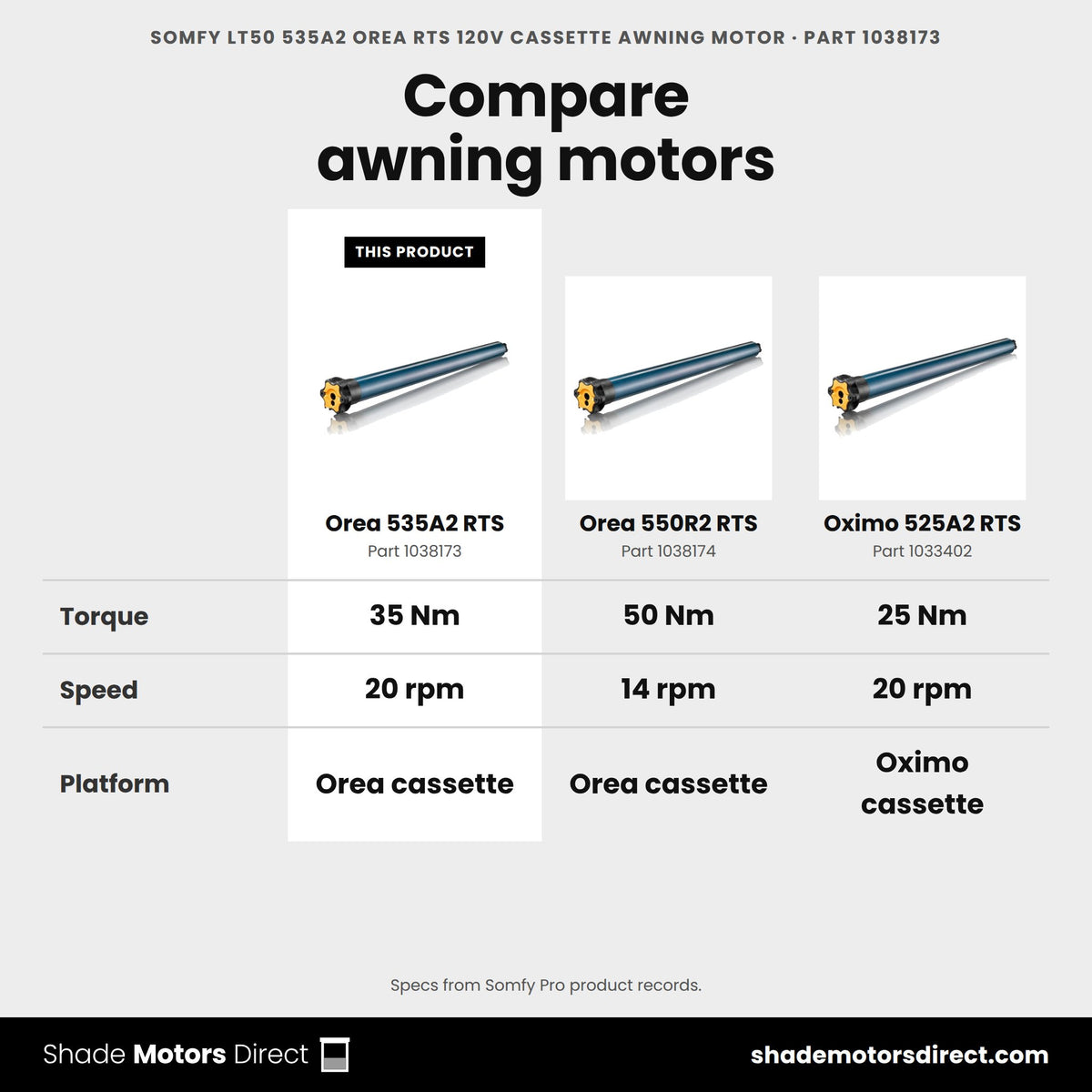

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy LT50 535A2 Orea RTS 120V 3-Wire Cassette Awning Motor (legacy 1037522) (1038173)	Somfy LT50 550R2 Orea RTS Cassette Awning Motor (1038174)	Somfy Sunea 535A2 CMO RTS 120V Motor (1116321)	Somfy Oximo LT50 525A2 RTS 120V 3-Wire Motor (legacy 1033035) (1033402)
Price	$546.50	$595.83	$607.11	$448.59
Torque (Nm)	35.0	50.0	35.0	25.0
Speed (rpm)	20	14	20	20
Control	RTS radio	RTS radio	RTS radio	RTS radio
Power	120V AC	120V AC	120V AC	120V AC
Motor family	Orea cassette	Orea cassette	Sunea	Oximo cassette
Manual crank override	—	—	Yes	—
What's different	The product on this page	50.0 Nm instead of 35.0	Close alternative	25.0 Nm instead of 35.0
Buy	Currently viewing	View details	View details	View details
