Somfy 530R2 RTS CMO 120V 3-Wire Motor (1051476)
Somfy 530R2 RTS CMO 120V 3-Wire Motor (1051476)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

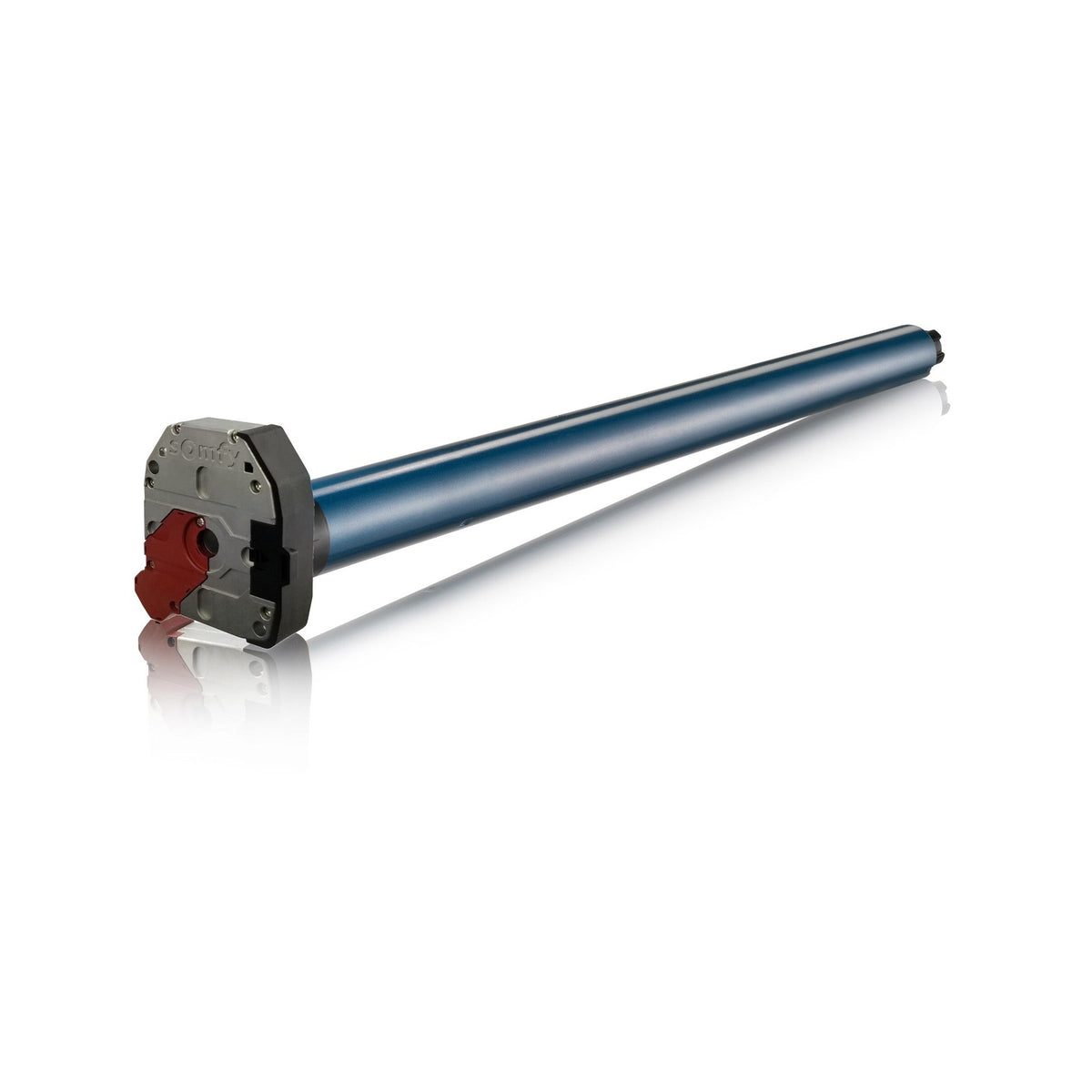

Somfy LT50 530R2 CMO RTS Motor -- wireless exterior motor with manual override
The Somfy LT50 530R2 CMO is a wireless, radio-controlled exterior tubular motor with a Compact Manual Override (CMO), letting the shade or awning be operated by hand crank if power is unavailable. It delivers 30Nm (264" lb) at 14 rpm for awnings and rolling shutters.

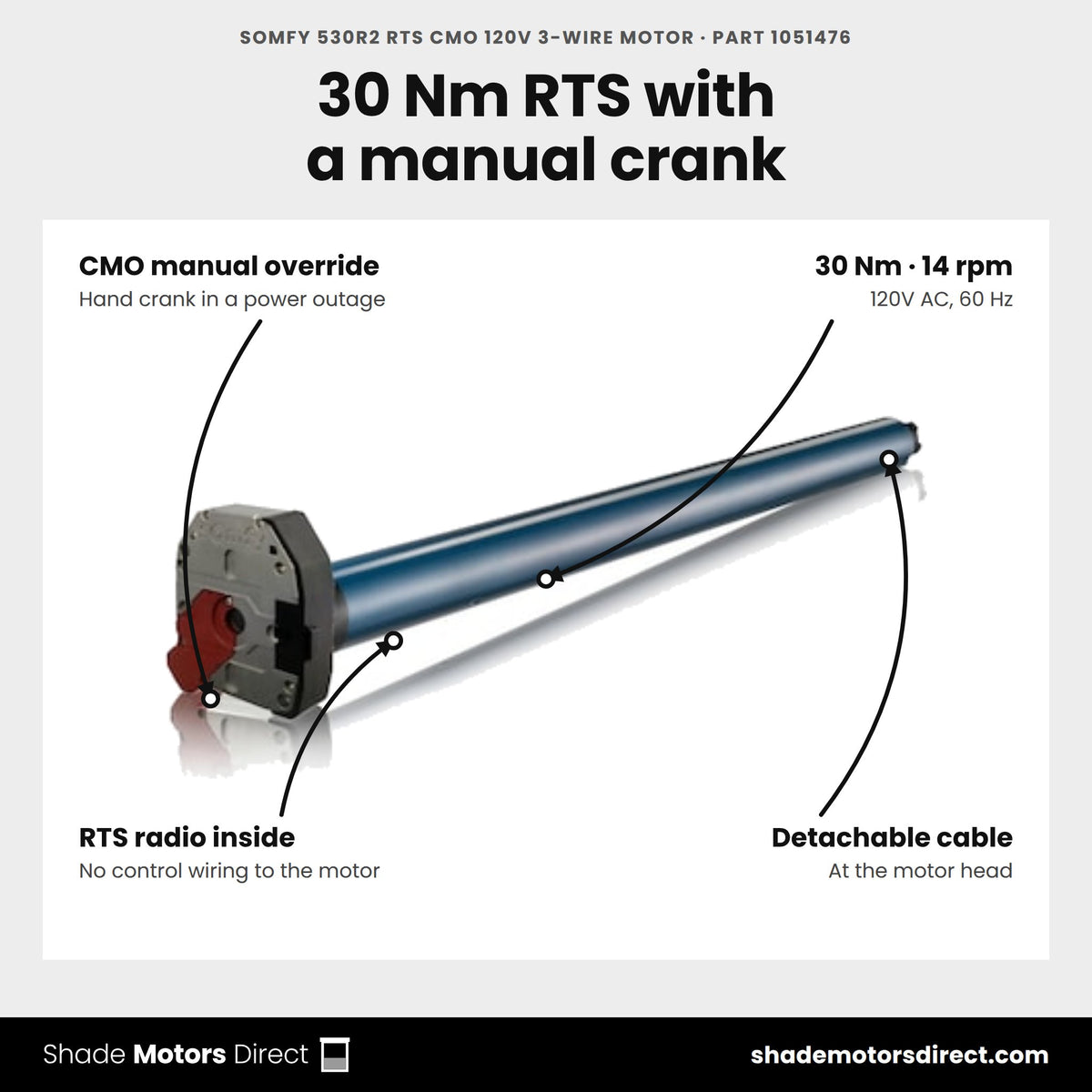

Benefits
- Compact Manual Override (CMO) for hand-crank operation during a power outage
- Radio Technology Somfy (RTS) -- no control wiring back to the motor required
- Detachable power cable at the motor head
- 5-year Somfy warranty
Specifications
| Torque / Speed | 30 Nm (264 in-lb) / 14 rpm |
| Control | RTS (433.42 MHz radio) |
| Override | Compact Manual Override (CMO) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |

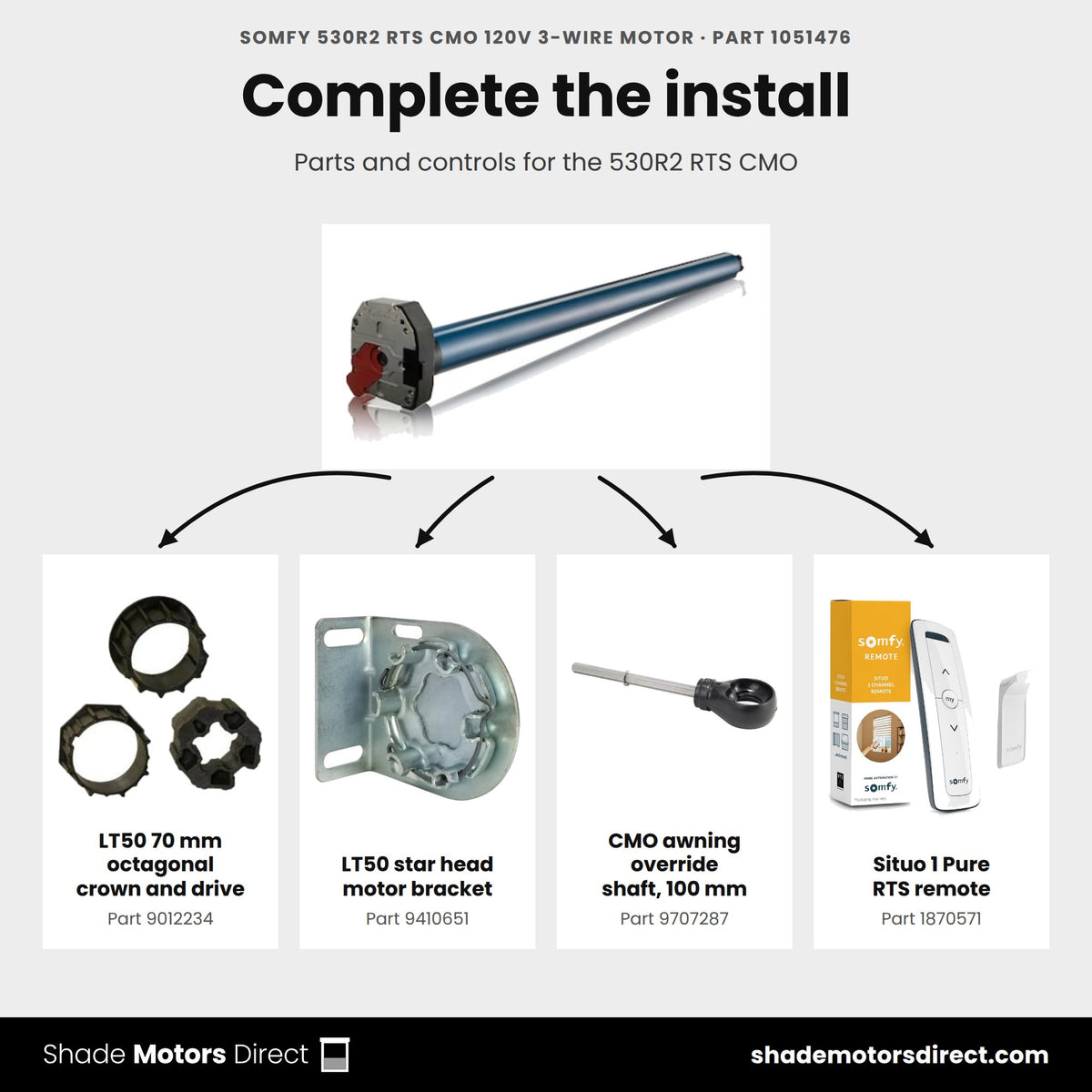

Compatible with: LT50 crown and drive sets, LT50 CMO override hardware, Situo/Telis RTS remotes, RTS wall switches
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the 530R2 RTS CMO motor?
It is a 120V LT50 tubular motor that pairs a Somfy RTS radio receiver with a compact manual override (CMO). Somfy lists it for motorized awnings and rolling shutters, and it is rated at 30 Nm of torque.
What does the manual override do?
The CMO lets you raise or lower the awning or shutter by hand crank when power is out. The CMO Awning Override Shaft, 100mm with Geiger Eye (9707287) is one override part this store carries for CMO motors.
What power does it need?
It runs on 120V AC and uses 170 W during operation and 0 W on standby. The power cable detaches at the motor head, and the built-in radio takes control wiring off the job.
Which remotes work with it?
Any Somfy RTS transmitter pairs with it, including the Situo 1 Channel RTS Pure Remote (1870571) and the Telis 4 RTS Patio Remote (1810645). Somfy lists 12 channels on the 433.420 MHz RTS band.
Can I run it from an app?
Yes. Somfy lists the TaHoma switch (1871037) as a compatible control, and it adds app control, schedules and voice commands. RTS is one-way radio, so the app sends commands but does not report position.
Is it rated for outdoor use?
Somfy rates it IP 44 with UL approval, and it carries a 5-year Somfy warranty. Somfy states that motorized awnings can cut summer heat gain by up to 77%.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 530R2 RTS CMO 120V 3-Wire Motor (1051476)
|
Somfy 530R2 CMO 120V 4-Wire Motor (1045017)
|
Somfy 525A2 RTS CMO 120V 3-Wire Motor (1043426)
|
Somfy 535A2 RTS CMO 120V 3-Wire Motor (1047306)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 30.0 | 30.0 | 25.0 | 35.0 |
| Speed (rpm) | 14 | 14 | 20 | 20 |
| Control | RTS radio | Wired 4-wire | RTS radio | RTS radio |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| Manual crank override | Yes | Yes | Yes | Yes |
| What's different | The product on this page | Same size, Wired 4-wire control | 25.0 Nm instead of 30.0 | 35.0 Nm instead of 30.0 |
| Buy | Currently viewing | View details | View details | View details |
