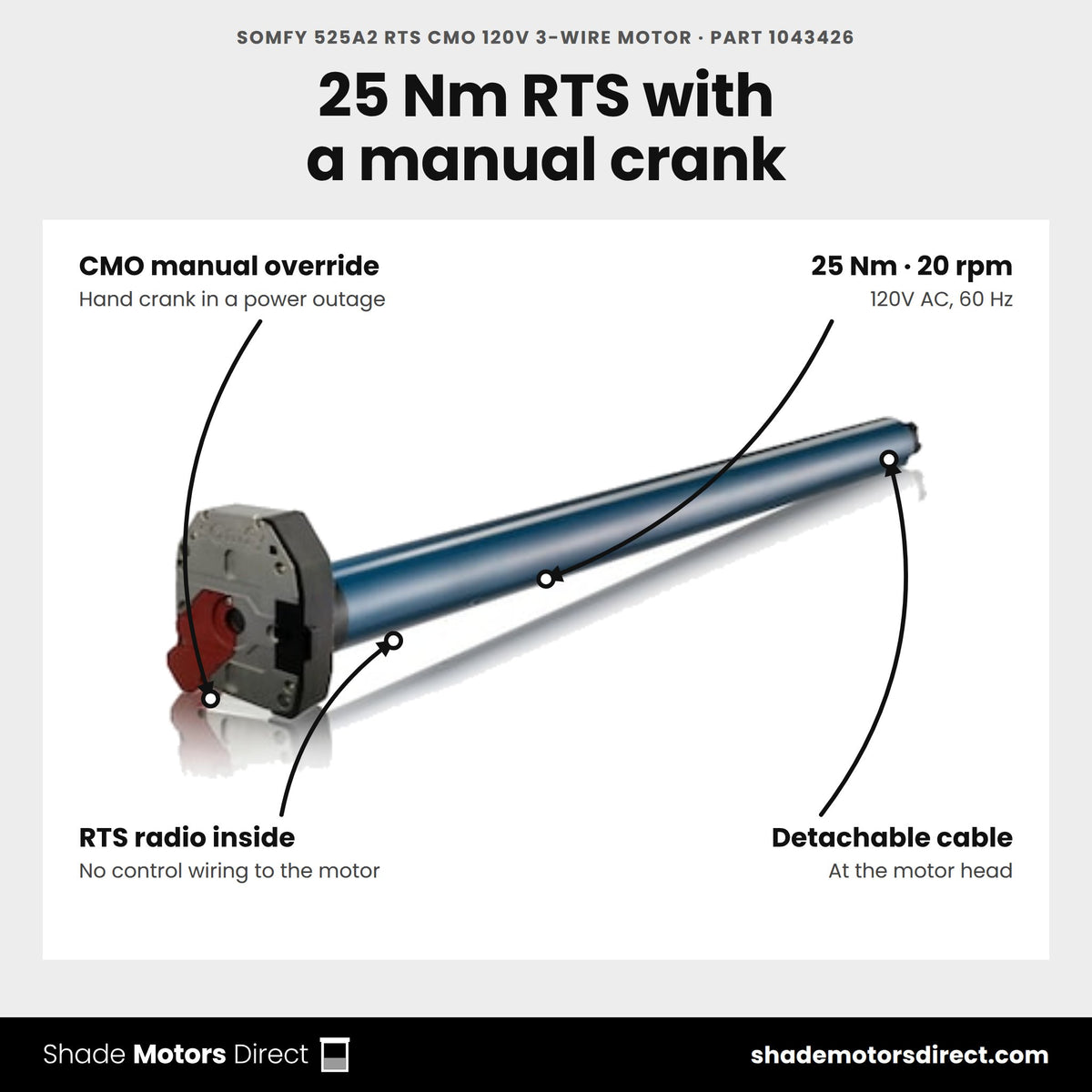

Somfy 525A2 RTS CMO 120V 3-wire motor, part 1043426, features: 25 Nm, 20 rpm, CMO manual crank override, built-in RTS radio, detachable cable

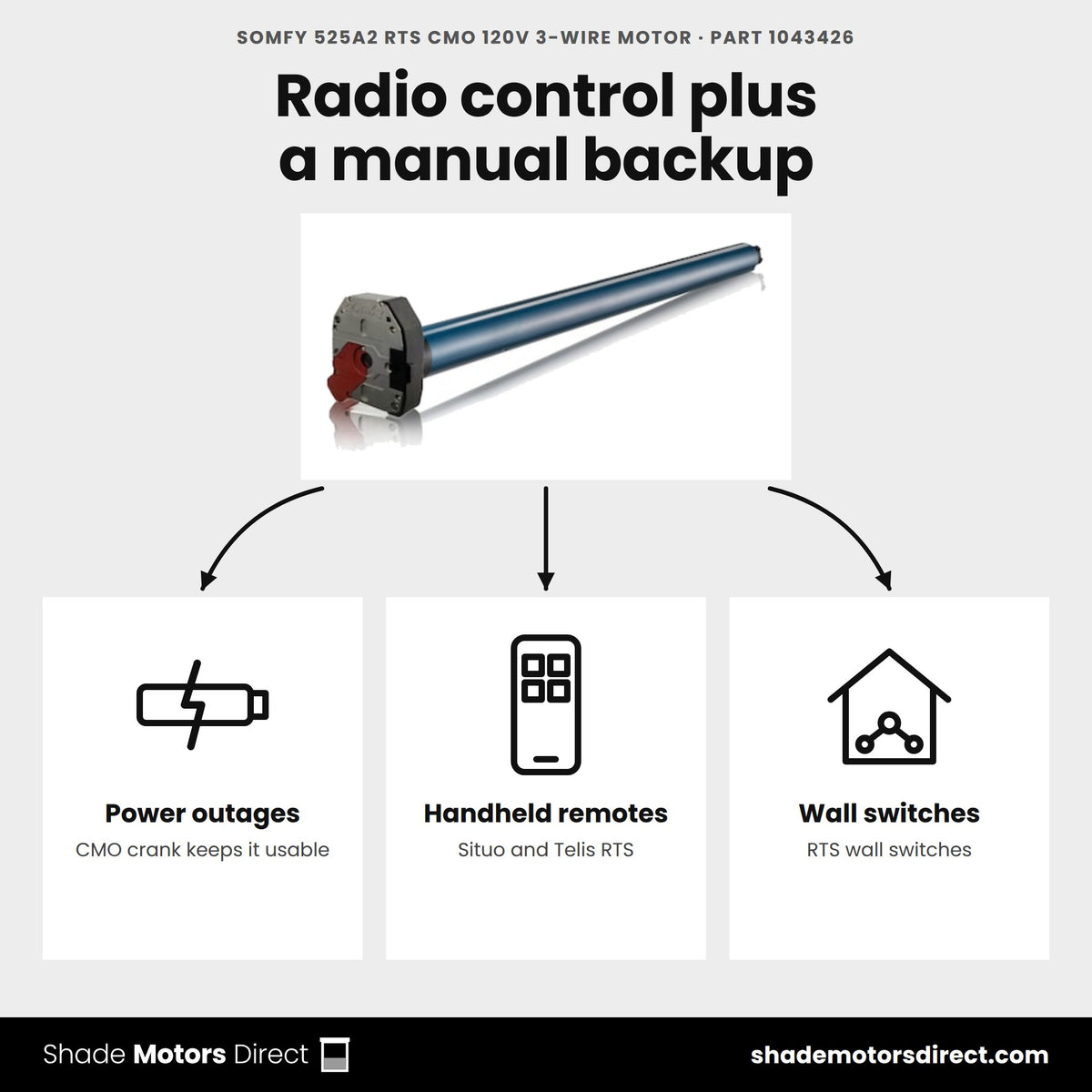

Somfy 525A2 RTS CMO motor 1043426 uses: hand crank during power outages, Situo and Telis remotes, RTS wall switches

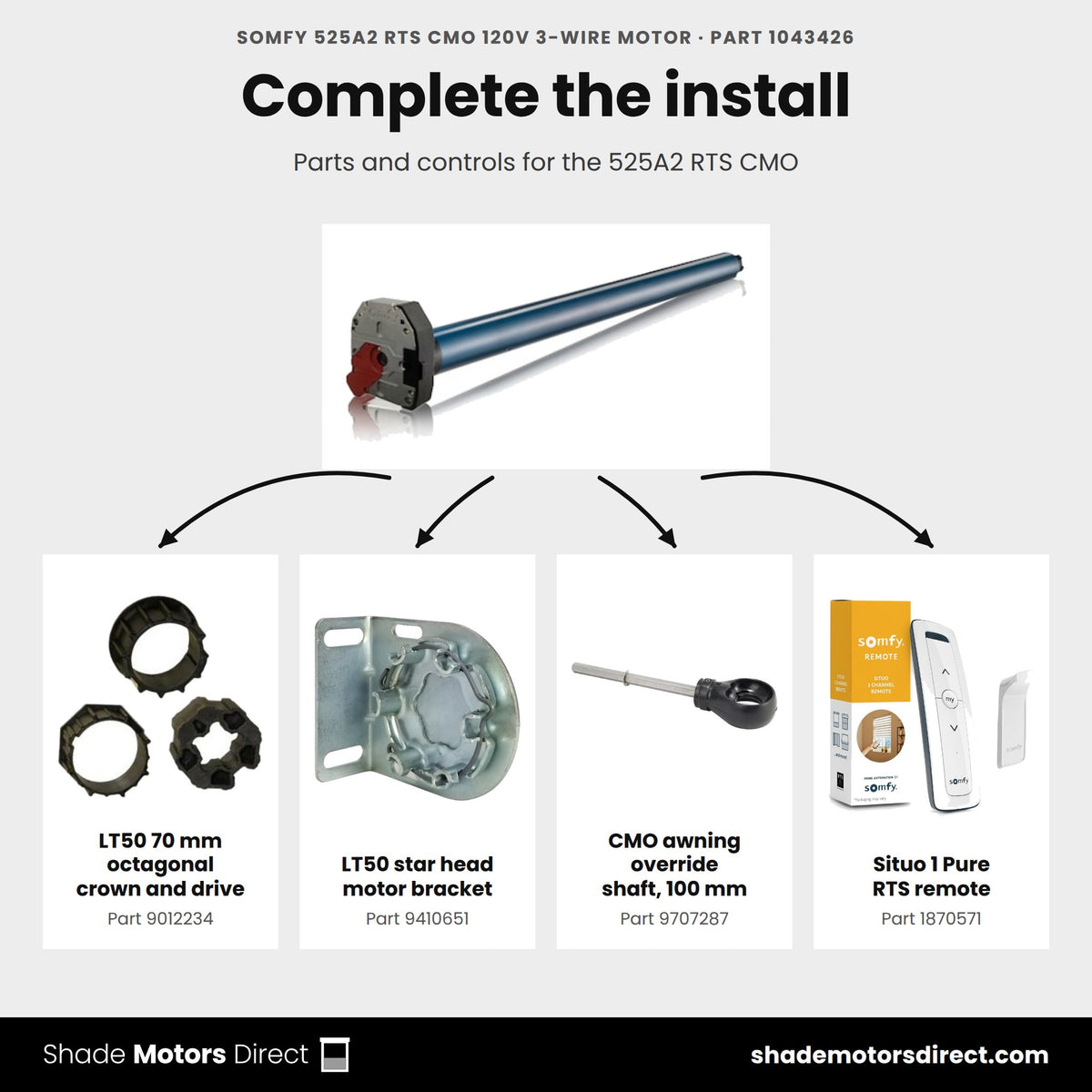

Parts that work with the Somfy 525A2 RTS CMO motor 1043426: LT50 70 mm octagonal crown and drive 9012234, LT50 star head motor bracket 9410651, CMO awning override shaft, 100 mm 9707287, Situo 1 Pure RTS remote 1870571

Somfy CMO motors compared: 525A2 RTS CMO 1043426, 525A2 CMO 4-wire 1043010, 530R2 RTS CMO 1051476

Buy the Somfy 525A2 RTS CMO 120V 3-Wire Motor, part 1043426, genuine new with 5-year warranty, from ShadeMotorsDirect

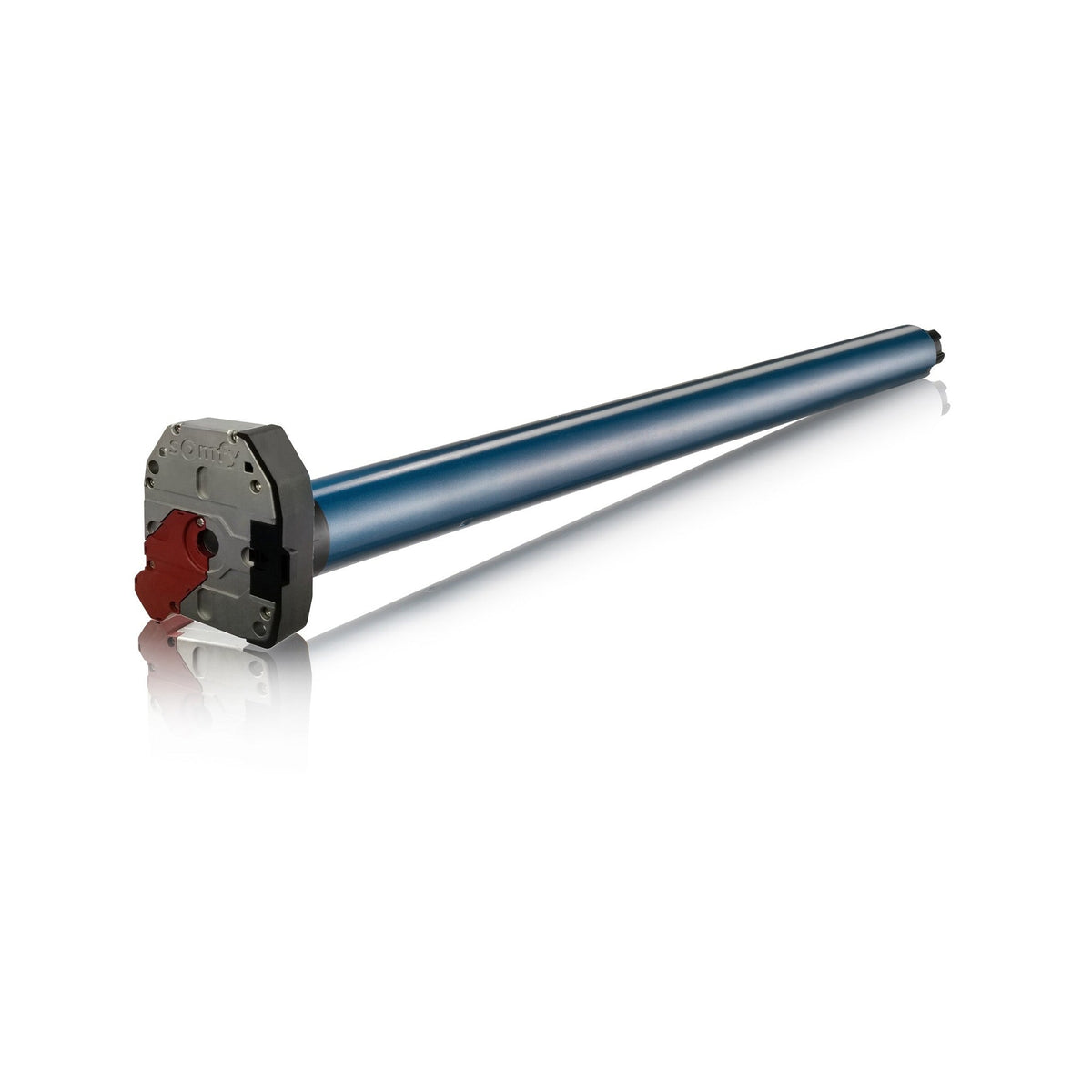

Somfy 525A2 RTS CMO 120V 3-Wire Motor (1043426)

SKU: 1043426

$544.91

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

Somfy LT50 525A2 CMO RTS Motor -- wireless exterior motor with manual override

The Somfy LT50 525A2 CMO is a wireless, radio-controlled exterior tubular motor with a Compact Manual Override (CMO), letting the shade or awning be operated by hand crank if power is unavailable. It delivers 25Nm (220" lb) at 20 rpm for awnings and rolling shutters.

Benefits

Compact Manual Override (CMO) for hand-crank operation during a power outage
Radio Technology Somfy (RTS) -- no control wiring back to the motor required
Detachable power cable at the motor head
5-year Somfy warranty

Specifications

Torque / Speed	25 Nm (220 in-lb) / 20 rpm
Control	RTS (433.42 MHz radio)
Override	Compact Manual Override (CMO)
Power supply	120V AC, 60Hz
Warranty	5 years

Compatible with: LT50 crown and drive sets, LT50 CMO override hardware, Situo/Telis RTS remotes, RTS wall switches

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the 525A2 RTS CMO motor used for?

Part 1043426 is a 120V LT50 tubular motor for awnings and rolling shutters. It combines a built-in RTS radio receiver with a Compact Manual Override (CMO) head. Somfy rates it at 25 Nm and 20 rpm.

Can I operate it during a power outage?

Yes. The CMO head accepts a hand crank, so you can move the awning or shutter by hand when the power is out. The CMO Awning Override Shaft, 100mm with Geiger Eye (9707287), links the crank to the motor.

What power and wiring does it need?

It runs on 120V/60Hz, within 108 V to 126 V, with a rated current of 1.6 A and 180 W in operation. The removable 12.3 ft, 3-wire SJTW cable has stripped ends. Standby draw is 0 W.

Which remotes and wall switches work with it?

Any Somfy RTS transmitter pairs with it, including the Telis 1 Channel RTS Patio Remote (1810643), the Telis 4 RTS Multi-Channel Patio Remote (1810645), Situo RTS Pure remotes (1870571, 1870575) and the DecoFlex 5 Channel RTS Wall Switch (1810813). The motor stores up to 12 transmitters.

How are the limits set, and what conditions can it handle?

The motor uses electronic limits with a capacity of 34 turns. Somfy rates it at IP 44 and lists an operating range of -13 °F to 158 °F. The compatible parts on this page include the Octagonal LT50 70mm Crown and Drive Set (9012234).

Can I add app control or a stronger motor?

Yes. A Somfy TaHoma Switch (1871037) adds app control, schedules and voice control. For larger awnings, the 535A2 RTS CMO 120V Motor (1047306) delivers 35 Nm at the same 20 rpm with the same CMO head.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

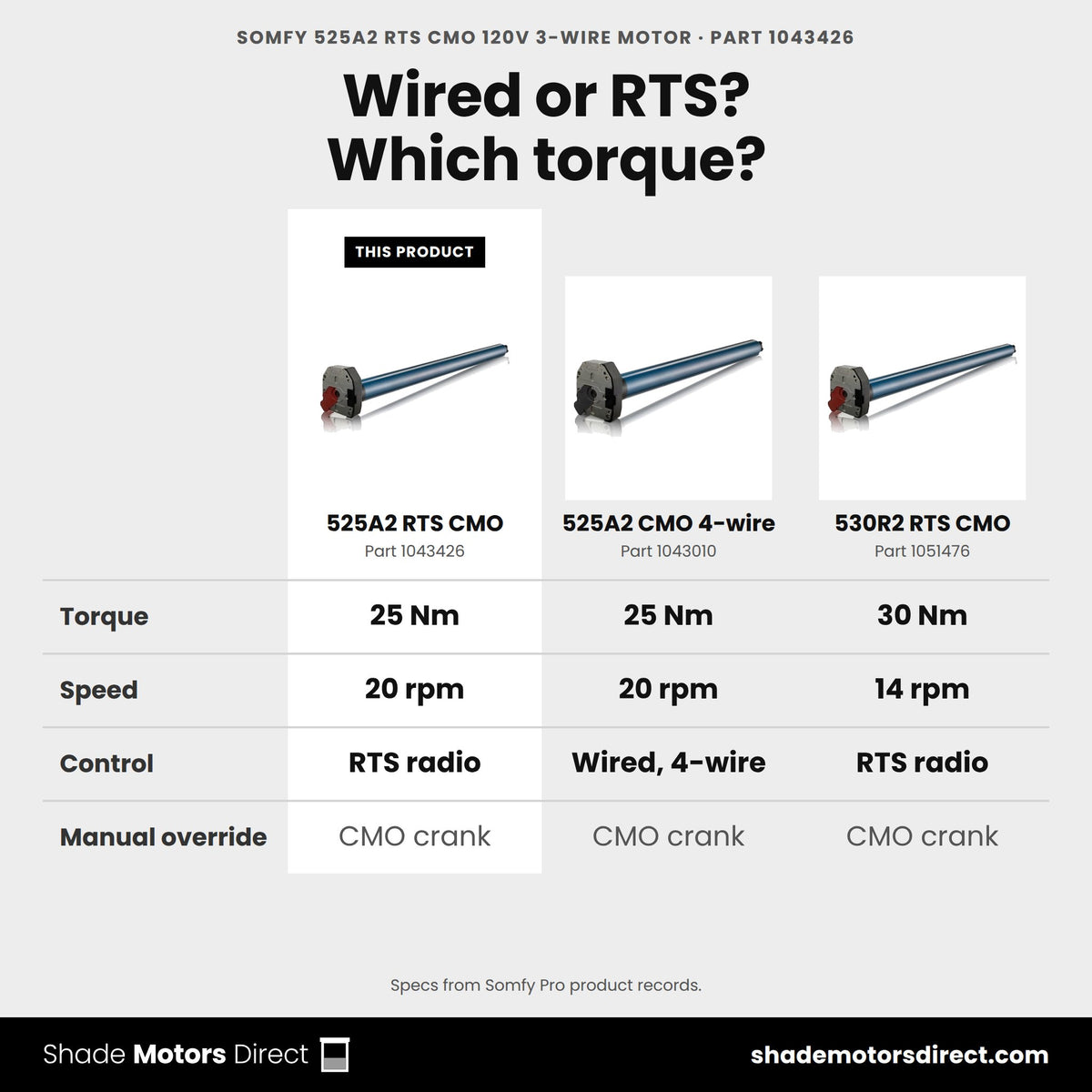

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy 525A2 RTS CMO 120V 3-Wire Motor (1043426)	Somfy 525A2 CMO 120V 4-Wire Motor (1043010)	Somfy 530R2 RTS CMO 120V 3-Wire Motor (1051476)	Somfy 525A2 120V 4-Wire Motor (1043424)
Price	$544.91	$444.47	$586.39	$355.95
Torque (Nm)	25.0	25.0	30.0	25.0
Speed (rpm)	20	20	14	20
Control	RTS radio	Wired 4-wire	RTS radio	Wired 4-wire
Power	120V AC	120V AC	120V AC	120V AC
Motor family	LT50	LT50	LT50	LT50
Manual crank override	Yes	Yes	Yes	—
What's different	The product on this page	Same size, Wired 4-wire control	30.0 Nm instead of 25.0	Same size, Wired 4-wire control
Buy	Currently viewing	View details	View details	View details
