Somfy 530R2 CMO 120V 4-Wire Motor (1045017)
Somfy 530R2 CMO 120V 4-Wire Motor (1045017)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

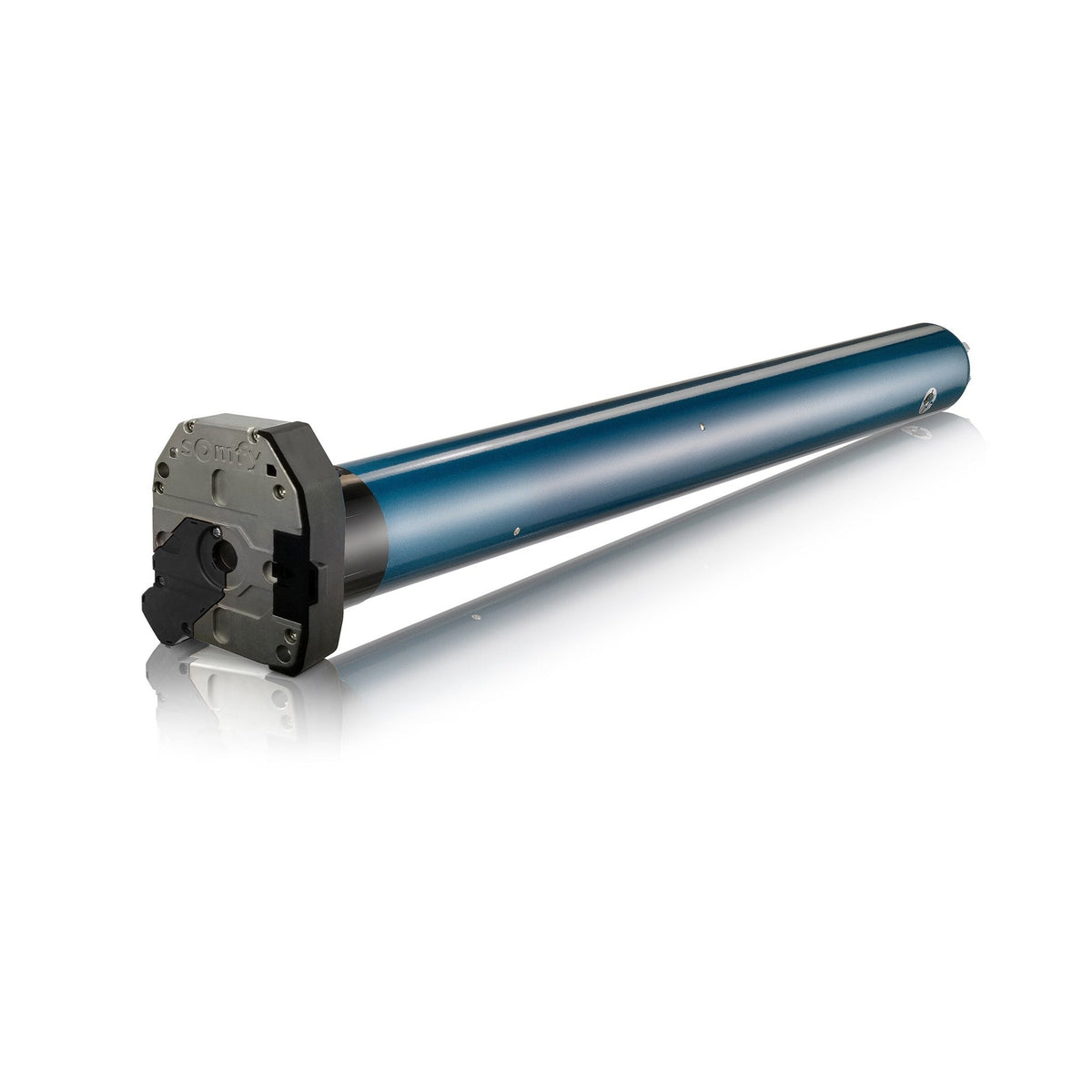

Somfy LT50 530R2 CMO Standard 4-wire Motor -- standard exterior motor with manual override
The Somfy LT50 530R2 CMO is a wired exterior tubular motor with a Compact Manual Override (CMO), letting the shade or awning be operated by hand crank if power is unavailable. It delivers 30Nm (264" lb) at 14 rpm for awnings and rolling shutters.

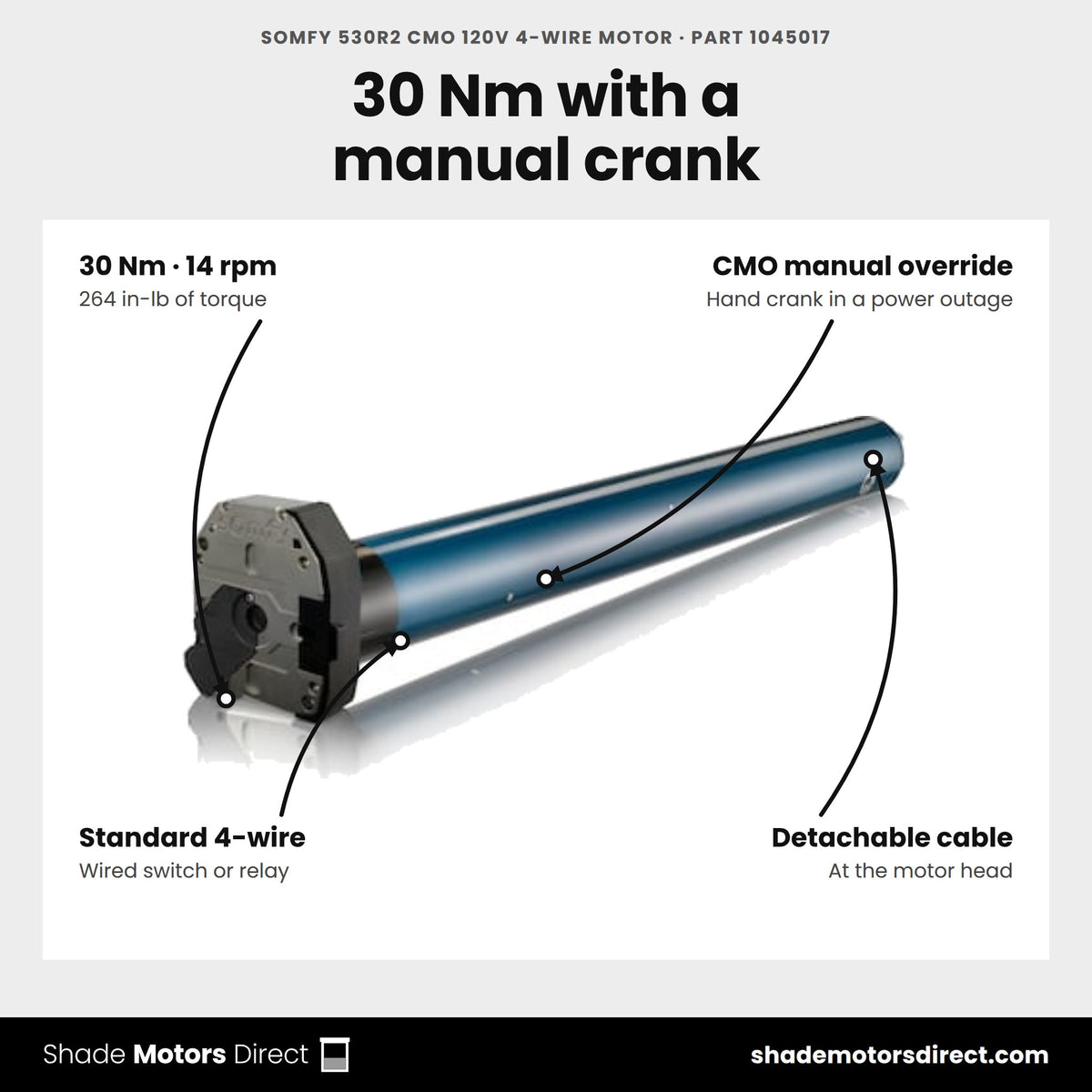

Benefits

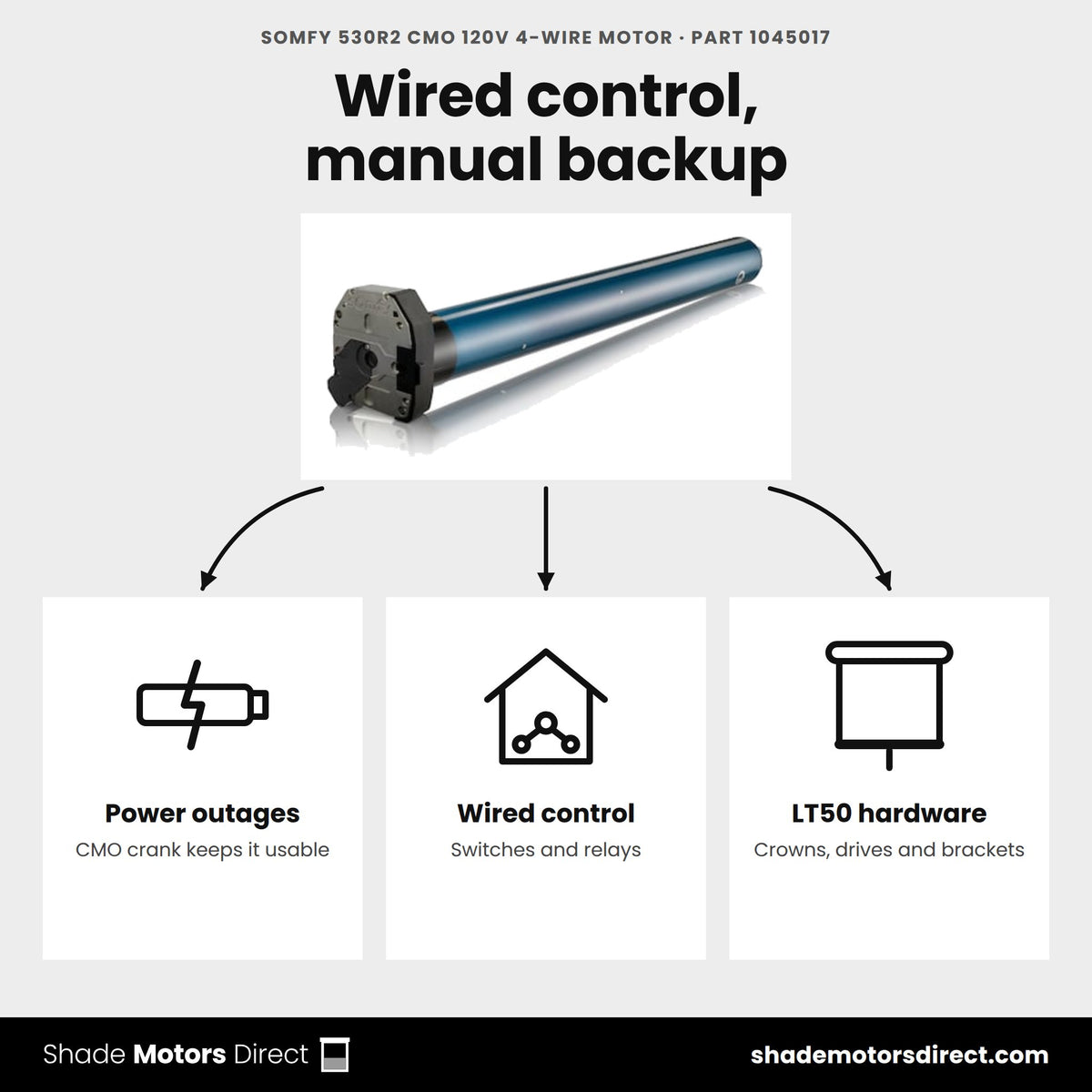

- Compact Manual Override (CMO) for hand-crank operation during a power outage
- Standard 4-wire control -- wired switch or relay
- Detachable power cable at the motor head
- 5-year Somfy warranty
Specifications
| Torque / Speed | 30 Nm (264 in-lb) / 14 rpm |
| Control | Standard 4-wire |
| Override | Compact Manual Override (CMO) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |

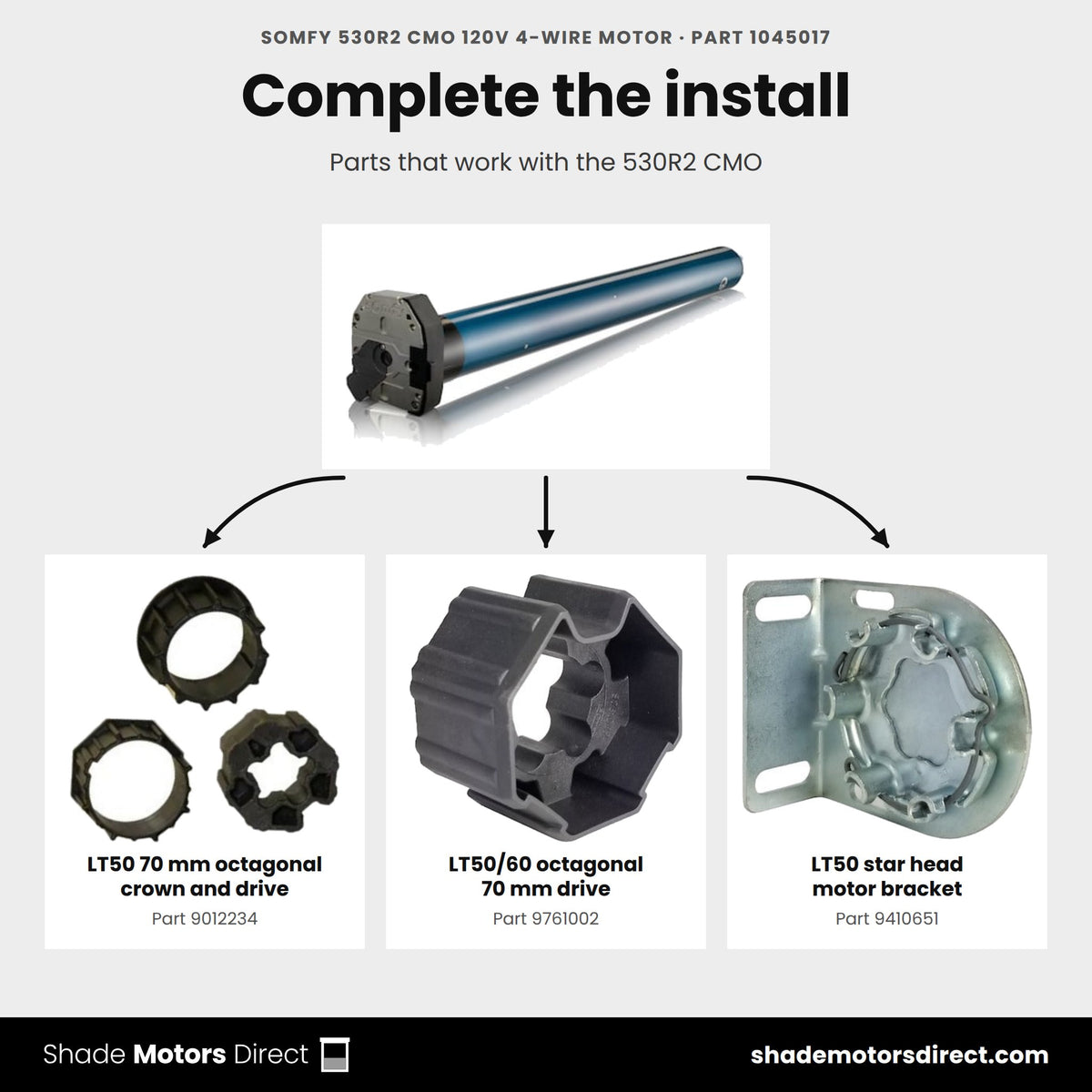

Compatible with: LT50 crown and drive sets, LT50 CMO override hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the 530R2 CMO deliver?
Somfy rates part 1045017 at 30 Nm of torque and 14 rpm. This LT50 wired motor drives exterior awnings and rolling shutters, and its Compact Manual Override (CMO) allows hand operation.
How does the manual override help during an outage?
When the power is out, a crank handle turns the motor through the CMO head so you can open or close the awning or shutter by hand. This page lists the CMO Awning Override Shaft with Geiger eye (9707287) for that setup.
What power does it need, and how is it wired?
It runs on 120V/60Hz, draws 1.5 A and uses 170 W while running. A 6.56 ft, 4-wire cable connects the motor to line power and a wired up/down switch or relay.
Which tubes and crowns fit?
Somfy lists a minimum tube inside diameter of 1.85 in. You buy crowns and drives as separate parts; this page lists the LT50 2.5 in round crown and drive set (9012231) and the LT50 70mm octagonal set (9012234).
Does it work with RTS remotes or the TaHoma app?
This motor has no built-in radio, so it takes commands from a wired switch or relay. For RTS remotes and app control through TaHoma, choose the 530R2 RTS CMO 120V 3-Wire Motor (1051476).
What if my awning needs more torque?
Somfy builds the same CMO motor in higher ratings. The 535A2 CMO (1047006) delivers 35 Nm at 20 rpm, and the 550R2 CMO (1051014) delivers 50 Nm at 14 rpm, both with a 4-wire cable.
Couldn't load pickup availability

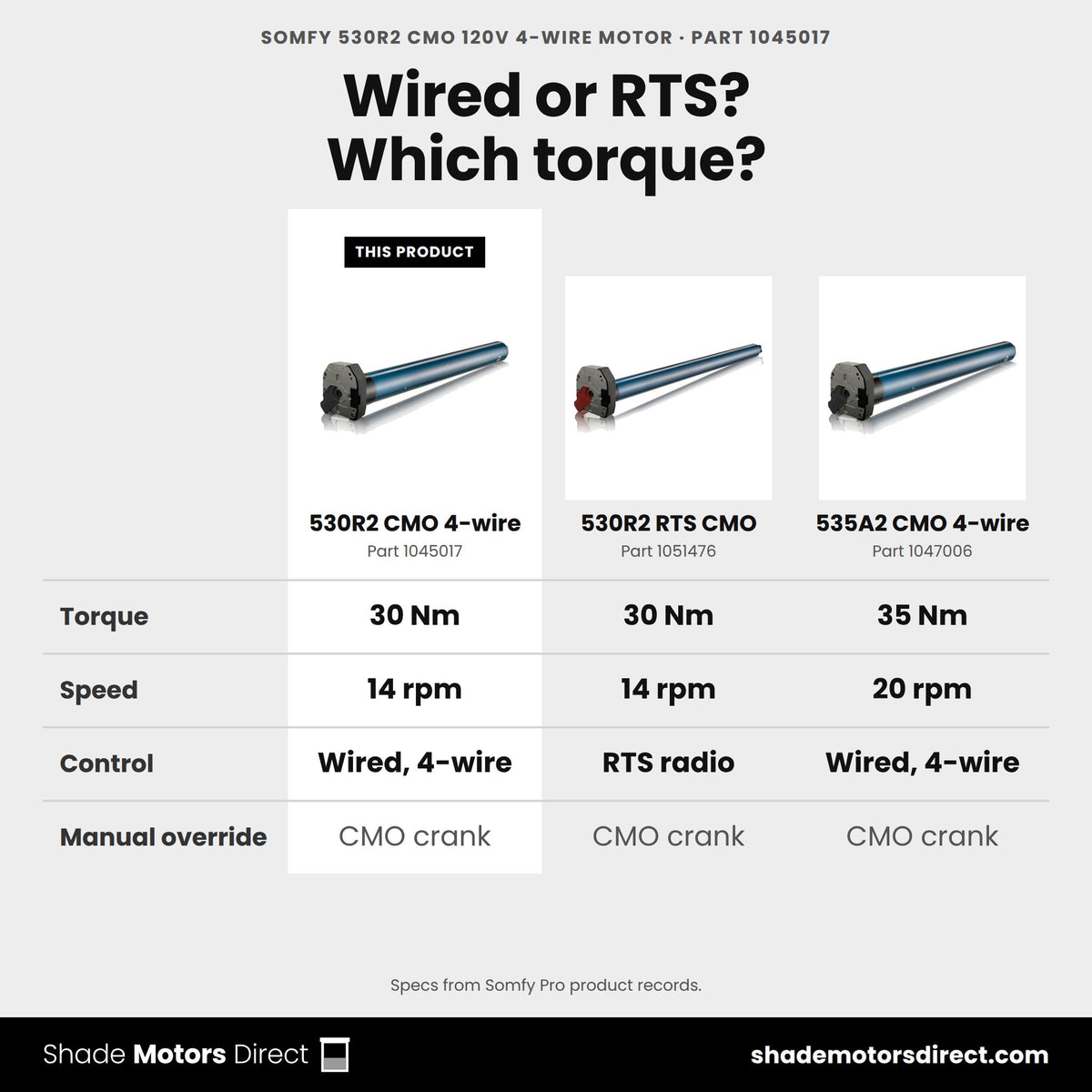

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 530R2 CMO 120V 4-Wire Motor (1045017)
|
Somfy 530R2 RTS CMO 120V 3-Wire Motor (1051476)
|

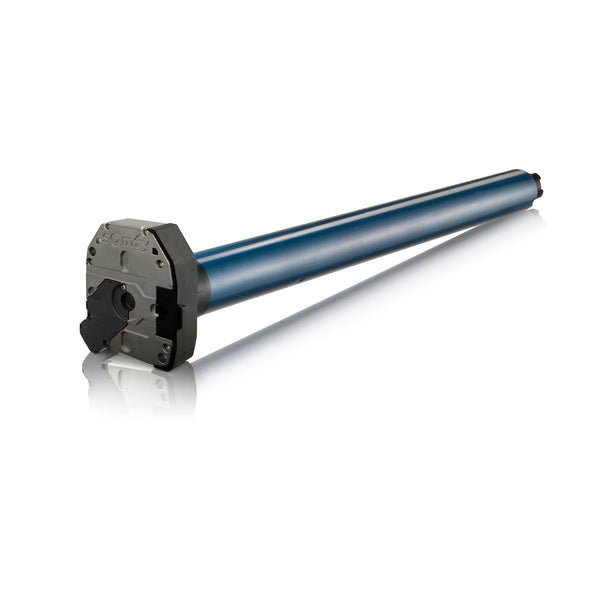

Somfy 525A2 CMO 120V 4-Wire Motor (1043010)
|
Somfy 535A2 CMO 120V 4-Wire Motor (1047006)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 30.0 | 30.0 | 25.0 | 35.0 |
| Speed (rpm) | 14 | 14 | 20 | 20 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| Manual crank override | Yes | Yes | Yes | Yes |
| What's different | The product on this page | Same size, RTS radio control | 25.0 Nm instead of 30.0 | 35.0 Nm instead of 30.0 |
| Buy | Currently viewing | View details | View details | View details |
