Somfy 535A2 CMO 120V 4-Wire Motor (1047006)
Somfy 535A2 CMO 120V 4-Wire Motor (1047006)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

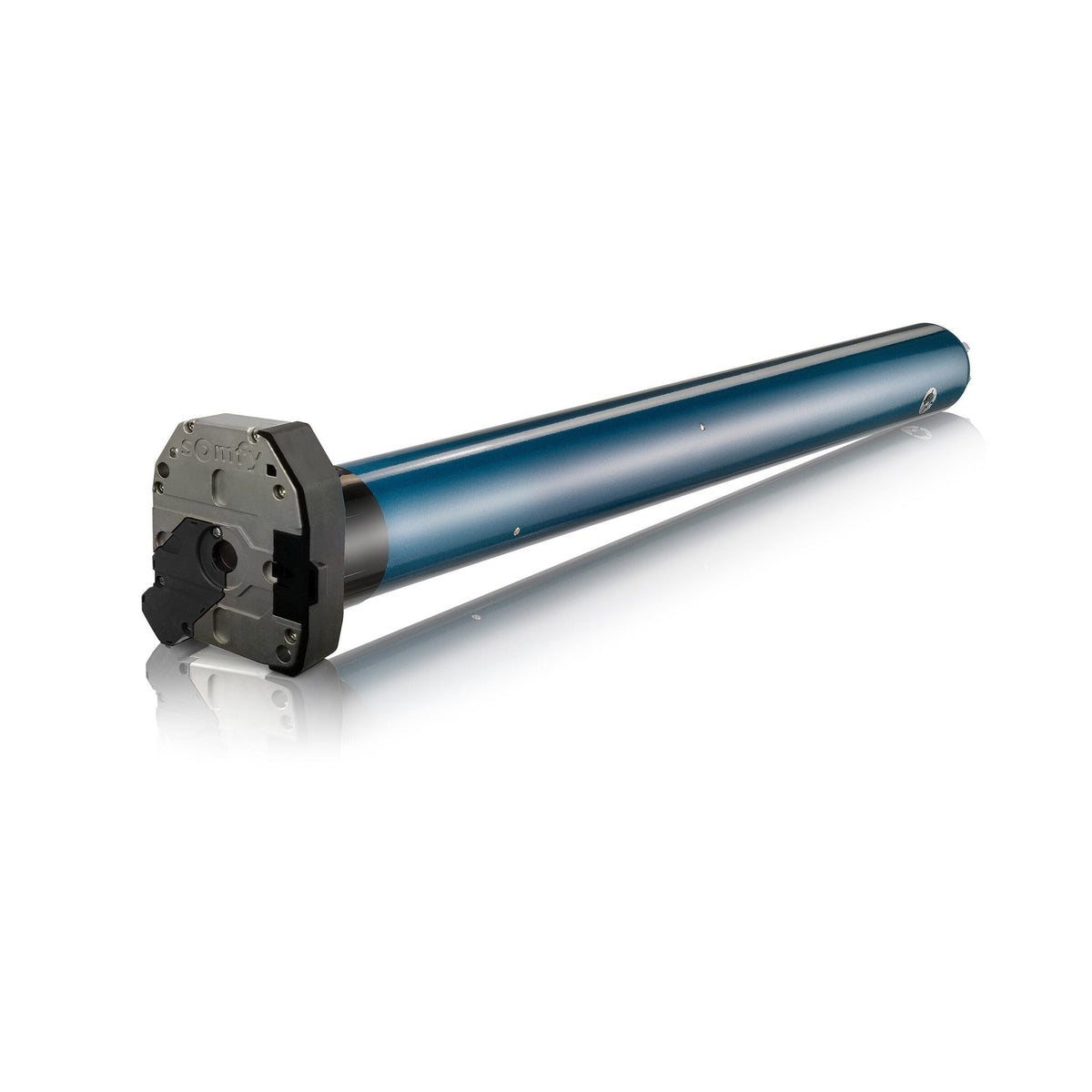

Somfy LT50 535A2 CMO Standard 4-wire Motor -- standard exterior motor with manual override
The Somfy LT50 535A2 CMO is a wired exterior tubular motor with a Compact Manual Override (CMO), letting the shade or awning be operated by hand crank if power is unavailable. It delivers 35Nm (310" lb) at 20 rpm for awnings and rolling shutters.

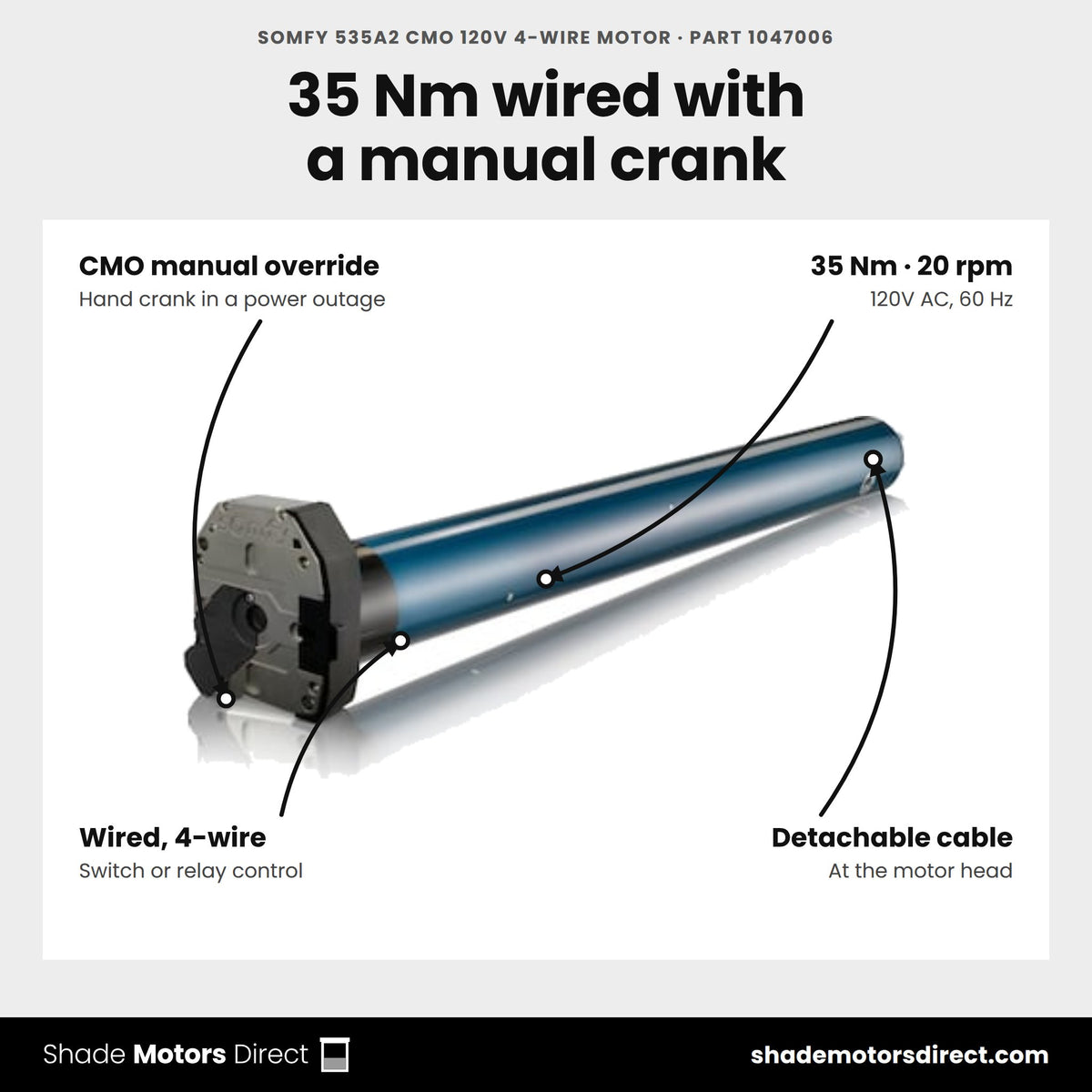

Benefits

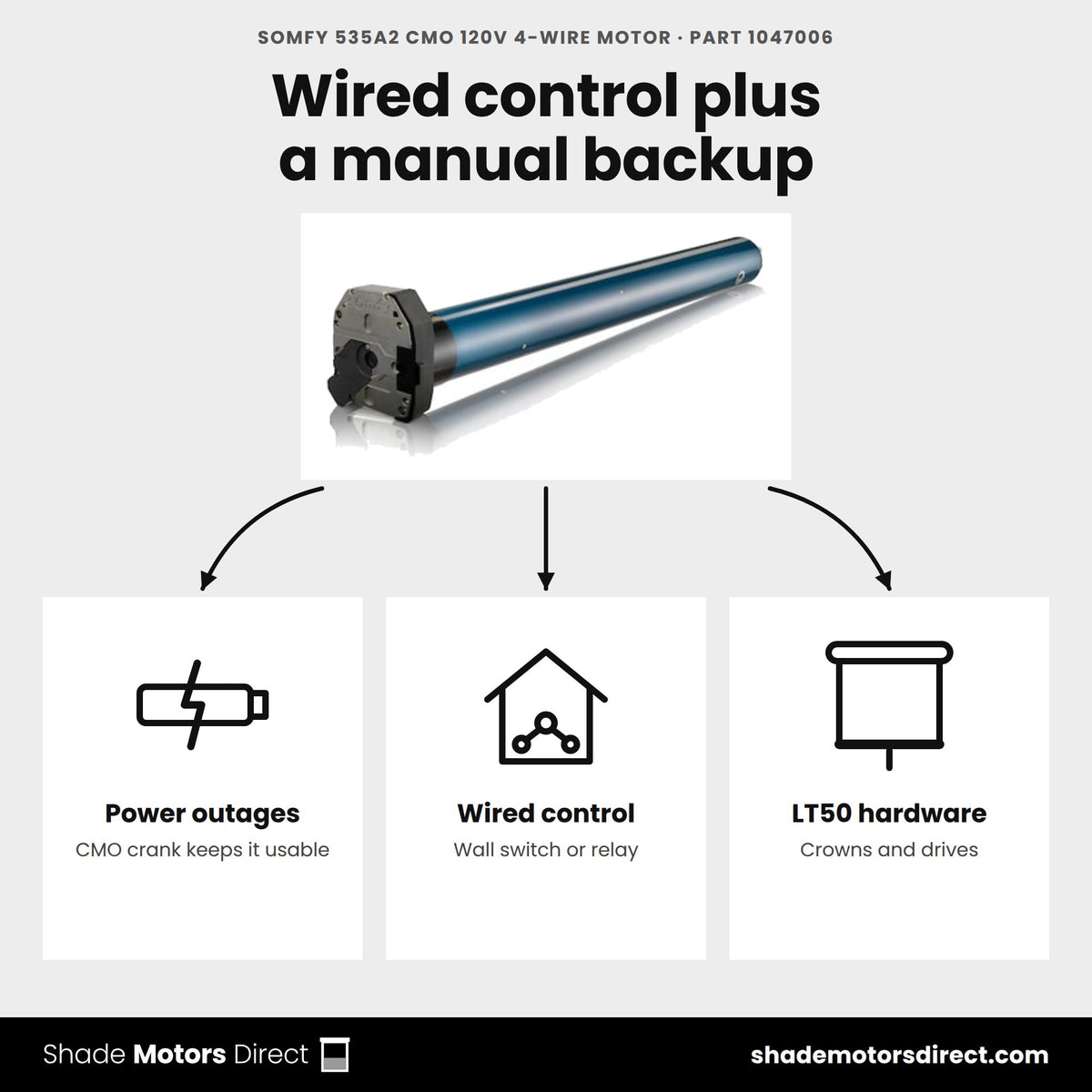

- Compact Manual Override (CMO) for hand-crank operation during a power outage
- Standard 4-wire control -- wired switch or relay
- Detachable power cable at the motor head
- 5-year Somfy warranty
Specifications
| Torque / Speed | 35 Nm (310 in-lb) / 20 rpm |
| Control | Standard 4-wire |
| Override | Compact Manual Override (CMO) |
| Power supply | 120V AC, 60Hz |
| Warranty | 5 years |

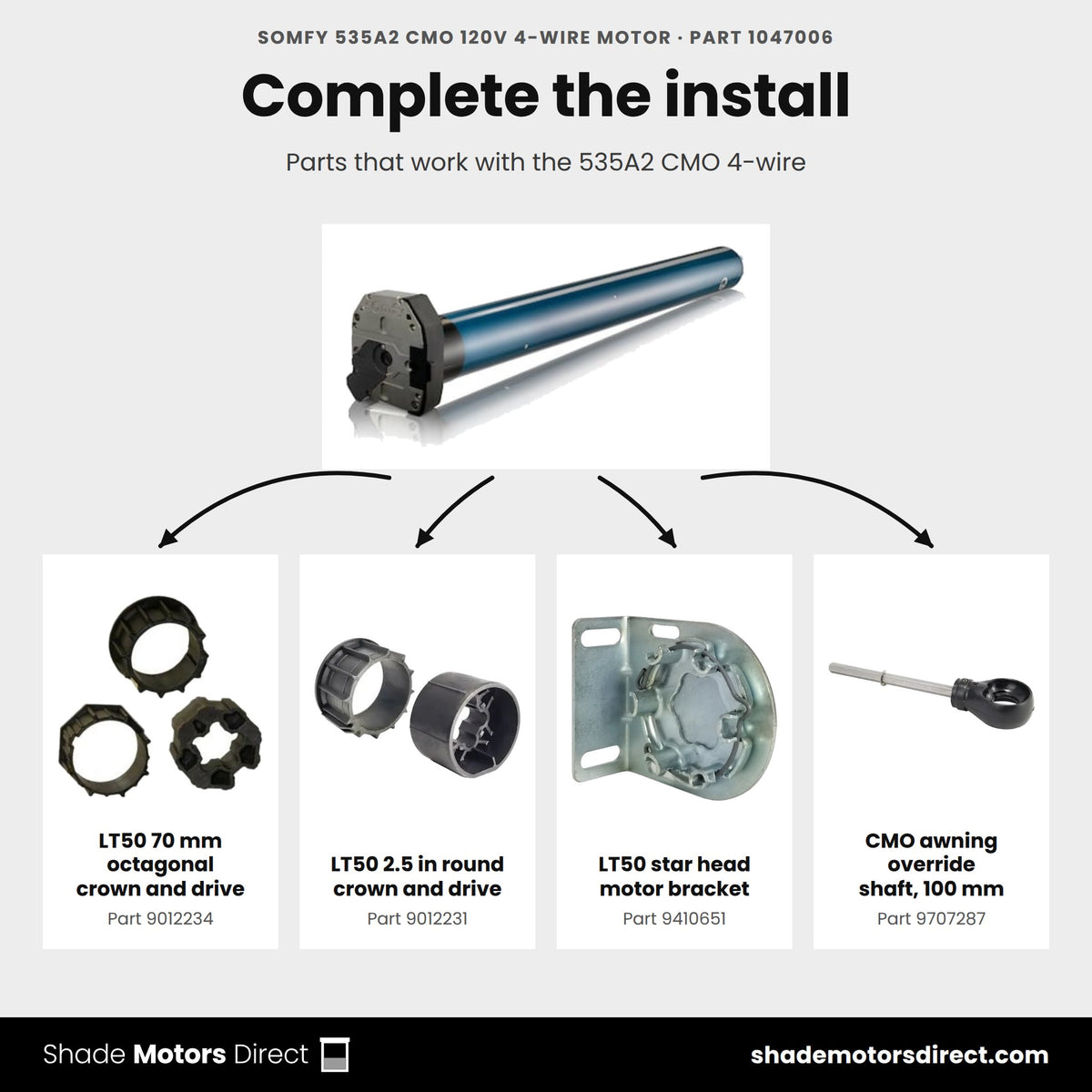

Compatible with: LT50 crown and drive sets, LT50 CMO override hardware
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the 535A2 CMO deliver?
Somfy rates part 1047006 at 35 Nm of torque and 20 rpm on 120V AC. It draws 2.1 A, uses 250 W while running, and Somfy lists it for awnings and rolling shutters.
What does CMO mean?
CMO stands for Compact Manual Override. It lets you raise or retract the awning or shutter with a hand crank when the power is out. The compatible parts on this page include the CMO awning override shaft with Geiger eye (9707287).
What size roller tube does it fit?
Somfy lists a minimum tube inside diameter of 1.85 in and a motor body of 1.77 in. The compatible parts on this page include the LT50 2.5 in round crown and drive set (9012231) and the octagonal LT50 70mm set (9012234).
How is the motor wired?
It is a standard 4-wire 120V motor with a removable 6.56 ft cable and stripped leads. Somfy lists wired wall switches to run it, so plan the switch location before the install.
Is it built for outdoor conditions?
Somfy rates the motor IP 44 with an operating range of -13 °F to 158 °F. Mechanical limit switches set the open and closed stops, with a capacity of 34 turns.
Can I add a remote or a wind sensor?
Yes. The Somfy Universal RTS Receiver (1810627) adds RTS remote control to this 120V motor and pairs with Somfy RTS wind sensors such as the Eolis 3D WireFree (1816081). The 535A2 RTS CMO (1047306) has the receiver built in.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 535A2 CMO 120V 4-Wire Motor (1047006)
|
Somfy 535A2 RTS CMO 120V 3-Wire Motor (1047306)
|
Somfy 530R2 CMO 120V 4-Wire Motor (1045017)
|
Somfy 540R2 CMO 120V 4-Wire Motor (1049026)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 35.0 | 35.0 | 30.0 | 40.0 |
| Speed (rpm) | 20 | 20 | 14 | 14 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| Manual crank override | Yes | Yes | Yes | Yes |
| What's different | The product on this page | Same size, RTS radio control | 30.0 Nm instead of 35.0 | 40.0 Nm instead of 35.0 |
| Buy | Currently viewing | View details | View details | View details |
