A genuine Somfy awning motor with a built-in RTS receiver costs between $448.59 and $687.80 at our September 2026 prices. Torque sets most of that spread, and the crank override head sets the rest. The crown, drive, bracket and remote add less than a hundred and fifty dollars to a typical kit, and a wind sensor is the add-on worth budgeting for.
The motors below sit in our Somfy awning motors range, part of our full line of Somfy motors. The prices cover the motor and parts only, with the awning frame, fabric and installation labor left out.
Somfy awning motor prices by model
| Motor | Torque | Head | Our price |
| Altus RTS 525A2 (1043423) | 25 Nm, 20 rpm | Standard LT50 | $448.59 |

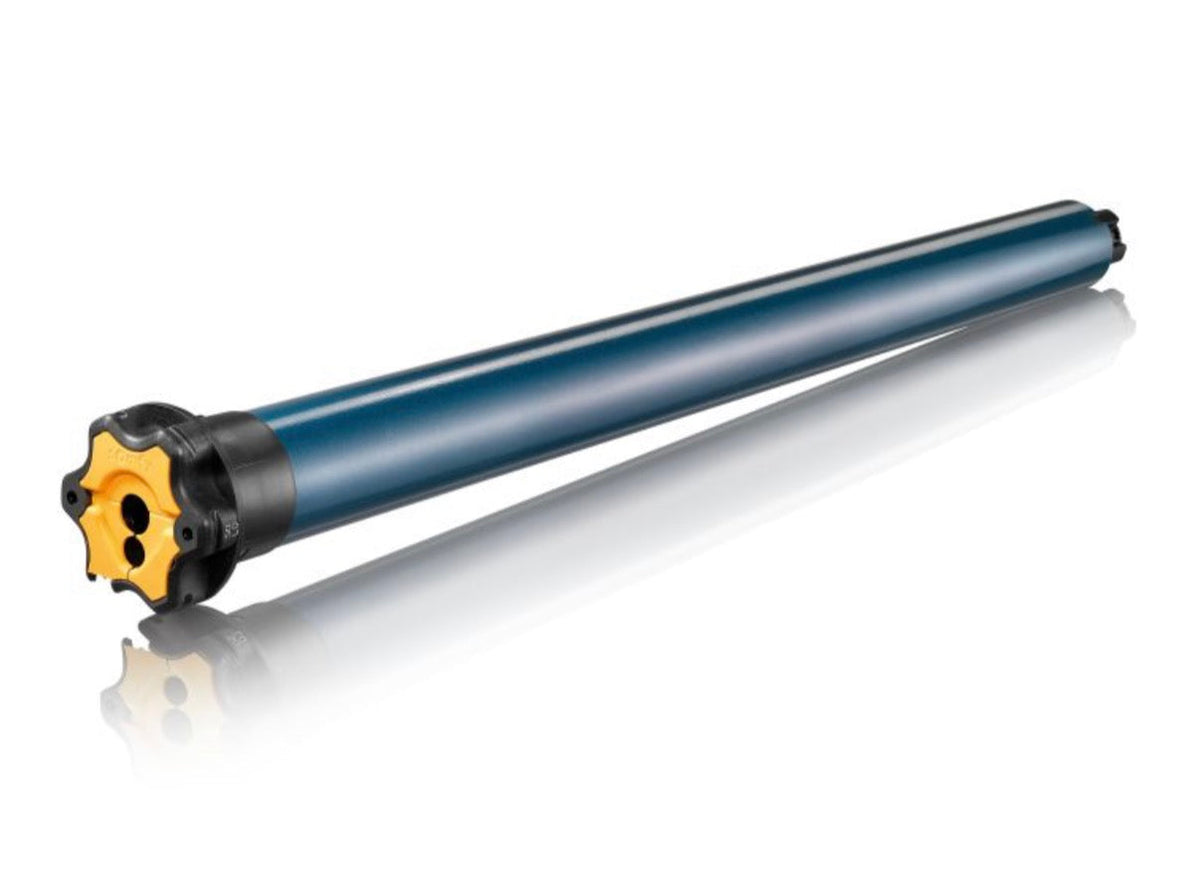

| Altus RTS 550R2 (1038170) | 50 Nm, 14 rpm | Standard LT50 | $521.95 |
| Orea RTS 535A2 (1038173) | 35 Nm | Cassette awning | $546.50 |
| Sunea 525A2 CMO RTS (1114304) | 25 Nm | CMO, crank override | $558.53 |
| Sunea 535A2 CMO RTS (1116321) | 35 Nm, 20 rpm | CMO, crank override | $607.11 |
| LT60 Altus RTS 680R2 (1164261) | 80 Nm, 14 rpm | Standard LT60 | $645.81 |
| Sunea 550R2 CMO RTS (1118210) | 50 Nm | CMO, crank override | $648.62 |
| LT60 Altus RTS 6100R2 (1166289) | 100 Nm, 14 rpm | Standard LT60 | $687.80 |
Somfy writes the torque into the model code. The 5 or 6 in front names the LT50 or LT60 series, and the digits after it give the torque in newton meters, so a 535A2 delivers 35 Nm and a 6100R2 delivers 100 Nm. Our Somfy model code guide decodes the rest of the name.
Torque and the crank head set the price
Two things move an awning motor up the price table. Higher torque costs more. The CMO head adds the rest.
CMO stands for crank manual override. A Sunea CMO motor accepts a crank eye at the head, so an owner can retract the awning by hand during a power cut or a storm. Compare two 25 Nm motors: the Altus RTS 525A2 lists at $448.59 and the Sunea 525A2 CMO RTS at $558.53. The $109.94 gap buys the crank head plus Sunea's automatic limit re-adjustment, which resets the closed position as the fabric stretches over its first seasons.
The Orea sits between them. The Somfy LT50 Orea RTS 535A2 Cassette Awning Motor (1038173) suits full cassette awnings, where the fabric closes into a housing, at $546.50.
Size the motor before comparing prices
A cheaper motor that stalls on the frame costs more than the right one. Awning projection loads the roller harder than width alone, because the folding arms change the load at the tube. Awning makers publish a motor recommendation for each frame, and that figure is the one to buy against.
Tube size narrows the choice too. Somfy publishes a 1.85 in minimum tube inside diameter for the LT50 Altus RTS 550R2 and 2.37 in for the LT60 motors, so a heavy 80 or 100 Nm motor needs the larger roller. Our LT50 vs LT60 comparison covers that split in detail.
The LT50 motors in the table, 25 to 50 Nm, cover most residential lateral arm awnings. The Somfy Sunea 535A2 CMO RTS 120V Motor (1116321) at 35 Nm and 20 rpm covers a large share of them.
The parts that finish an awning motor kit
A motor arrives as a motor. A few small parts connect it to the awning, and they cost little next to the motor.
| Part | Fits | Our price |
| Octagonal LT50 70mm Crown and Drive Set (9012234) | LT50 motors on 70 mm octagonal tube | $11.50 |
| Octagonal LT60 70mm Crown and Drive Set (9012247) | LT60 motors on 70 mm octagonal tube | $11.50 |
| LT50 Star Head Motor Bracket (9410651) | Standard LT50 star head motors | $11.75 |
| Motor Bracket for Sunea CMO RTS, US (9015802) | Sunea CMO heads | $15.45 |
| CMO Awning Override Shaft, 100mm (9707287) | CMO crank setups | $16.75 |
Match the crown and drive to the flat-to-flat size of the octagonal tube, not the corner-to-corner size. Match the bracket to the head. A star bracket will not hold a CMO head, so a Sunea motor takes the Somfy Motor Bracket for Sunea CMO RTS, US (9015802). The full set of Somfy crowns, drives and brackets covers other tube sizes.
Remote and sensor costs
An RTS awning motor needs one transmitter to program it. The Somfy Telis 1 Channel RTS Patio Remote (1810643) costs $99.95, and Somfy rates it IP 44 with water and shock resistance for outdoor use. A home with a pergola or screens as well can step up to the five-channel Telis 4 RTS Patio at $133.95. Compare each Somfy remote for awnings in our RTS remote range.
A wind sensor protects the investment. The Somfy Eolis 3D WireFree RTS Wind Sensor, White (1816081) reads awning movement in three directions and retracts the awning on its own when wind passes your set threshold. It costs $239.95. The Ondeis WireFree RTS Rain and Sun Sensor adds rain protection at $298.95.
Three sample awning kits
| Kit | Parts | Total |
| Standard awning, 25 Nm | Altus RTS 525A2, LT50 70mm crown and drive, LT50 star bracket, Telis 1 Patio | $571.79 |
| Cassette awning with crank, 35 Nm | Sunea 535A2 CMO RTS, LT50 70mm crown and drive, Sunea CMO bracket, Telis 1 Patio | $734.01 |
| Same cassette kit plus wind sensor | Kit above plus Eolis 3D WireFree RTS | $973.96 |
Somfy backs its awning motors with a five year warranty. Measure the tube, confirm the torque against the awning maker's figure, and order the motor, crown, drive and bracket together so the job ships in one box.
Frequently asked questions
How much does a Somfy awning motor cost?
Our Somfy RTS awning motors run from $448.59 for an Altus RTS 525A2 at 25 Nm to $687.80 for an LT60 Altus RTS 6100R2 at 100 Nm, at September 2026 prices. A complete kit with crown, drive, bracket and a patio remote adds roughly $120 to $130 to the motor.
Why does a Sunea CMO motor cost more than an Altus RTS?
The Sunea CMO head accepts a hand crank, so an owner can retract the awning during a power cut. The Sunea line also re-adjusts its closed limit as awning fabric stretches. At 25 Nm, the Sunea 525A2 CMO RTS lists $109.94 above the Altus RTS 525A2.
Which torque does my awning need?
Use the awning maker's motor recommendation for the frame. Projection loads the roller more than width, since the folding arms change the load at the tube. LT50 motors from 25 to 50 Nm cover most residential lateral arm awnings, and LT60 motors at 80 or 100 Nm need a 2.37 in minimum tube.
Does the motor price include a remote?
No. Our Somfy RTS awning motors ship as the motor alone, without a transmitter, and an RTS motor needs one to set limits and pair controls. The Telis 1 RTS Patio remote costs $99.95 and carries an IP 44 rating for outdoor use. A wind sensor such as the Eolis 3D WireFree adds $239.95.
