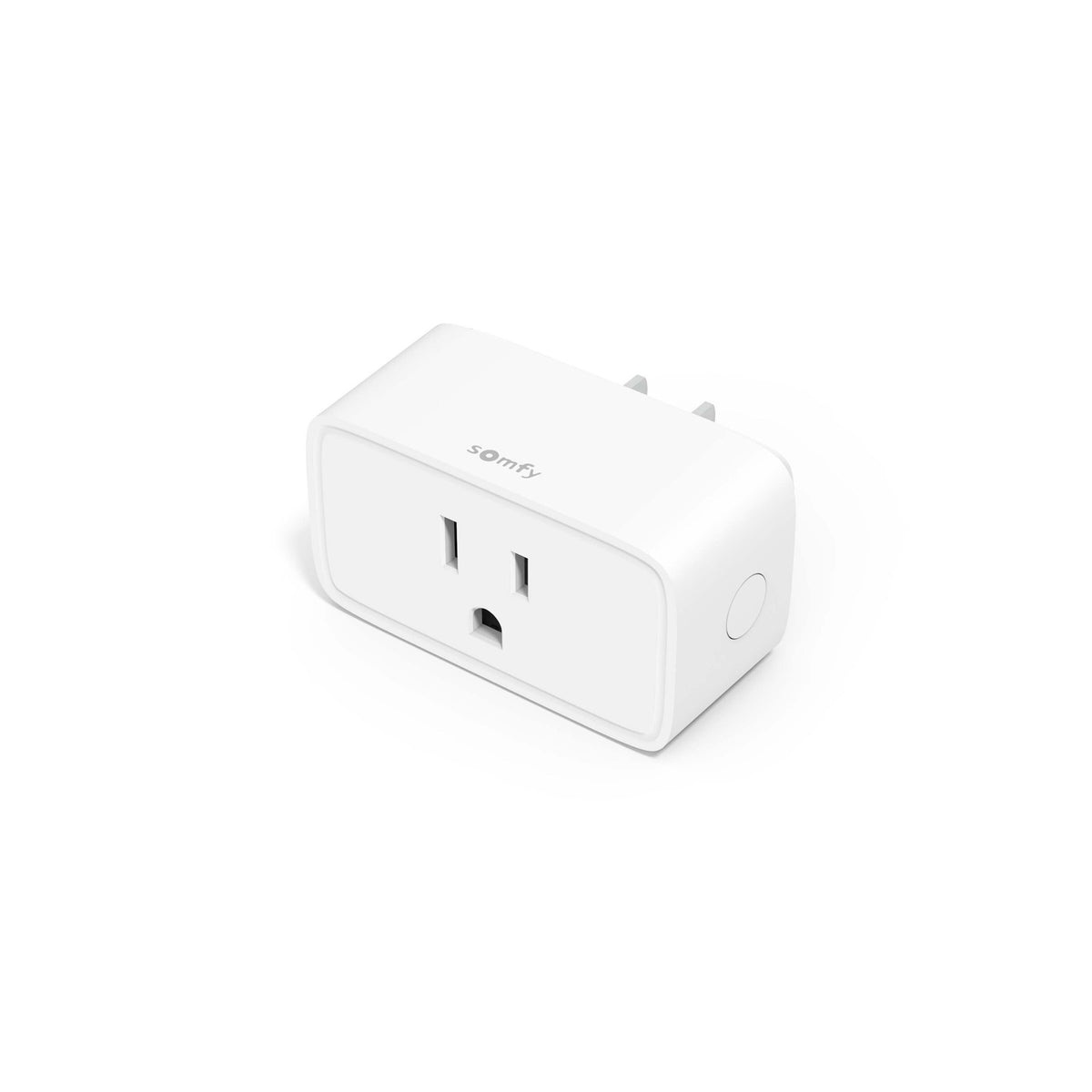

Somfy Zigbee Smart Plug Adaptor

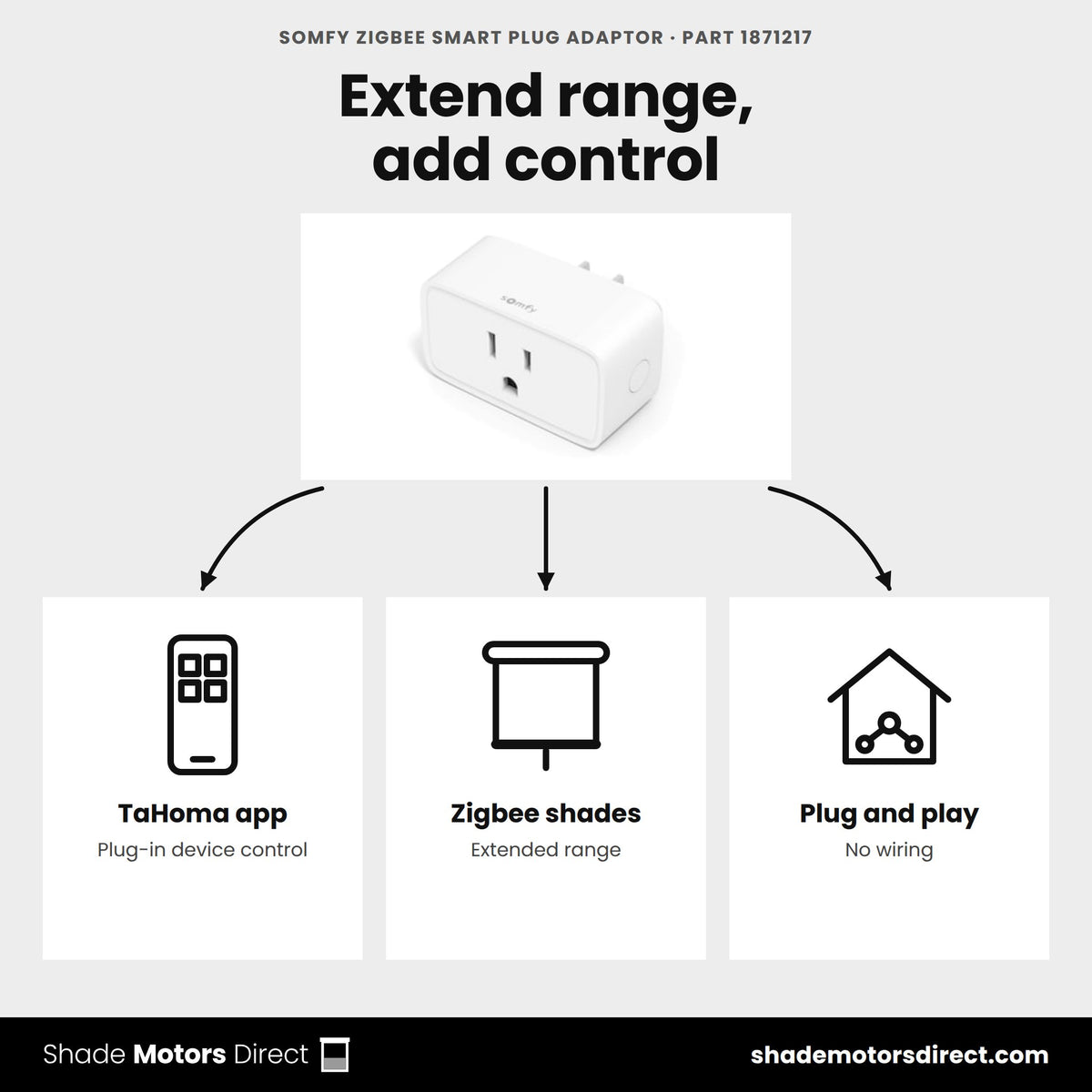

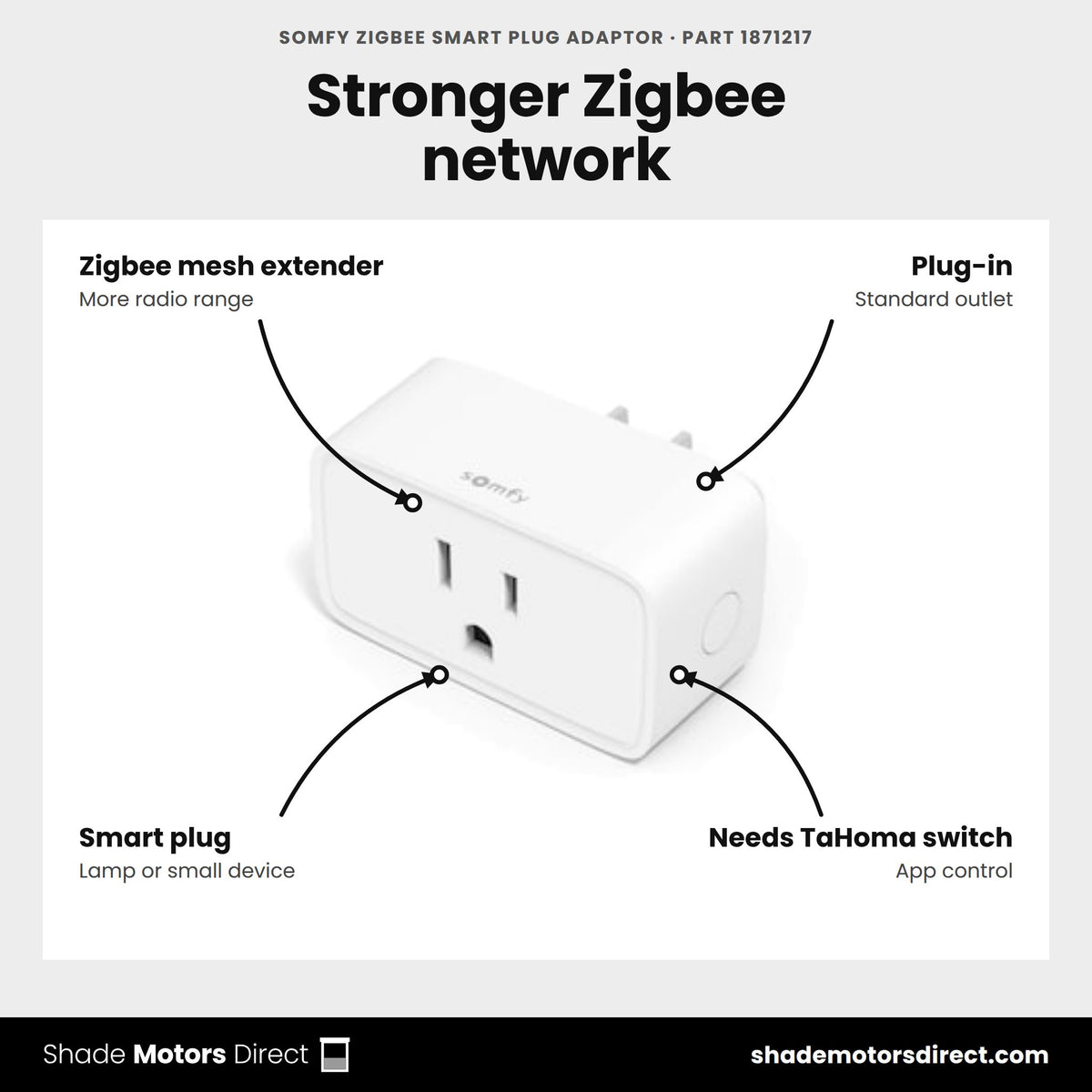

A plug-in Zigbee mesh extender used with the TaHoma switch, extending Zigbee radio range for motorized window coverings while also letting the TaHoma app control lighting or small devices plugged into it.
Specifications
| Part type | Zigbee mesh extender / smart plug |
| Requires | TaHoma switch |
| Genuine part | Yes -- Somfy 1871217 |
Compatible with: TaHoma switch, Somfy Zigbee motorized products
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Somfy Zigbee Smart Plug do?
It does two jobs. It repeats the Zigbee signal to extend range for Somfy Zigbee window coverings, and it switches a lamp or other small plug-in device on and off from the TaHoma app. Part 1871217 draws 0.5 W in operation.
Does it need a hub?
Yes. Somfy requires the TaHoma Switch (1871037) for this plug. Once the plug joins the TaHoma system, the app controls it along with your Somfy Zigbee shades, and the plug relays commands to motors farther from the hub.
How far does it reach?
Somfy rates the plug at 328.1 ft of range in open field, on Zigbee 3.0 at 2.450 GHz. Walls and floors shorten that indoors, so place it between the TaHoma Switch and the shades at the edge of the network.
Can I use a voice assistant with it?
Yes, through the TaHoma Switch. Somfy lists Amazon Alexa, Google Home and Apple HomeKit as compatible, so a voice command can switch the plugged-in lamp or device along with your Somfy shades.
What outlet and location does it need?
It plugs into a standard 120V/60Hz outlet and is rated for indoor use, with an IP 20 rating. It comes in white, and Somfy backs it with a 5 year warranty.

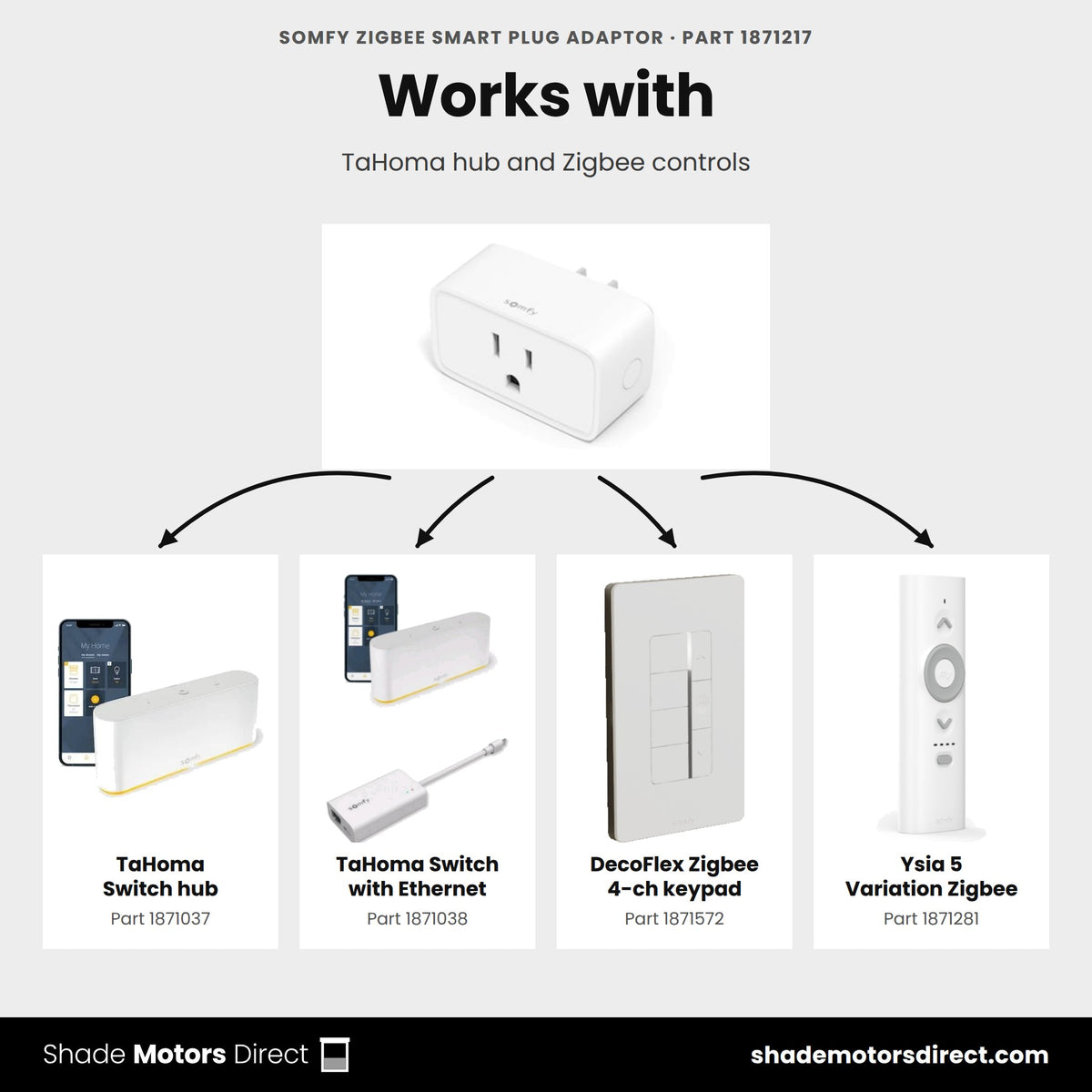

Which Somfy products work with it?
It works with Somfy Zigbee 3.0 products on a TaHoma system, such as the Sonesse 40 406A2 Zigbee 3.0 motor (1245921) and the Glydea Ultra 35 Zigbee Drapery Motor (1241840). DecoFlex WireFree Zigbee keypads can switch it too.
Couldn't load pickup availability
Replace a lost Zigbee control or add one to new Zigbee shades.
Replacing one? Swap it in your hub app. New shades? Add the motors first, then the Zigbee Smart Plug Adaptor.
12- 1Outlet Plug in the device you want to control.
- 2Prongs Plug into a standard wall outlet.
Replacing a control
-
1
Remove the old control
Delete the lost or broken control from TaHoma or your hub.
-
2
Add the Zigbee Smart Plug Adaptor
Start adding a device in the app and put the control in pairing mode.
-
3
Link your shades
Assign the same motors or groups the old control had.
Not sure your motors are Zigbee? Send us their part numbers. We'll check before you order. Ask us
Setting up new shades
-
1
Add the motors
Pair each Zigbee motor with TaHoma or your Zigbee 3.0 hub.
-
2
Add the Zigbee Smart Plug Adaptor
Start adding a device in the app and put the control in pairing mode.
-
3
Link your shades
Assign the motors or groups each button controls.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Zigbee Smart Plug Adaptor controls
These Somfy motors work with part 1871217.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Zigbee Smart Plug Adaptor for 5 years. We handle the claim.
Somfy warranty on the Zigbee Smart Plug Adaptor, part 1871217.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Zigbee Smart Plug Adaptor (1871217)
|
Somfy Connect Universal Automation Interface (UAI) Plus (1870272)
|
Somfy Control4 Module (1870533)
|
Somfy IGC 4-in-1 Motor Control (1811416)
|
|---|---|---|---|---|
| Price | ||||
| Control | Zigbee | IP / SDN 2.0 | Zigbee to RS485 | Wired (dry contact) |
| Power | 120V AC plug-in | 12-24V DC | — | — |
| What's different | The product on this page | Same size, IP / SDN 2.0 control | Same size, Zigbee to RS485 control | Same size, Wired (dry contact) control |
| Buy | Currently viewing | View details | View details | View details |
