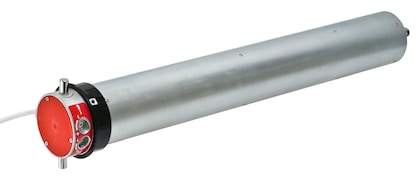

Simu T8 200Nm Diameter 94mm 10rpm 120V -- a 200 Nm axial tubular operator for commercial rolling closures
The Simu T8 200Nm Diameter 94mm 10rpm 120V (2004248) is a wired axial tubular operator for industrial and commercial rolling shutters and closures. It delivers 200 Nm at 10 rpm on 120V/60Hz power and fits 94mm tubes. Use it on heavy doors and grilles where a T6 cannot carry the curtain weight.
Benefits
- 200 Nm at 10 rpm moves heavy commercial rolling closures
- Fits 94mm tubes, with Somfy 97mm and 124mm round sets available
- 4-wire wired control for switches, key switches and relays
- Limit switch capacity of 17 turns
- Somfy lists safety brakes from 258 Nm to 3000 Nm as accessories
- IP 44 rated and backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 200 Nm / 10 rpm |
| Voltage | 120V / 60Hz AC |
| Rated current | 5.3 A |
| Operating power | 620 W |
| Control | Wired, 4-wire |
| Limit switch capacity | 17 turns |
| Tube diameter | 94mm |
| Thermal time | 4 min |
| Protection | IP 44, Class I |
| Operating temperature | 41°F to 104°F |
| Applications | Industrial and commercial closures, rolling shutters |
| Warranty | 5 years |
Compatible with: 94mm tubes with the T8 94mm round drive (9001297), T8 97mm and 124mm round sets, the T8 2-piece angle bracket set (9001413), Simu safety brakes (404 Nm 2005627, 1000 Nm 2005629) and 120V switches or relays wired for 4-wire motors.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Simu T8 2004248 built for?
Somfy rates the Simu T8 2004248 for industrial and commercial closures and rolling shutters. It is an axial tubular operator that delivers 200 Nm at 10 rpm on 120V/60Hz power, enough for heavy doors and grilles that exceed the range of T5 and T6 motors.
What tube size does the 2004248 fit?
The 2004248 fits a 94mm tube. Somfy lists the T8 94mm round drive (9001297) plus T8 97mm and 124mm round sets for 200 Nm to 280 Nm motors, along with 94mm, 97mm and 124mm idle inserts for the opposite end of the tube.
Does the 2004248 need a safety brake?
Somfy lists Simu safety brakes as accessories for the 2004248, in ratings from 258 Nm to 3000 Nm, including 404 Nm (2005627) and 1000 Nm (2005629). Check local codes and the door manufacturer for when a brake is required on your closure.
How is the Simu T8 2004248 wired?
The 2004248 uses a 4-wire cable. Wire it to a 120V switch, key switch or relay rated for its 5.3 A draw. The motor has a 4 minute thermal time and a 17-turn limit switch capacity. Somfy backs it for 5 years.
Couldn't load pickup availability
Replace a Simu T6, DMI6 or T8 motor, or build a new shutter, screen or awning.
Replacing? Your roller stays built. Building new? Every part below is Somfy-matched to part 2004248.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power and support
Turn off the circuit and support the roller or curtain before you remove the motor.
-
2
Pull the old motor
Unbolt the head from its bracket and slide the motor out of the tube.
-
3
Fit crown and drive
Fit the crown and drive for your tube, slide the new motor in and bolt the head to its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Planning a new shutter, screen or awning? Send us the size and tube. We'll build the parts list with you. Ask us
What the Simu T8 200Nm Diameter 94mm 10rpm 120V needs to run
Somfy lists every part below as compatible with part 2004248. Pick one from each row.
